Model Details

S-CB-2341-BCF

Printer Friendly
S-CB-2341-BCF

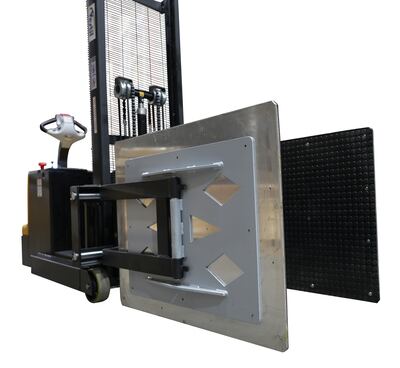

Counter Balanced Powered 23 In. - 41 In. Bale Clamp Lifter 800 Lb. Capacity Black/Yellow

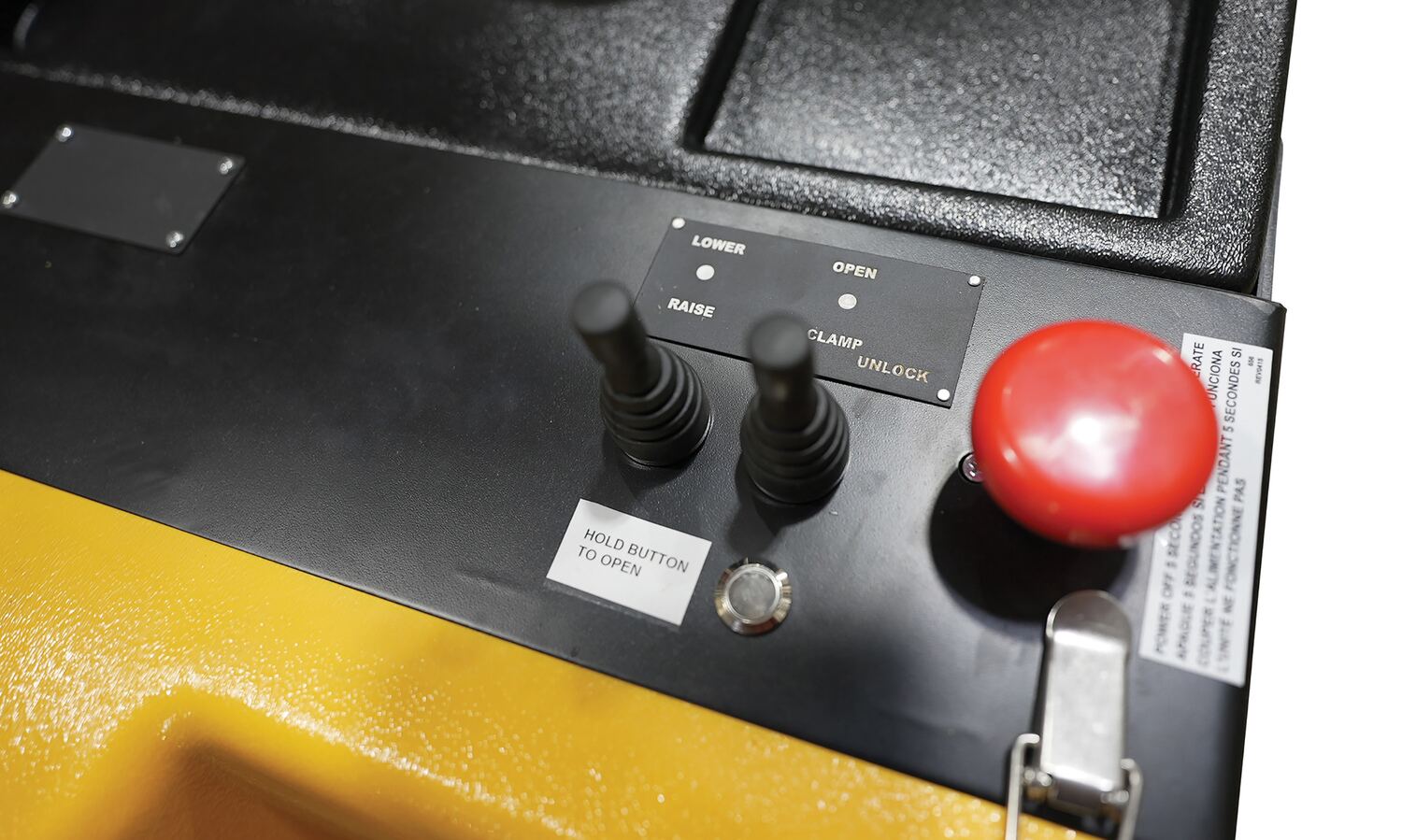

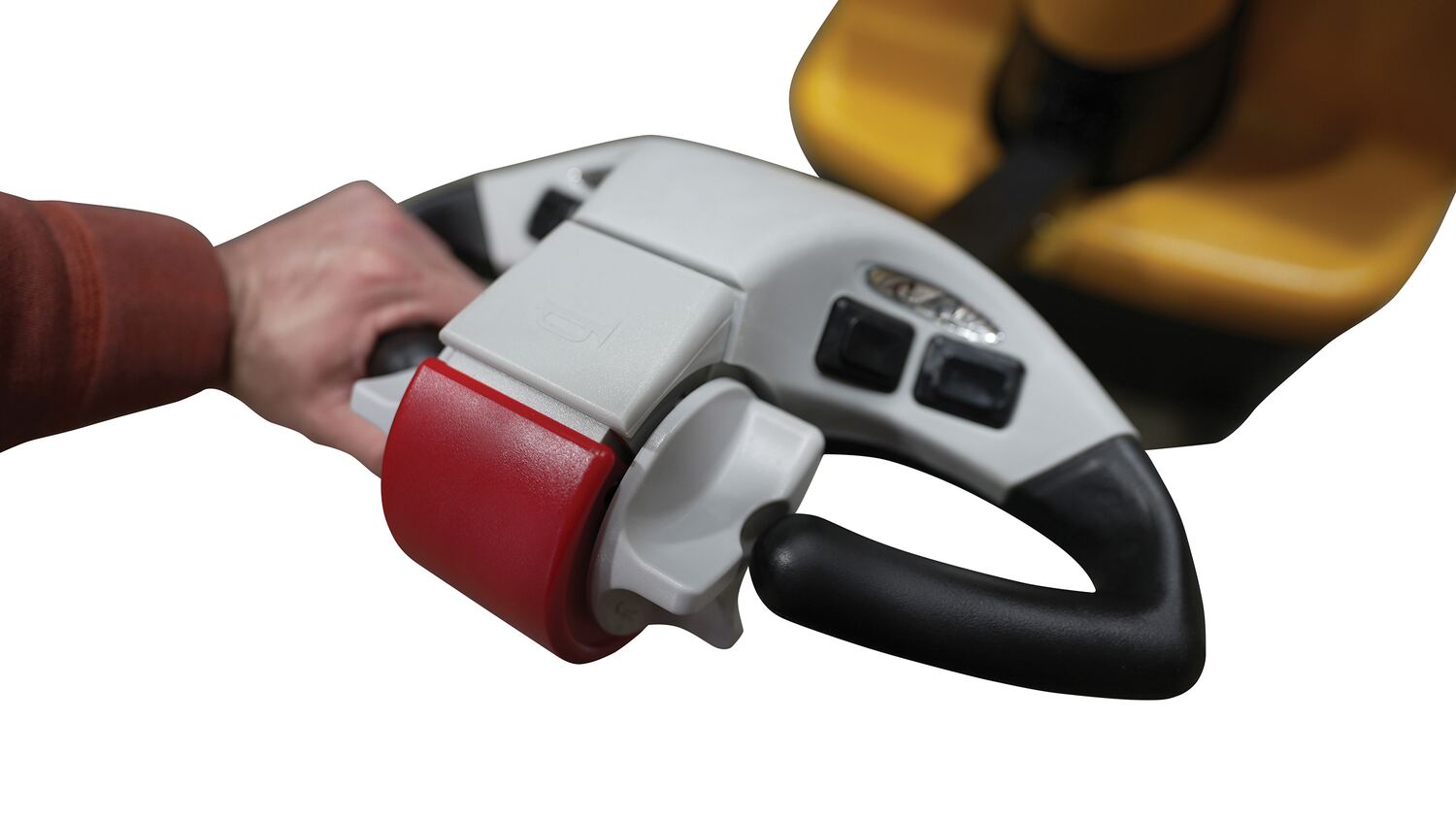

This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Ride-on platform
  • Poly-on-steel steer and load wheels
  • Powered by two 12V lead acid batteries
  • Bale/box clamping range of 23.625" to 41.32"
Total Ship Wt.(lbs.): 2101 (only 1 package) Size: 51.3125"W x 98"L x 78"H Color: Black/Yellow Non-Returnable

Uniform Capacity (lbs.): 800 Minimum Clamp Width (in.): 23.625 Maximum Clamp Width (in.): 41.3125
Maximum Raised Height (In.): 52 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in.): 3.125
Front Wheel Quantity: 2 Front Wheel Diameter (in.): 7 Front Wheel Width (in.): 2.375
Caster Material: Poly on Steel Drive Wheel Quantity: 2 Caster Color: Yellow

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-CB-2341-BCF
S-CB-2341-BCF

Counter Balanced Powered 23 In. - 41 In. Bale Clamp Lifter 800 Lb. Capacity Black/Yellow

This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Ride-on platform
  • Poly-on-steel steer and load wheels
  • Powered by two 12V lead acid batteries
  • Bale/box clamping range of 23.625" to 41.32"
Dimensions: 51.3125"W x 98"L x 78"H Sell UOM: EA-Each Color: Black/Yellow
Material: STEEL|PLASTIC UPC: 691215377751 GTIN: 00691215377751
Warranty: -- Shipping Weight: 2101 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CHINA
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lbs.): 800 Minimum Clamp Width (in.): 23.625 Maximum Clamp Width (in.): 41.3125
Maximum Raised Height (In.): 52 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in.): 3.125
Front Wheel Quantity: 2 Front Wheel Diameter (in.): 7 Front Wheel Width (in.): 2.375
Caster Material: Poly on Steel Drive Wheel Quantity: 2 Caster Color: Yellow
