Model Details

S-CB-2751-BCF

S-CB-2751-BCF

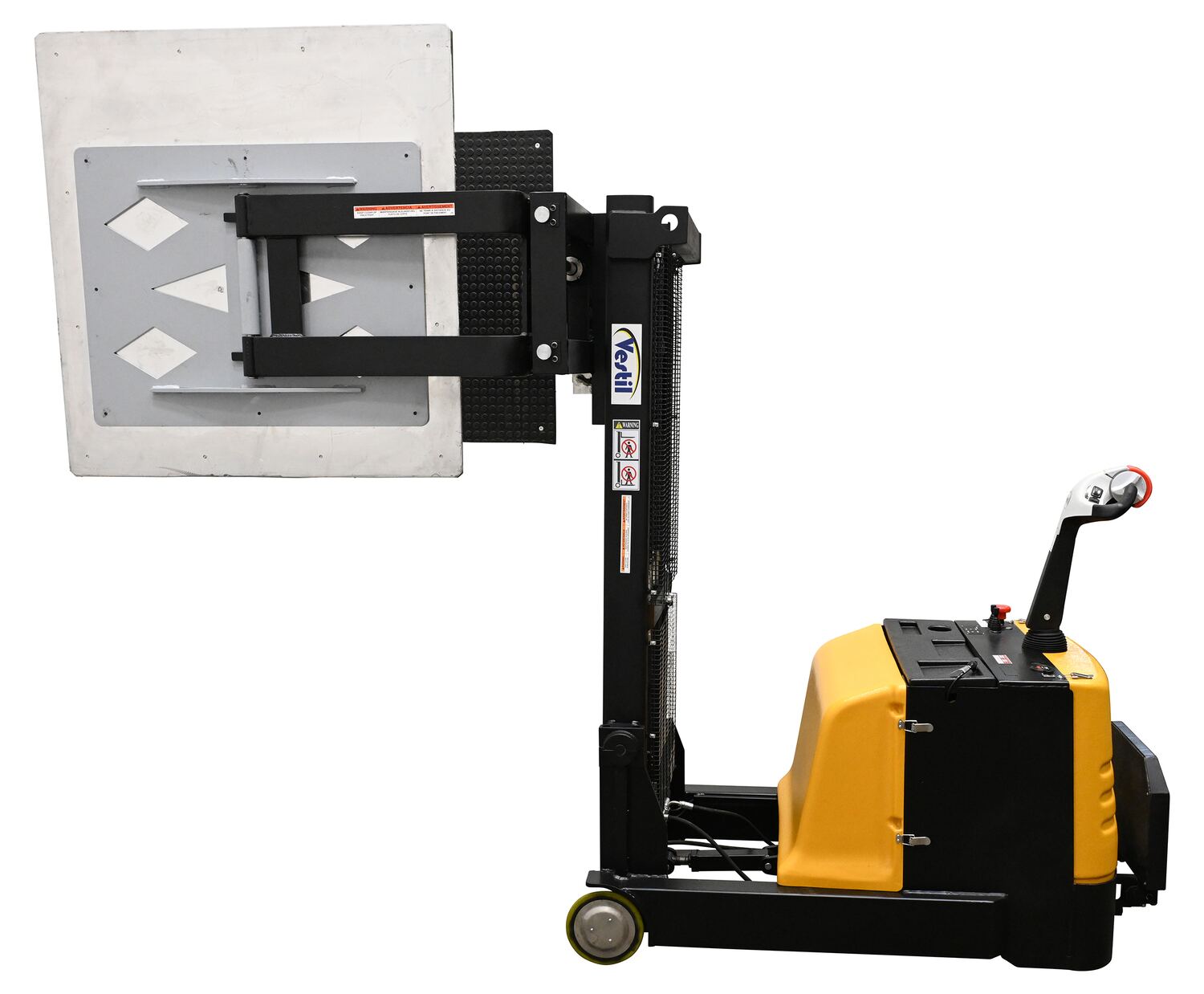

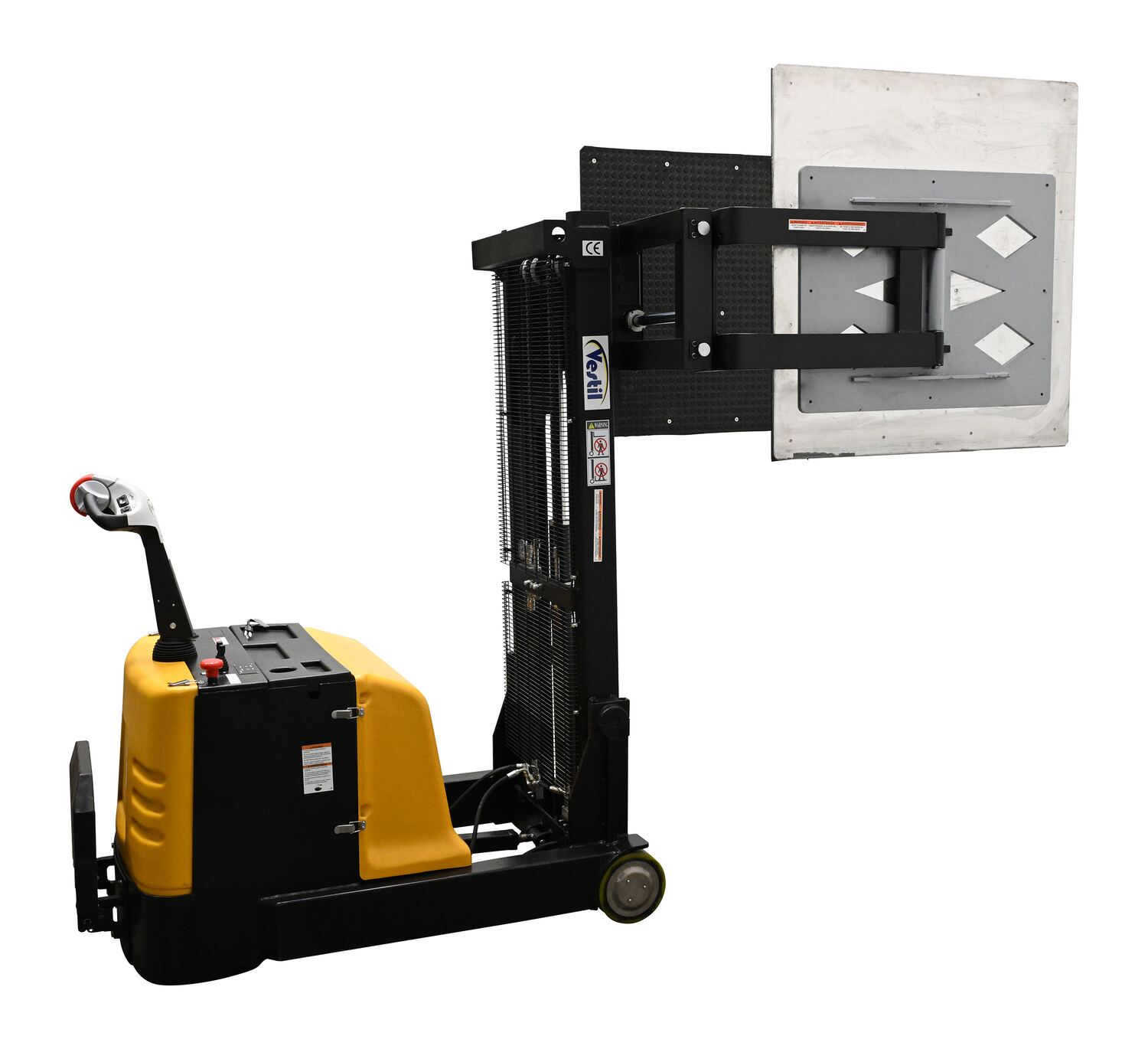

Counter Balanced Powered 27 In. - 51 In. Bale Clamp Lifter 1200 Lb. Capacity Black/Yellow

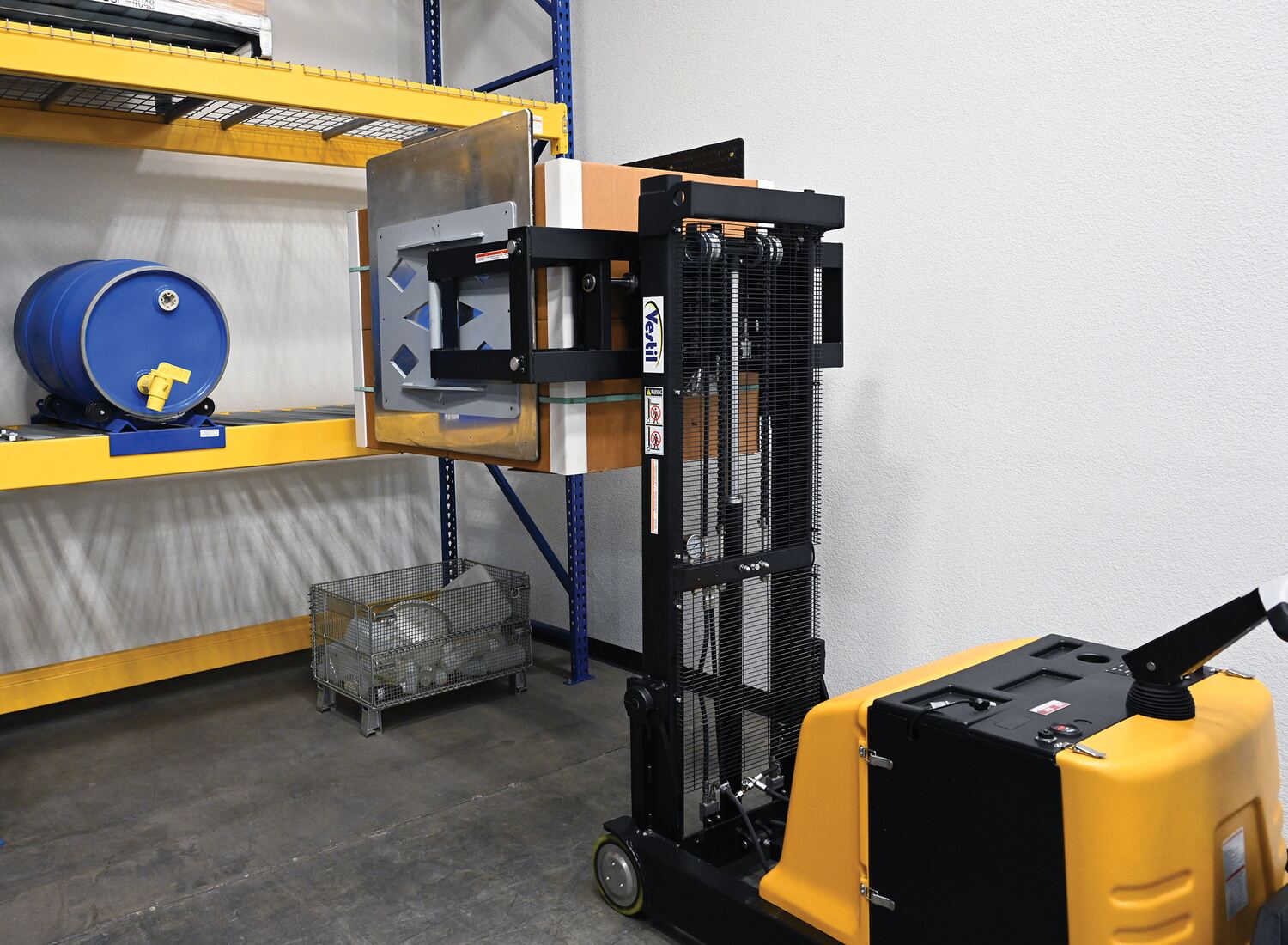

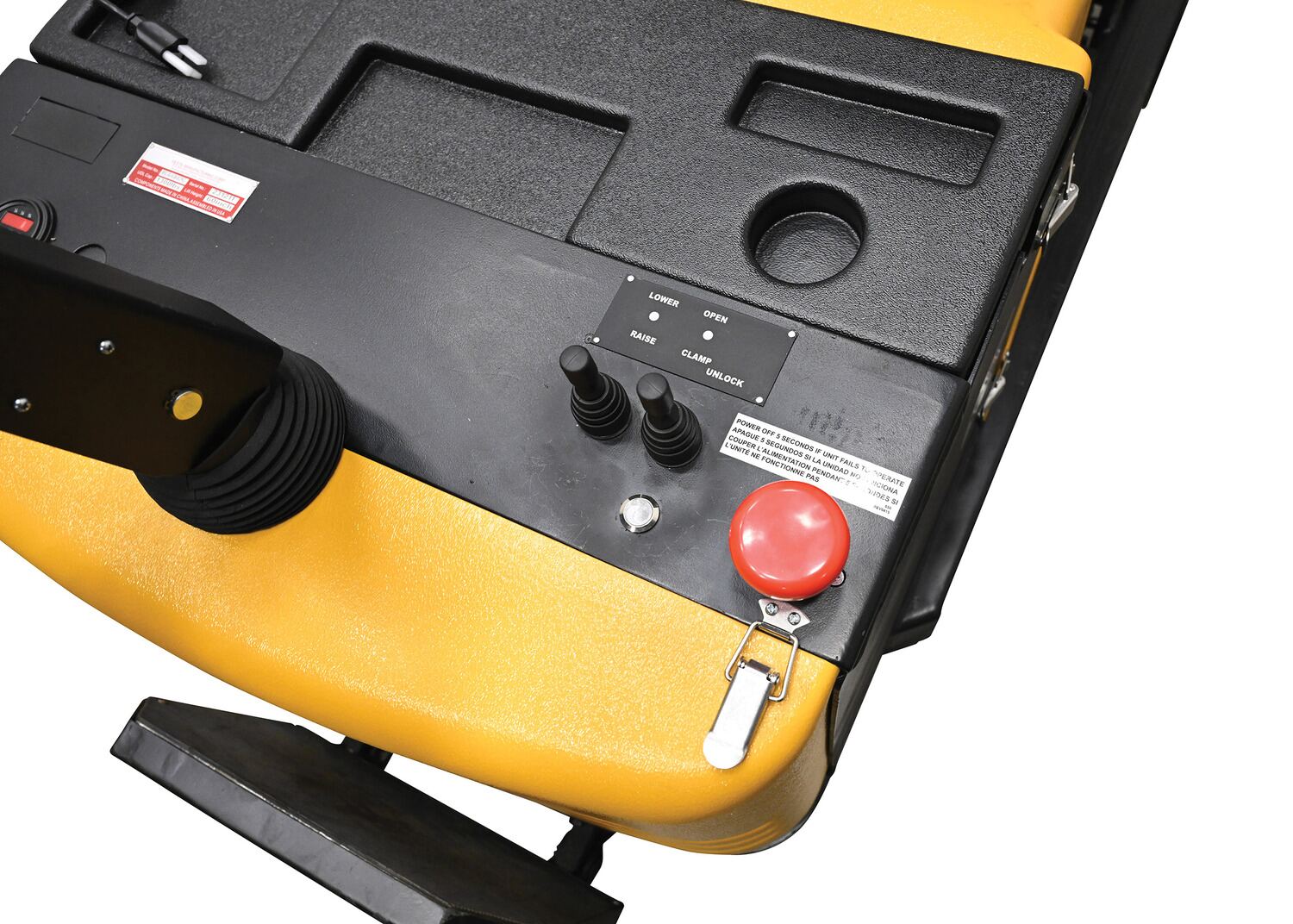

This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Ride-on platform
  • Poly-on-steel steer and load wheels
  • Powered by two (2) 12V lead acid batteries

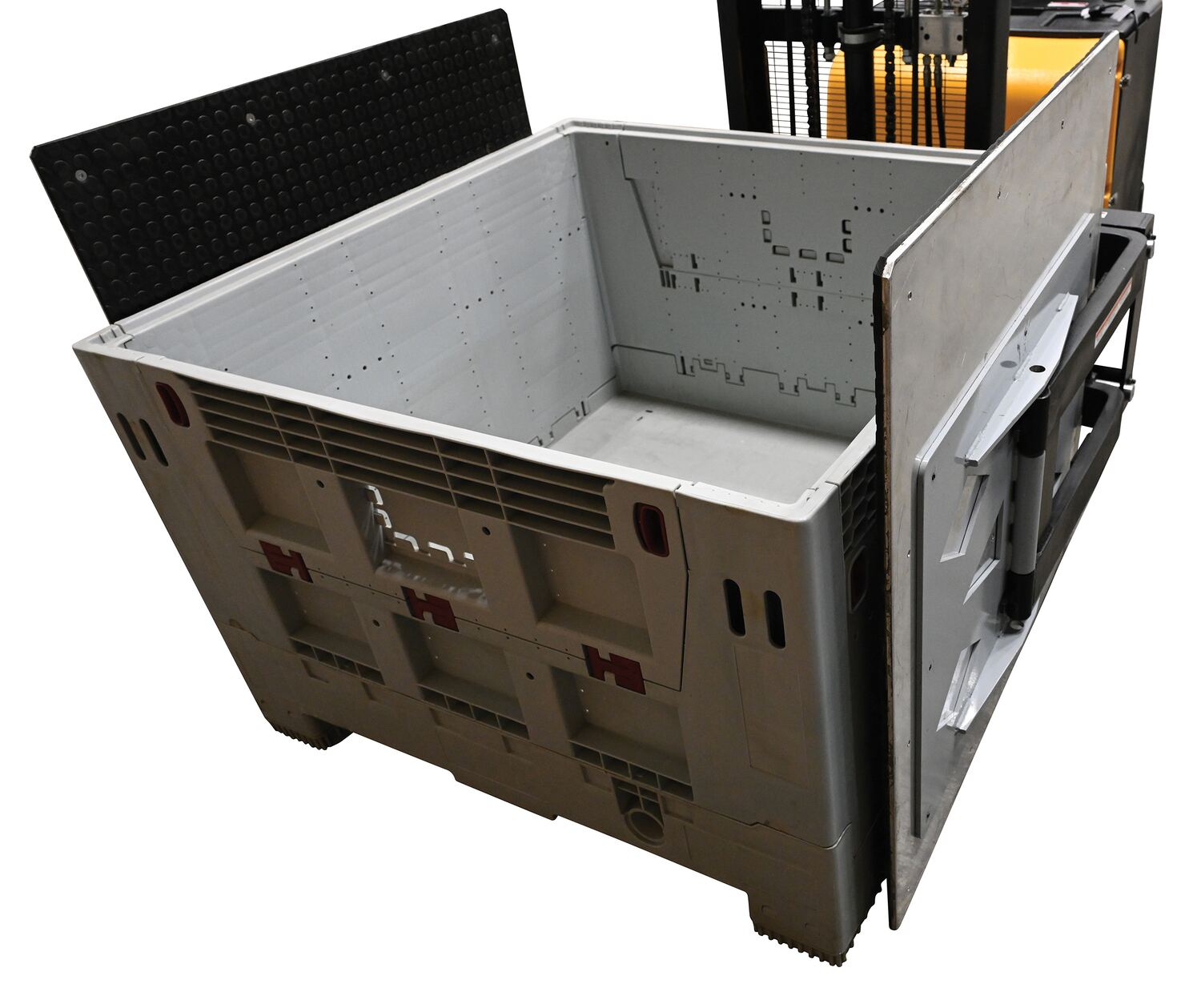

  • Bale/box clamping range of 27.625" to 51.125"
Total Ship Wt.(lbs.): 2641 (only 1 package) Size: 61.125"W x 125"L x 78.25"H Color: Black/Yellow Non-Returnable

Uniform Capacity (lbs.): 1200 Minimum Clamp Width (in.): 27.625 Maximum Clamp Width (in.): 51.125
Maximum Raised Height (In.): 52 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in.): 2
Front Wheel Quantity: 2 Front Wheel Diameter (in.): 7 Front Wheel Width (in.): 2.375
Caster Material: Poly on Steel Caster Color: Yellow Maximum Raised Height (In.): 52
Drive Wheel Quantity: 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-CB-2751-BCF


S-CB-2751-BCF

Counter Balanced Powered 27 In. - 51 In. Bale Clamp Lifter 1200 Lb. Capacity Black/Yellow

This counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. An Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls. When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Ride-on platform
  • Poly-on-steel steer and load wheels
  • Powered by two (2) 12V lead acid batteries
  • Bale/box clamping range of 27.625" to 51.125"
Dimensions: 61.125"W x 125"L x 78.25"H Sell UOM: EA-Each Color: Black/Yellow
Material: STEEL|PLASTIC UPC: 691215377768 GTIN: 00691215377768
Warranty: -- Shipping Weight: 2641 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CHINA
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lbs.): 1200 Minimum Clamp Width (in.): 27.625 Maximum Clamp Width (in.): 51.125
Maximum Raised Height (In.): 52 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in.): 2
Front Wheel Quantity: 2 Front Wheel Diameter (in.): 7 Front Wheel Width (in.): 2.375
Caster Material: Poly on Steel Caster Color: Yellow Maximum Raised Height (In.): 52
Drive Wheel Quantity: 2
