Model Details

S-CB-62-SDC

Printer Friendly
S-CB-62-SDC

Steel Counter Balanced Drum Lifter Single Grip 62 In. Lifting Height 1,000 Lb. Capacity Yellow/Black

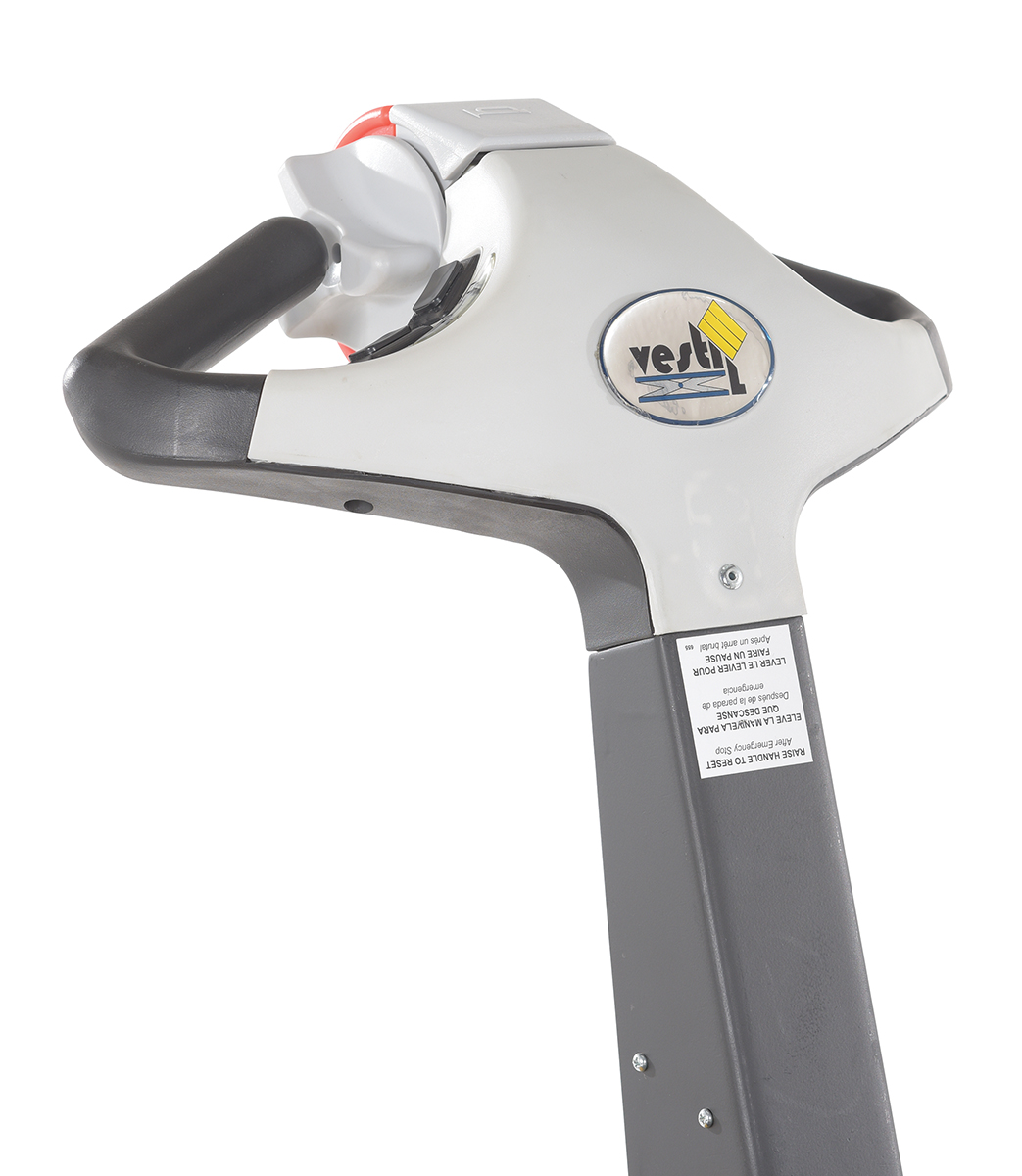

Ideal for confined areas, placing drums in cabinets, loading and unloading drums on/off pallets and scales. Transport 30 and 55 gallon steel, plastic, or fiber drums with ease. Two (2) 12V DC (lead acid batteries) drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn.

  • Emergency reverse belly switch instantly reverses direction
  • Transport a variety of drum styles
  • Simple controls for quick movement
  • Ability to raise to high levels of workspace
Total Ship Wt.(lbs.): 1869 (only 1 package) Size: 33"W x 76"L x 78"H Color: Yellow / Black

Uniform Capacity (lb.): 1,000 Style: Single Grip Front Caster Wheel Diameter (in.): 6-1/4
Drive Wheel Diameter (in.): 10 Caster Wheel Type: Poly-on-Steel Lifting Height Max (in.): 62
Lifting Height Min. (in.): Zero Works With (gal.): (1) 30 or (1) 55 Drum Material: Steel, Plastic and Fiber
Fork Width (in.): 3-1/8 Fork Size (WxTxL): 3-1/8 x 1-3/16 x 30 Mast: Single
Overall Mast Height (in.): 78-1/4 Drive Motor (kw.): 0.7 Lift Motor (kw.): 2.0
Safety Shield: Yes

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-CB-62-SDC
S-CB-62-SDC

Steel Counter Balanced Drum Lifter Single Grip 62 In. Lifting Height 1,000 Lb. Capacity Yellow/Black

Ideal for confined areas, placing drums in cabinets, loading and unloading drums on/off pallets and scales. Transport 30 and 55 gallon steel, plastic, or fiber drums with ease. Two (2) 12V DC (lead acid batteries) drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn.

  • Emergency reverse belly switch instantly reverses direction
  • Transport a variety of drum styles
  • Simple controls for quick movement
  • Ability to raise to high levels of workspace
Dimensions: 33"W x 76"L x 78"H Sell UOM: EA-Each Color: Yellow / Black
Material: Steel UPC: 691215116909 GTIN: 00691215116909
Warranty: -- Shipping Weight: 1869 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Style: Single Grip Front Caster Wheel Diameter (in.): 6-1/4
Drive Wheel Diameter (in.): 10 Caster Wheel Type: Poly-on-Steel Lifting Height Max (in.): 62
Lifting Height Min. (in.): Zero Works With (gal.): (1) 30 or (1) 55 Drum Material: Steel, Plastic and Fiber
Fork Width (in.): 3-1/8 Fork Size (WxTxL): 3-1/8 x 1-3/16 x 30 Mast: Single
Overall Mast Height (in.): 78-1/4 Drive Motor (kw.): 0.7 Lift Motor (kw.): 2.0
Safety Shield: Yes
