Model Details

SBM-T-42-66

Limited Availability, Contact Sales For More Details.


Printer Friendly

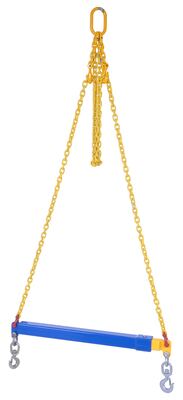

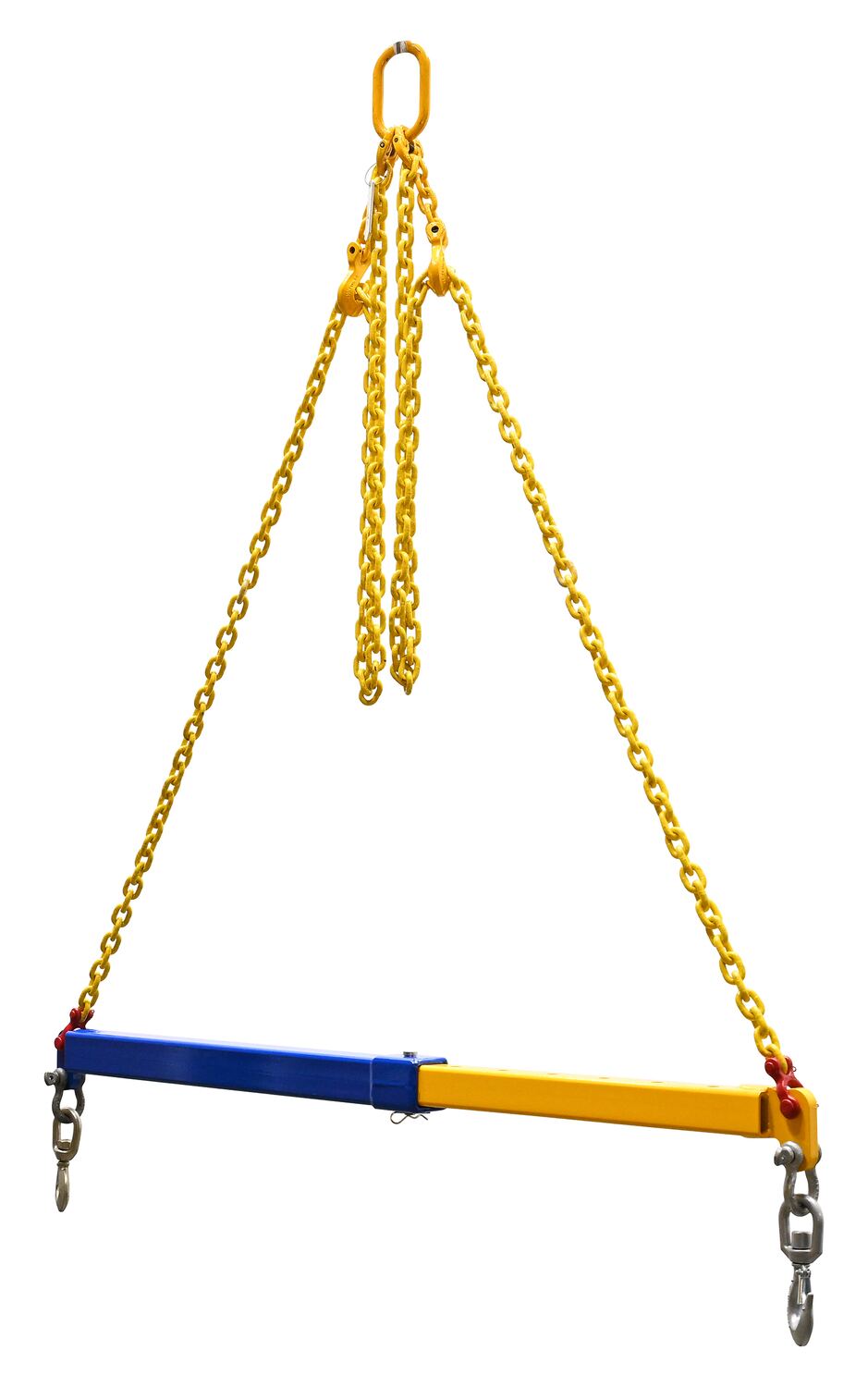

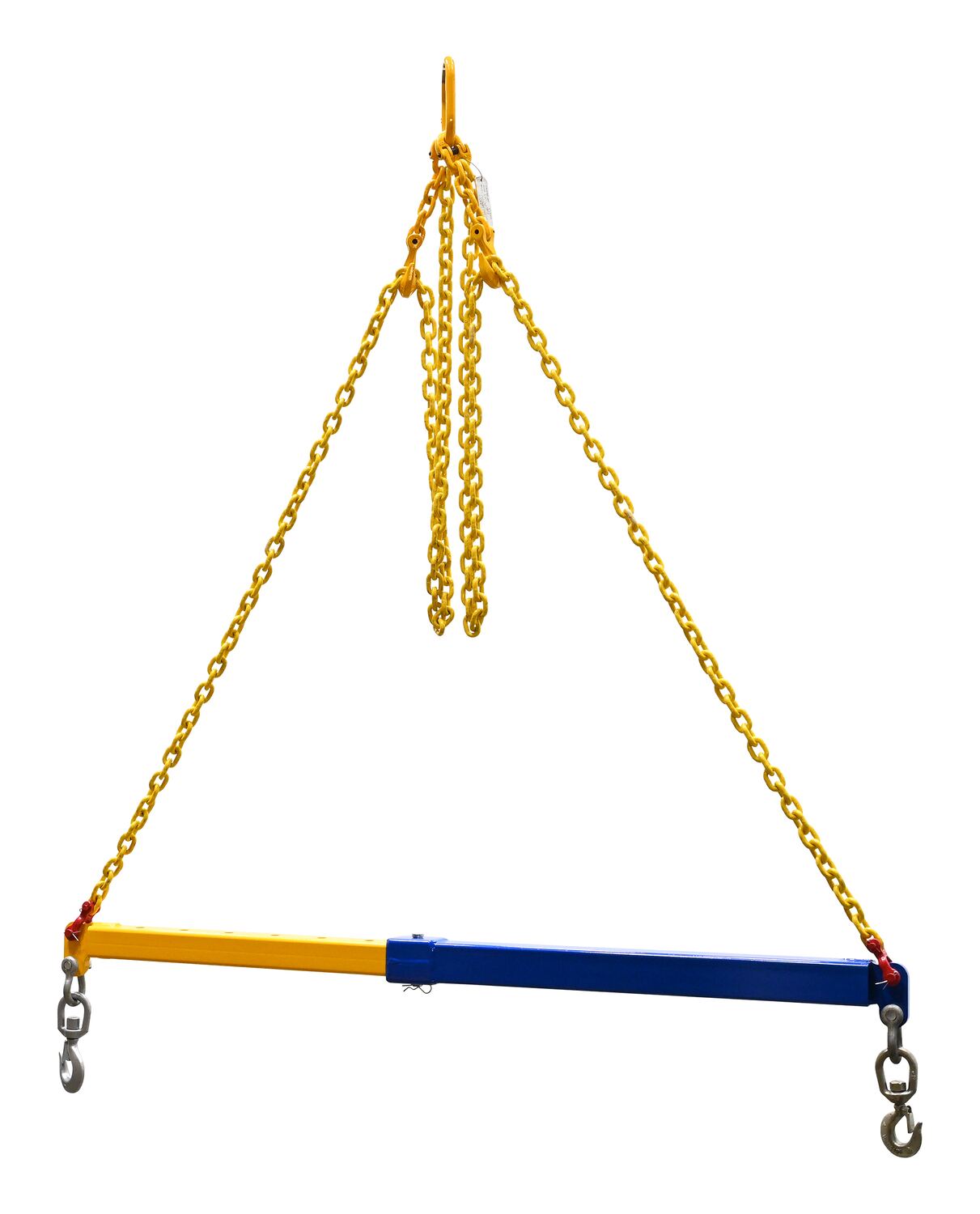

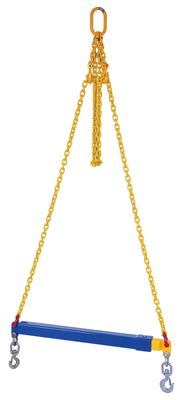

Steel Telescopic Spreader Beam 42-66 In. Length 6,000 Lb. Capacity Blue/Yellow

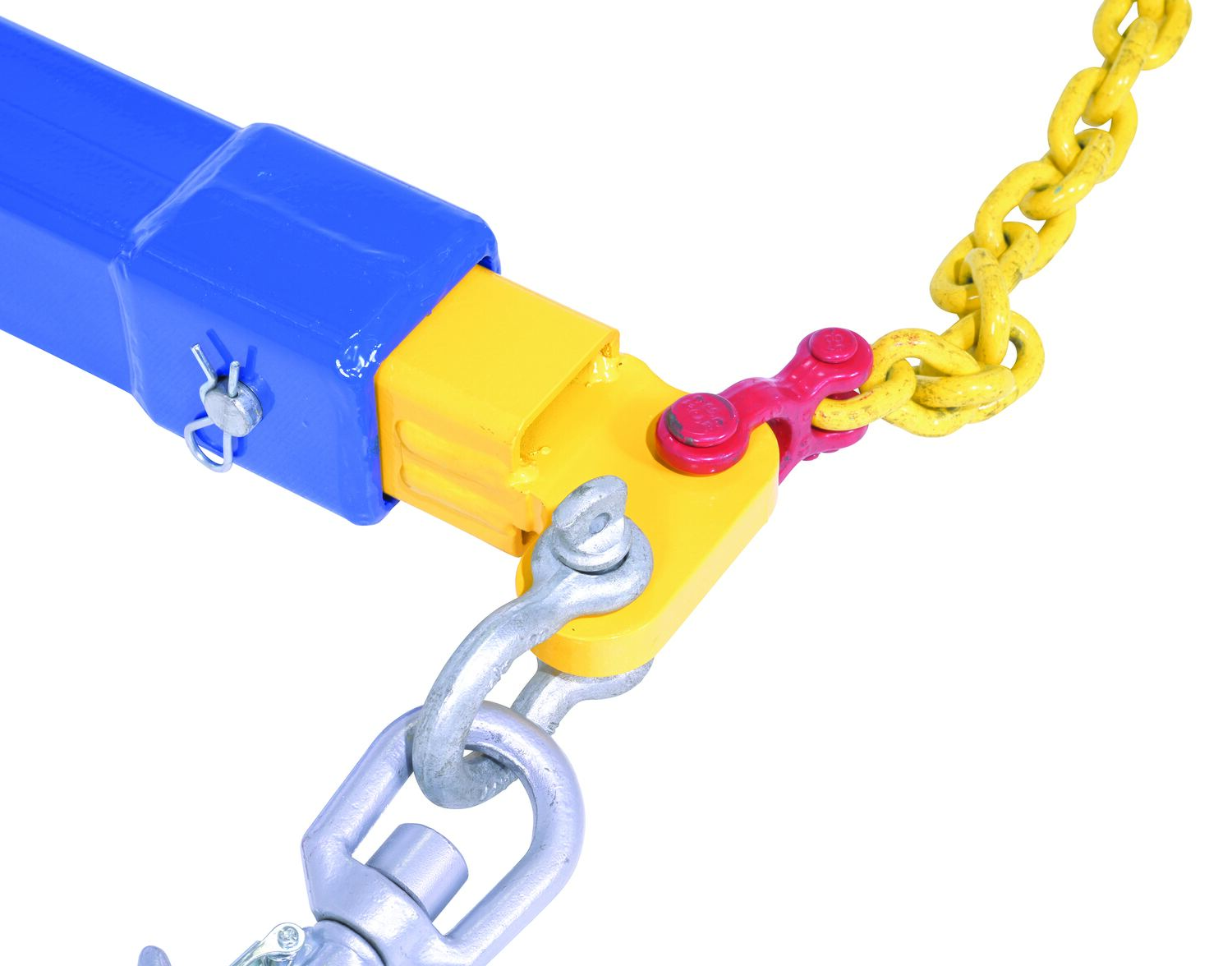

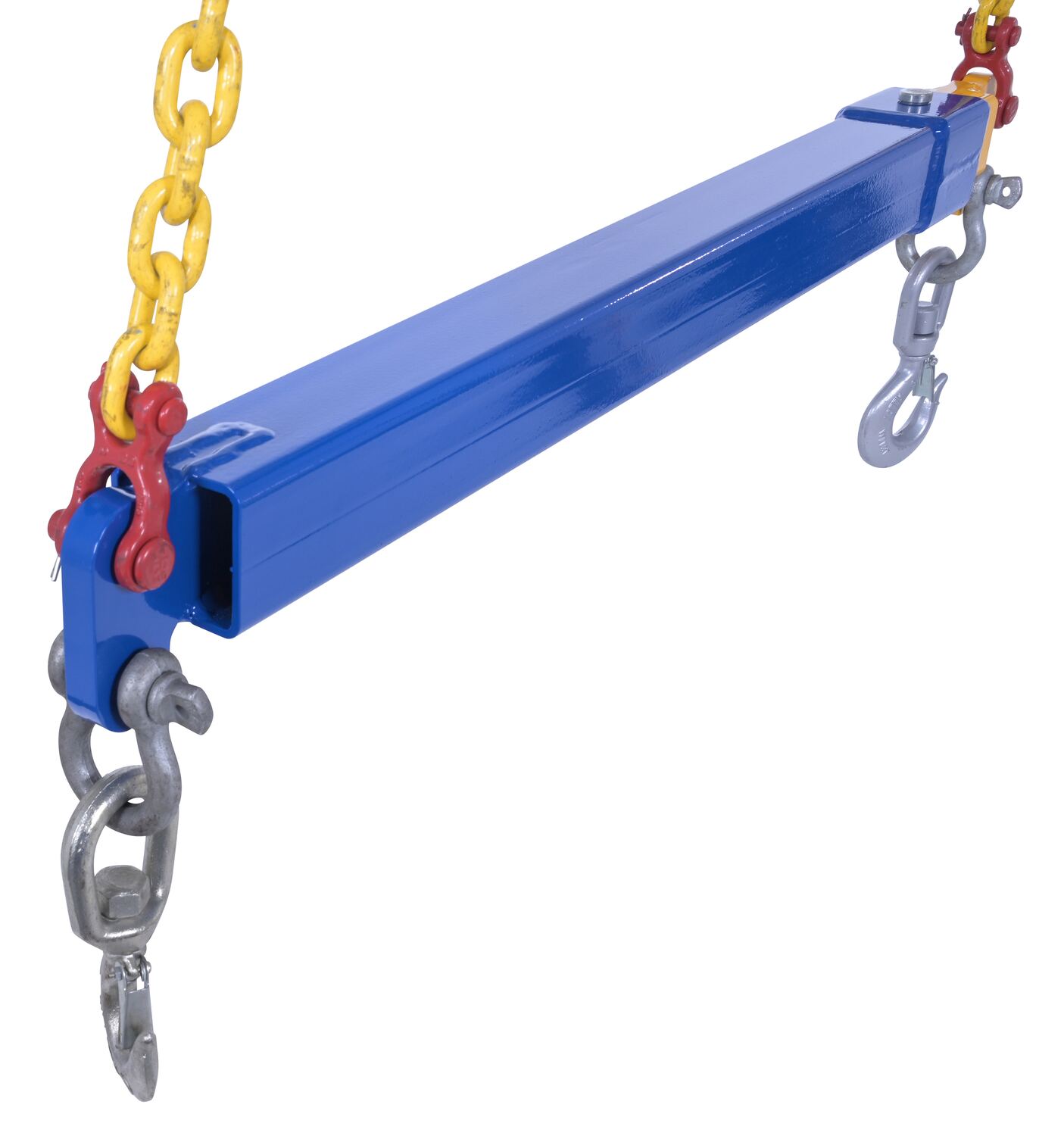

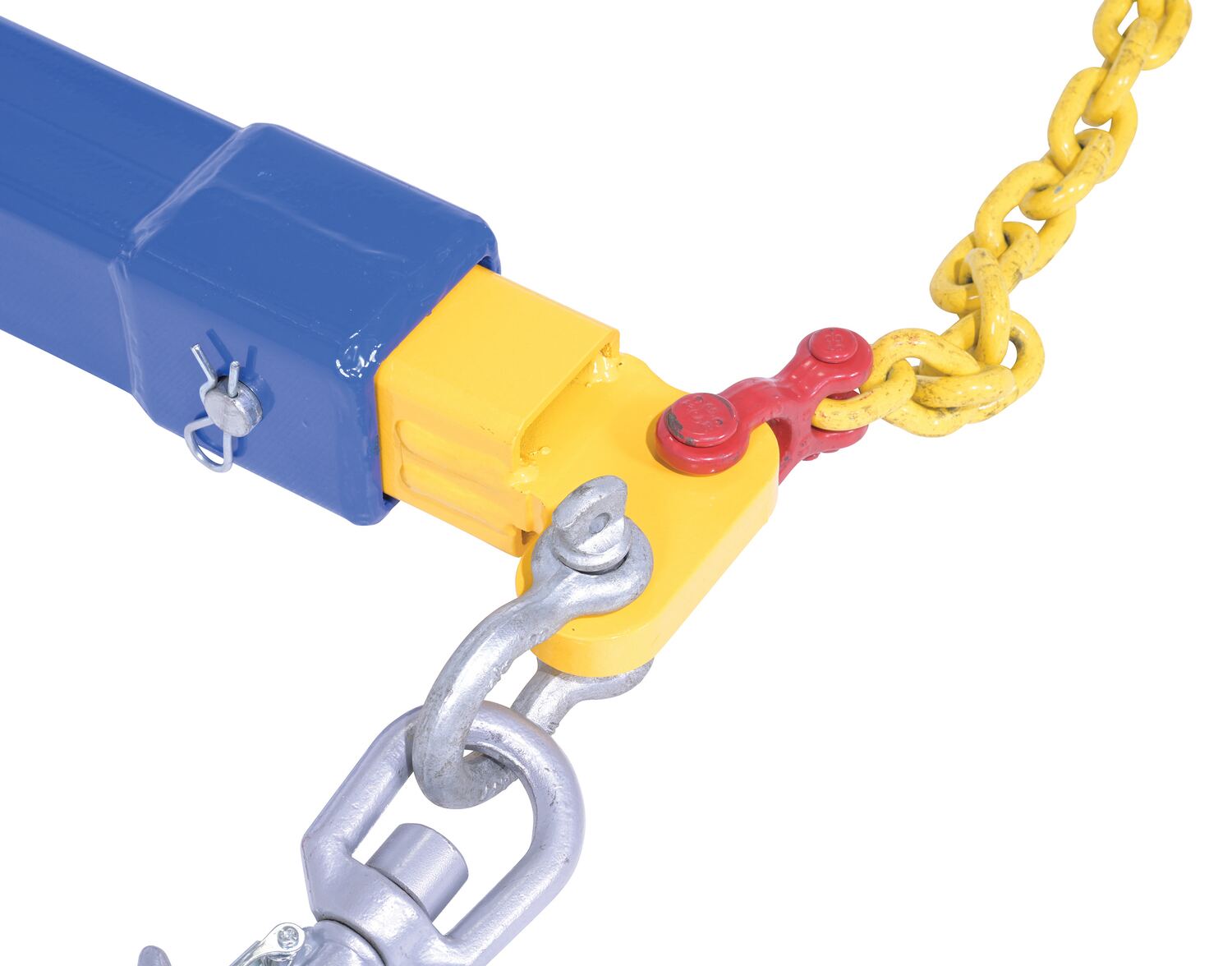

When a heavy, awkward, sized item needs to be lifted, look for your telescoping spreader beam! This beam can be modified to fit the situation and the users’ needs, quickly and efficiently. Two swivel hooks included, one on each end of the beam. Built of steel with a blue and yellow powder coated finish.

  • Adjustable in 4" increments
  • Adaptable headroom length
  • 7 unique width settings

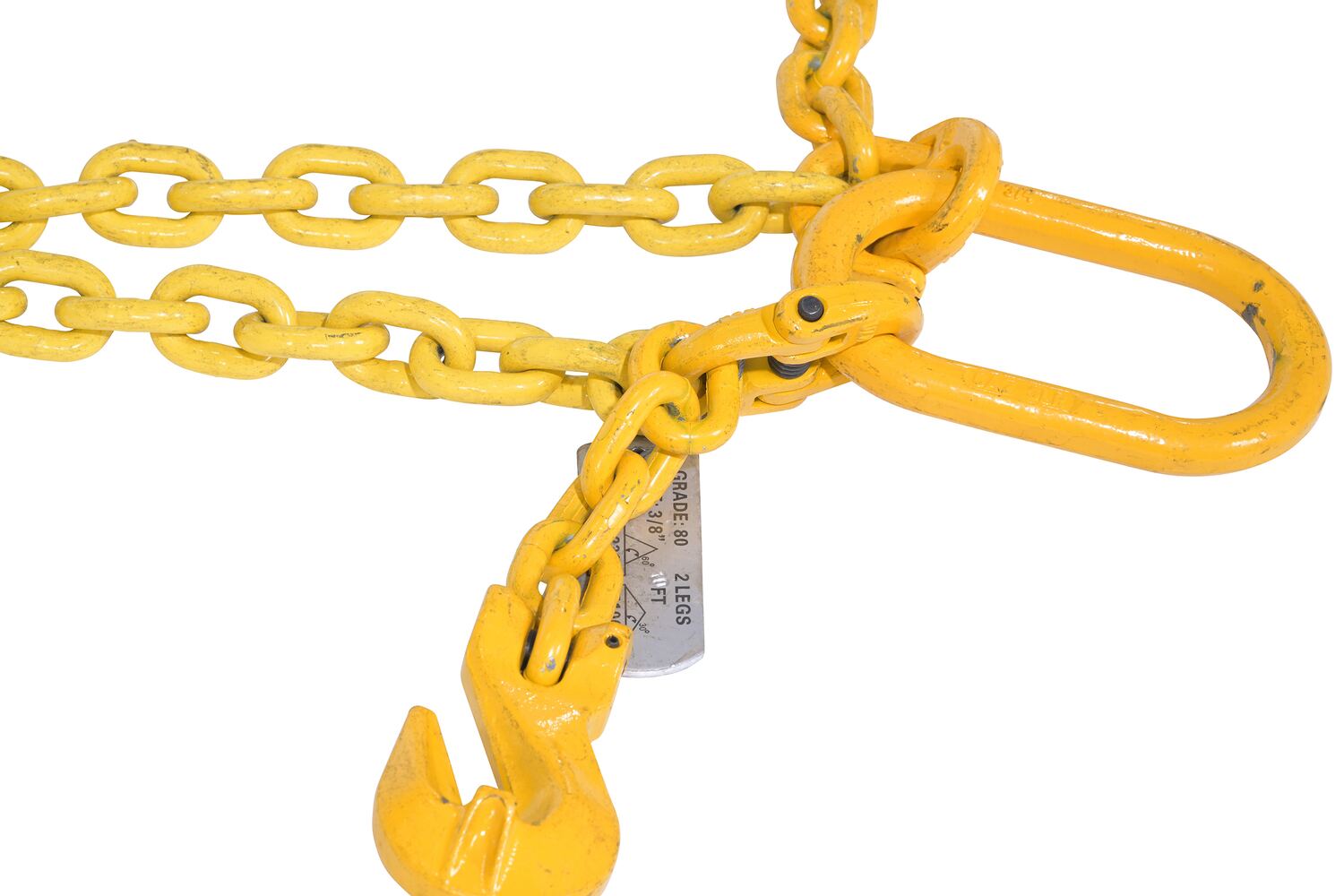

  • Chain sling included
Total Ship Wt.(lbs.): 115 (only 1 package) Size: 67.29"W x 3"L x 5"H Color: Blue/Yellow Non-Returnable

Uniform Capacity (Lbs.): 6,000 Adjustable Usable Width Range (In.): 42-66 Adjustable Increments (In.): 4
Overall Adjustable Width Range (In.): 45-15/16" to 69-15/16" Chain Sling Included?: Yes Usable Height Range (In.): 35.5-137.5
Master Link Inside Width (In.): 2.75 Master Link Diameter (In.): 0.75 Lifting Hook Opening (In.): 1
Adjustable Length Chain Included (Ft.): 10

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SBM-T-42-66


SBM-T-42-66

Steel Telescopic Spreader Beam 42-66 In. Length 6,000 Lb. Capacity Blue/Yellow

When a heavy, awkward, sized item needs to be lifted, look for your telescoping spreader beam! This beam can be modified to fit the situation and the users’ needs, quickly and efficiently. Two swivel hooks included, one on each end of the beam. Built of steel with a blue and yellow powder coated finish.

  • Adjustable in 4" increments
  • Adaptable headroom length
  • 7 unique width settings
  • Chain sling included
Dimensions: 67.29"W x 3"L x 5"H Sell UOM: EA-Each Color: Blue/Yellow
Material: Steel UPC: 691215377065 GTIN: 00691215377065
Warranty: -- Shipping Weight: 115 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (Lbs.): 6,000 Adjustable Usable Width Range (In.): 42-66 Adjustable Increments (In.): 4
Overall Adjustable Width Range (In.): 45-15/16" to 69-15/16" Chain Sling Included?: Yes Usable Height Range (In.): 35.5-137.5
Master Link Inside Width (In.): 2.75 Master Link Diameter (In.): 0.75 Lifting Hook Opening (In.): 1
Adjustable Length Chain Included (Ft.): 10
