Model Details

SCALE-LP-44-20K

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
SCALE-LP-44-20K

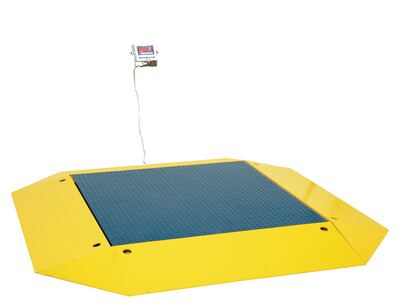

Low Profile Scale 150 In. x 150 In. x 3-1/2 In. 20,000 Lb. Capacity Yellow

Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2" deck plate, grid core, and a ?" bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degrees or 20% slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is powered by 115V AC, cord included.

  • Low profile air freight scales with wrap-around ramps for ideal operation
  • Bottom skin with three center supports prevent sagging for maximum efficiency
  • Features durable construction for added strength and long life
  • Fully electronic load cells on shock absorbing spherical washers are ideal for optimal results
Total Ship Wt.(lbs.): 1480 (only 1 package) Size: 150"W x 150"L x 3.5"H Color: Blue / Yellow Non-Returnable

Capacity (lbs): 20000 Legal For Trade: Yes Available Units of Measurement: Pounds
Display Height (in): 7.17 Display Screen Length (in): 7.87 Display Screen Width (in): 2.95
Display Screen Cord Length (ft): 15

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SCALE-LP-44-20K
SCALE-LP-44-20K

Low Profile Scale 150 In. x 150 In. x 3-1/2 In. 20,000 Lb. Capacity Yellow

Low Profile air freight (pancake) scales come standard with wrap-around ramps. Units feature 1/2" deck plate, grid core, and a ?" bottom skin with three center supports to prevent sagging. Suspension consists of fully electronic load cells on shock absorbing spherical washers. Ramps are constructed of heavy duty diamond plate with a 10 degrees or 20% slope. Indexing accuracy is +/- 0.1% of applied load or 1 division. The digital display stands 42" high and is powered by 115V AC, cord included.

  • Low profile air freight scales with wrap-around ramps for ideal operation
  • Bottom skin with three center supports prevent sagging for maximum efficiency
  • Features durable construction for added strength and long life
  • Fully electronic load cells on shock absorbing spherical washers are ideal for optimal results
Dimensions: 150"W x 150"L x 3.5"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215111621 GTIN: 00691215111621
Warranty: -- Shipping Weight: 1480 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Capacity (lbs): 20000 Legal For Trade: Yes Available Units of Measurement: Pounds
Display Height (in): 7.17 Display Screen Length (in): 7.87 Display Screen Width (in): 2.95
Display Screen Cord Length (ft): 15
