Model Details

SCTAB-500-2033-FP

Printer Friendly
SCTAB-500-2033-FP

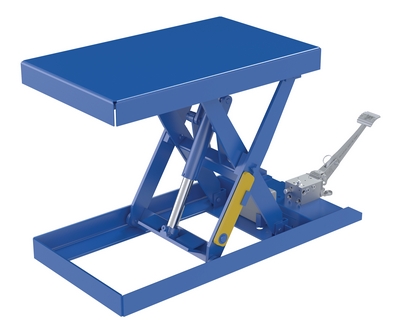

Steel Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity Blue

Foot pump scissor lift tables are used by all types of manufacturing and warehousing facilities. Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

  • Variable-height design improves worker ergonomics
  • Manual two-speed hydraulic foot pump quickly raises & lowers platform
  • Unique platform design can be raised & lowered when loaded or unloaded
  • Rugged steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 263 (only 1 package) Size: 20.5"W x 56.0625"L x 28"H Color: Blue

Uniform Capacity (lb.): 500 Platform Width (in.): 20-3/8 Platform Length (in.): 33-3/8
Lowered Height (in.): 6 Raised Height (in.): 28 Foot Pump Speed: 2-Speed Auto Shifter

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SCTAB-500-2033-FP
SCTAB-500-2033-FP

Steel Scissor Lift Table Foot Pump 56-1/16 In. x 20-1/2 In. x 28 In. 500 Lb. Capacity Blue

Foot pump scissor lift tables are used by all types of manufacturing and warehousing facilities. Features torsion tubes for side to side stability, pressure flow control valve for controlled lowering, and foot pump. Rugged welded steel construction. Painted blue finish.

  • Variable-height design improves worker ergonomics
  • Manual two-speed hydraulic foot pump quickly raises & lowers platform
  • Unique platform design can be raised & lowered when loaded or unloaded
  • Rugged steel construction provides long lasting rugged use
Dimensions: 20.5"W x 56.0625"L x 28"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215320160 GTIN: 00691215320160
Warranty: -- Shipping Weight: 263 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Platform Width (in.): 20-3/8 Platform Length (in.): 33-3/8
Lowered Height (in.): 6 Raised Height (in.): 28 Foot Pump Speed: 2-Speed Auto Shifter
