Model Details

SDU-C-6-36-G-SET

Printer Friendly
SDU-C-6-36-G-SET

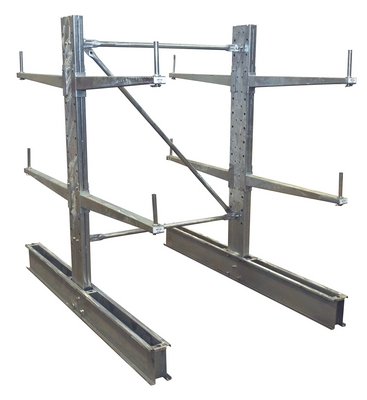

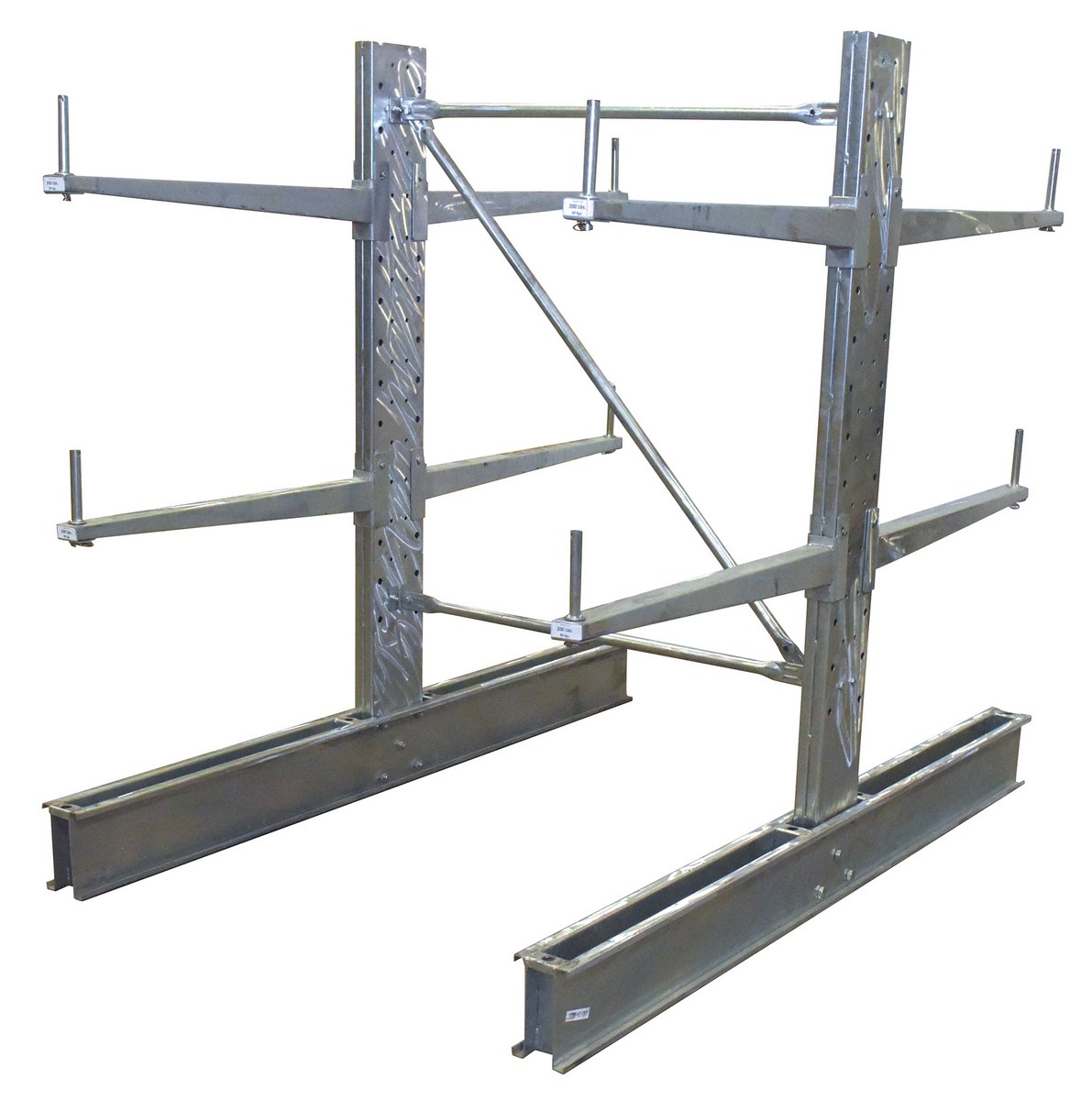

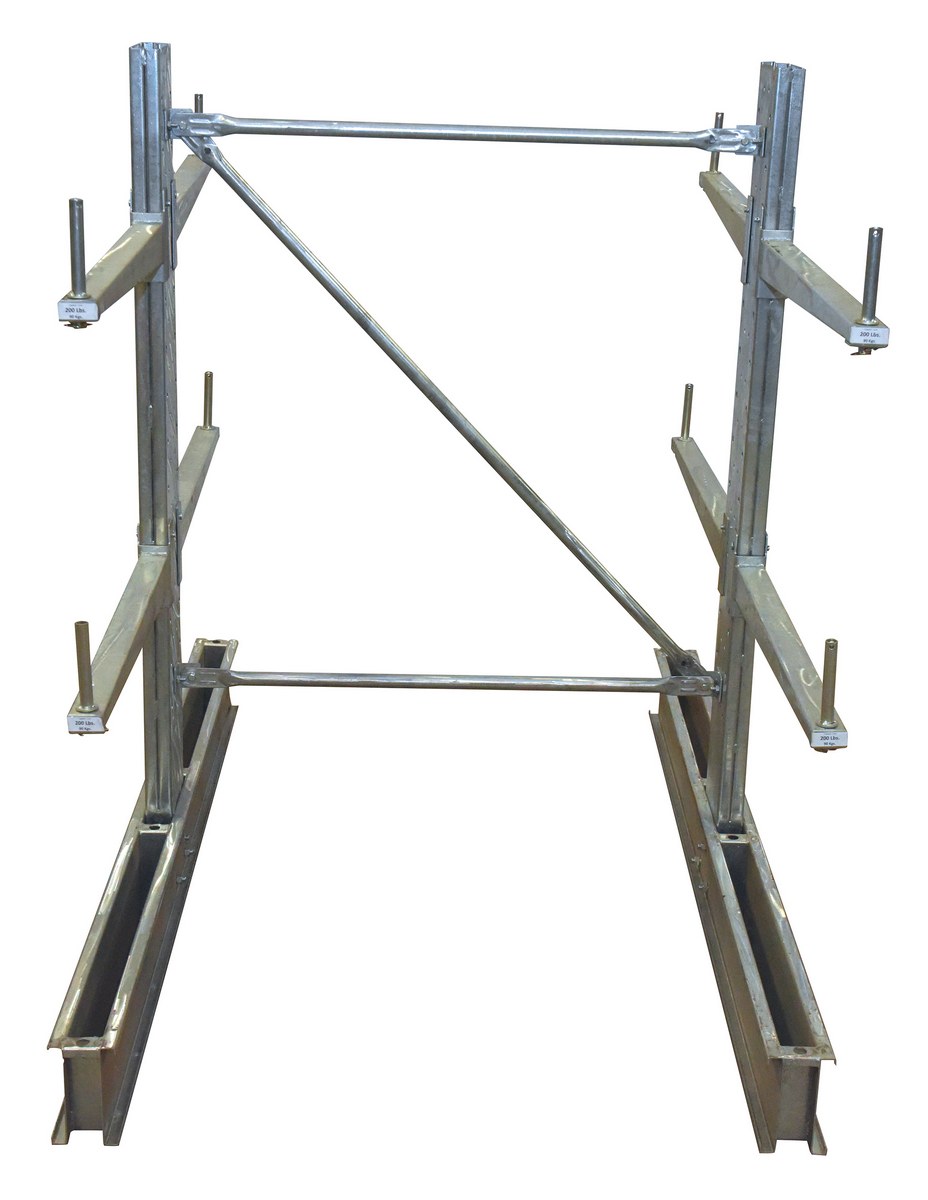

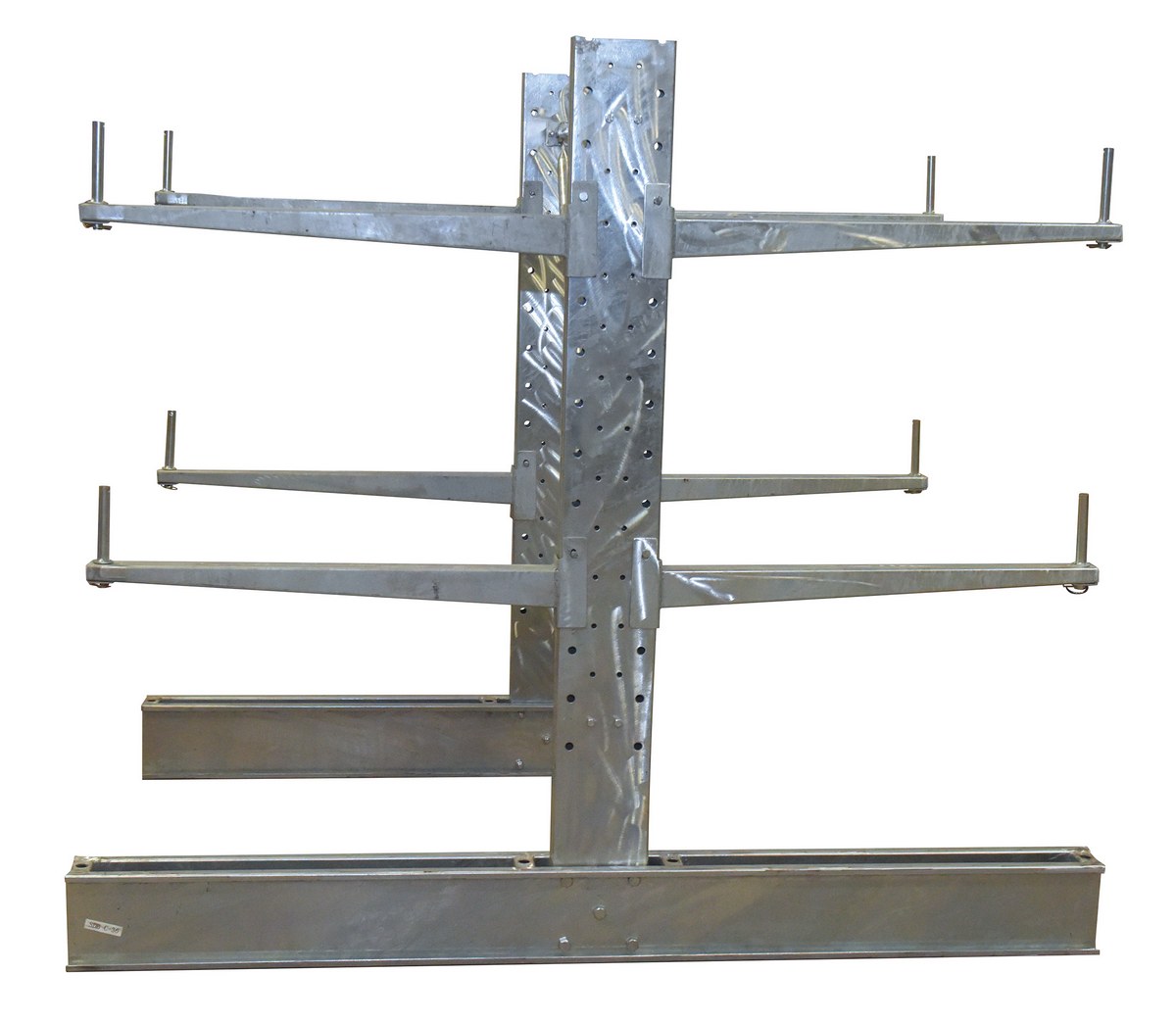

Galvanized Steel Standard Cantilever Double Upright 6 Ft. Height 36 In. Arm Use Length Set 10,400 Lb. Capacity Gray

A galvanized cantilever rack kit makes storing and picking large items as simple as can be. A strong steel construction with a galvanized finish makes an already durable product even more robust. The double sided unit can be maneuvered into areas where they are accessible from either side. The rack includes pre-drilled holes for mounting the uprights to the surface of the users' choice. Capacity is calculated per level.

  • Quick fitting and easily removable for instantaneous use
  • Provides the option of more surface area for merchandise
  • Adjustable arms for access at variable height
  • Arms are front lipped to diminish chance of falling items
Total Ship Wt.(lbs.): 556 (only 1 package) Size: 62"W x 84"L x 81"H Color: Gray

Uniform Upright Capacity (lb.): 10,400 Uniform Level Capacity (lb.): 800 Package Contents: (2) SDU-C-6-36-G 6' High Double-Sided Uprights, (1) SB-C-6-48-G Brace Set, (8) SSA-C-36-G 36" Arms

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SDU-C-6-36-G-SET
SDU-C-6-36-G-SET

Galvanized Steel Standard Cantilever Double Upright 6 Ft. Height 36 In. Arm Use Length Set 10,400 Lb. Capacity Gray

A galvanized cantilever rack kit makes storing and picking large items as simple as can be. A strong steel construction with a galvanized finish makes an already durable product even more robust. The double sided unit can be maneuvered into areas where they are accessible from either side. The rack includes pre-drilled holes for mounting the uprights to the surface of the users' choice. Capacity is calculated per level.

  • Quick fitting and easily removable for instantaneous use
  • Provides the option of more surface area for merchandise
  • Adjustable arms for access at variable height
  • Arms are front lipped to diminish chance of falling items
Dimensions: 62"W x 84"L x 81"H Sell UOM: ST-Set Color: Gray
Material: Steel UPC: 691215118873 GTIN: 00691215118873
Warranty: -- Shipping Weight: 556 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Upright Capacity (lb.): 10,400 Uniform Level Capacity (lb.): 800 Package Contents: (2) SDU-C-6-36-G 6' High Double-Sided Uprights, (1) SB-C-6-48-G Brace Set, (8) SSA-C-36-G 36" Arms
