SNM-62-AA

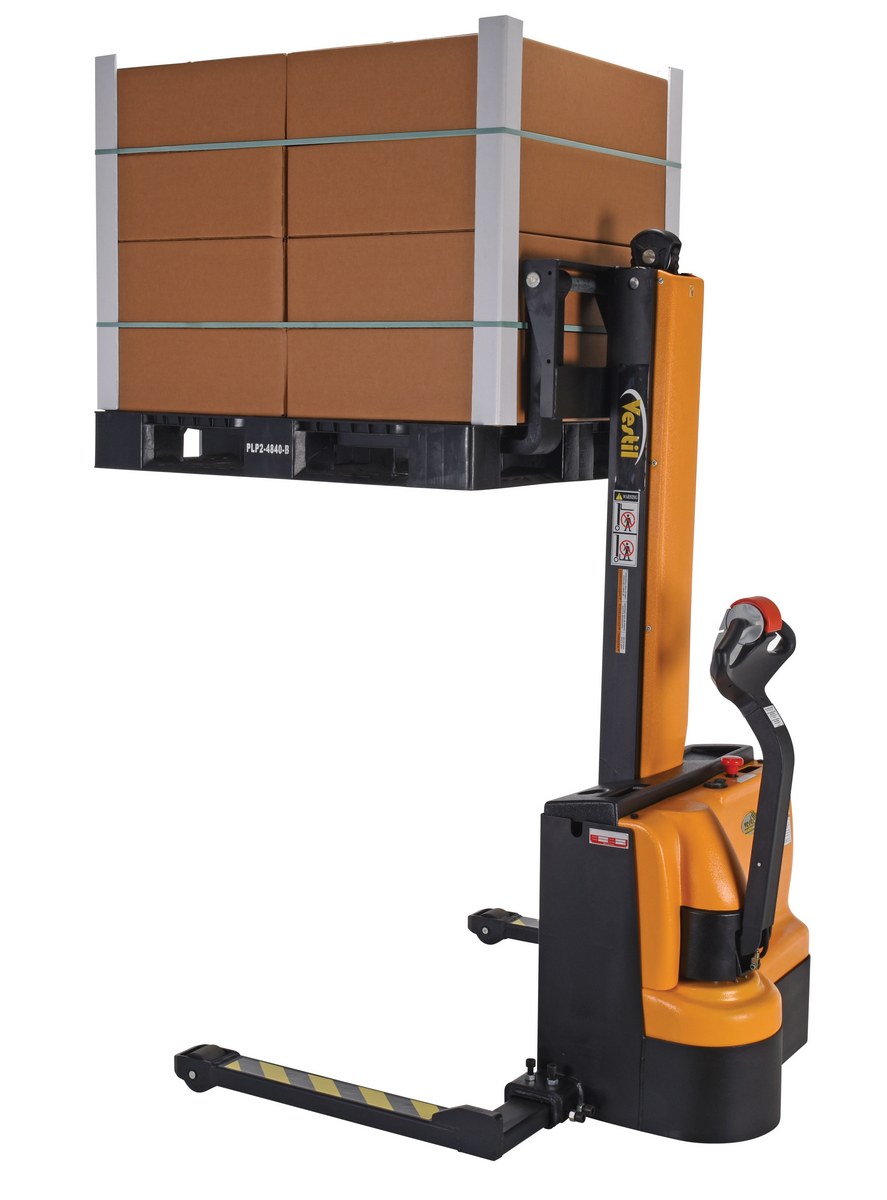

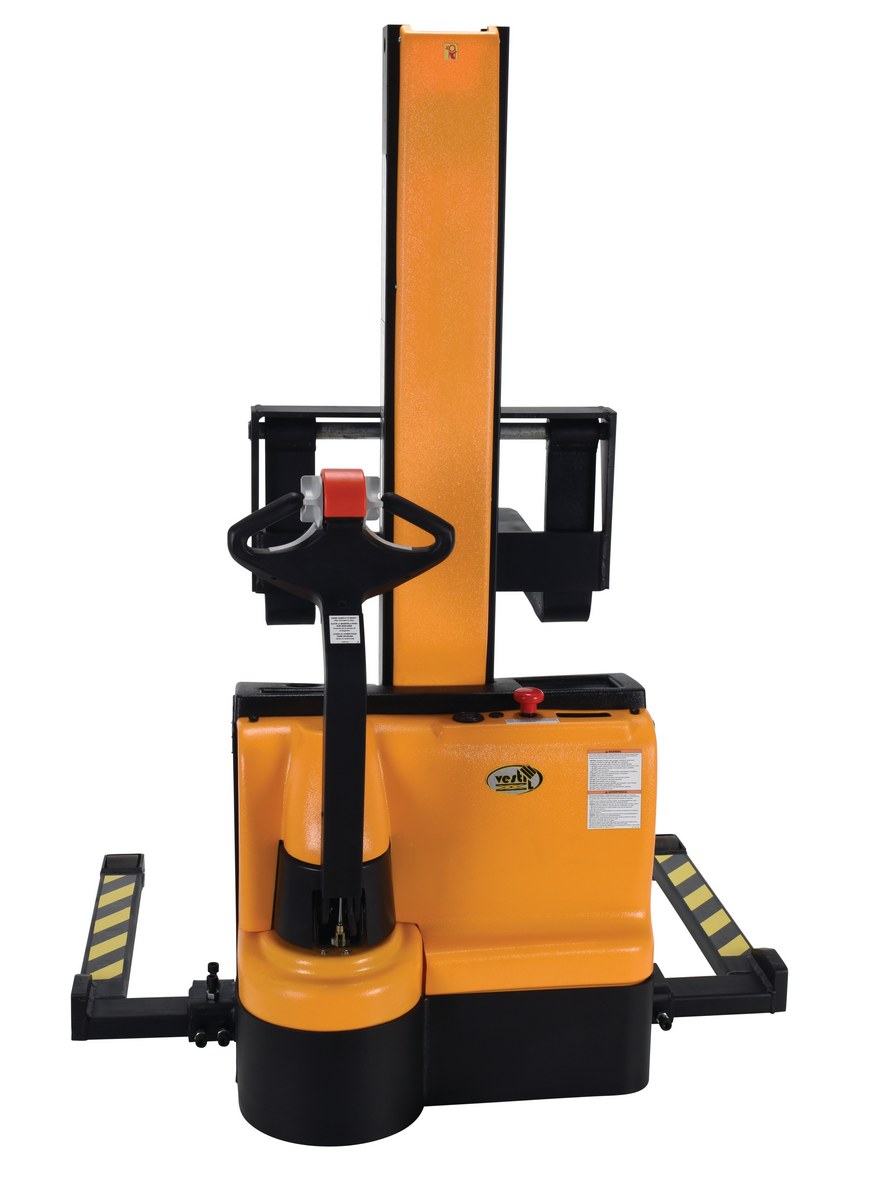

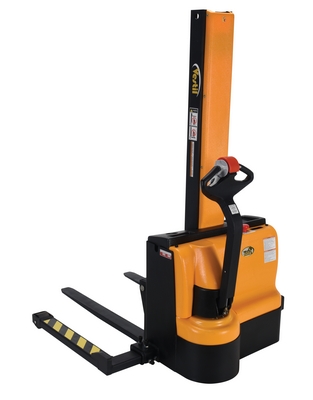

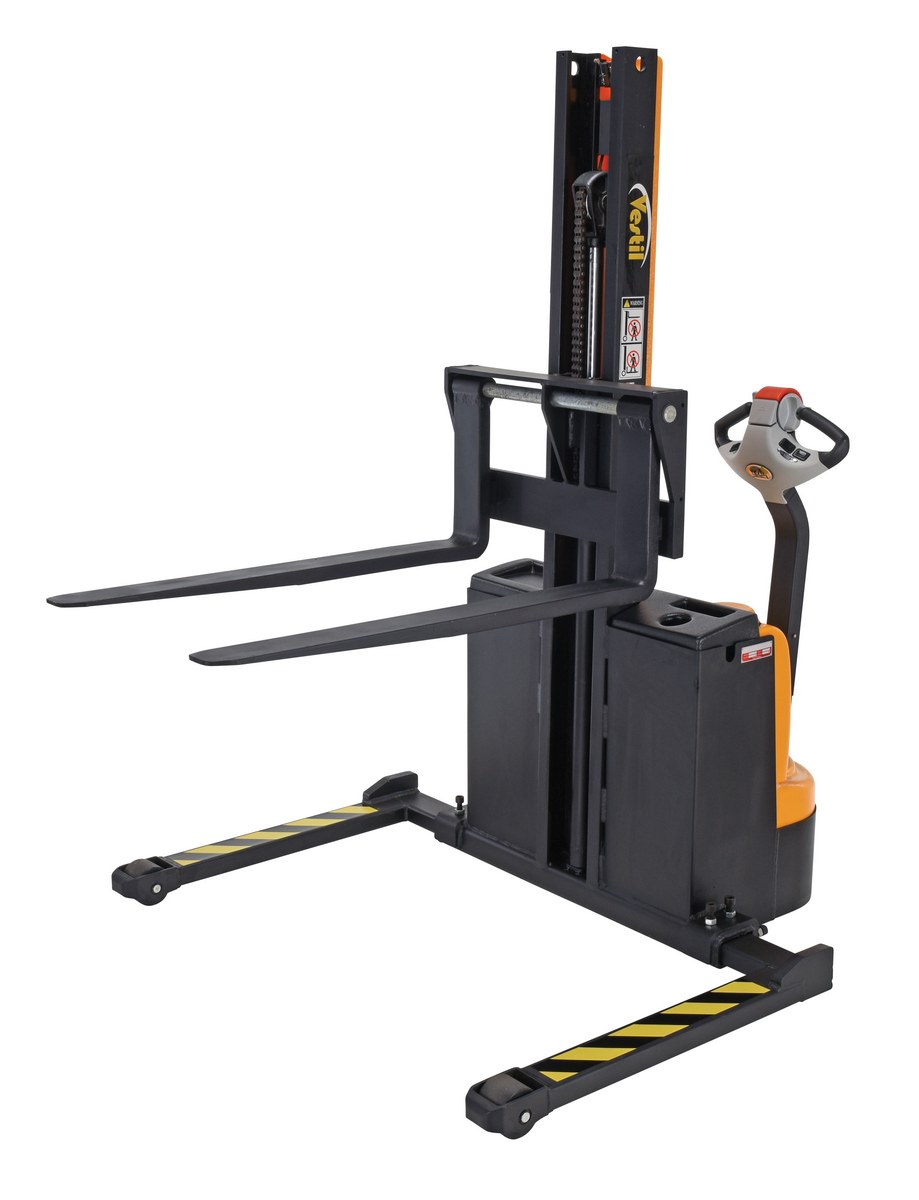

Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 2,200 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency
Total Ship Wt.(lbs.): 1172 (only 1 package) Size: 58"W x 69"L x 78"H Color: Black / Yellow

Uniform Capacity (lb.): 2,200 Fork Width (in.): 8.3 to 26-3/4 Fork Length (in.): 42
Lowered Height (in.): 2-1/8 Raised Height (in.): 62 Power Source: (2)DC/12V
Steer/Load Wheels Material: Poly-On-Steel Front Caster (qty.): 2 Front Caster Diameter (in.): 4
Front Caster Width (in.): 3 Back Caster Quantity: 1 Back Caster Diameter (in.): 6
Back Caster Width (in.): 2 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in.): 4
Drive Motor 1.0 KW: 1.0 KW Lift Motor : 2.0 KW Operation at Full Charge (hrs.): 3-4
Operation at intermittent use (hrs.): 8 Style: Adjustable Forks/Adjustable Support Legs (works with pallets & skids)

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SNM-62-AA
SNM-62-AA

Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 2,200 Lb. Capacity Black / Yellow

The narrow mast stacker is great for the shipping and manufacturing facilities. The stacker provides a fast efficient solution to loading and unloading products in closely confined areas. The stacker features a simple throttle design for lifting control, as well as, infinite forward and reverse speed adjustments. The unit drives on poly on steel steering and load wheels, which provide excellent maneuverability. A battery charger, gauge and horn are included. Models are available with fixed or adjustable forks as well as fixed or adjustable leg supports.

  • Emergency reverse belly switch instantly reverses direction
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and adjustable forks for maximum efficiency
Dimensions: 58"W x 69"L x 78"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215111478 GTIN: 00691215111478
Warranty: -- Shipping Weight: 1172 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,200 Fork Width (in.): 8.3 to 26-3/4 Fork Length (in.): 42
Lowered Height (in.): 2-1/8 Raised Height (in.): 62 Power Source: (2)DC/12V
Steer/Load Wheels Material: Poly-On-Steel Front Caster (qty.): 2 Front Caster Diameter (in.): 4
Front Caster Width (in.): 3 Back Caster Quantity: 1 Back Caster Diameter (in.): 6
Back Caster Width (in.): 2 Drive Wheel Diameter (in.): 10 Drive Wheel Width (in.): 4
Drive Motor 1.0 KW: 1.0 KW Lift Motor : 2.0 KW Operation at Full Charge (hrs.): 3-4
Operation at intermittent use (hrs.): 8 Style: Adjustable Forks/Adjustable Support Legs (works with pallets & skids)
