SQ-108-HWR

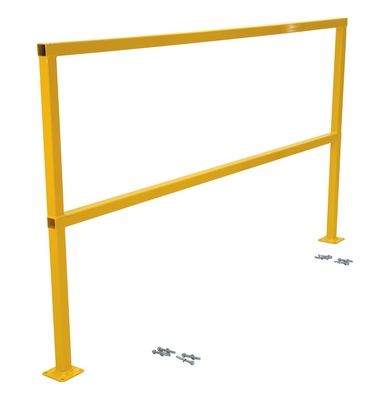

Steel Safety Handrail with Hardware 110-1/2 In. x 4 In. x 44 In. Yellow

Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes (anchor bolts included) provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability
Total Ship Wt.(lbs.): 67 (only 1 package) Size: 4"W x 110.5"L x 44"H Color: Yellow

Square Tube O.D.(in.): 1-1/2 Mid-Rail Height (in.): 21-3/16 Usable Length (in.): 108
Section Style: Rigid without Toeboard Bolt Holes (qty.): 12 Anchor Bolt Quantity/Size (in.): (8) 3x3/8
OSHA: 1910.23

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SQ-108-HWR
SQ-108-HWR

Steel Safety Handrail with Hardware 110-1/2 In. x 4 In. x 44 In. Yellow

Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes (anchor bolts included) provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability
Dimensions: 4"W x 110.5"L x 44"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215062688 GTIN: 00691215062688
Warranty: -- Shipping Weight: 67 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Square Tube O.D.(in.): 1-1/2 Mid-Rail Height (in.): 21-3/16 Usable Length (in.): 108
Section Style: Rigid without Toeboard Bolt Holes (qty.): 12 Anchor Bolt Quantity/Size (in.): (8) 3x3/8
OSHA: 1910.23
