Model Details

SSG-11-RD

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
SSG-11-RD

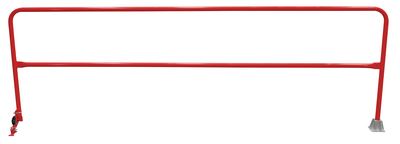

Steel Dock Safety Swing Gate 11 Ft. Length Red

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Red powder coat finish
  • Foot release lock keeps railing from moving when in use
Total Ship Wt.(lbs.): 90 (only 1 package) Size: 6.5"W x 132.0625"L x 46.25"H Color: Red Non-Returnable

Hardware Included: Yes Base Plate Mounting Hole Qty: 4 Base Plate LxW (in.): 4-1/2 x 4-1/2
Base Plate Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/4 Handrail LxH (in.): 132 x 46-1/4
Midrail Height (in.): 25-3/4 Rigid Caster (qty.): 1 Caster Color: Black
Rigid Caster Diameter (in.): 4 Caster Material: Polyurethane Rigid Caster Width (in.): 1-1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SSG-11-RD
SSG-11-RD

Steel Dock Safety Swing Gate 11 Ft. Length Red

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Red powder coat finish
  • Foot release lock keeps railing from moving when in use
Dimensions: 6.5"W x 132.0625"L x 46.25"H Sell UOM: EA-Each Color: Red
Material: Steel UPC: 691215361934 GTIN: 00691215361934
Warranty: -- Shipping Weight: 90 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Hardware Included: Yes Base Plate Mounting Hole Qty: 4 Base Plate LxW (in.): 4-1/2 x 4-1/2
Base Plate Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/4 Handrail LxH (in.): 132 x 46-1/4
Midrail Height (in.): 25-3/4 Rigid Caster (qty.): 1 Caster Color: Black
Rigid Caster Diameter (in.): 4 Caster Material: Polyurethane Rigid Caster Width (in.): 1-1/4
