Model Details

SSG-3-BK

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
SSG-3-BK

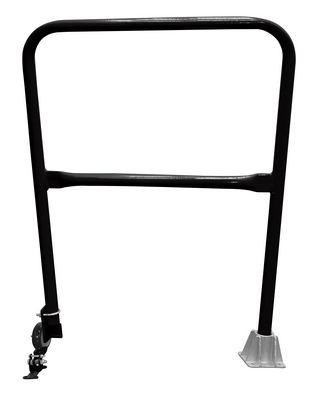

Steel Dock Safety Swing Gate 3 Ft. Length Black

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Black powder coat finish
  • Foot release lock keeps railing from moving when in use
Total Ship Wt.(lbs.): 36 (Multiple Packages: P1: 24 lbs + P2: 12 lbs) Size: 6.5"W x 40.0625"L x 46.25"H Color: Black Non-Returnable

Hardware Included: Yes Base Plate Mounting Hole Qty: 4 Base Plate LxW (in.): 4-1/2 x 4-1/2
Base Plate Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/4 Handrail LxH (in.): 36 x 46-1/4
Midrail Height (in.): 25-3/4 Rigid Caster (qty.): 1 Rigid Caster Diameter (in.): 4
Rigid Caster Width (in.): 1-1/4 Caster Material: Polyurethane Caster Color: Black

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: SSG-3-BK
SSG-3-BK

Steel Dock Safety Swing Gate 3 Ft. Length Black

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Black powder coat finish
  • Foot release lock keeps railing from moving when in use
Dimensions: 6.5"W x 40.0625"L x 46.25"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215361958 GTIN: 00691215361958
Warranty: -- Shipping Weight: 24 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Hardware Included: Yes Base Plate Mounting Hole Qty: 4 Base Plate LxW (in.): 4-1/2 x 4-1/2
Base Plate Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/4 Handrail LxH (in.): 36 x 46-1/4
Midrail Height (in.): 25-3/4 Rigid Caster (qty.): 1 Rigid Caster Diameter (in.): 4
Rigid Caster Width (in.): 1-1/4 Caster Material: Polyurethane Caster Color: Black
