Model Details

STAND-G-H-HP

Printer Friendly
STAND-G-H-HP

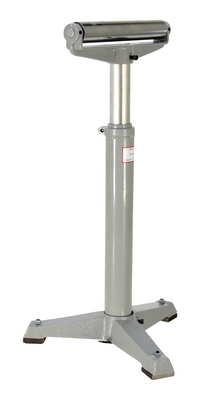

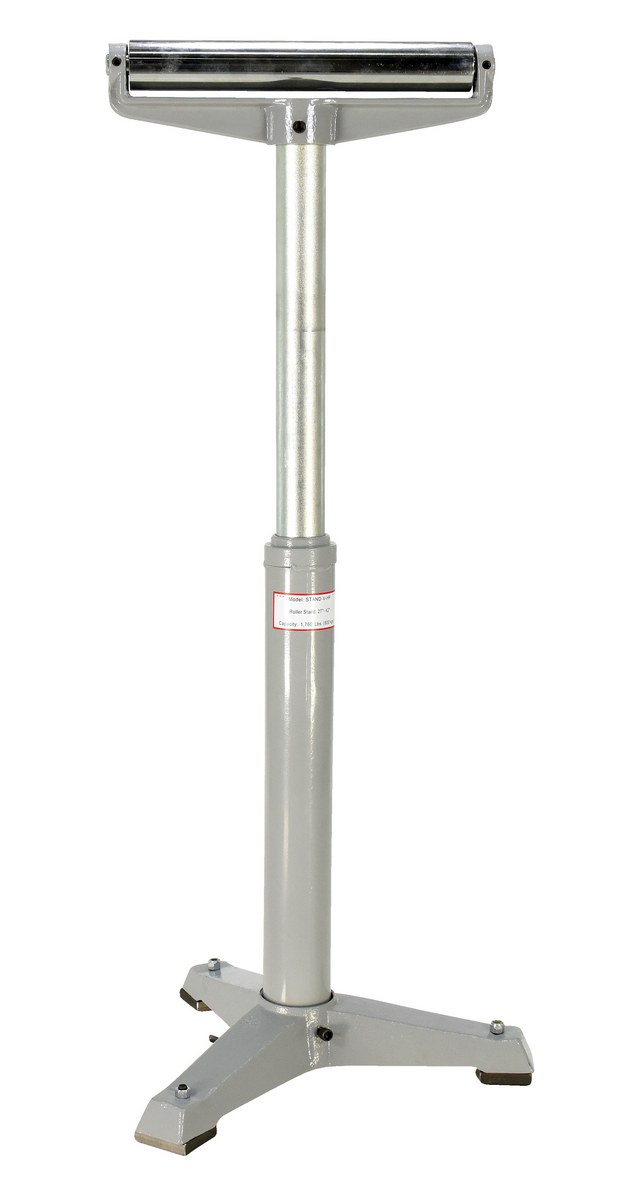

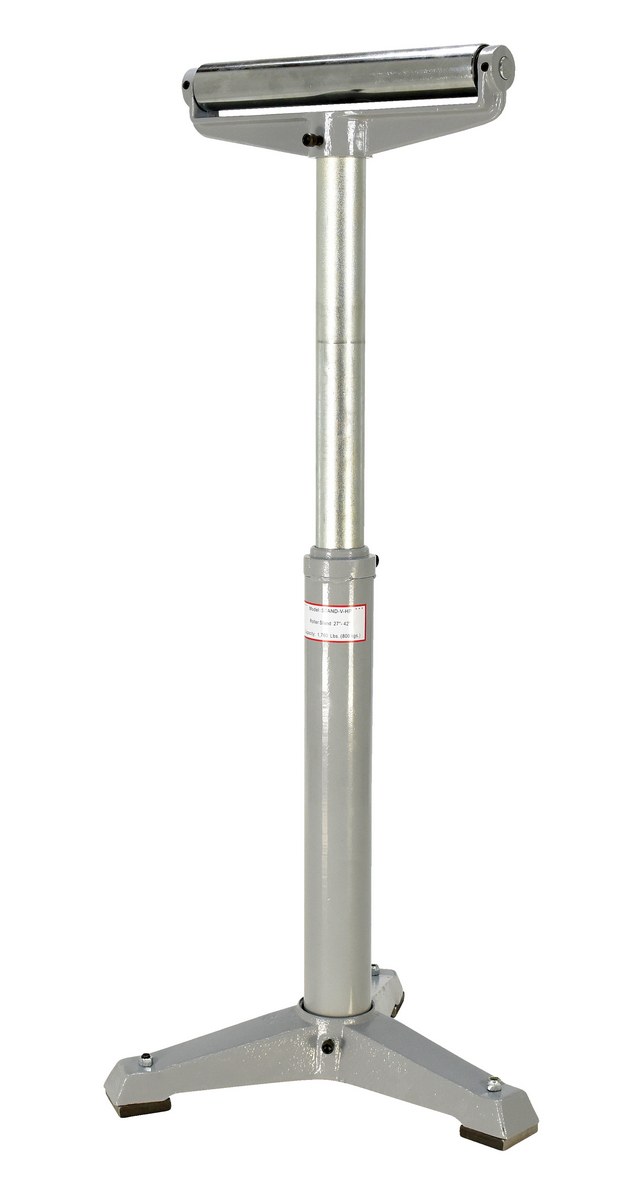

Steel Horizontal Roller Stand 33 In. to 43 In. Raised Height 1,760 Lb. Capacity Gray

The deluxe roller stand is designed for use as an extra hand when working with long materials. Each stand includes chrome plated rollers and heavy-duty cast-steel base. This deluxe roller stand is a flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. The unit is great for use in machine and wood shops and also includes a counter balance mechanism. Models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit.

  • Easy height adjust for different leveled machines
  • Light weight construction is easily moved from one location to another
  • Handy design is used as an extra hand when working with long materials
  • Cast steel base provides a solid reliable base
Total Ship Wt.(lbs.): 39 (Multiple Packages: P1: 30 lbs + P2: 9 lbs) Size: 19.25"W x 19.25"L x 33"H Color: Silver

Uniform Capacity (lb.): 1760 Lowered Height (in.): 33 Raised Height (in.): 43
Chrome Roller Diameter (in.): 2 Roller Length (in.): 14

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: STAND-G-H-HP
STAND-G-H-HP

Steel Horizontal Roller Stand 33 In. to 43 In. Raised Height 1,760 Lb. Capacity Gray

The deluxe roller stand is designed for use as an extra hand when working with long materials. Each stand includes chrome plated rollers and heavy-duty cast-steel base. This deluxe roller stand is a flat single roller design. The height of each stand is adjusted with a friction lock screw or a gas charged cylinder. The unit is great for use in machine and wood shops and also includes a counter balance mechanism. Models utilize a gas charged cylinder for maximum efficiency and precise positioning. The gas cylinder minimizes adjustment time and limits manual interaction with the unit.

  • Easy height adjust for different leveled machines
  • Light weight construction is easily moved from one location to another
  • Handy design is used as an extra hand when working with long materials
  • Cast steel base provides a solid reliable base
Dimensions: 19.25"W x 19.25"L x 33"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215064835 GTIN: 00691215064835
Warranty: -- Shipping Weight: 30 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1760 Lowered Height (in.): 33 Raised Height (in.): 43
Chrome Roller Diameter (in.): 2 Roller Length (in.): 14
