Model Details

SU-1000-SCB

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
SU-1000-SCB

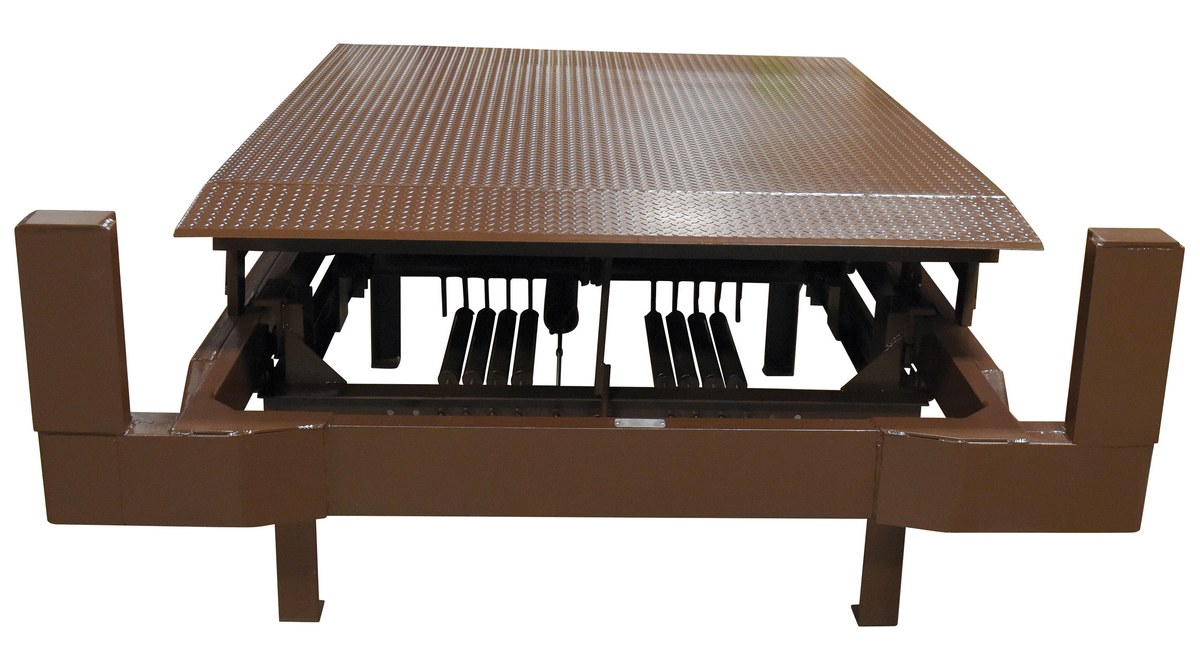

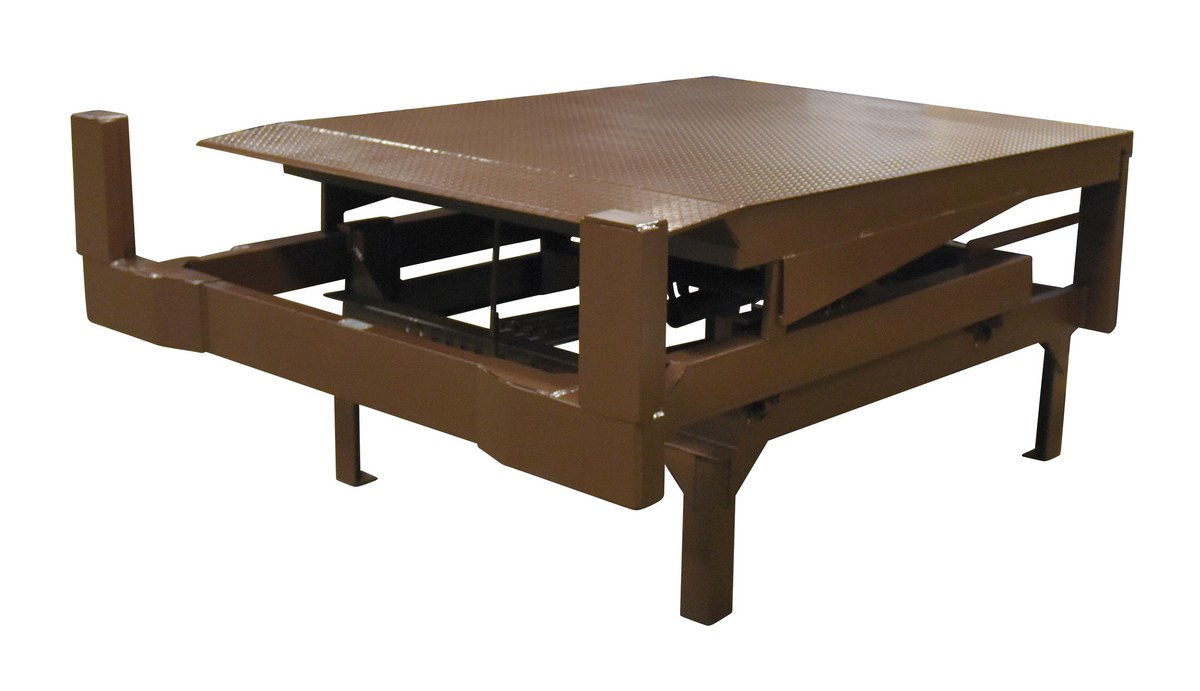

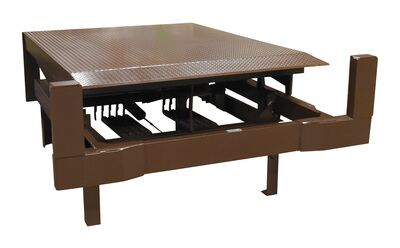

Steel Actuated Dock Leveler with Legs 131 In. x 88 In. 20,000 Lb. Capacity Brown

This is a fully automatic loading ramp where there is no dock attendant needed. It is a recessed unit with legs needing a full 48 (in.) deep pit. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • Fully automatic loading ramp where no dock attendant needed
  • It consists of a lift by-pass for safety and toe guards on each side
  • Dock and trailer must be raised for the process to work
  • Deck floats down to rest on trailer
Total Ship Wt.(lbs.): 2821 (only 1 package) Size: 88"W x 131.0625"L x 48.375"H Color: Brown Non-Returnable

Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 Molded Bumper Height (in.): 16
Molded Bumper Depth (in.): 2 PSI Checker Plated Deck: 55,000 Service Range Above Dock (in.): 12
Service Range Below Dock (in.): 8 Long Lip (in.): 12 (extends 6-1/2 (in.) into truck) Pit Width (in.): 74
Pit Length (in.): 104-1/2 Pit Depth (in.): 48

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SU-1000-SCB
SU-1000-SCB

Steel Actuated Dock Leveler with Legs 131 In. x 88 In. 20,000 Lb. Capacity Brown

This is a fully automatic loading ramp where there is no dock attendant needed. It is a recessed unit with legs needing a full 48 (in.) deep pit. It consists of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin actuating arms (bumpers) it pushes the carriage back. The dock and trailer must be raised for this process to work. As the carriage goes back the deck goes up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer. When the truck pulls out, the deck returns to level supported position automatically.

  • Fully automatic loading ramp where no dock attendant needed
  • It consists of a lift by-pass for safety and toe guards on each side
  • Dock and trailer must be raised for the process to work
  • Deck floats down to rest on trailer
Dimensions: 88"W x 131.0625"L x 48.375"H Sell UOM: EA-Each Color: Brown
Material: Steel UPC: 691215037938 GTIN: 00691215037938
Warranty: -- Shipping Weight: 2821 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 20,000 Molded Bumper Width (in.): 5 Molded Bumper Height (in.): 16
Molded Bumper Depth (in.): 2 PSI Checker Plated Deck: 55,000 Service Range Above Dock (in.): 12
Service Range Below Dock (in.): 8 Long Lip (in.): 12 (extends 6-1/2 (in.) into truck) Pit Width (in.): 74
Pit Length (in.): 104-1/2 Pit Depth (in.): 48
