Model Details

SWA-70

Printer Friendly
SWA-70

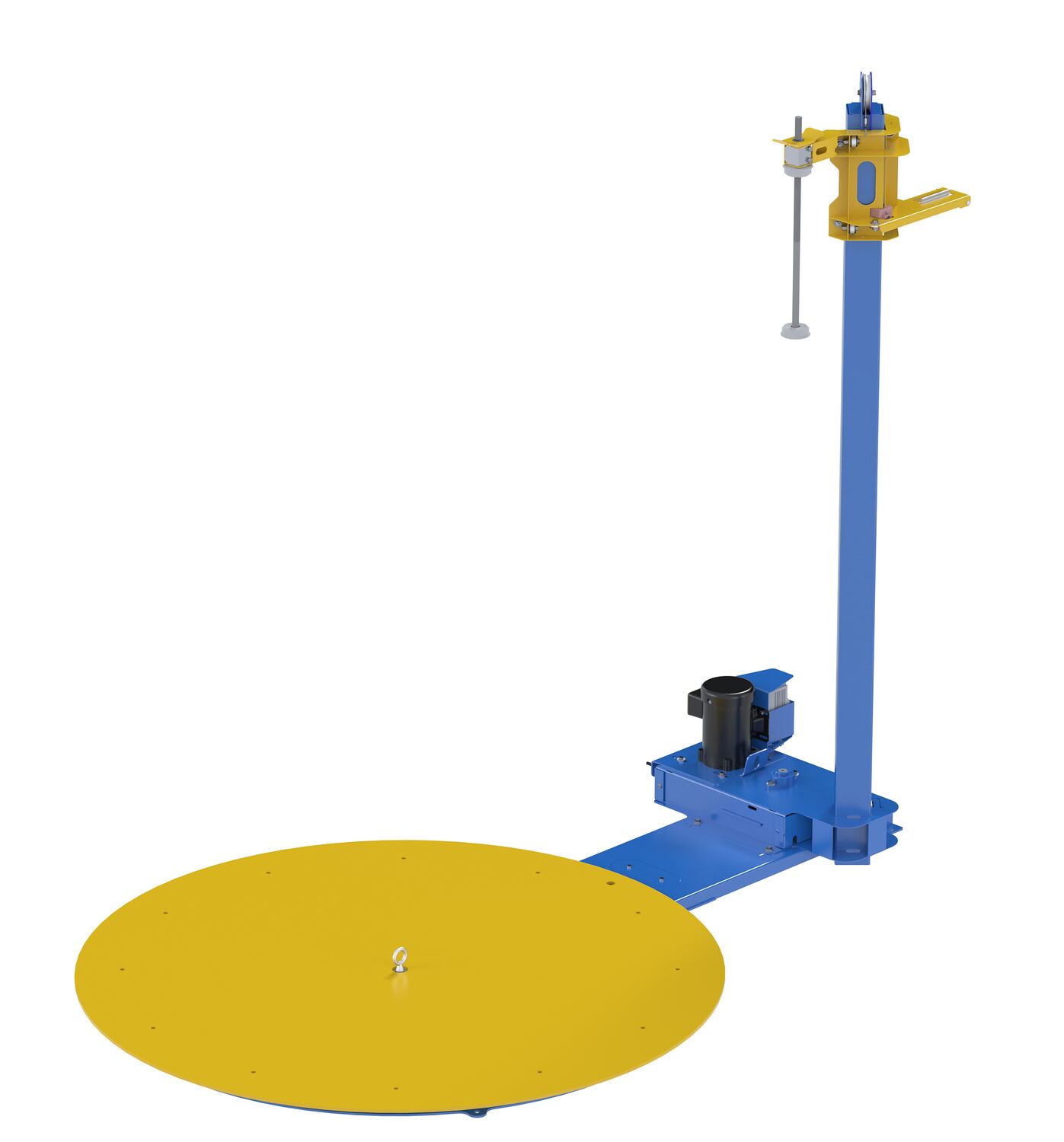

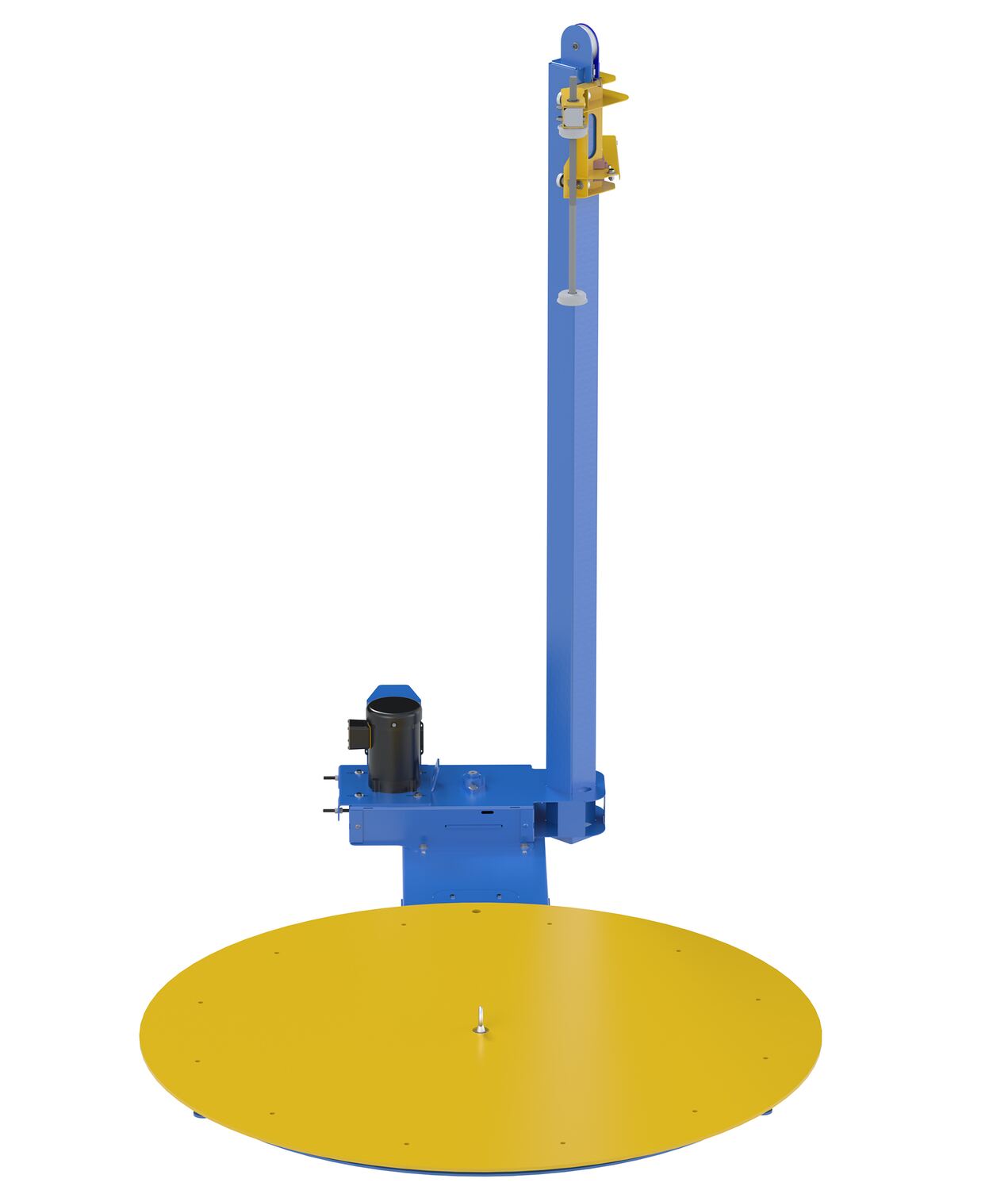

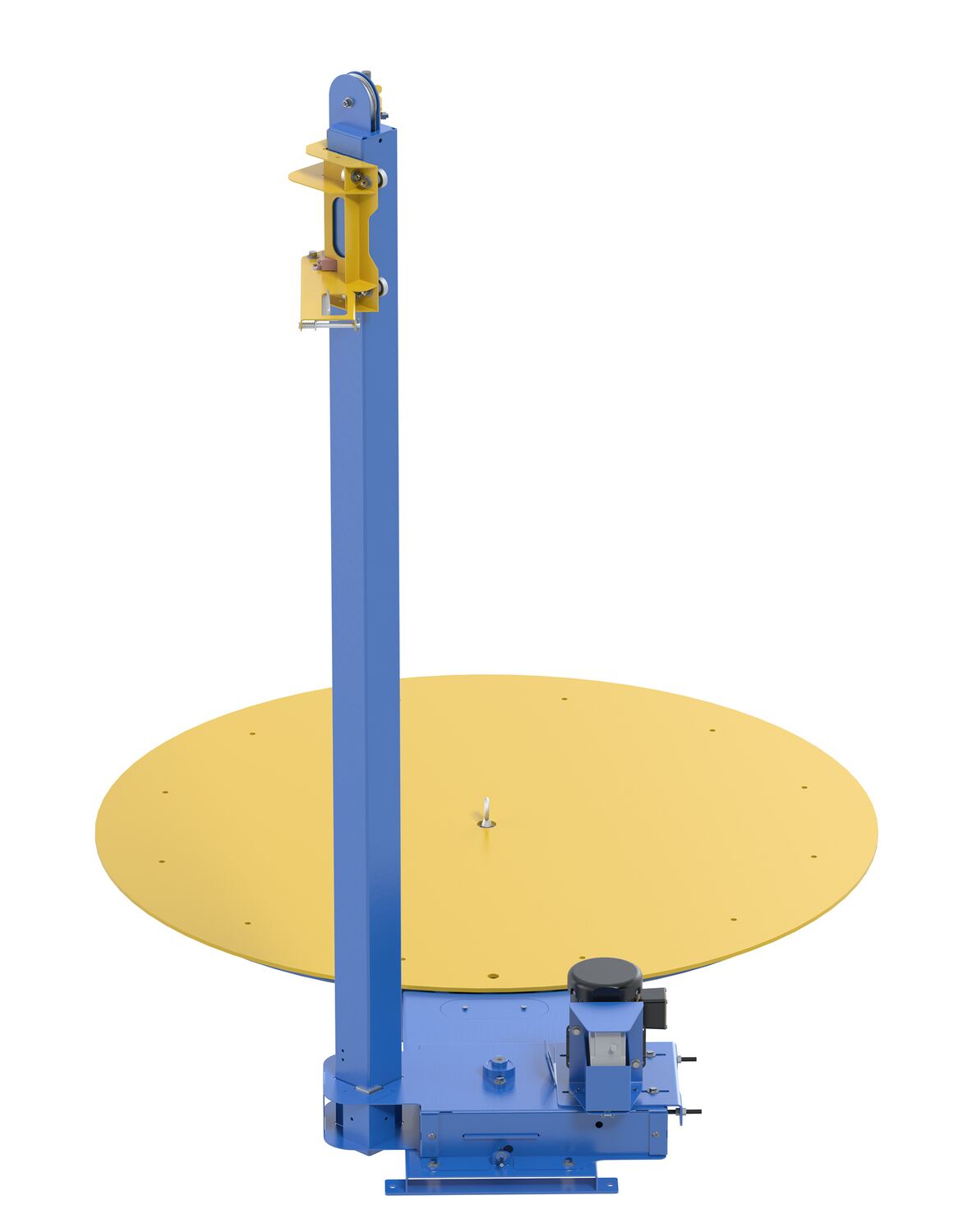

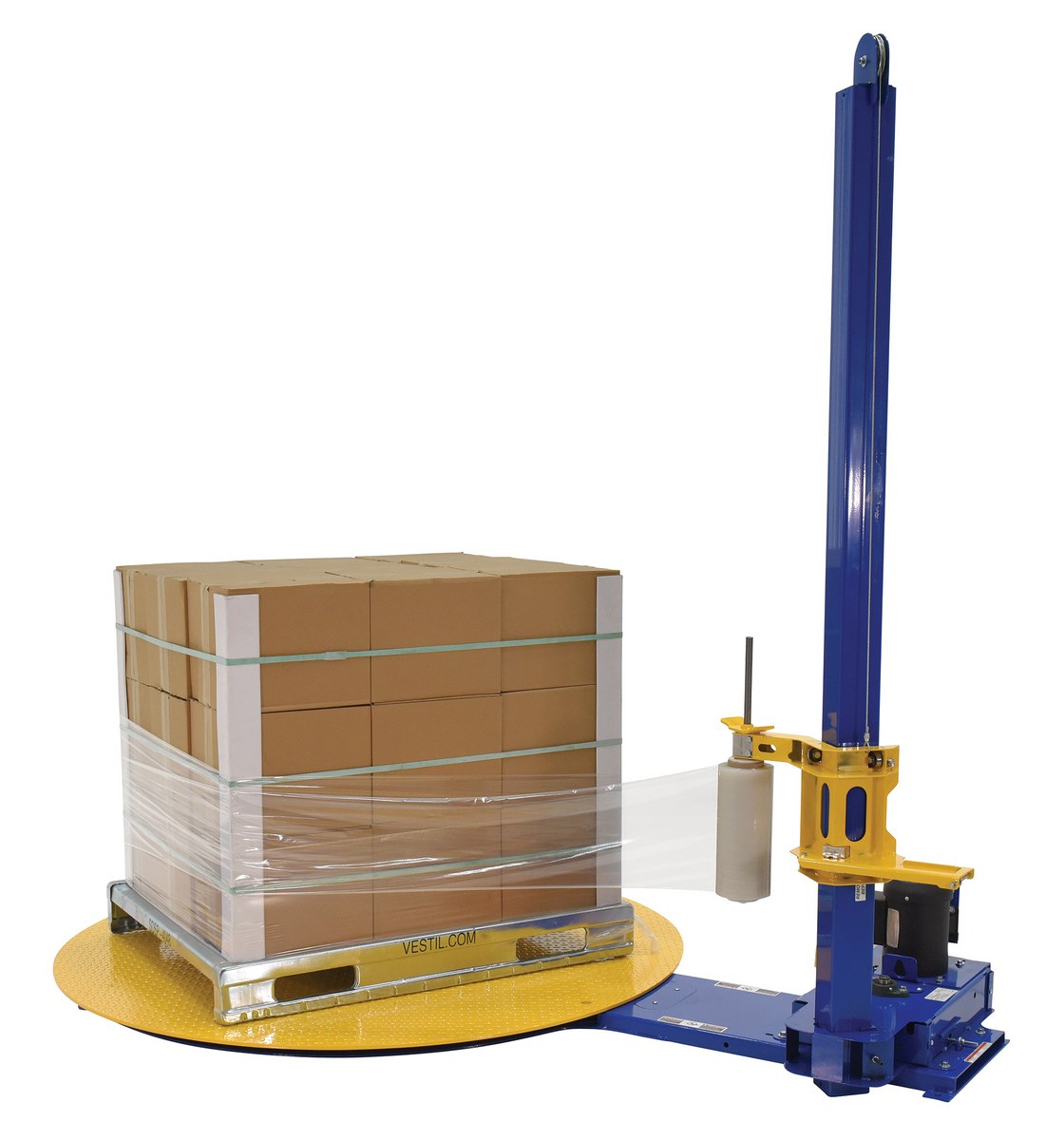

Steel Semi-Automatic Stretch Wrap Machine 70 In. Turntable Diameter 4,000 Lb. Capacity Blue / Yellow

The semi-automatic stretch wrap machine design offers bigger carousel sizes with carousel rotation that is controlled by a foot switch. The power input has variable AC motor that allows adjustable deck speed and includes soft-start/stop. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

  • Stretch wrap design increases shipping productivity
  • Simply depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use
Total Ship Wt.(lbs.): 985 (only 1 package) Size: 70"W x 107.125"L x 92.375"H Color: Yellow (Deck), Blue (Frame)

Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 70 Wrap Height (in.): 81-7/8
Turntable Height (in.): 2-3/16 Maximum Load Diameter (in.): 84 Voltage/Phase: 115/1
Foot Switch Cord Length (in.): 96 R.P.M Variables: 3-12

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SWA-70
SWA-70

Steel Semi-Automatic Stretch Wrap Machine 70 In. Turntable Diameter 4,000 Lb. Capacity Blue / Yellow

The semi-automatic stretch wrap machine design offers bigger carousel sizes with carousel rotation that is controlled by a foot switch. The power input has variable AC motor that allows adjustable deck speed and includes soft-start/stop. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and simple. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

  • Stretch wrap design increases shipping productivity
  • Simply depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use
Dimensions: 70"W x 107.125"L x 92.375"H Sell UOM: EA-Each Color: Yellow (Deck), Blue (Frame)
Material: Steel UPC: 691215093668 GTIN: 00691215093668
Warranty: -- Shipping Weight: 985 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Turntable Diameter (in.): 70 Wrap Height (in.): 81-7/8
Turntable Height (in.): 2-3/16 Maximum Load Diameter (in.): 84 Voltage/Phase: 115/1
Foot Switch Cord Length (in.): 96 R.P.M Variables: 3-12
