SWR-CPL-24-8-72

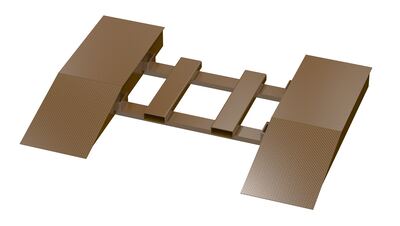

Steel Wheel Risers With Pick-Up Loop 72" X 24" X 8.25" 40,000 Lb. Capacity Brown

The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.

  • Built-in fork pocket loop
  • Raised diamond tread plate surface provides a non-slip grip
  • 24" fork pocket center
  • 1/4" thick material
Total Ship Wt.(lbs.): 701 (only 1 package) Size: 101.125"W x 72.0625"L x 8.25"H Color: Brown Non-Returnable

Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625 Individual Wheel Riser Width (in.): 24
Individual Wheel Riser Height (in.): 8.25 Width Between Wheel Risers (in.): 53.125 Fork Pocket Width (in.): 7.5
Fork Pocket Height (in.): 2.5 Fork Pocket Center (in.): 24

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SWR-CPL-24-8-72
SWR-CPL-24-8-72

Steel Wheel Risers With Pick-Up Loop 72" X 24" X 8.25" 40,000 Lb. Capacity Brown

The steel wheel riser is equipped with fork slots for ease in fork truck transporting. Wheel risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel with a uniform capacity per pair is 40,000 lbs. ramps may be stacked for compact storage when not in use.

  • Built-in fork pocket loop
  • Raised diamond tread plate surface provides a non-slip grip
  • 24" fork pocket center
  • 1/4" thick material
Dimensions: 101.125"W x 72.0625"L x 8.25"H Sell UOM: EA-Each Color: Brown
Material: Steel UPC: 691215376532 GTIN: 00691215376532
Warranty: -- Shipping Weight: 701 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity: 40000 Individual Wheel Riser Length (in.): 72.0625 Individual Wheel Riser Width (in.): 24
Individual Wheel Riser Height (in.): 8.25 Width Between Wheel Risers (in.): 53.125 Fork Pocket Width (in.): 7.5
Fork Pocket Height (in.): 2.5 Fork Pocket Center (in.): 24
