Model Details

TCD-U-72-DC

Printer Friendly
TCD-U-72-DC

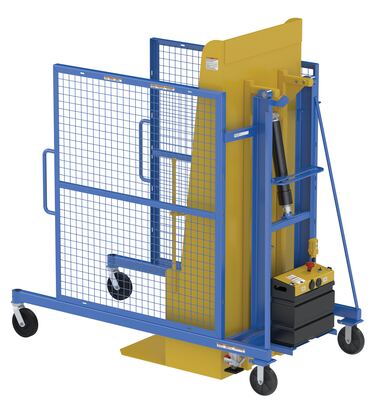

Steel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / Yellow

The DC powered Hydraulic trash can dumper is designed for one person to easily dump contents of trash cans no matter how heavy they are. The versatile adjustable unit works with only the trash cans listed or approved equal. The DC powered units include an on-board battery charger and battery charger indicator gauge.

  • Two (2) rigid and two (2) swivel casters for portability
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last
Total Ship Wt.(lbs.): 1071 (only 1 package) Size: 46.0625"W x 87.625"L x 90.0625"H Color: Blue / Yellow

Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 71-15/16 Maximum Dump Angle Degree: 135
Works with Trash Cans with a Width between (in.): 17-1/2 to 34-3/4 Works with Trash Cans with a Length between (in.): 20-1/2 to 35-7/8 Works with Trash Cans with a Height between (in.): 27 to 50
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Quantity/Type: (2) Swivel (2) Rigid Caster Material: Glass Filled Nylon
Chute Width (in.): 34-3/4 Chute Depth (in.): 35-7/8 Overall Rotated Height (in.): 160-15/16
Maximum Rotated Angle Degree: 45 Number of Adjustable Floor Locks: 2 Operation: 12V DC
Battery Quantity: 1 Horsepower (hp): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TCD-U-72-DC
TCD-U-72-DC

Steel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / Yellow

The DC powered Hydraulic trash can dumper is designed for one person to easily dump contents of trash cans no matter how heavy they are. The versatile adjustable unit works with only the trash cans listed or approved equal. The DC powered units include an on-board battery charger and battery charger indicator gauge.

  • Two (2) rigid and two (2) swivel casters for portability
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last
Dimensions: 46.0625"W x 87.625"L x 90.0625"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215094016 GTIN: 00691215094016
Warranty: -- Shipping Weight: 1071 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Maximum Dump Height (in.): 71-15/16 Maximum Dump Angle Degree: 135
Works with Trash Cans with a Width between (in.): 17-1/2 to 34-3/4 Works with Trash Cans with a Length between (in.): 20-1/2 to 35-7/8 Works with Trash Cans with a Height between (in.): 27 to 50
Caster Quantity/Diameter/Width (in.): (4) 8 x 2 Caster Quantity/Type: (2) Swivel (2) Rigid Caster Material: Glass Filled Nylon
Chute Width (in.): 34-3/4 Chute Depth (in.): 35-7/8 Overall Rotated Height (in.): 160-15/16
Maximum Rotated Angle Degree: 45 Number of Adjustable Floor Locks: 2 Operation: 12V DC
Battery Quantity: 1 Horsepower (hp): 2
