Model Details

TDR-30-SS

TDR-30-SS

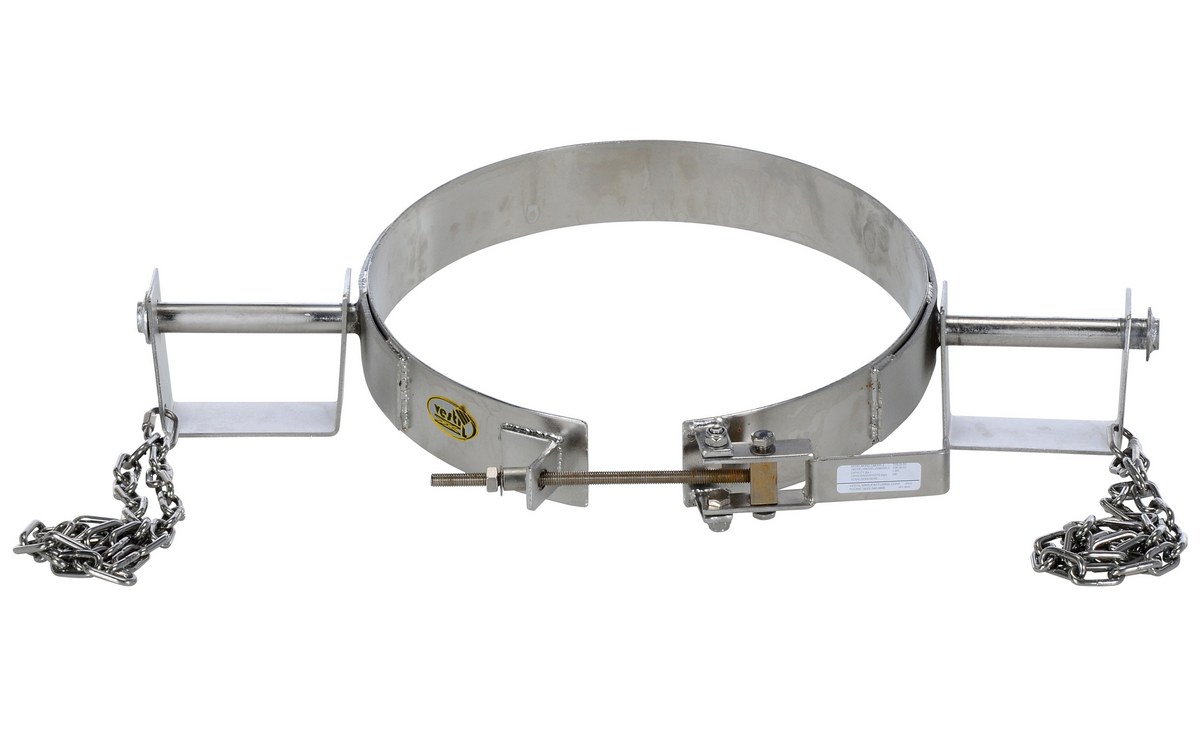

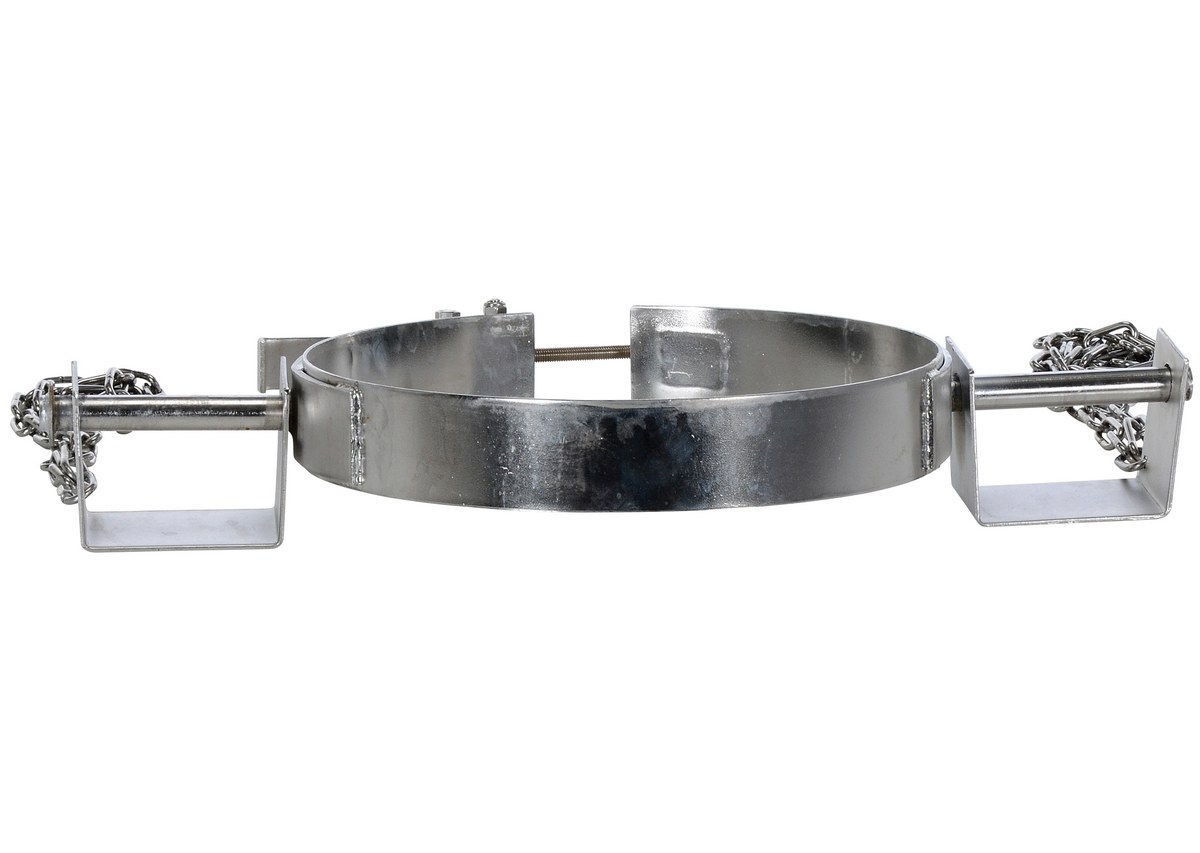

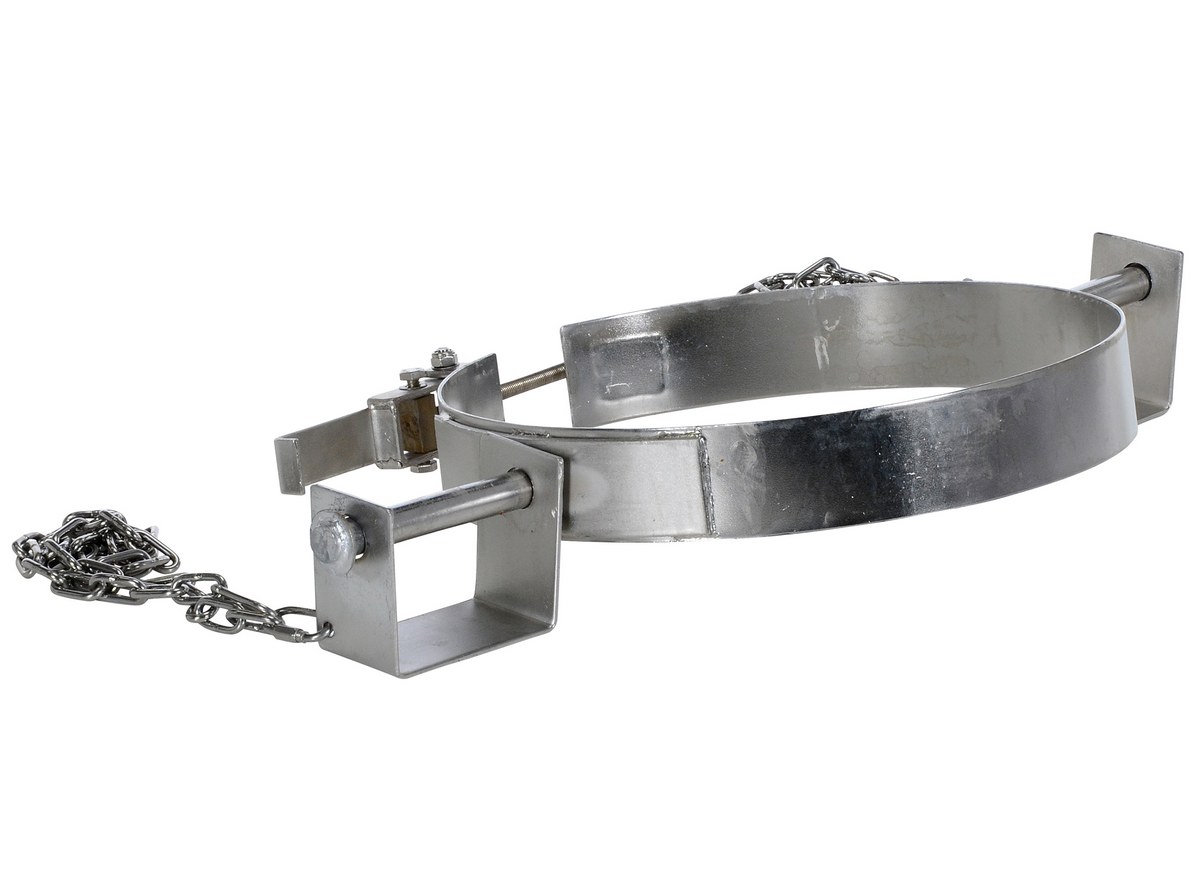

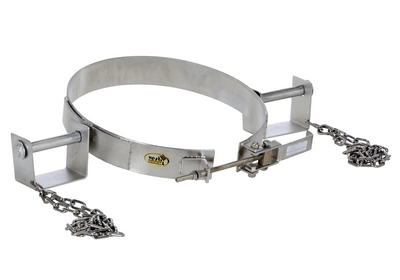

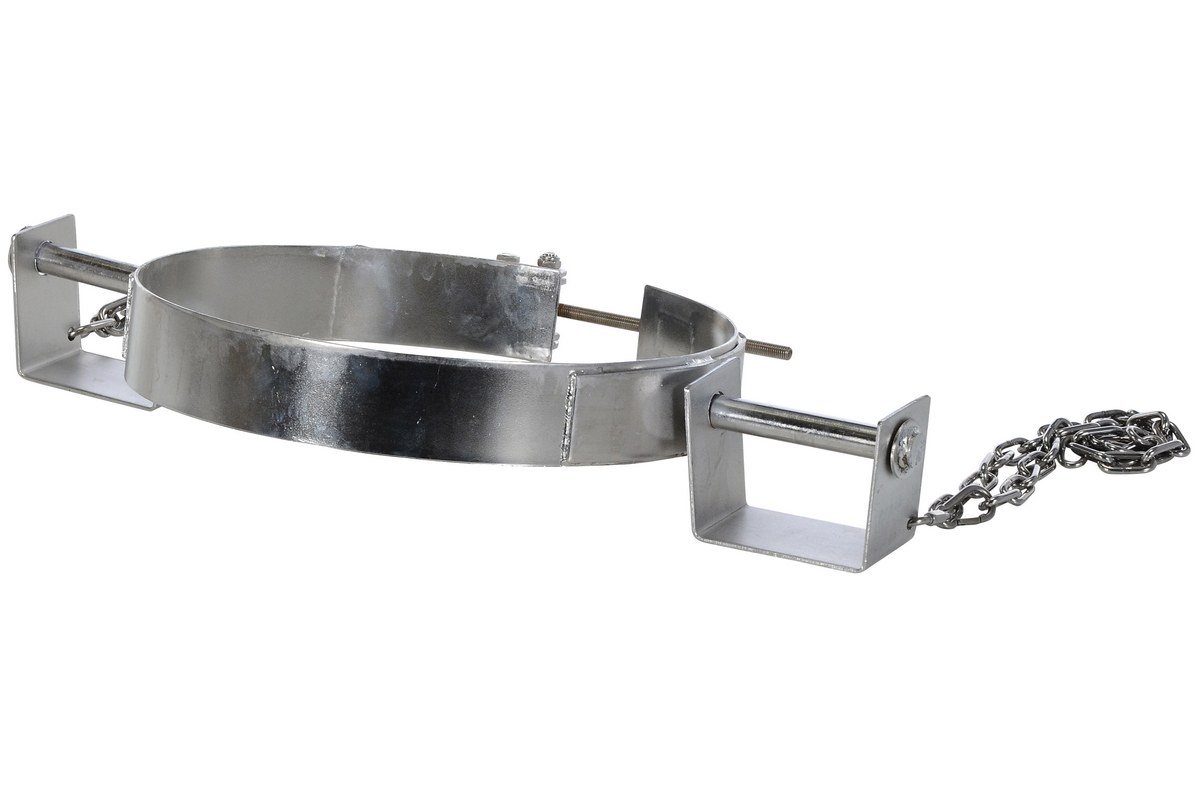

304 Stainless Steel Tilting Drum Ring 30 Gallon Drum 1,200 Lb. Capacity Silver

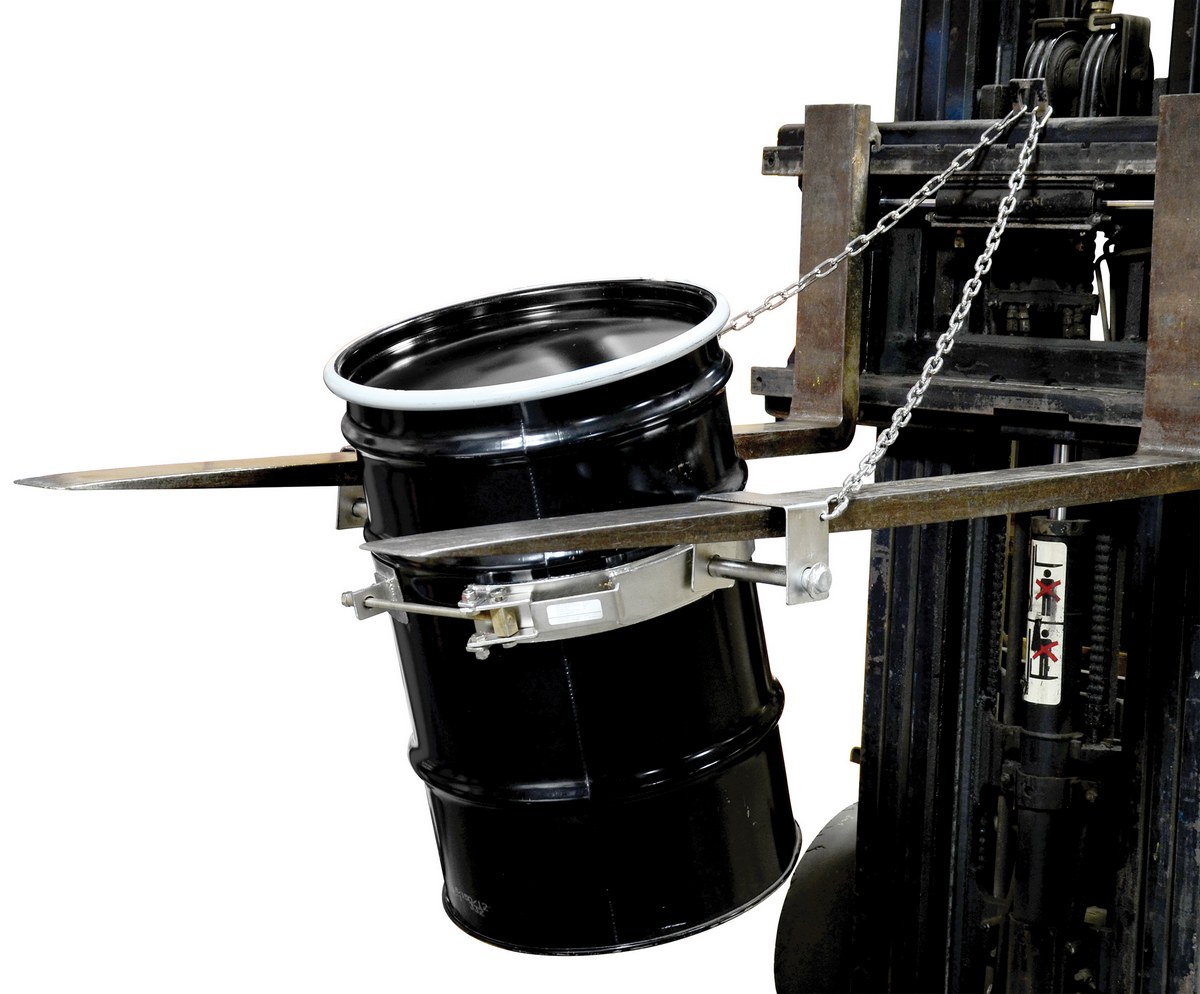

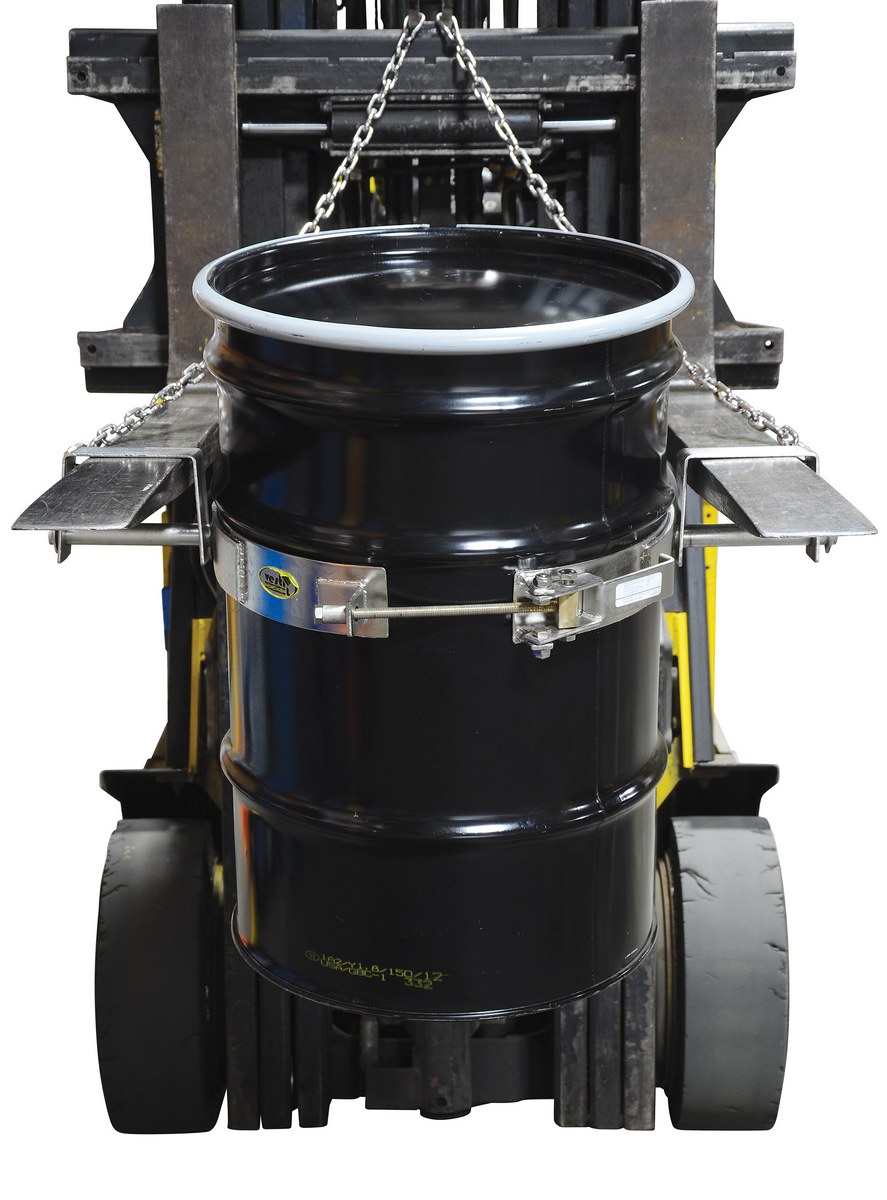

Easily transport steel drums with your fork truck and the tilting drum ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Welded steel construction.

  • Easily transport steel drums with your fork truck
  • Manually rotate drum to dispense light materials
  • The band secures around the belly of the drum
  • Stainless steel construction for durable strength
Total Ship Wt.(lbs.): 25 (only 1 package) Size: 33.8125"W x 26.875"L x 5"H Color: Silver

Uniform Capacity (lb.): 1,200 Usable Fork Opening Width (in.): 5-1/4 Usable Fork Opening Height (in.): 2-7/8
Usable Drum (gal.): 30 Fork Pocket Center (in.): 28-9/16 Rotation (deg.): 180
Stainless Steel Grade: 304

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: TDR-30-SS


TDR-30-SS

304 Stainless Steel Tilting Drum Ring 30 Gallon Drum 1,200 Lb. Capacity Silver

Easily transport steel drums with your fork truck and the tilting drum ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Welded steel construction.

  • Easily transport steel drums with your fork truck
  • Manually rotate drum to dispense light materials
  • The band secures around the belly of the drum
  • Stainless steel construction for durable strength
Dimensions: 33.8125"W x 26.875"L x 5"H Sell UOM: EA-Each Color: Silver
Material: 304 Stainless Steel UPC: 691215094047 GTIN: 00691215094047
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,200 Usable Fork Opening Width (in.): 5-1/4 Usable Fork Opening Height (in.): 2-7/8
Usable Drum (gal.): 30 Fork Pocket Center (in.): 28-9/16 Rotation (deg.): 180
Stainless Steel Grade: 304
