Model Details

TDR-55

TDR-55

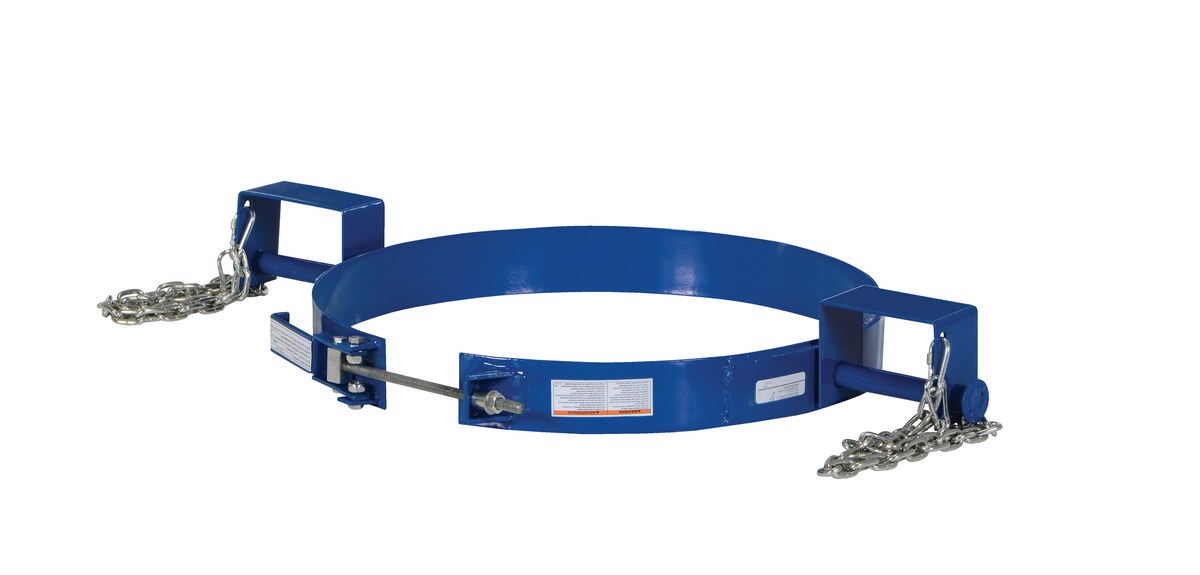

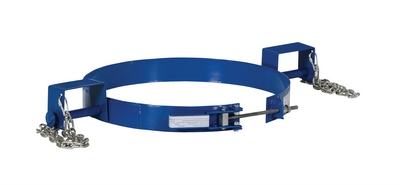

Carbon Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity Blue

Easily transport steel drums with your fork truck and the tilting drum ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Welded steel construction.

  • Tilting drum ring transport steel drums with a fork truck for ideal operation
  • Pivoting fork pockets allow for manual rotation of drums to dispense
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

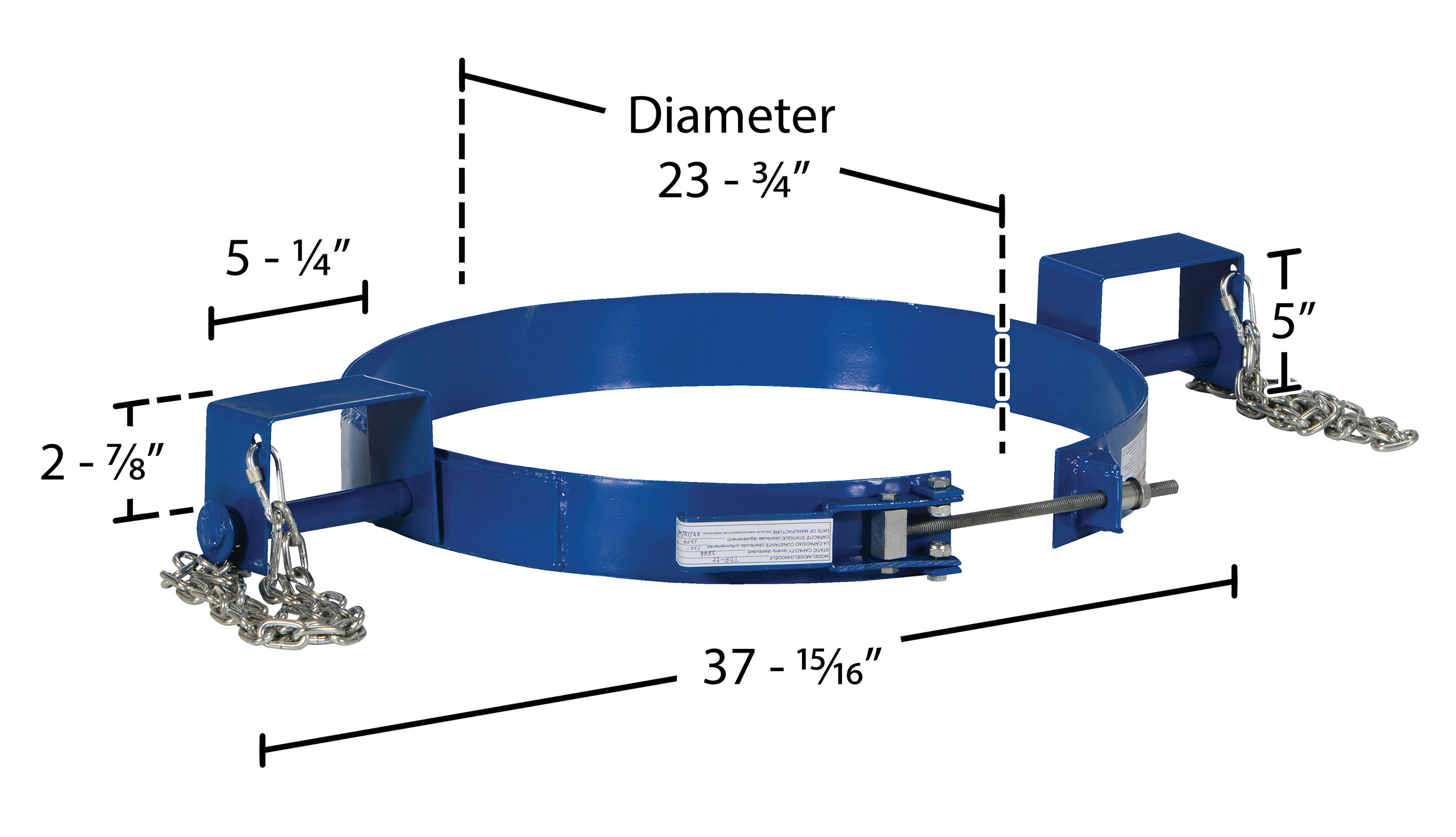

Total Ship Wt.(lbs.): 25 (only 1 package) Size: 37.9375"W x 29.875"L x 5"H Color: Blue

Uniform Capacity (lb.): 1,200 Usable Fork Opening Width (in.): 5-1/4 Usable Fork Opening Height (in.): 2-7/8
Usable Drum (gal.): 55 Fork Pocket Center (in.): 28-9/16 Rotation (deg.): 180

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: TDR-55


TDR-55

Carbon Steel Tilting Drum Ring 55 Gallon Drum 1,200 Lb. Capacity Blue

Easily transport steel drums with your fork truck and the tilting drum ring. Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Welded steel construction.

  • Tilting drum ring transport steel drums with a fork truck for ideal operation
  • Pivoting fork pockets allow for manual rotation of drums to dispense
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Dimensions: 37.9375"W x 29.875"L x 5"H Sell UOM: EA-Each Color: Blue
Material: Carbon Steel UPC: 691215039710 GTIN: 00691215039710
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,200 Usable Fork Opening Width (in.): 5-1/4 Usable Fork Opening Height (in.): 2-7/8
Usable Drum (gal.): 55 Fork Pocket Center (in.): 28-9/16 Rotation (deg.): 180
