Model Details

TEG-30-42-4

Printer Friendly
TEG-30-42-4

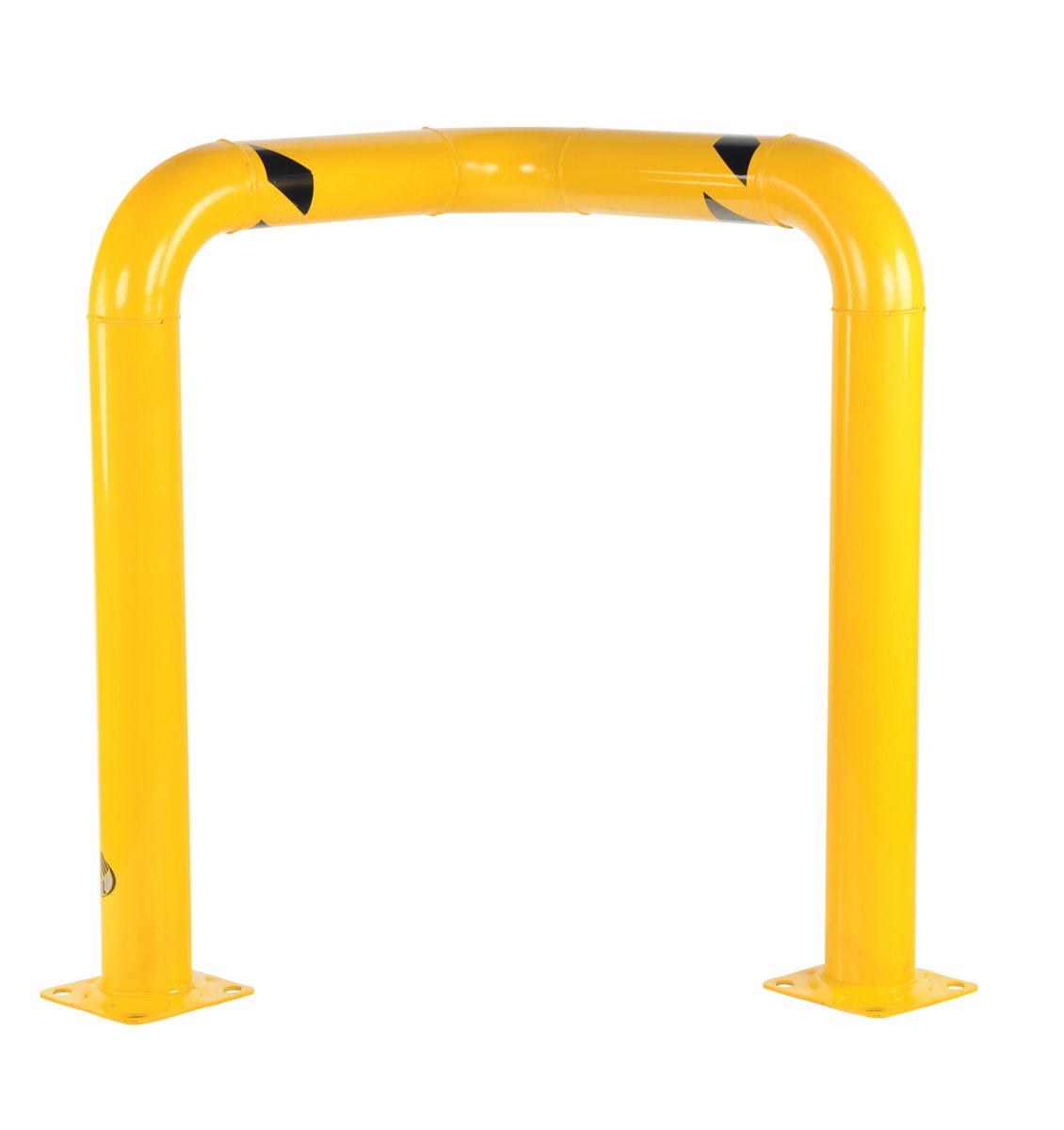

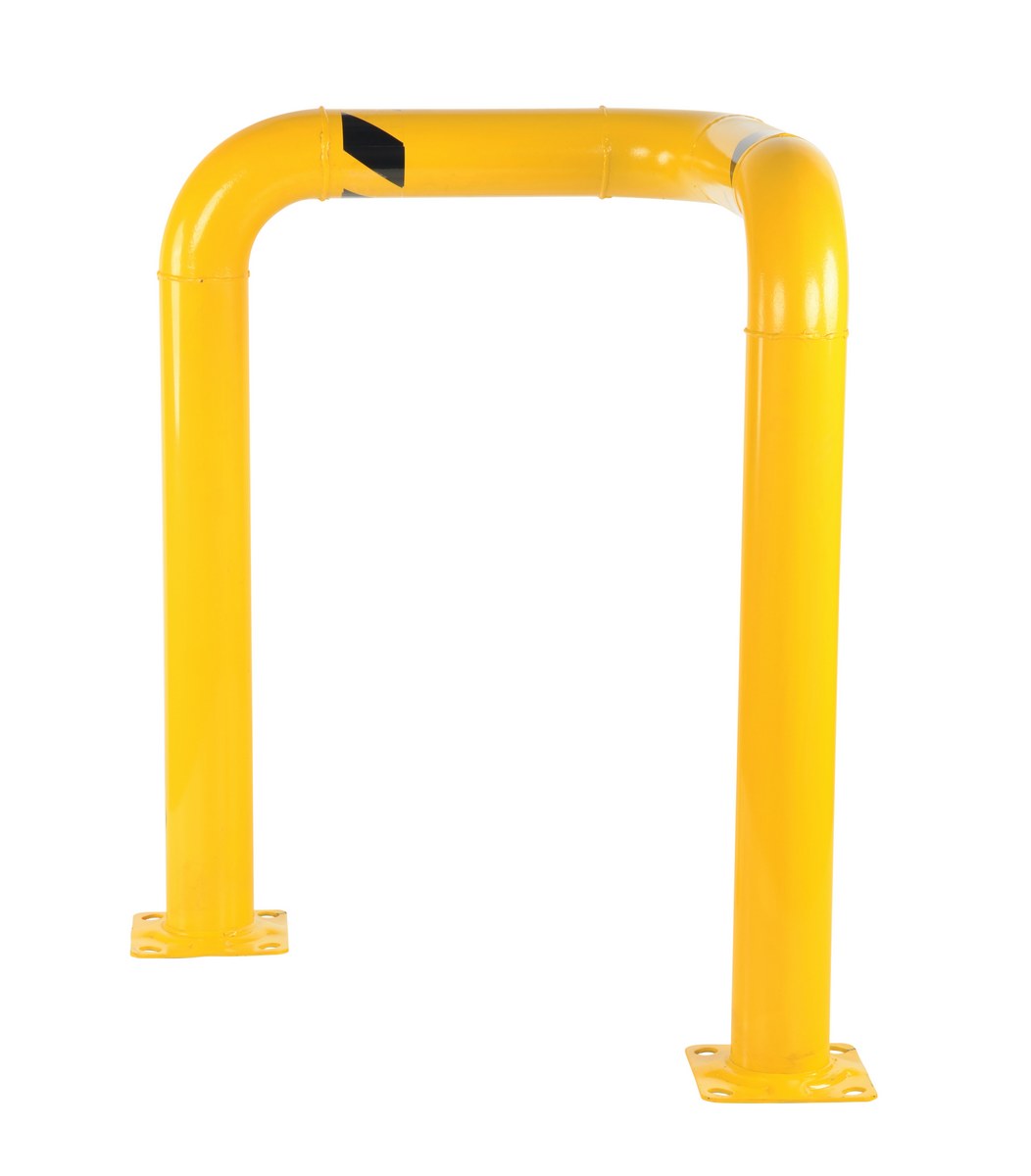

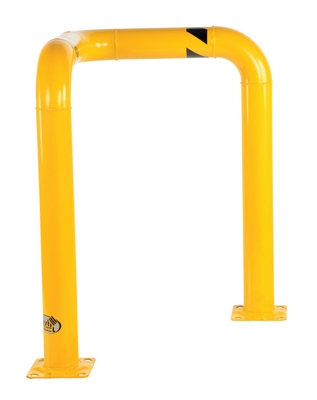

Steel Triple Elbow Guard 34-1/8 In. x 34-1/8 In. x 42-9/16 In. Yellow

Protect the corners of machinery, buildings, and offices. The triple elbow guard fits snug around corners to provide the ultimate protection against potential damage from fork trucks or other mobile equipment.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Base plate includes four pre-drilled mounting holes for quick and easy installation
Total Ship Wt.(lbs.): 120 (only 1 package) Size: 34.125"W x 34.125"L x 42.5625"H Color: Yellow

Steel Pipe Diameter (in.): 4-1/2 Guard Length (in.): 30-5/8 Guard Depth (in.): 30-5/8
Base Plate Width (in.): 8 x 8 Bolt Holes (qty.): 8 Base Plate Slotted Mounting Hole (in.): 7/8 x 1-1/4
Base Plate Thickness (in.): 5/8 Elbow (degrees): 90

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TEG-30-42-4
TEG-30-42-4

Steel Triple Elbow Guard 34-1/8 In. x 34-1/8 In. x 42-9/16 In. Yellow

Protect the corners of machinery, buildings, and offices. The triple elbow guard fits snug around corners to provide the ultimate protection against potential damage from fork trucks or other mobile equipment.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Base plate includes four pre-drilled mounting holes for quick and easy installation
Dimensions: 34.125"W x 34.125"L x 42.5625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215039796 GTIN: 00691215039796
Warranty: -- Shipping Weight: 120 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Steel Pipe Diameter (in.): 4-1/2 Guard Length (in.): 30-5/8 Guard Depth (in.): 30-5/8
Base Plate Width (in.): 8 x 8 Bolt Holes (qty.): 8 Base Plate Slotted Mounting Hole (in.): 7/8 x 1-1/4
Base Plate Thickness (in.): 5/8 Elbow (degrees): 90
