Model Details

TG-600-ROLL

Printer Friendly
TG-600-ROLL

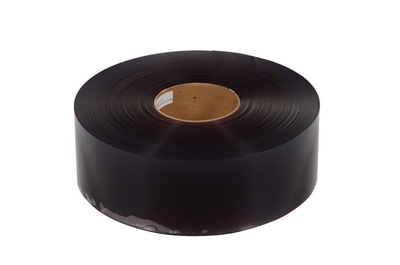

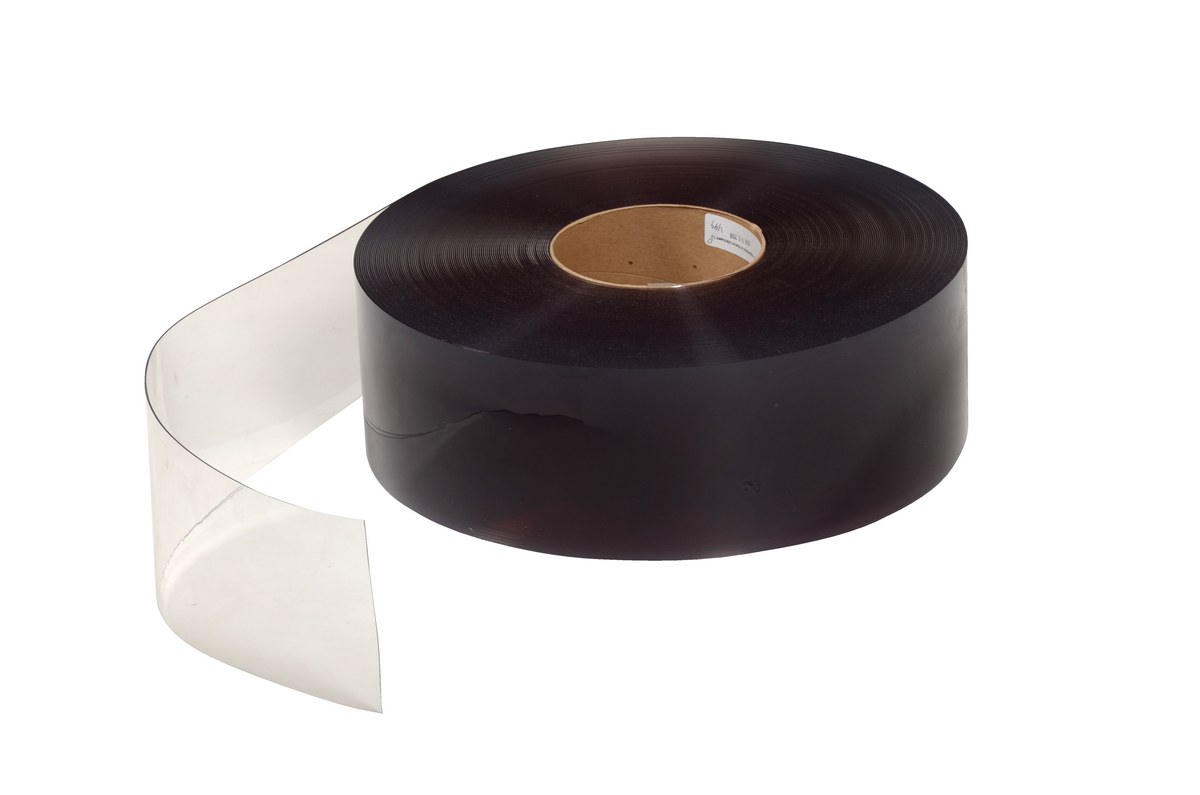

PVC Vinyl Strip Door Roll 3/50 In. Thickness 6 In. x 3600 In. Clear

Roll vinyl strip door material for replacing damaged strips or adding new strips.

  • Vinyl strip design helps to minimize heating and cooling costs
  • Clear strips offer visual clarity & employee safety
  • Fire resistant vinyl construction is self-extinguishing
  • Smooth surface design allows user to comfortably enter & exit
Total Ship Wt.(lbs.): 56 (only 1 package) Size: 6"W x 0.06"L x 3600"H Color: Clear

Opening Width (in.): 6 Opening Height (in.): 3600 Tensile Strength (PSI): 2635
Maximum Tensile Elongation (percent): 388 Graves Tear Load (lb.): 35.4 Graves Tear Extension (in.): 2.07
Load at 100% Elongation (lbs.): 32.2 Strength at 100% Elongation (PSI): 1181 Stiffness in Flexure -23° Celsius (PSI): 1805
Brittleness Temperature by Impact (degrees Celsius): 35 Recommended Operating Temperature - Range (degrees Fahrenheit): -10 to 140 Specific Gravity: 1.22
Haze Transmittance (percent): 6.30 Luminous Transmittance (percent): 82.80

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: TG-600-ROLL
TG-600-ROLL

PVC Vinyl Strip Door Roll 3/50 In. Thickness 6 In. x 3600 In. Clear

Roll vinyl strip door material for replacing damaged strips or adding new strips.

  • Vinyl strip design helps to minimize heating and cooling costs
  • Clear strips offer visual clarity & employee safety
  • Fire resistant vinyl construction is self-extinguishing
  • Smooth surface design allows user to comfortably enter & exit
Dimensions: 6"W x 0.06"L x 3600"H Sell UOM: EA-Each Color: Clear
Material: PVC Vinyl UPC: 691215053662 GTIN: 00691215053662
Warranty: -- Shipping Weight: 56 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Opening Width (in.): 6 Opening Height (in.): 3600 Tensile Strength (PSI): 2635
Maximum Tensile Elongation (percent): 388 Graves Tear Load (lb.): 35.4 Graves Tear Extension (in.): 2.07
Load at 100% Elongation (lbs.): 32.2 Strength at 100% Elongation (PSI): 1181 Stiffness in Flexure -23° Celsius (PSI): 1805
Brittleness Temperature by Impact (degrees Celsius): 35 Recommended Operating Temperature - Range (degrees Fahrenheit): -10 to 140 Specific Gravity: 1.22
Haze Transmittance (percent): 6.30 Luminous Transmittance (percent): 82.80
