TG-800-ROLL

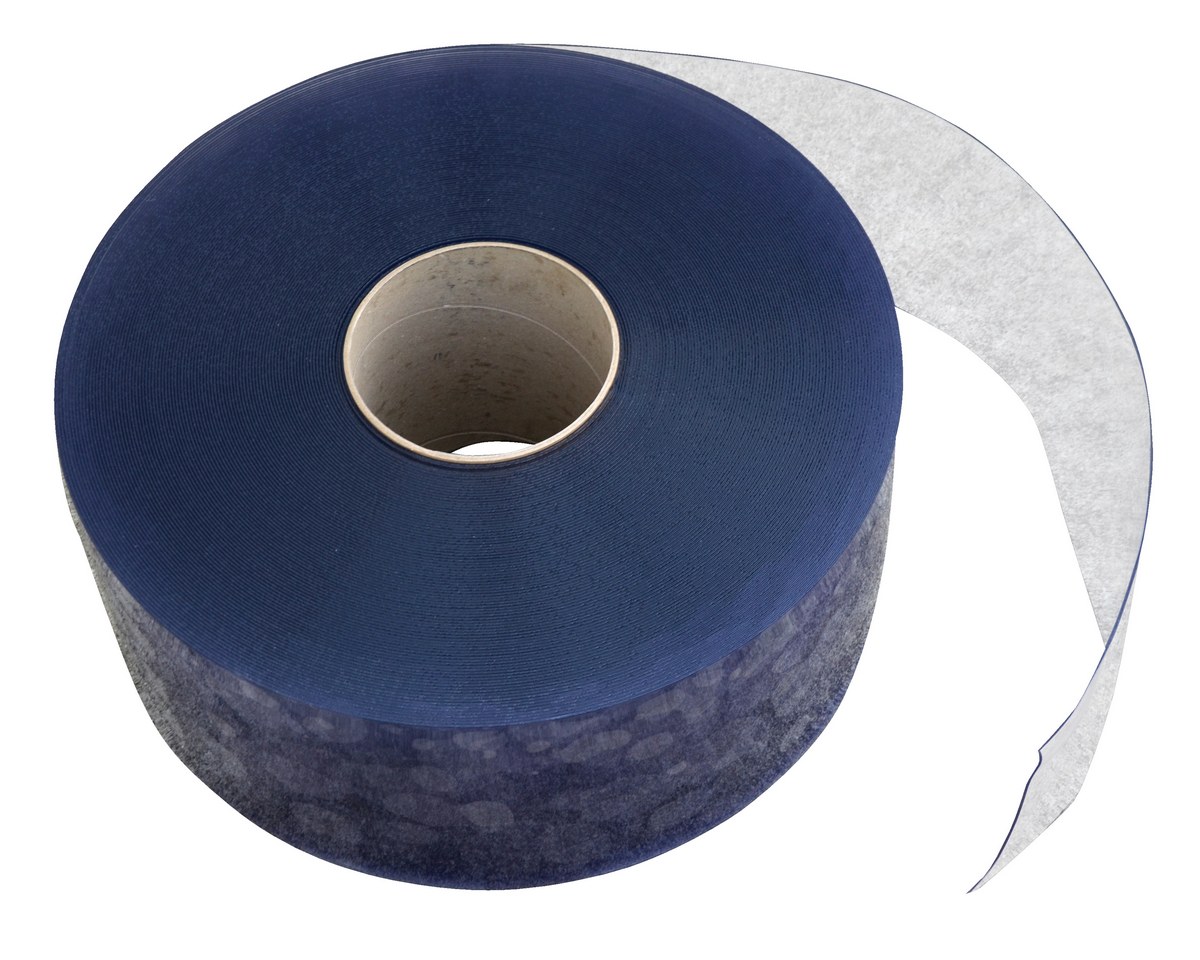

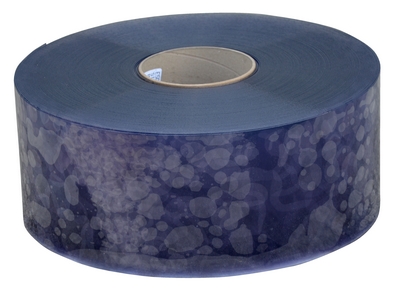

PVC Vinyl Strip Door 2/25 In. Roll 2/25 In. Thickness 8 In. x 3600 In. Clear

Roll vinyl strip door material for replacing damaged strips or adding new strips.

  • Vinyl strip design helps to minimize heating and cooling costs
  • Clear strips offer visual clarity & employee safety
  • Fire resistant vinyl construction is self-extinguishing
  • Smooth surface design allows user to comfortably enter & exit
Total Ship Wt.(lbs.): 107 (only 1 package) Size: 8"W x 0.08"L x 3600"H Color: Clear

Length (ft): 300 Package Contents: (1) 300 Ft Roll PVC Vinyl Strip Door Material Tensile Strength (PSI): 2635
Maximum Tensile Elongation (percent): 388 Graves Tear Load (lb.): 35.4 Graves Tear Extension (in.): 2.07
Load at 100% Elongation (lbs.): 32.2 Strength at 100% Elongation (PSI): 1181 Stiffness in Flexure - 23 degrees Celsius (PSI): 1805
Brittleness Temperature by Impact (degrees Celsius): 35 Recommended Operating Temperature - Range (degrees Fahrenheit): -10 to 140 Specific Gravity: 1.22
Haze Transmittance (percent): 6.30 Luminous Transmittance (percent): 82.80

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TG-800-ROLL
TG-800-ROLL

PVC Vinyl Strip Door 2/25 In. Roll 2/25 In. Thickness 8 In. x 3600 In. Clear

Roll vinyl strip door material for replacing damaged strips or adding new strips.

  • Vinyl strip design helps to minimize heating and cooling costs
  • Clear strips offer visual clarity & employee safety
  • Fire resistant vinyl construction is self-extinguishing
  • Smooth surface design allows user to comfortably enter & exit
Dimensions: 8"W x 0.08"L x 3600"H Sell UOM: EA-Each Color: Clear
Material: PVC Vinyl UPC: 691215053679 GTIN: 00691215053679
Warranty: -- Shipping Weight: 107 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Length (ft): 300 Package Contents: (1) 300 Ft Roll PVC Vinyl Strip Door Material Tensile Strength (PSI): 2635
Maximum Tensile Elongation (percent): 388 Graves Tear Load (lb.): 35.4 Graves Tear Extension (in.): 2.07
Load at 100% Elongation (lbs.): 32.2 Strength at 100% Elongation (PSI): 1181 Stiffness in Flexure - 23 degrees Celsius (PSI): 1805
Brittleness Temperature by Impact (degrees Celsius): 35 Recommended Operating Temperature - Range (degrees Fahrenheit): -10 to 140 Specific Gravity: 1.22
Haze Transmittance (percent): 6.30 Luminous Transmittance (percent): 82.80
