Model Details

TJIB-10

Printer Friendly
TJIB-10

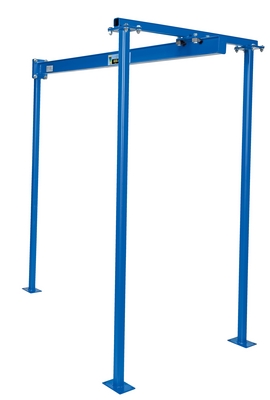

Steel Travel Tri-Post Jib 1,000 Lb. Capacity Blue

This unique travel Tri-Post Jib was designed for use in workstations. Place over the top of your workbench. Extra travel fixed-height I-beam overhangs the workbench to allow lifting of products from cart to bench. Steel construction. Hoist and trolley can be ordered separately.

  • Tri-Post jib was designed for use in workstations
  • Place over the top of your workbench for various applications
  • Fixed-height I-beam overhangs allow lifting of products from cart to bench
  • Steel construction for heavy-duty strength and durability
Total Ship Wt.(lbs.): 285 (only 1 package) Size: 48"W x 85.5"L x 83"H Color: Blue

Uniform Capacity (lb.): 1,000 Under I-Beam Clearance (in.): 76 I-Beam (Flange x Height) (in.): 2-11/16 x 4
I-Beam Usable Length (in.): 79-3/4 Straddle Width I.D. (in.): 41

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TJIB-10
TJIB-10

Steel Travel Tri-Post Jib 1,000 Lb. Capacity Blue

This unique travel Tri-Post Jib was designed for use in workstations. Place over the top of your workbench. Extra travel fixed-height I-beam overhangs the workbench to allow lifting of products from cart to bench. Steel construction. Hoist and trolley can be ordered separately.

  • Tri-Post jib was designed for use in workstations
  • Place over the top of your workbench for various applications
  • Fixed-height I-beam overhangs allow lifting of products from cart to bench
  • Steel construction for heavy-duty strength and durability
Dimensions: 48"W x 85.5"L x 83"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215042079 GTIN: 00691215042079
Warranty: -- Shipping Weight: 285 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Under I-Beam Clearance (in.): 76 I-Beam (Flange x Height) (in.): 2-11/16 x 4
I-Beam Usable Length (in.): 79-3/4 Straddle Width I.D. (in.): 41
