Model Details

TM-20-DC-PTDS

Printer Friendly
TM-20-DC-PTDS

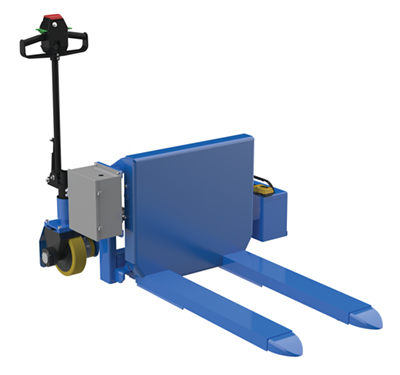

Steel Tilt Master DC Powered Traction Drive System 2,000 Lb. Capacity Blue

Lift and position filled tote boxes and baskets without the need of a fork truck or lift table using the new designed heavy duty tilt master. These 90 degree tilters will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The unit has a thin profile to allow the user to get as close to the load as possible. The power traction drive system allows the unit to be controlled and maneuvered quickly and easily.

  • An ergonomically friendly design diminishes bending and twisting motion
  • Constructed of steel for strength and durability
  • The unit rolls on phenolic steering wheels
  • Ergonomic handle for quick and easy maneuverability
Total Ship Wt.(lbs.): 827 (only 1 package) Size: 52"W x 75.5625"L x 54"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-5/8 Power: 24V DC

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TM-20-DC-PTDS
TM-20-DC-PTDS

Steel Tilt Master DC Powered Traction Drive System 2,000 Lb. Capacity Blue

Lift and position filled tote boxes and baskets without the need of a fork truck or lift table using the new designed heavy duty tilt master. These 90 degree tilters will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The unit has a thin profile to allow the user to get as close to the load as possible. The power traction drive system allows the unit to be controlled and maneuvered quickly and easily.

  • An ergonomically friendly design diminishes bending and twisting motion
  • Constructed of steel for strength and durability
  • The unit rolls on phenolic steering wheels
  • Ergonomic handle for quick and easy maneuverability
Dimensions: 52"W x 75.5625"L x 54"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215119375 GTIN: 00691215119375
Warranty: -- Shipping Weight: 827 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-5/8 Power: 24V DC
