TM-22-DC

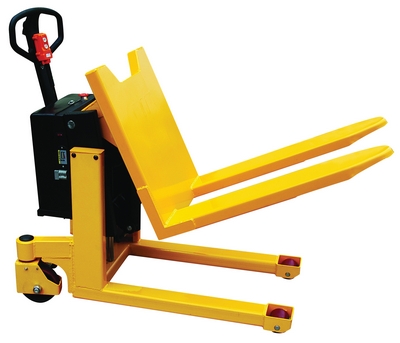

Steel Tilt Master DC Powered 12 Volt 2,200 Lb. Capacity Yellow

The battery operated electric lifter and tilter is designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Lift, tilt, and transport crates, boxes, and pallets with an open bottom. Rolls smoothly on nylon swivel casters with brake and foot protectors. Handle can be turned and locked in position away from the work area. Standard hand control for the tilt. Emergency on/off switch. Low maintenance cost. The unit is powered by an electric DC motor that includes an external battery charger.

  • Easily transported from workstation to workstation
  • Powered for efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Total Ship Wt.(lbs.): 420 (only 1 package) Size: 24.25"W x 52"L x 59.5"H Color: Yellow

Uniform Capacity (lb.): 2200 Vertical Lift Height (in.): 11-1/4 Lowered Fork Height (in.): 3-1/2
Fork Length (in.): 31-1/2 Fork Width (in.): 6-1/4 Maximum Tilted Fork Degree: 90
Individual Fork Width (in.): 6-1/4 Overall Fork Width (in.): 22 Width Between Forks (in.): 9-1/2
Caster Quantity/Diameter/Width (in.): (2) 6 x 2 Caster Type: Swivel with Brake Wheel Type: Nylon

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TM-22-DC
TM-22-DC

Steel Tilt Master DC Powered 12 Volt 2,200 Lb. Capacity Yellow

The battery operated electric lifter and tilter is designed to give the user an ergonomically correct position to reach loads easily without the need for bending down or excessively reaching over. Lift, tilt, and transport crates, boxes, and pallets with an open bottom. Rolls smoothly on nylon swivel casters with brake and foot protectors. Handle can be turned and locked in position away from the work area. Standard hand control for the tilt. Emergency on/off switch. Low maintenance cost. The unit is powered by an electric DC motor that includes an external battery charger.

  • Easily transported from workstation to workstation
  • Powered for efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Dimensions: 24.25"W x 52"L x 59.5"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215321037 GTIN: 00691215321037
Warranty: -- Shipping Weight: 420 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2200 Vertical Lift Height (in.): 11-1/4 Lowered Fork Height (in.): 3-1/2
Fork Length (in.): 31-1/2 Fork Width (in.): 6-1/4 Maximum Tilted Fork Degree: 90
Individual Fork Width (in.): 6-1/4 Overall Fork Width (in.): 22 Width Between Forks (in.): 9-1/2
Caster Quantity/Diameter/Width (in.): (2) 6 x 2 Caster Type: Swivel with Brake Wheel Type: Nylon
