Model Details

TT-N-30-PED

Printer Friendly
TT-N-30-PED

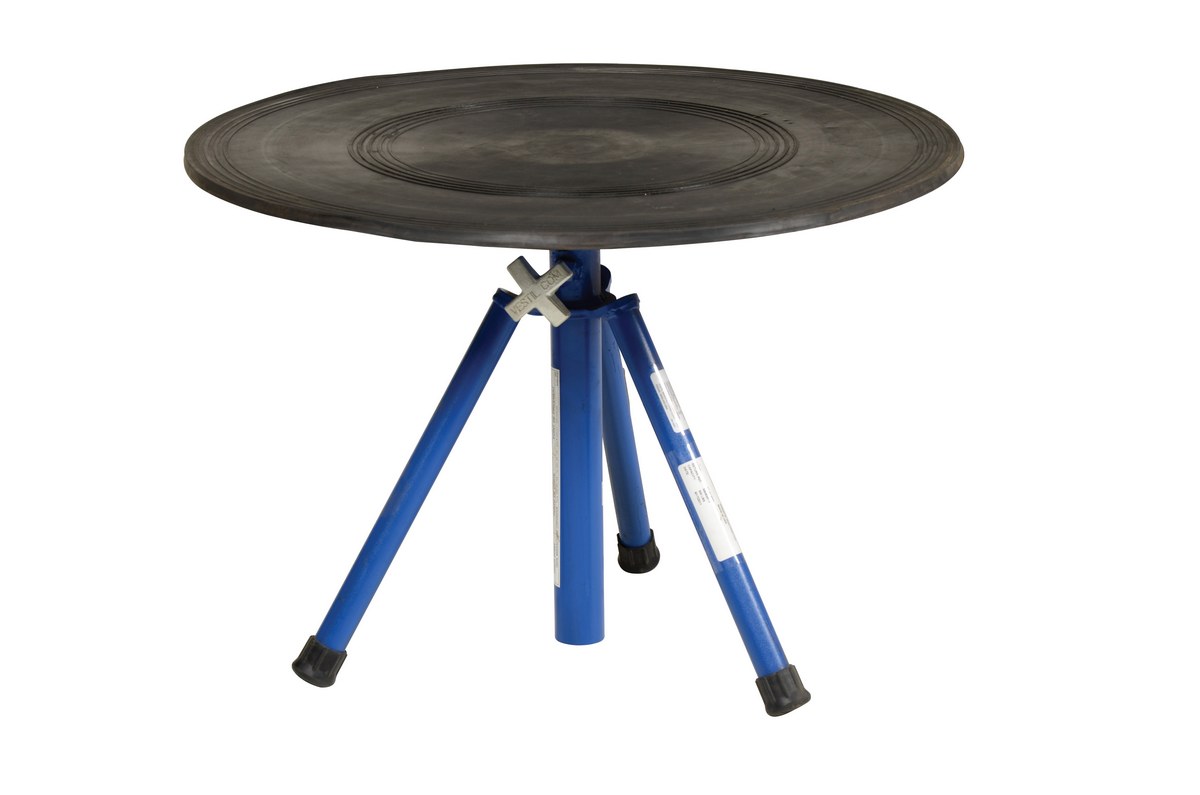

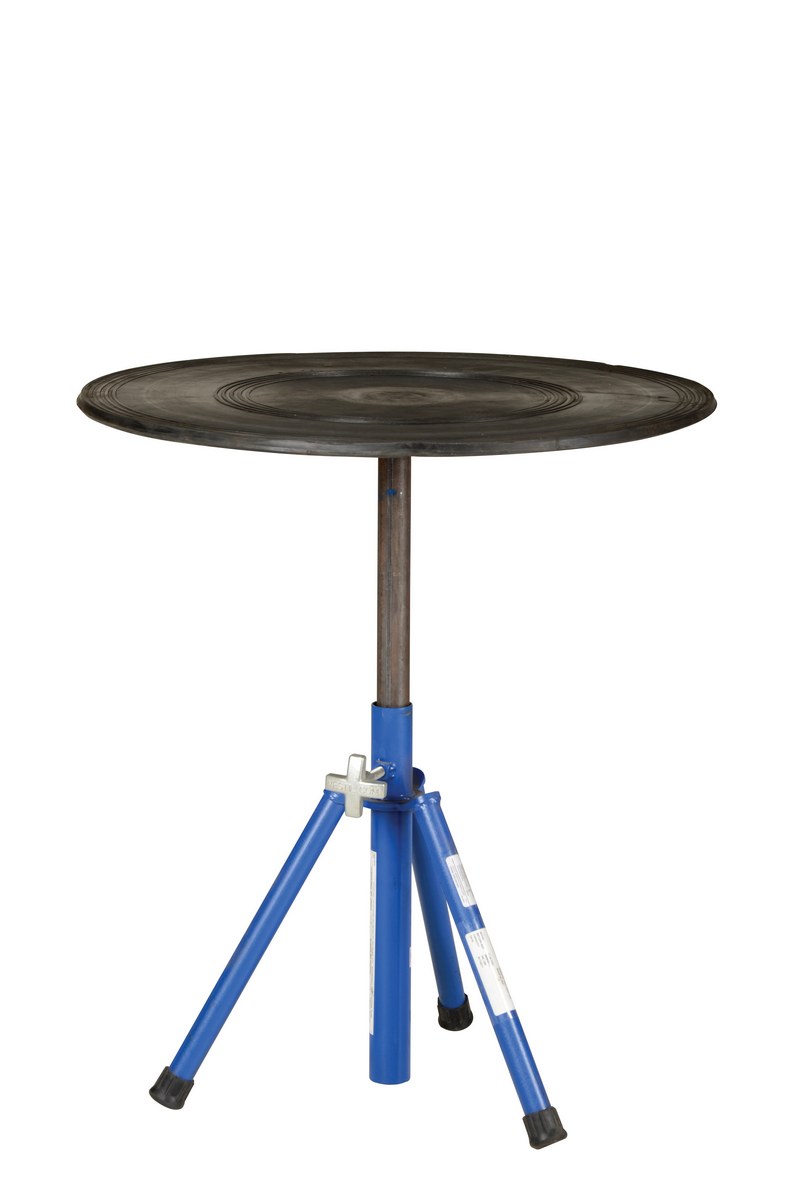

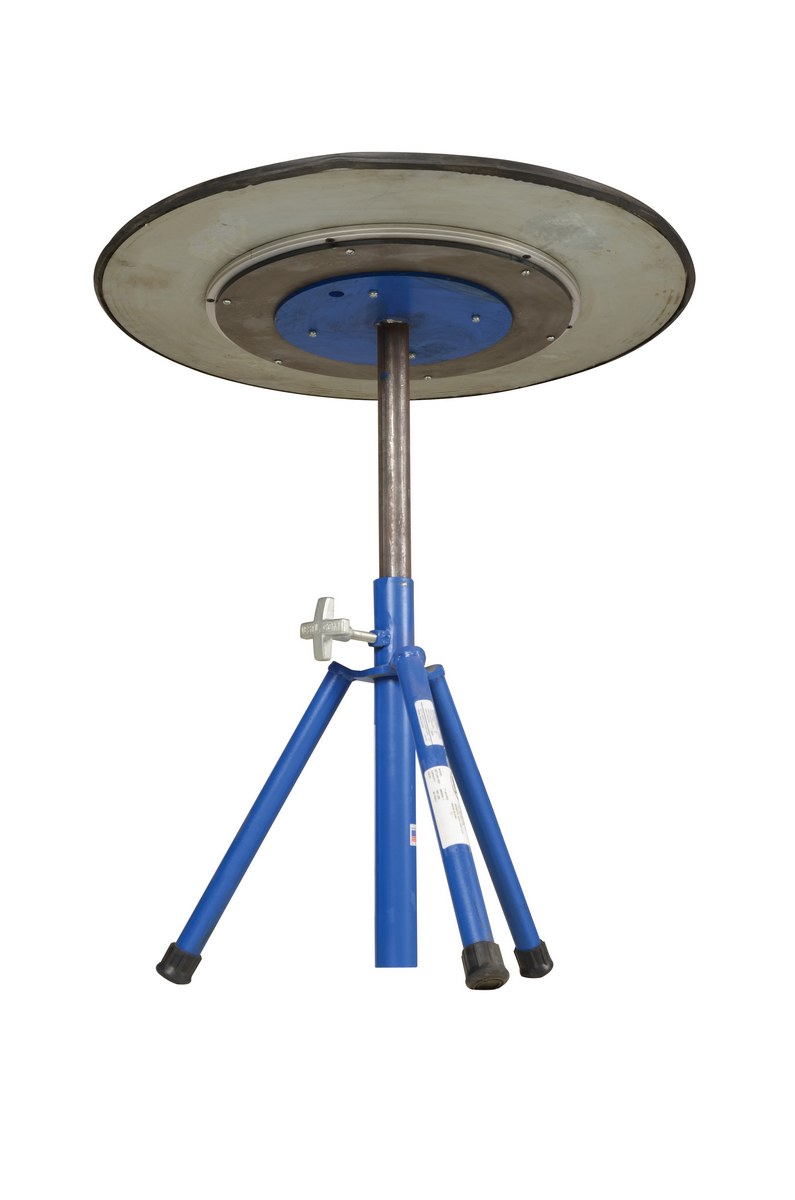

Steel Turntable 30 In. Diameter Manual 21-32 In. Height Adjustment 300 Lb. Capacity Blue

The heavy-duty manual turntable maximizes workspace and minimizes wasteful motion. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts. The unit features a turn knob height adjustment operation.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Total Ship Wt.(lbs.): 185 (only 1 package) Size: 30"W x 30"L x 20.6875"H Color: Blue / Black

Uniform Capacity (lb.): 300 Turntable Diameter (in.): 30 Height Range Minimum (in.): 20-11/16
Height Range Maximum (in.): 31-11/16 Steel Plate Height (in.): 5/16 Height Adjustment: Turn Knob

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TT-N-30-PED
TT-N-30-PED

Steel Turntable 30 In. Diameter Manual 21-32 In. Height Adjustment 300 Lb. Capacity Blue

The heavy-duty manual turntable maximizes workspace and minimizes wasteful motion. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts. The unit features a turn knob height adjustment operation.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Dimensions: 30"W x 30"L x 20.6875"H Sell UOM: EA-Each Color: Blue / Black
Material: Steel UPC: 691215111836 GTIN: 00691215111836
Warranty: -- Shipping Weight: 185 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 300 Turntable Diameter (in.): 30 Height Range Minimum (in.): 20-11/16
Height Range Maximum (in.): 31-11/16 Steel Plate Height (in.): 5/16 Height Adjustment: Turn Knob
