Model Details

ULTT-3648-6-YEL230-3

Printer Friendly
ULTT-3648-6-YEL230-3

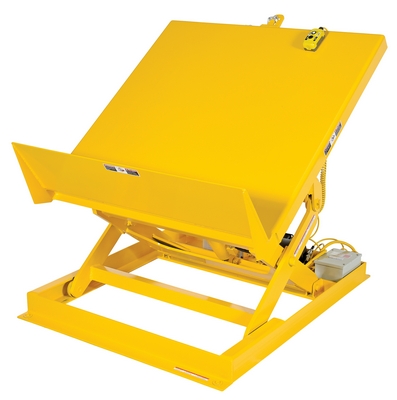

Steel Ergonomic Lift/Tilt Table 36 In. x 48 In. 230 Volt 3 Phase 6,000 Lb. Capacity Yellow

The lift & tilt workstation table allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers. The internal power unit includes electric motor, hydraulic pump, and control box. It includes a two-button hand held pendent control with optional voltages available. The welded steel construction has a yellow painted finish.

  • Ergonomic design minimizes bending and twisting
  • Welded steel construction provides long lasting rugged use
  • 44 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Total Ship Wt.(lbs.): 905 (only 1 package) Size: 36"W x 54"L x 22"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 6000 Cylinders: 2 Maximum Tilt Degree: 44
Lowered Height (in.): 10 Raised Height (in.): 24 Lip Height (in.): 12
Motor Horsepower: 2 Voltage/Phase: 230/3 2-Button Hand-Held Voltage: 24
Platform Width (in,): 36 Platform Length (in,): 48

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ULTT-3648-6-YEL230-3
ULTT-3648-6-YEL230-3

Steel Ergonomic Lift/Tilt Table 36 In. x 48 In. 230 Volt 3 Phase 6,000 Lb. Capacity Yellow

The lift & tilt workstation table allows platform to lift & tilt at the same time for easy operation. The platform end includes a high full width lip to support containers. The internal power unit includes electric motor, hydraulic pump, and control box. It includes a two-button hand held pendent control with optional voltages available. The welded steel construction has a yellow painted finish.

  • Ergonomic design minimizes bending and twisting
  • Welded steel construction provides long lasting rugged use
  • 44 Degrees tilt angle offers better ergonomics and operator comfort
  • Platform end lip safely supports containers when tilted
Dimensions: 36"W x 54"L x 22"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215094726 GTIN: 00691215094726
Warranty: -- Shipping Weight: 905 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6000 Cylinders: 2 Maximum Tilt Degree: 44
Lowered Height (in.): 10 Raised Height (in.): 24 Lip Height (in.): 12
Motor Horsepower: 2 Voltage/Phase: 230/3 2-Button Hand-Held Voltage: 24
Platform Width (in,): 36 Platform Length (in,): 48
