VDKR-7-BP-YL

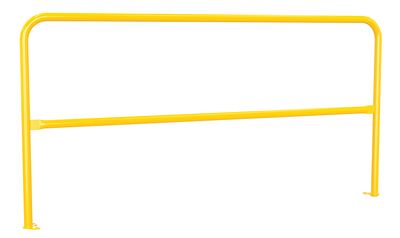

Steel Pipe Safety Railing with Welded Baseplate 7 Ft. Length Yellow

The pipe safety railing adds protection to pathways and dock areas. The base plate not only allows for a quick installation but also gives the steadiness and strength that is needed from a safety railing. With this mounting style the unit can be permanently installed or moved between locations. The upper and lower design gives the user stability and protection against potential falls. Powder-coated yellow finish.

  • Two pre-drilled mounting holes
  • Two horizontal rail design
  • Welded base plate
  • Round handrail shape
Total Ship Wt.(lbs.): 46 (only 1 package) Size: 4.625"W x 85"L x 42"H Color: Yellow

Base Plate Size (in.): 4.625 x 3 x .25 Mounting Holes Per Base Plate: 2 Mounting Hole Diameter (in.): .5625
Top Rail Height (In.): 42 Mid Rail Height (In.): 21 Length (in.): 84.5
Overall Width (in.): 4.625

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VDKR-7-BP-YL
VDKR-7-BP-YL

Steel Pipe Safety Railing with Welded Baseplate 7 Ft. Length Yellow

The pipe safety railing adds protection to pathways and dock areas. The base plate not only allows for a quick installation but also gives the steadiness and strength that is needed from a safety railing. With this mounting style the unit can be permanently installed or moved between locations. The upper and lower design gives the user stability and protection against potential falls. Powder-coated yellow finish.

  • Two pre-drilled mounting holes
  • Two horizontal rail design
  • Welded base plate
  • Round handrail shape
Dimensions: 4.625"W x 85"L x 42"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215370882 GTIN: 00691215370882
Warranty: -- Shipping Weight: 46 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Base Plate Size (in.): 4.625 x 3 x .25 Mounting Holes Per Base Plate: 2 Mounting Hole Diameter (in.): .5625
Top Rail Height (In.): 42 Mid Rail Height (In.): 21 Length (in.): 84.5
Overall Width (in.): 4.625
