VHPS-2000-AA

Printer Friendly
Available
VHPS-2000-AA
VHPS-2000-AA VHPS-2000-AA VHPS-2000-AA VHPS-2000-AA VHPS-2000-AA VHPS-2000-AA VHPS-2000-AA VHPS-2000-AA VHPS-2000-AA

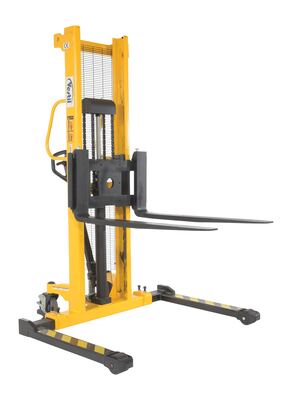

Steel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Stacker design meets the most challenging tasks
  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting
Assembled Wt.(lbs.): 792 Assembled Size: 57.875"W x 61.25"L x 78"H

Total Ship Wt.(lbs.): 860 (only 1 package) Package 1 Size: 64"W x 67"D x 88"H Color: Black / Yellow

Uniform Capacity (lb.): 2,000 Service Range (in.): 2-1/8 to 63 Fork Length (in.): 42-1/8

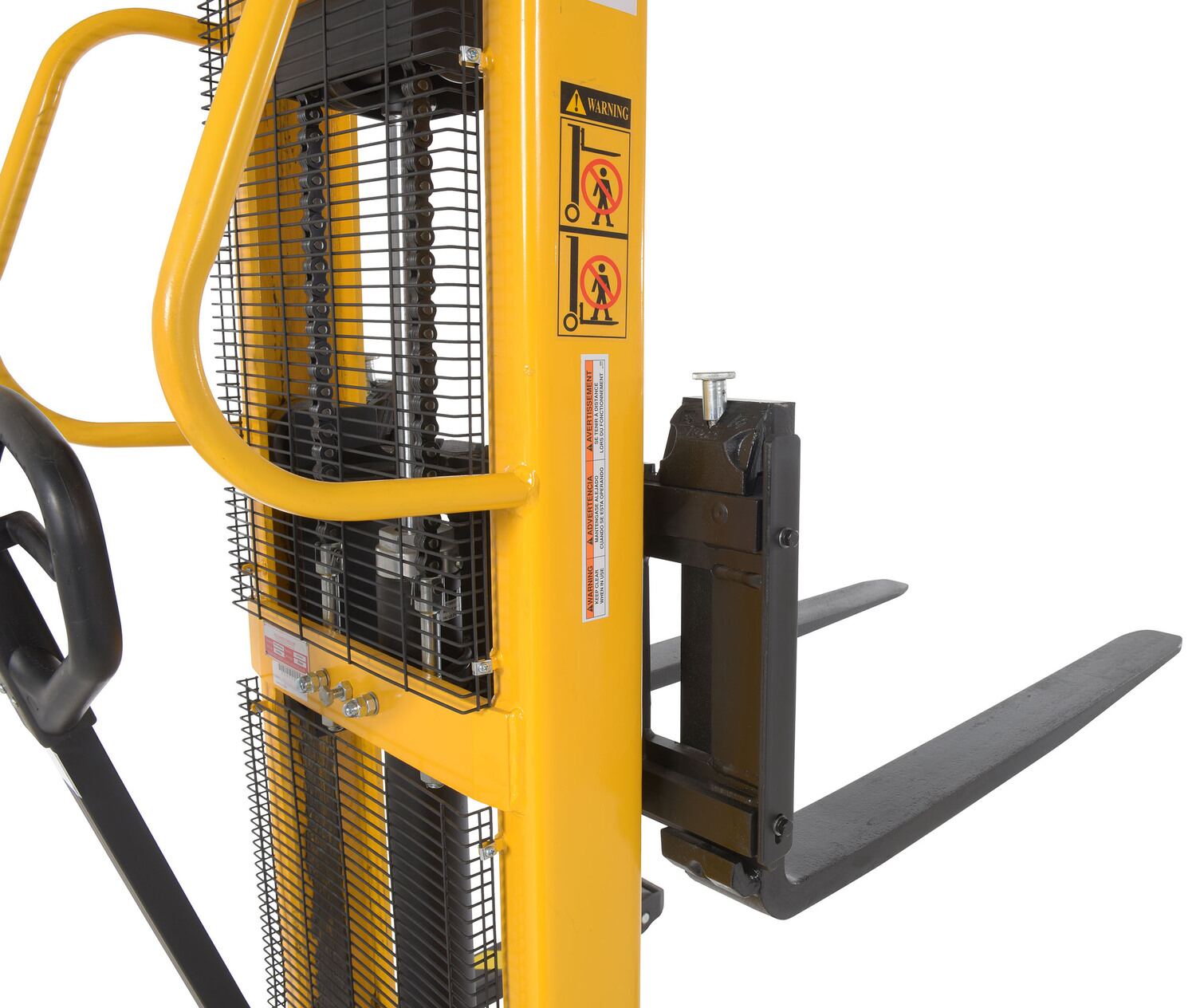

Fork Width (in.): 3-15/16 Adjustable Straddle Leg Range (in.): 38-3/16 to 50 Adjustable Fork Spacing Range (in.): 7-7/8 to 26-3/4

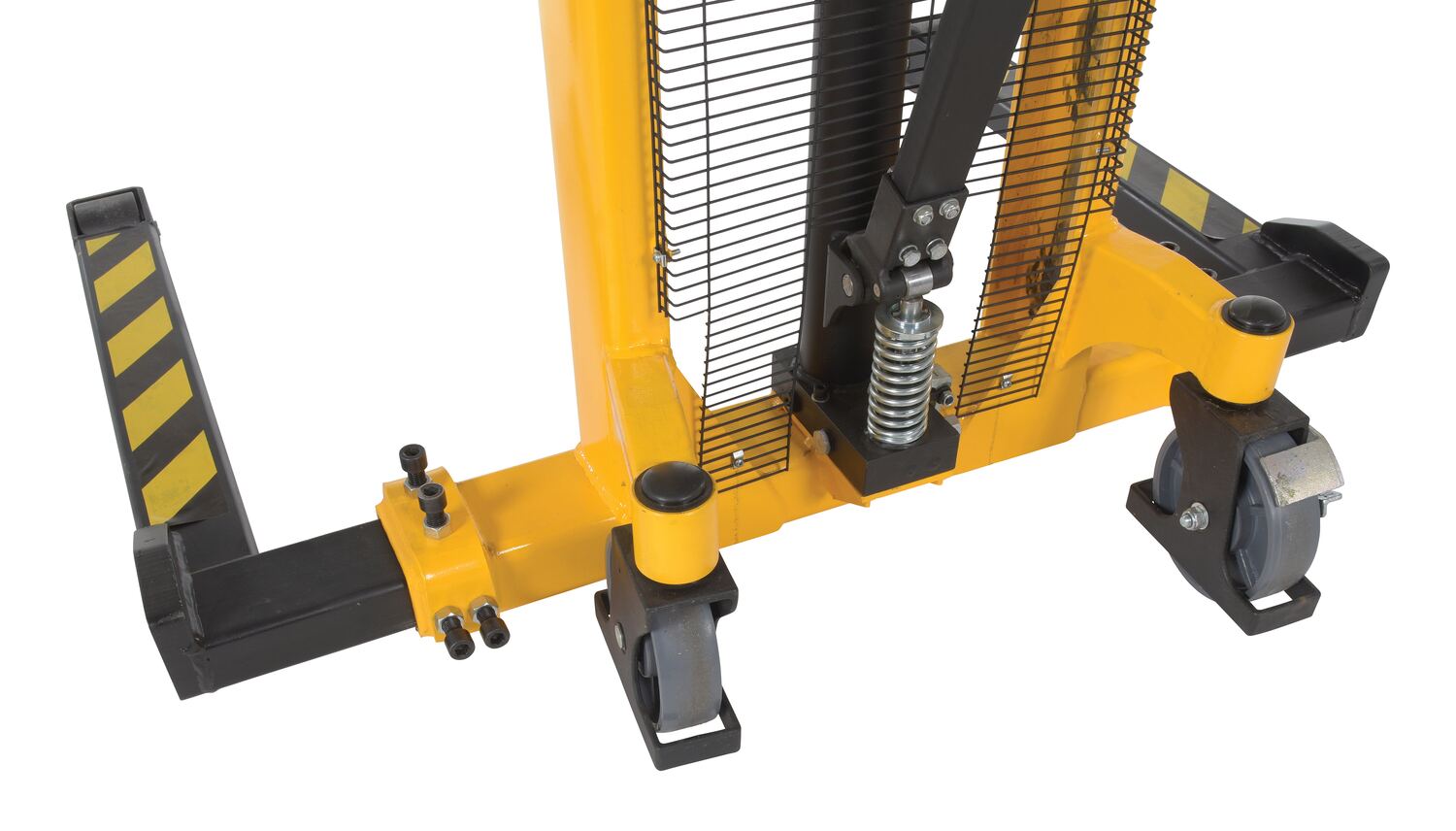

Mast: Single Operation: Hand Pump Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Type: Swivel with Brake Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2-29/32 Front Caster Type: Rigid
Horizontal Load Center (in.): 24 Pumps to Raise to Max Height (qty.): 74 Stroke per Pump (in.): 15/16
Time to Lower w/o Load (sec.): 18 Time to Lower w/ Load (sec.): 20 Overall Mast Height (in.): 78
Steering Wheel Size (in.): 7x2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-2000-AA
Available
VHPS-2000-AA

Steel Manual Stacker Adjustable Forks/Legs 2,000 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation. The two (2) rigid and two (2) swivel wheels with brakes make it easy for maneuvering. The unit features both adjustable forks and adjustable legs.

  • Stacker design meets the most challenging tasks
  • Unique design is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Manual design offers easier and safer lifting
Dimensions: 57.875"W x 61.25"L x 78"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 860 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 2,000 Service Range (in.): 2-1/8 to 63 Fork Length (in.): 42-1/8
Fork Width (in.): 3-15/16 Adjustable Straddle Leg Range (in.): 38-3/16 to 50 Adjustable Fork Spacing Range (in.): 7-7/8 to 26-3/4
Mast: Single Operation: Hand Pump Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Type: Swivel with Brake Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2-29/32 Front Caster Type: Rigid
Horizontal Load Center (in.): 24 Pumps to Raise to Max Height (qty.): 74 Stroke per Pump (in.): 15/16
Time to Lower w/o Load (sec.): 18 Time to Lower w/ Load (sec.): 20 Overall Mast Height (in.): 78
Steering Wheel Size (in.): 7x2
