Model Details

VHPS-NM-1000-AA

Printer Friendly
VHPS-NM-1000-AA

Steel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / Yellow

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Hand pump design offers easier and safer lifting

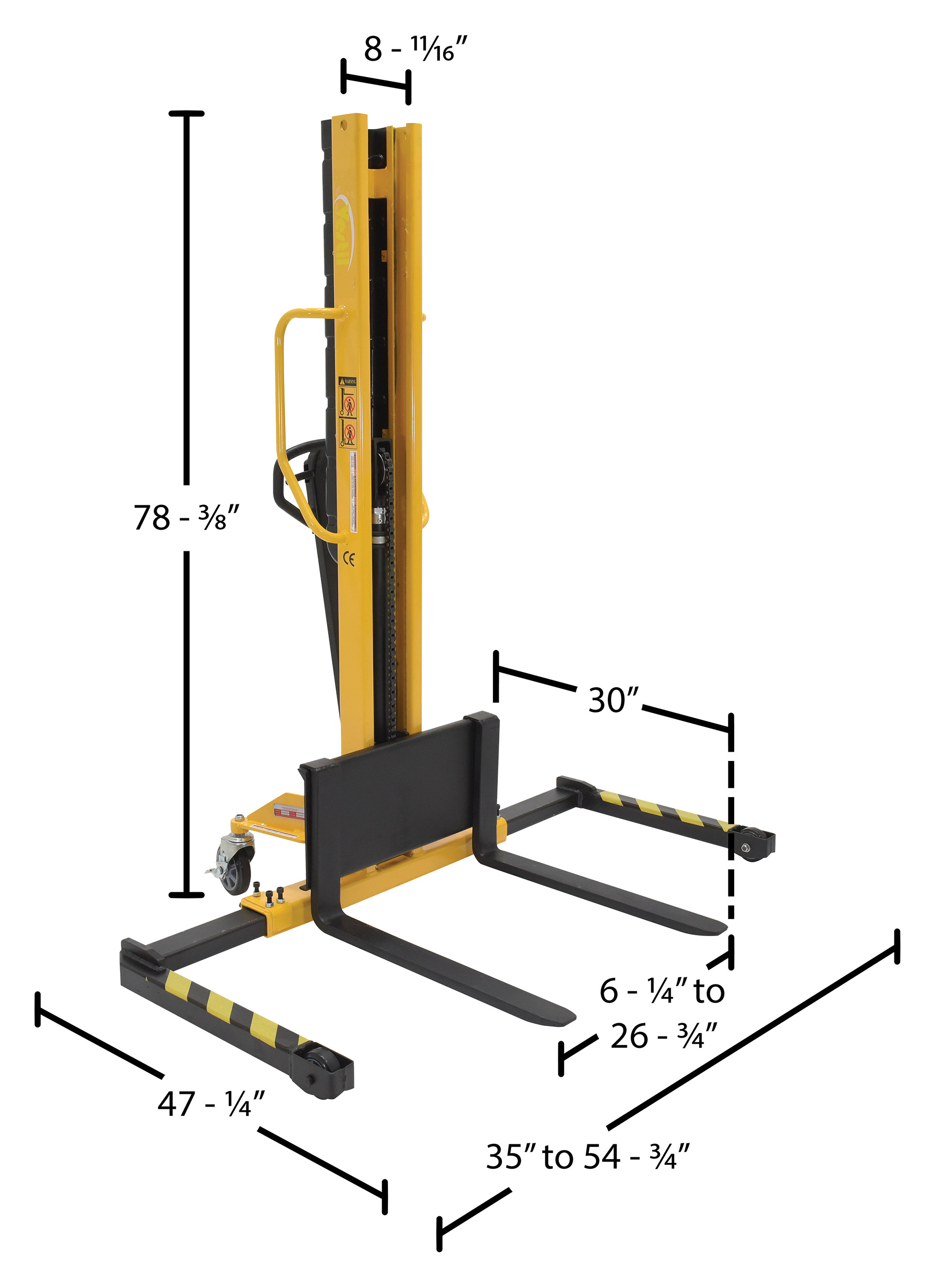

Total Ship Wt.(lbs.): 472 (only 1 package) Size: 54.75"W x 47.25"L x 78.375"H Color: Black / Yellow

Uniform Capacity (lb.): 1,000 Service Range (in.): 2-1/8 to 62 Fork Length (in.): 30
Lift per Handle Pump (in.): 3/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VHPS-NM-1000-AA
VHPS-NM-1000-AA

Steel Manual Stacker Narrow Mast Adjustable Forks/Legs 1,000 Lb. Capacity Black / Yellow

Sturdy and compact to fit through standard doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Narrow mast to fit in compact areas
  • Unique construction is maintenance free and easy to use
  • Full height push handle allows for easy steering
  • Hand pump design offers easier and safer lifting
Dimensions: 54.75"W x 47.25"L x 78.375"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215230995 GTIN: 00691215230995
Warranty: -- Shipping Weight: 472 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Service Range (in.): 2-1/8 to 62 Fork Length (in.): 30
Lift per Handle Pump (in.): 3/4
