Model Details

VKX-05-5

Printer Friendly

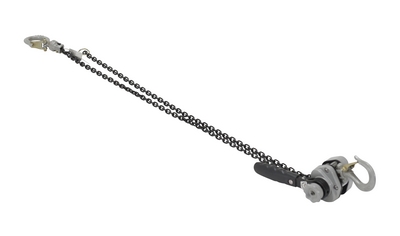

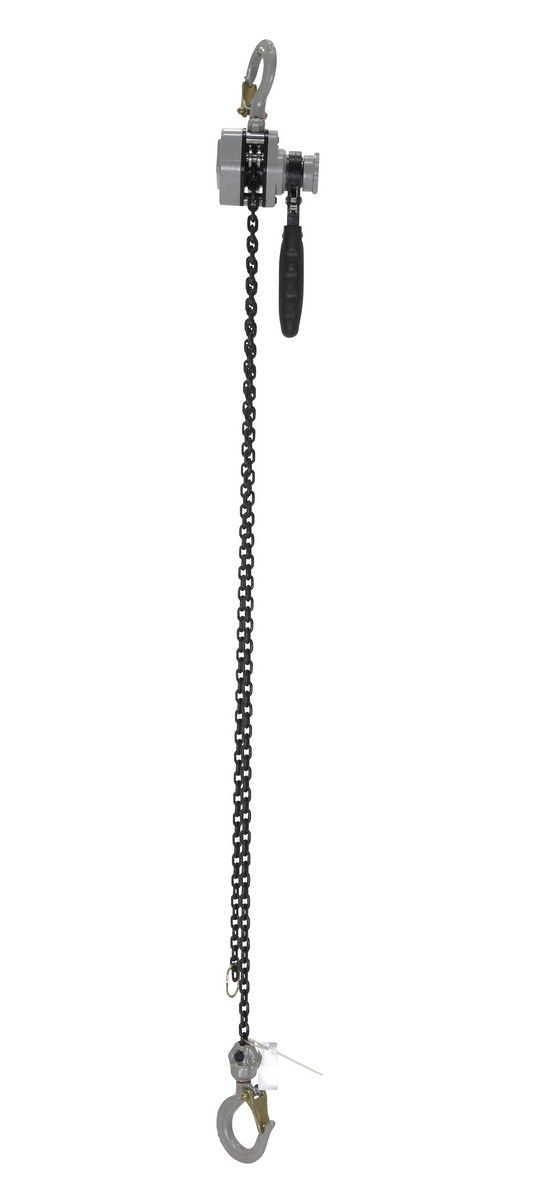

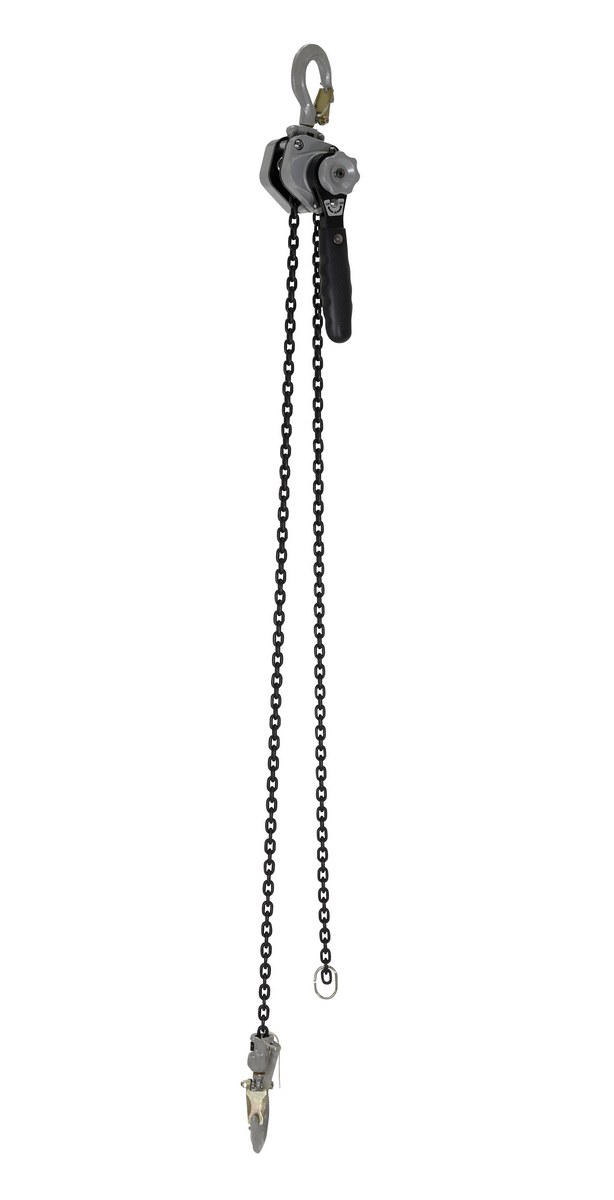

VKX-05-5

Aluminum Lever Lift Hoist 5 Ft. Length 500 Lb. Capacity Silver

Compact and lightweight lever hoists are ideal for use in confined areas when fastening, fixing or positioning of light load is required. High impact aluminum alloy housing with all the main parts made of heat treated alloy steel (more durable and longer life). Advanced gear reduction system (5 gears in the gear box) enables effortless handling and requires low hand-pull force for highly reliable lifting. Withstand 1500 cycles with 110% of rated capacity. Features lightweight high strength grade 100 chain. Heavy duty storage bag included.

  • Sleek design for easy handling
  • Highly durable for strength and longevity
  • Easily attachable
  • Compact design
Total Ship Wt.(lbs.): 6 (only 1 package) Size: 3.5"W x 8"L x 3"H Color: Silver

Uniform Capacity (lb.): 500 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 7-7/8
Handle Length (in.): 5-3/4 Pull to Lift Rated Load (lb.): 45

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: VKX-05-5
VKX-05-5

Aluminum Lever Lift Hoist 5 Ft. Length 500 Lb. Capacity Silver

Compact and lightweight lever hoists are ideal for use in confined areas when fastening, fixing or positioning of light load is required. High impact aluminum alloy housing with all the main parts made of heat treated alloy steel (more durable and longer life). Advanced gear reduction system (5 gears in the gear box) enables effortless handling and requires low hand-pull force for highly reliable lifting. Withstand 1500 cycles with 110% of rated capacity. Features lightweight high strength grade 100 chain. Heavy duty storage bag included.

  • Sleek design for easy handling
  • Highly durable for strength and longevity
  • Easily attachable
  • Compact design
Dimensions: 3.5"W x 8"L x 3"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215133210 GTIN: 00691215133210
Warranty: -- Shipping Weight: 6 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Standard Lift (ft.): 5 Minimum Distance Between Hooks (in.): 7-7/8
Handle Length (in.): 5-3/4 Pull to Lift Rated Load (lb.): 45
