Model Details

VPFG-1670

Printer Friendly
VPFG-1670

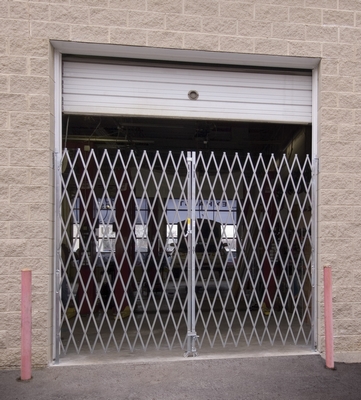

Galvanized Steel Double Fold Scissor Gate 16 Ft. x 7 Ft. Gray

Secure outside access during the day and add security at night with a heavy-duty Galvanized folding gate. Center drop pin rests in pre-drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Assembly hardware, "L" mounting brackets and center drop pin included.

  • 2" casters enable quick gate extension and retraction
  • Steel wheels allow operator to quickly and fully retract gate when not in use
  • Galvanized steel finish for indoor and outdoor use
  • Aircraft quality rivets and heavy-duty vertical angles hold unit together
Total Ship Wt.(lbs.): 195 (only 1 package) Size: 192"W x 1.5"L x 84"H Color: Gray Non-Returnable

Collapsed Width Per Gate (in.): 14 Overall Usable Width (ft.): 14 to 16 Collapsed Height (ft.): 7
In Use Height (ft.): 6-1/2 Vertical Angles (in.): 1-1/2 Folding Gates (qty.): 2
Steel (gauge): 14 Caster Diameter (in.): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VPFG-1670
VPFG-1670

Galvanized Steel Double Fold Scissor Gate 16 Ft. x 7 Ft. Gray

Secure outside access during the day and add security at night with a heavy-duty Galvanized folding gate. Center drop pin rests in pre-drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Assembly hardware, "L" mounting brackets and center drop pin included.

  • 2" casters enable quick gate extension and retraction
  • Steel wheels allow operator to quickly and fully retract gate when not in use
  • Galvanized steel finish for indoor and outdoor use
  • Aircraft quality rivets and heavy-duty vertical angles hold unit together
Dimensions: 192"W x 1.5"L x 84"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215045834 GTIN: 00691215045834
Warranty: -- Shipping Weight: 195 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Collapsed Width Per Gate (in.): 14 Overall Usable Width (ft.): 14 to 16 Collapsed Height (ft.): 7
In Use Height (ft.): 6-1/2 Vertical Angles (in.): 1-1/2 Folding Gates (qty.): 2
Steel (gauge): 14 Caster Diameter (in.): 2
