Model Details

VWS-770-FF

Printer Friendly
VWS-770-FF

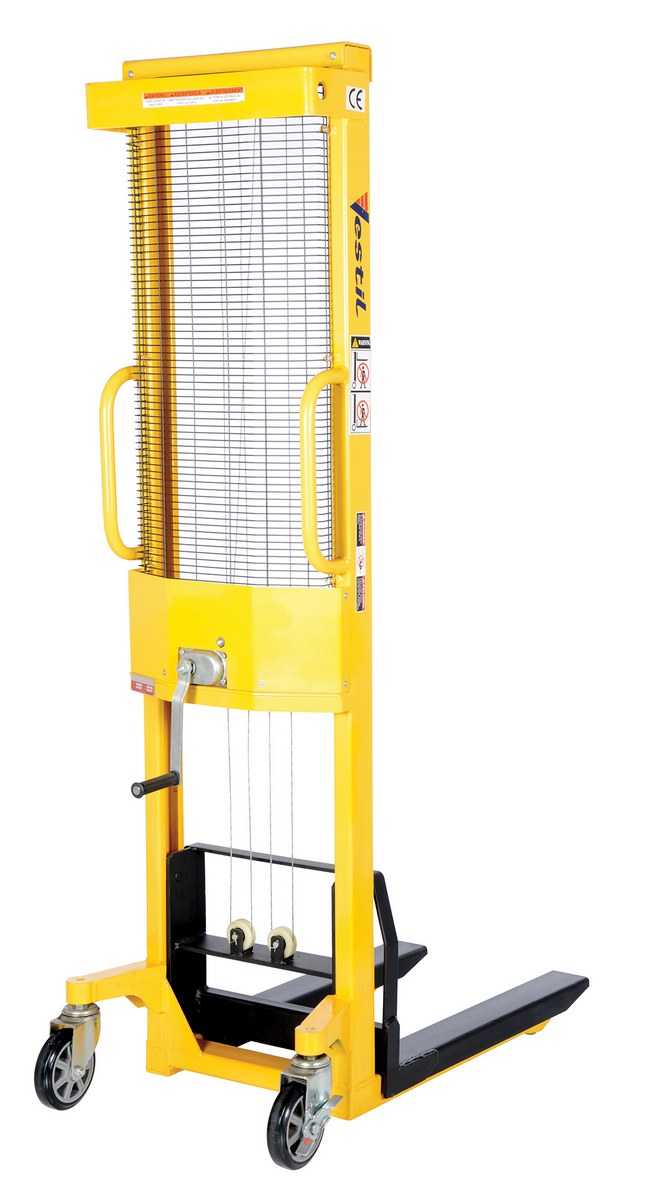

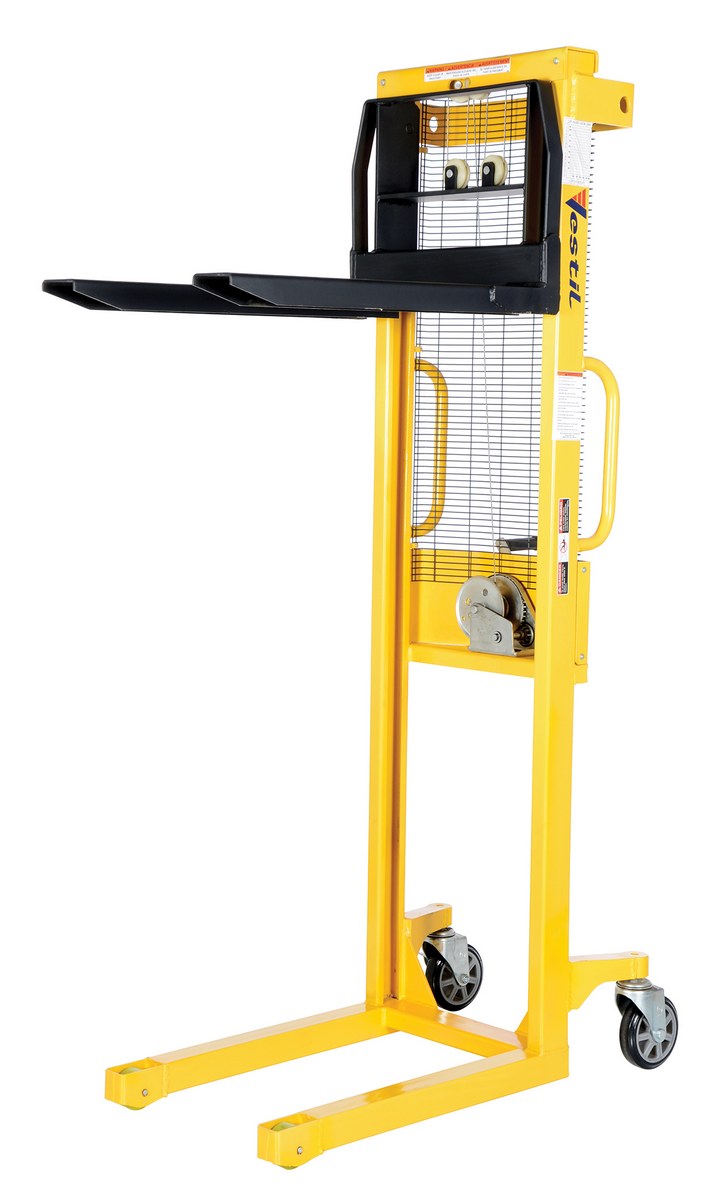

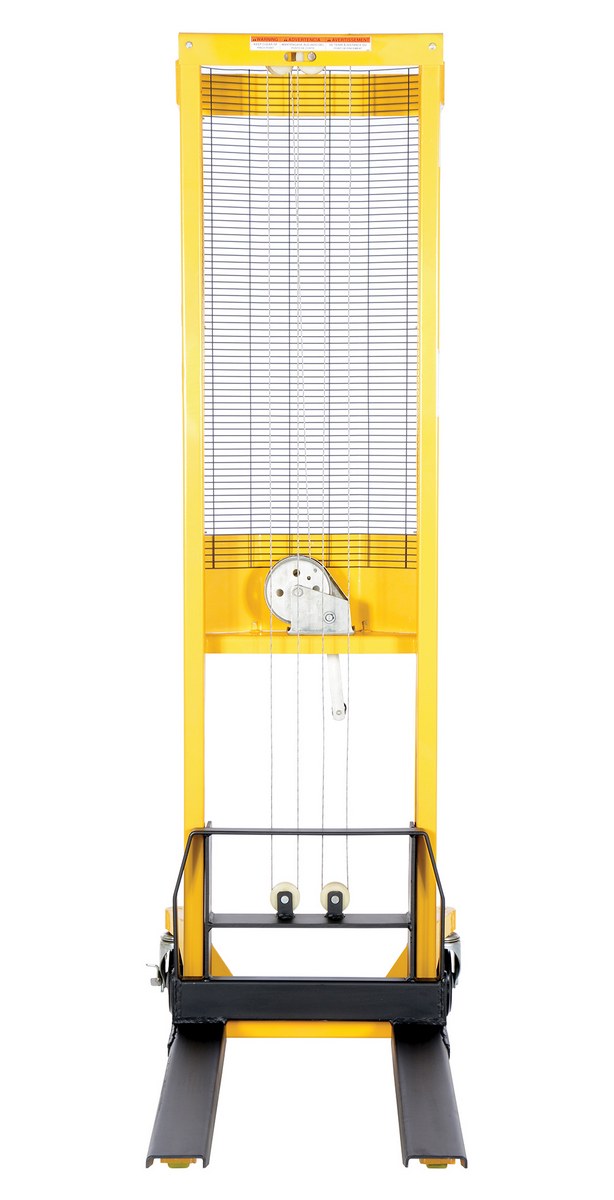

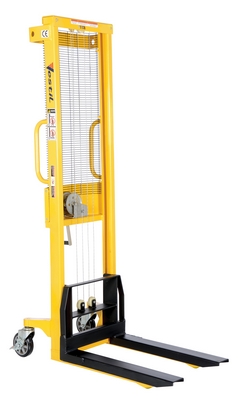

Steel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch design is sturdy and compact to fit through standard doors. The fixed forks are raised by a manual hand winch operation for precise product positioning. The unit has two (2) rigid and two (2) swivel wheels standard on fixed legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Fixed forks for constant width
Total Ship Wt.(lbs.): 235 (only 1 package) Size: 21.6875"W x 46.1875"L x 78.1875"H Color: Black / Yellow Non-Returnable

Uniform Capacity (lb.): 770 Lowered Height (in.): 3-3/8 Raised Height (in.): 59
Horizontal Load Center (in.): 16 Rear Caster Diameter (in.): 5.9 Front Wheel Diameter (in.): 2.9
Lift per Handle Revolution (in.): 3/4 Individual Fork Width (in.): 3-1/8 Fork Length (in.): 30
Operation: Hand Winch

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: VWS-770-FF
VWS-770-FF

Steel Stacker with Fixed Manual Hand Winch 770 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. Maintenance free and easy to use. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform available. The hand winch design is sturdy and compact to fit through standard doors. The fixed forks are raised by a manual hand winch operation for precise product positioning. The unit has two (2) rigid and two (2) swivel wheels standard on fixed legs.

  • Manual stacker is maintenance free and easy to use
  • Includes a heavy-duty mast and a winch design for easier and safer lifting
  • The lift and lower is a steel cable mechanism for simple use
  • Fixed forks for constant width
Dimensions: 21.6875"W x 46.1875"L x 78.1875"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215096607 GTIN: 00691215096607
Warranty: -- Shipping Weight: 235 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 770 Lowered Height (in.): 3-3/8 Raised Height (in.): 59
Horizontal Load Center (in.): 16 Rear Caster Diameter (in.): 5.9 Front Wheel Diameter (in.): 2.9
Lift per Handle Revolution (in.): 3/4 Individual Fork Width (in.): 3-1/8 Fork Length (in.): 30
Operation: Hand Winch
