Model Details

WL-100-10-88

Printer Friendly
WL-100-10-88

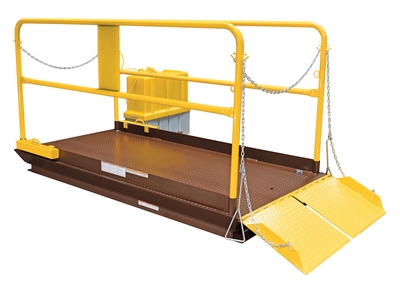

Steel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 10,000 Lb. Capacity Brown/Yellow

Save time and reduce man-hours where there are no docks with a truck scissor dock lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift.

  • Unique design services semi-trailers when loading dock is unavailable
  • Tread plate surface provides a safe non-slip grip
  • Safety velocity fuses protect the hydraulic cylinders
  • Upper travel limit switch cuts power to unit when max raised height is reached
Total Ship Wt.(lbs.): 6180 (only 1 package) Size: 96"W x 114"L x 59"H Color: Brown / Yellow Non-Returnable

Uniform Capacity (lb.): 10000 Overall Frame Width (in.): 86 Overall Frame Length (in.): 93
Platform Length (in.): 96 Platform Width (in.): 96 Lowered Height (in.): 14
Raised Height (in.): 72 Push Button Coil Cord Length (ft.): 4-20 External Motor Horsepower: 6.5
External Motor Voltage/Phase: 460/3 Motor Hertz: 60 Motor Weight (lbs.): 300
Axle Side Load Capacity (lbs.): 7000 Axle End Load Capacity (lbs.): 8250 Handrail Height (in): 45
Handrail Midrail Height (in): 21 Toeboard Height (in): 4 Beveled Toe Guard (in): 5
Platform Type: Treadplate Platform Thickness (in.): 1/4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WL-100-10-88
WL-100-10-88

Steel Premium Truck Scissor Dock Lift 8 Ft x 8 Ft 10,000 Lb. Capacity Brown/Yellow

Save time and reduce man-hours where there are no docks with a truck scissor dock lift. Engineered and designed for maximum safety and efficiency. The diamond plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature safety velocity fuse if line breaks. It comes complete with upper travel limit switch and overload relief valve. The push-button control is on a long coil cord. Pre-wired control box includes magnetic starter and overload fuse. High visibility safety yellow removable handrails with fixed toe boards are standard. Includes beveled toe-guards and electric toe-guards around perimeter of platform. The external motor can be located up to eight (8) feet away from lift.

  • Unique design services semi-trailers when loading dock is unavailable
  • Tread plate surface provides a safe non-slip grip
  • Safety velocity fuses protect the hydraulic cylinders
  • Upper travel limit switch cuts power to unit when max raised height is reached
Dimensions: 96"W x 114"L x 59"H Sell UOM: EA-Each Color: Brown / Yellow
Material: Steel UPC: 691215046961 GTIN: 00691215046961
Warranty: -- Shipping Weight: 6180 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 10000 Overall Frame Width (in.): 86 Overall Frame Length (in.): 93
Platform Length (in.): 96 Platform Width (in.): 96 Lowered Height (in.): 14
Raised Height (in.): 72 Push Button Coil Cord Length (ft.): 4-20 External Motor Horsepower: 6.5
External Motor Voltage/Phase: 460/3 Motor Hertz: 60 Motor Weight (lbs.): 300
Axle Side Load Capacity (lbs.): 7000 Axle End Load Capacity (lbs.): 8250 Handrail Height (in): 45
Handrail Midrail Height (in): 21 Toeboard Height (in): 4 Beveled Toe Guard (in): 5
Platform Type: Treadplate Platform Thickness (in.): 1/4
