Model Details

WP-3636-CA

Printer Friendly
WP-3636-CA

Steel Work Platform With Poly Casters 36 In. x 36 In. 1,000 Lb. Capacity Blue

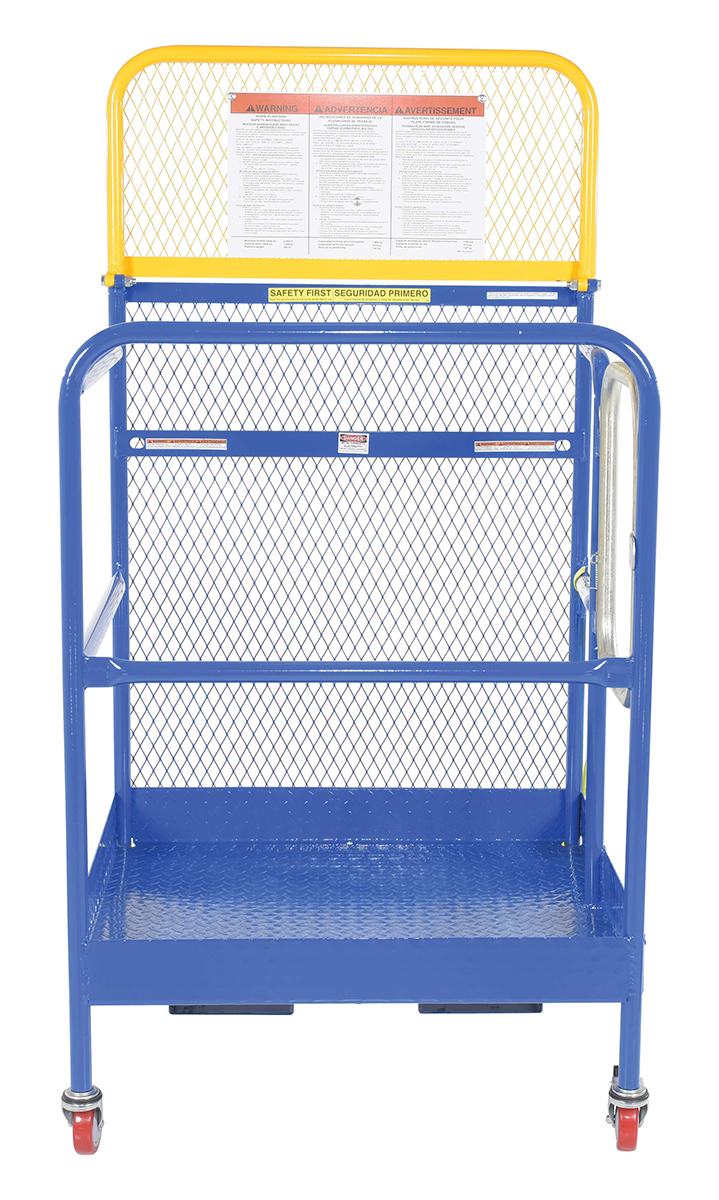

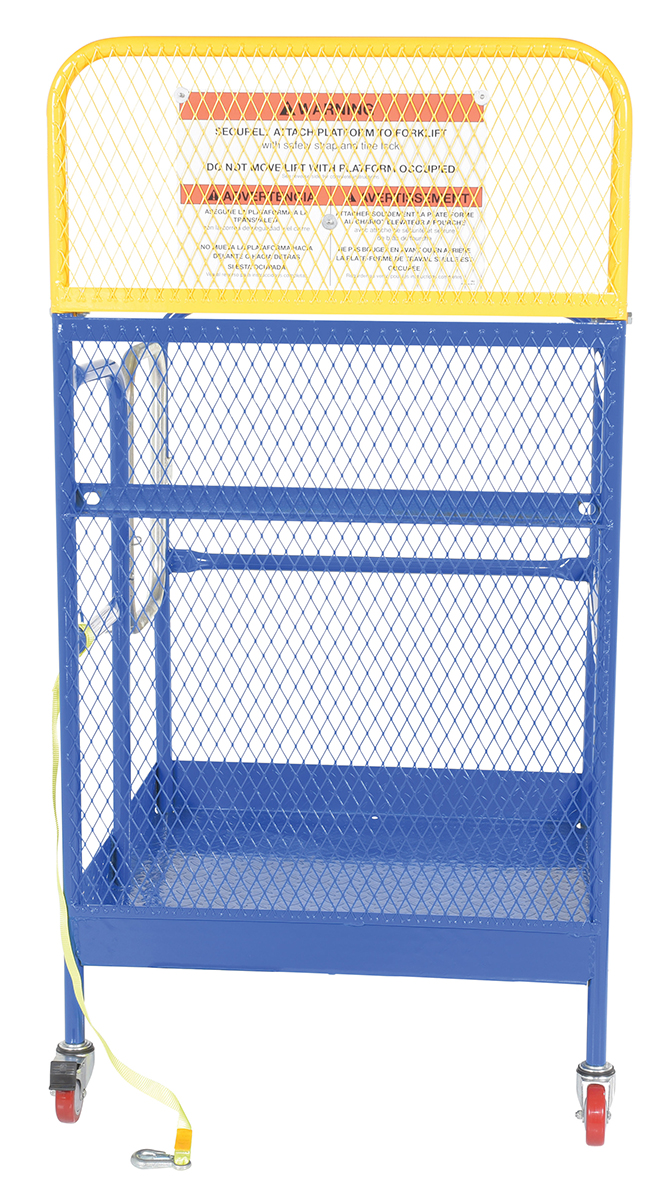

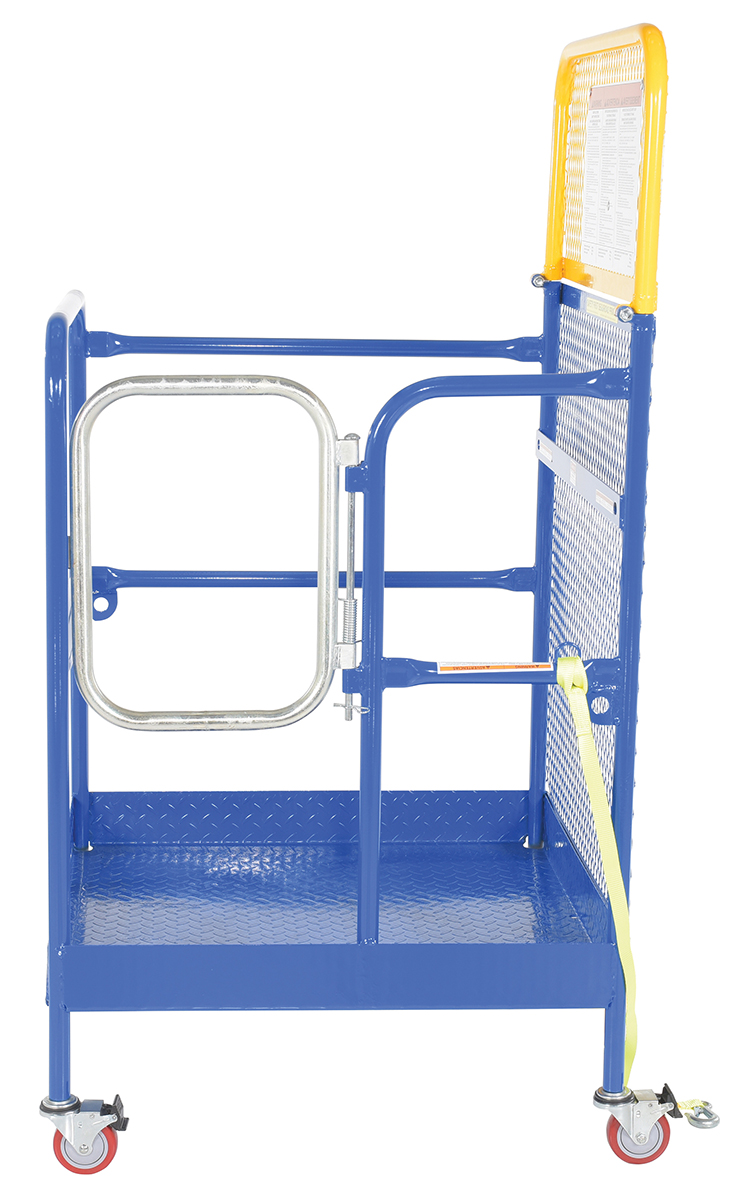

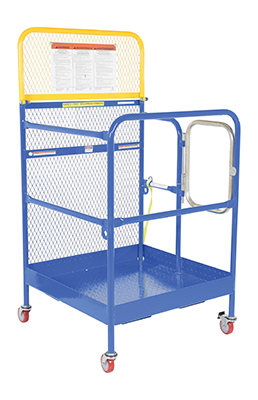

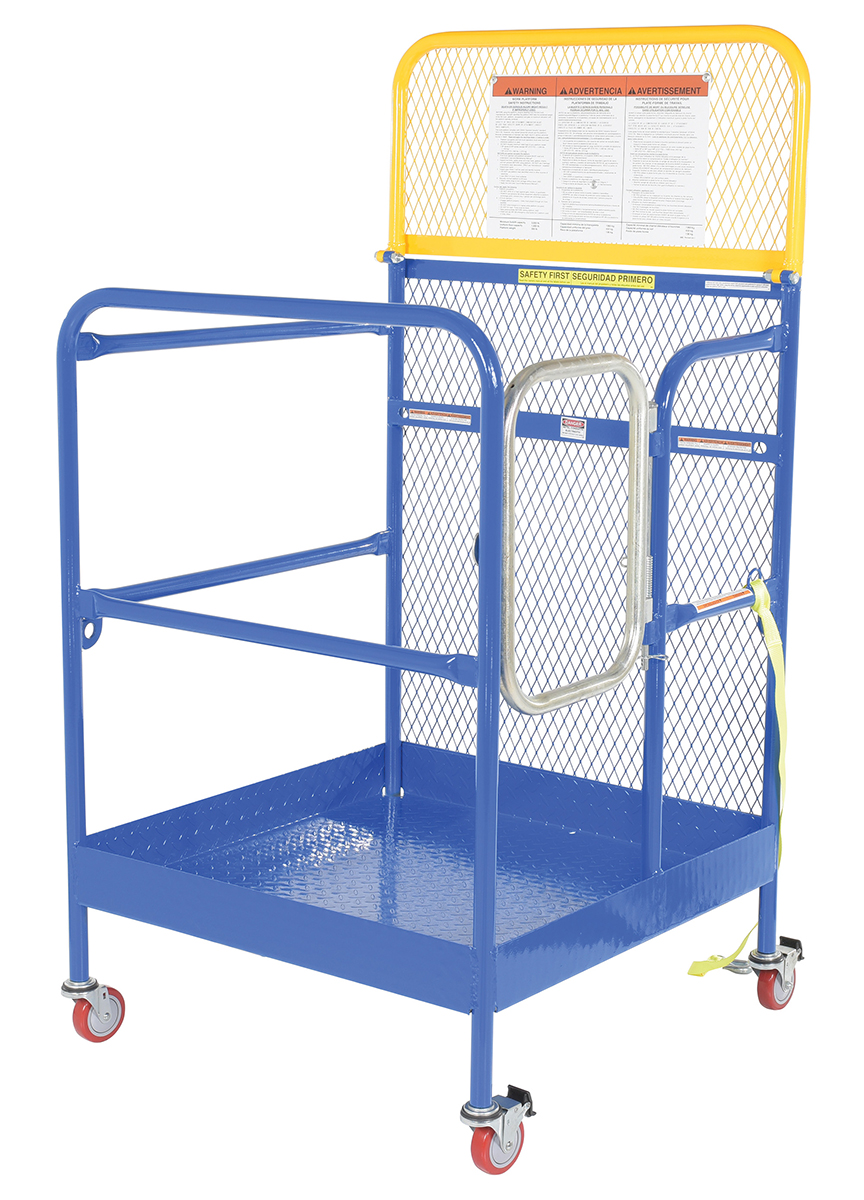

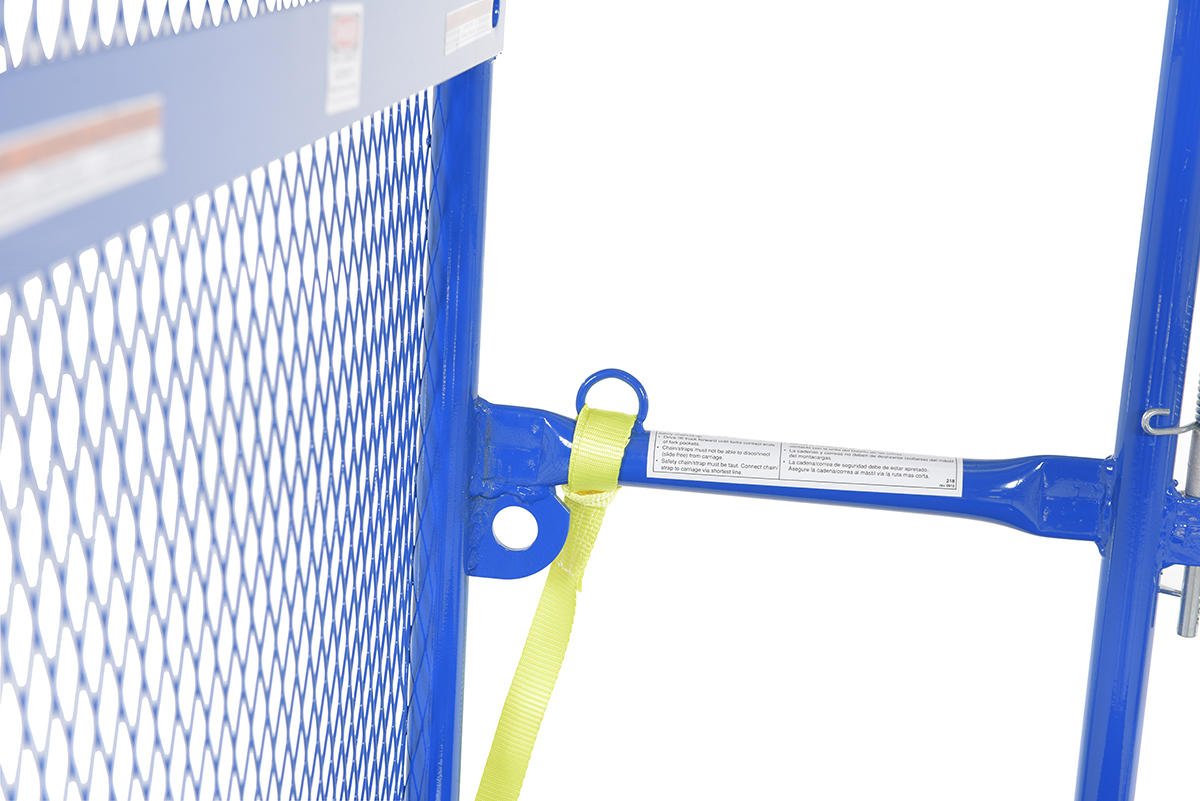

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides. Expanded metal backing on fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time. This unit also includes casters.

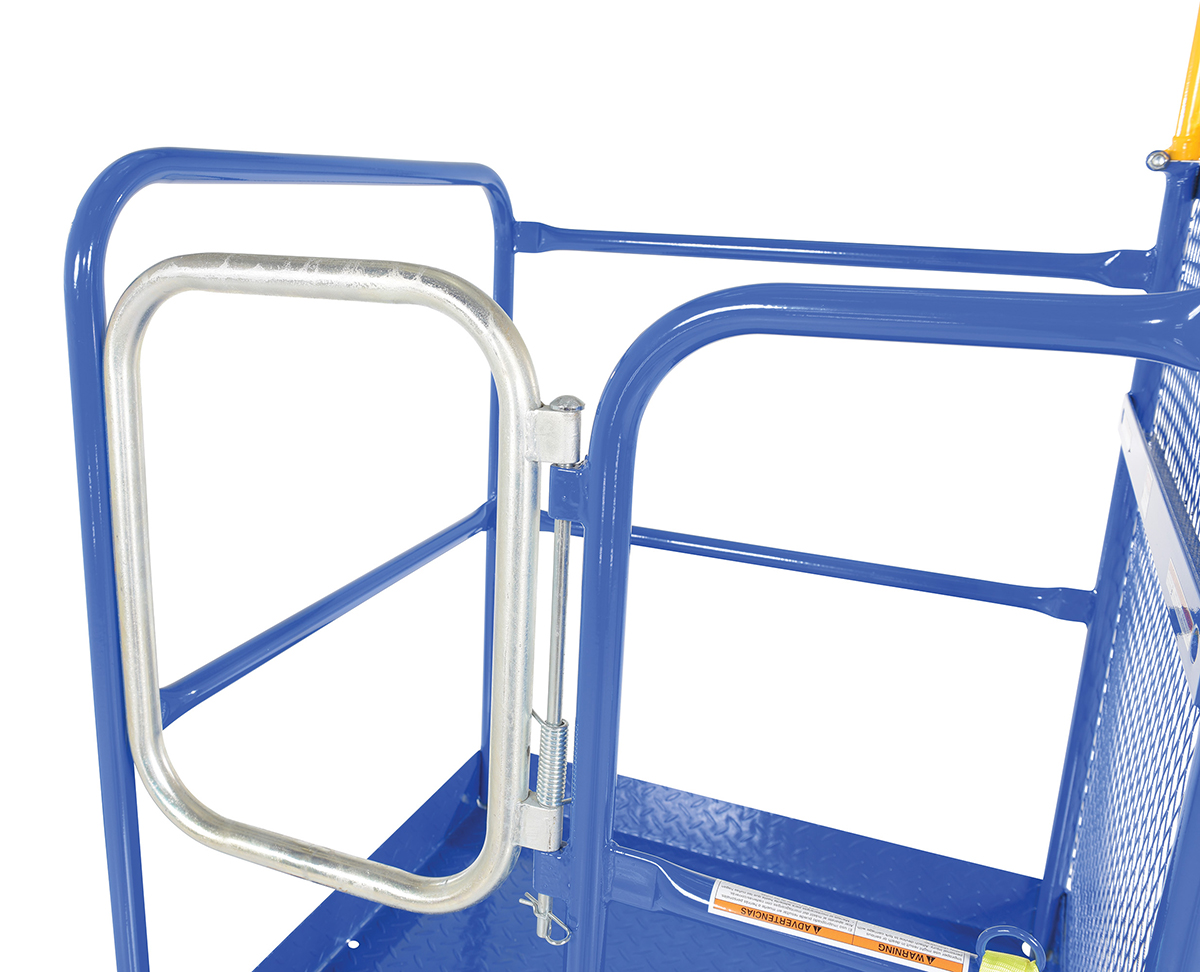

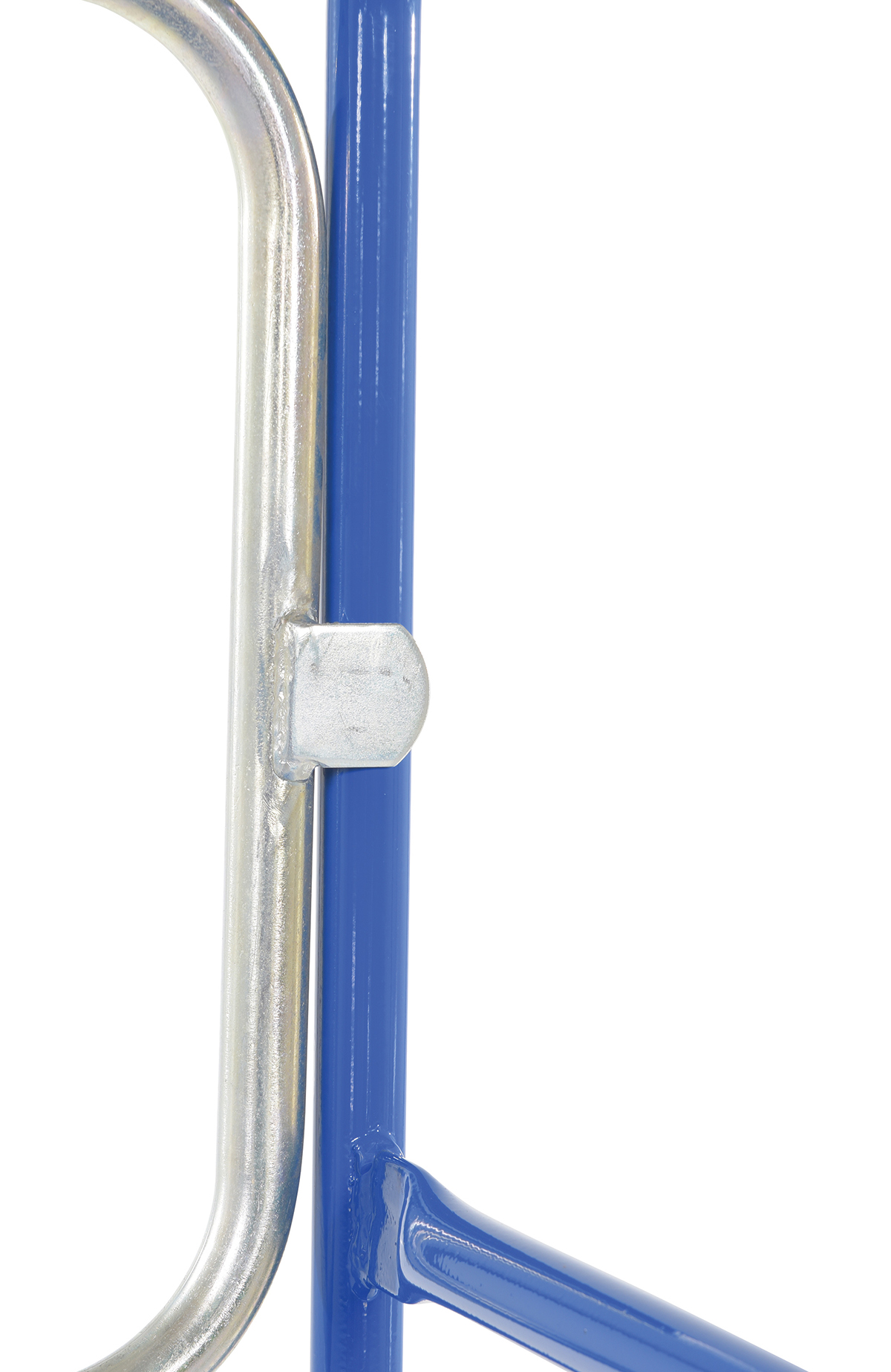

  • Patented automatic locking gate with extra chain lock ensures maximum safety
  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip
  • Dual handrails on three sides ensures worker safety
Total Ship Wt.(lbs.): 145 (Multiple Packages: P1: 115 lbs + P2: 30 lbs) Size: 36"W x 38.9375"L x 69.75"H Color: Blue (Frame), Yellow (Upper Back)

Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 16 Front and Rear Fork Pocket Width (in.): 7-3/4
Rear Fork Pocket Height (in.): 3-7/8 Front Fork Pocket Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42-1/8 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16
High Back Height (in.): 60 Caster Quantity/Diameter/Width (in.): (4) 4x1-1/4 Caster Quantity Type: (2) Swivel (2) Swivel with Brake
Caster Material: Poly-on-Poly Anchor Point Capacity (lbs.): 350

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WP-3636-CA
WP-3636-CA

Steel Work Platform With Poly Casters 36 In. x 36 In. 1,000 Lb. Capacity Blue

This convenient fork truck work platform quickly and safely raises maintenance personnel where they are needed. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Fork locks secure platform to forks. Dual handrails on three (3) sides. Expanded metal backing on fourth side. Includes checker floor plate platform and long strap with hook to attach platform to fork truck. A maximum of two (2) people can be in the work platform at one time. This unit also includes casters.

  • Patented automatic locking gate with extra chain lock ensures maximum safety
  • Fork locks secures work platform to forks of fork truck
  • Tread plate floor provides a safe non-slip grip
  • Dual handrails on three sides ensures worker safety
Dimensions: 36"W x 38.9375"L x 69.75"H Sell UOM: EA-Each Color: Blue (Frame), Yellow (Upper Back)
Material: Steel UPC: 691215047616 GTIN: 00691215047616
Warranty: -- Shipping Weight: 115 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Fork Pocket Center (in.): 16 Front and Rear Fork Pocket Width (in.): 7-3/4
Rear Fork Pocket Height (in.): 3-7/8 Front Fork Pocket Height (in.): 1-7/8 Strap Length (in.): 36
Top Rail Height (in.): 42-1/8 Mid Rail Height (in.): 21 Entry Style: Single Side Door
Toeboard Height (in.): 4-1/8 Handrail Design: Fixed Door Width (in.): 16
High Back Height (in.): 60 Caster Quantity/Diameter/Width (in.): (4) 4x1-1/4 Caster Quantity Type: (2) Swivel (2) Swivel with Brake
Caster Material: Poly-on-Poly Anchor Point Capacity (lbs.): 350
