WTJ-2

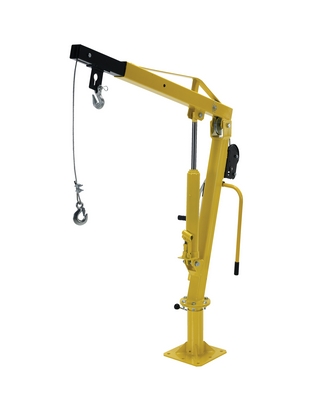

Steel Winch Truck Jib Crane 500 Lb. Extended Capacity Yellow

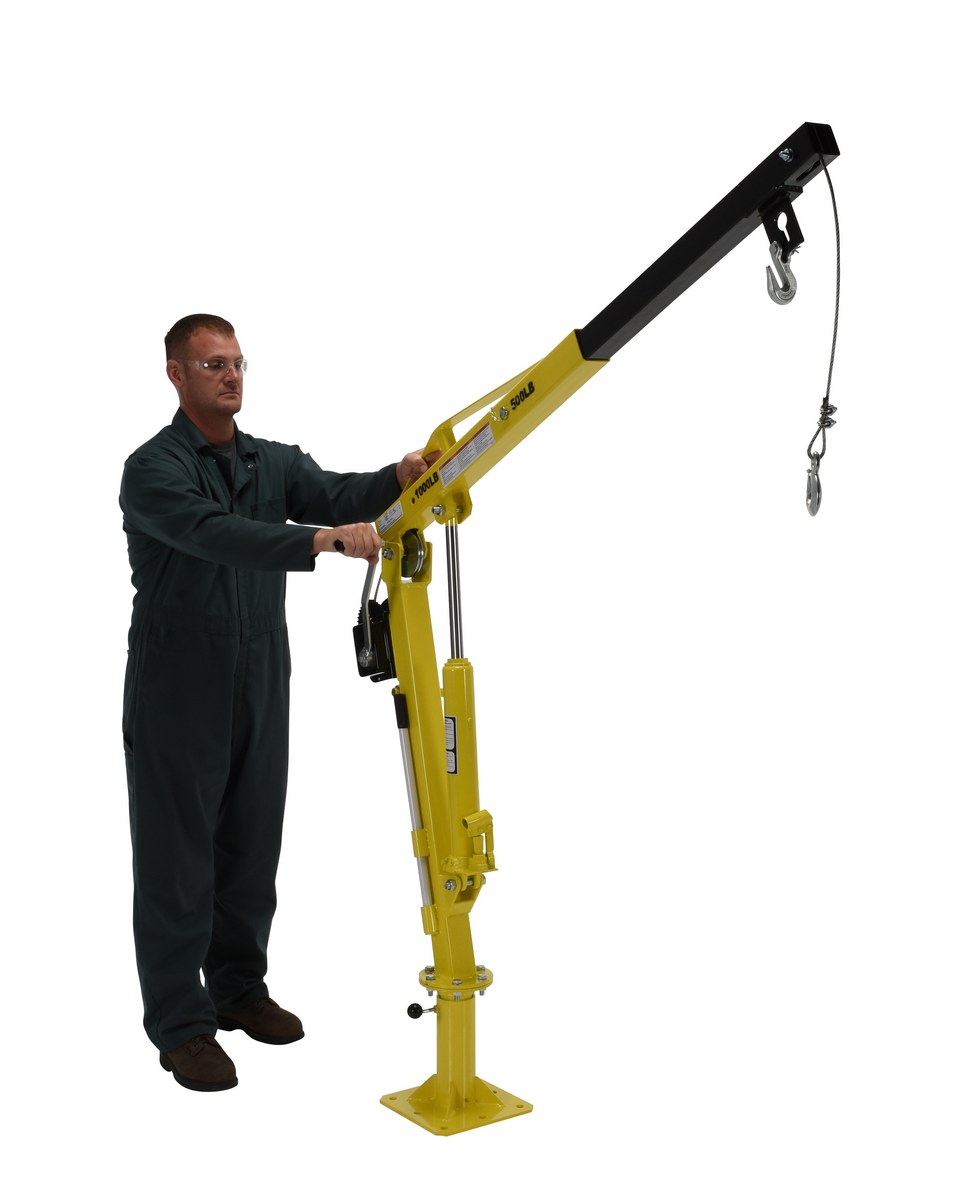

Installed in your pick-up truck bed, this winch operated truck Jib crane will help lift loads. Lift items from ground to truck bed height, then rotates into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. Unit comes with one grab hook, one chain slot lock, and one sling hook with latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Mounts to truck bed allowing for easy product loading and unloading

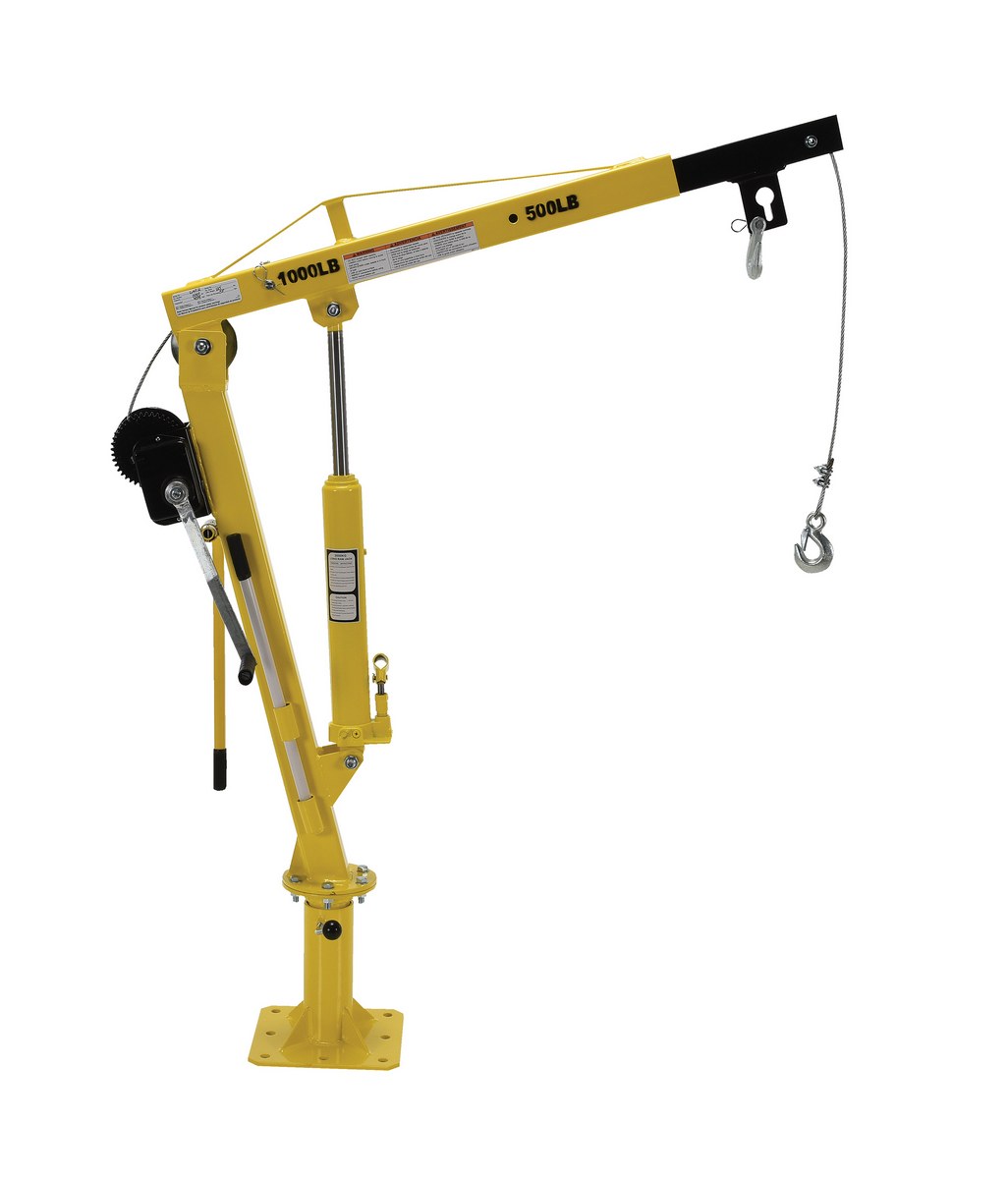

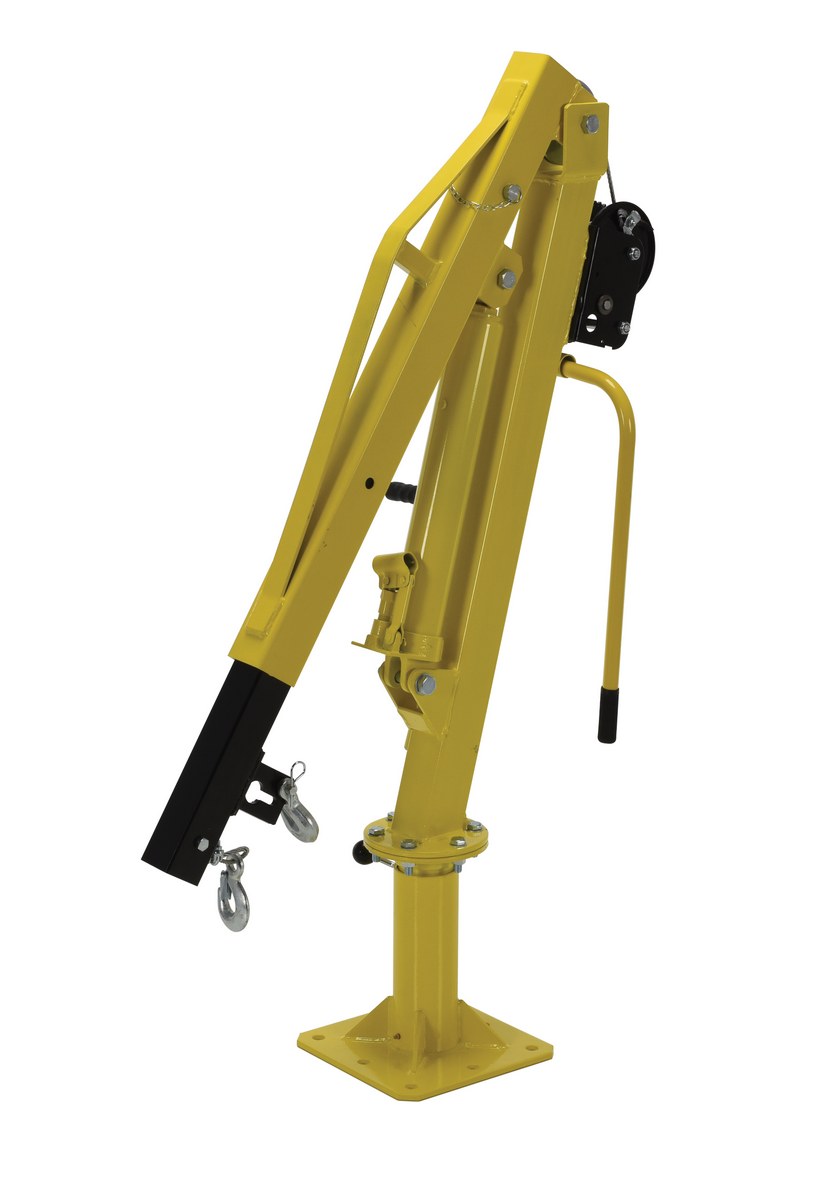

  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 135 (only 1 package) Size: 33"W x 10.625"L x 56.75"H Color: Yellow

Uniform Cable Winch Capacity (lb.): 500 Extended Fixed Hook Capacity (lb.): 500 Extended Usable Reach (in.): 54
Extended Maximum Hook Height (in.): 102 Extended Minimum Hook Height (in.): Zero Retracted Fixed Hook Capacity (lb.): 1,000
Retracted Usable Reach (in.): 30-1/4 Retracted Maximum Hook Height (in.): 89-1/2 Retracted Minimum Hook Height (in.): 10
Overall Cable Length (ft.): 14-1/2 Usable Cable Length (ft.): 9 Cable Diameter (in.): 3/16
Mounting Plate Length (in.): 10-5/8 Mounting Plate Width (in.): 10-5/8 Base Height (in.): 11-3/4
Rotation (degrees): 360 Piston Stroke (in.): 16-3/8 Piston Stroke Per Pump (in.): 1/16
Cable Retracts/Extension Per Crank (in.): 1-1/2 Number of Cranks to Retract/Extend Cable: 72 Wire Rope Material: Galvanized Steel
Hook Material: Steel Hook Opening (in.): 1-3/32 Hook Movement: Rigid
Fasteners Included: No Mounting Hole Diameter (in.): 11/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-2
WTJ-2

Steel Winch Truck Jib Crane 500 Lb. Extended Capacity Yellow

Installed in your pick-up truck bed, this winch operated truck Jib crane will help lift loads. Lift items from ground to truck bed height, then rotates into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. Unit comes with one grab hook, one chain slot lock, and one sling hook with latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Mounts to truck bed allowing for easy product loading and unloading
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 33"W x 10.625"L x 56.75"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215048330 GTIN: 00691215048330
Warranty: -- Shipping Weight: 135 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Cable Winch Capacity (lb.): 500 Extended Fixed Hook Capacity (lb.): 500 Extended Usable Reach (in.): 54
Extended Maximum Hook Height (in.): 102 Extended Minimum Hook Height (in.): Zero Retracted Fixed Hook Capacity (lb.): 1,000
Retracted Usable Reach (in.): 30-1/4 Retracted Maximum Hook Height (in.): 89-1/2 Retracted Minimum Hook Height (in.): 10
Overall Cable Length (ft.): 14-1/2 Usable Cable Length (ft.): 9 Cable Diameter (in.): 3/16
Mounting Plate Length (in.): 10-5/8 Mounting Plate Width (in.): 10-5/8 Base Height (in.): 11-3/4
Rotation (degrees): 360 Piston Stroke (in.): 16-3/8 Piston Stroke Per Pump (in.): 1/16
Cable Retracts/Extension Per Crank (in.): 1-1/2 Number of Cranks to Retract/Extend Cable: 72 Wire Rope Material: Galvanized Steel
Hook Material: Steel Hook Opening (in.): 1-3/32 Hook Movement: Rigid
Fasteners Included: No Mounting Hole Diameter (in.): 11/16
