Model Details

WTJ-20-3-AC-CSA-GAL

WTJ-20-3-AC-CSA-GAL

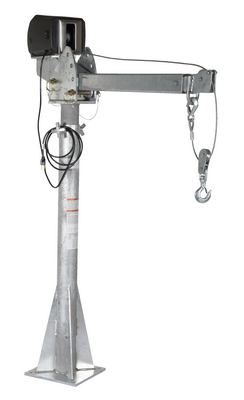

Galvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Gray

The power lift Jib cranes are designed for material handling applications on docks, in warehouses or in truck beds. Choose either 12V DC, 1 HP with 6-foot long removable pendant control or 115V AC 1/3 HP with fingertip switch to raise and lower hook. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Units are not rated for overhead lifting applications. Consult factory for pricing if overhead lifting rating is required. Intermittent use cranes feature rotation hand brakes that offer unlimited 360 degrees positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. The AC units feature 25 feet of 7/32" cable. Folds for storage.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 284 (only 1 package) Size: 18.6875"W x 63.5"L x 73"H Color: Gray Non-Returnable

Uniform Capacity (lb.): 2000 Boom Reach (in.): 39-1/4 to 63-1/4 Boom Height (in.): 59-9/16 to 96-1/8
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-9/16" Fully Retracted (lbs.): 650
Capacity at 59-9/16" Mid-Position (lbs.): 400 Capacity at 59-9/16" Fully Extended (lbs.): 250 Capacity at 74-1/4" Fully Retracted (lbs.): 1,000
Capacity at 74-1/4" Mid-Position (lbs.): 770 Capacity at 74-1/4" Fully Extended (lbs.): 600 Capacity at 86-13/16" Fully Retracted (lbs.): 1,250
Capacity at 86-13/16" Mid-Position (lbs.): 950 Capacity at 86-13/16" Fully Extended (lbs.): 780 Capacity at 96-1/8" Fully Retracted (lbs.): 2,000
Capacity at 96-1/8" Mid-Position (lbs.): 1,500 Capacity at 96-1/8" Fully Extended (lbs.): 1,200 Compliant: CSA

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-20-3-AC-CSA-GAL


WTJ-20-3-AC-CSA-GAL

Galvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Gray

The power lift Jib cranes are designed for material handling applications on docks, in warehouses or in truck beds. Choose either 12V DC, 1 HP with 6-foot long removable pendant control or 115V AC 1/3 HP with fingertip switch to raise and lower hook. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Units are not rated for overhead lifting applications. Consult factory for pricing if overhead lifting rating is required. Intermittent use cranes feature rotation hand brakes that offer unlimited 360 degrees positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. The AC units feature 25 feet of 7/32" cable. Folds for storage.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 18.6875"W x 63.5"L x 73"H Sell UOM: EA-Each Color: Gray
Material: Galvanized Steel UPC: 691215131605 GTIN: 00691215131605
Warranty: -- Shipping Weight: 284 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Boom Reach (in.): 39-1/4 to 63-1/4 Boom Height (in.): 59-9/16 to 96-1/8
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-9/16" Fully Retracted (lbs.): 650
Capacity at 59-9/16" Mid-Position (lbs.): 400 Capacity at 59-9/16" Fully Extended (lbs.): 250 Capacity at 74-1/4" Fully Retracted (lbs.): 1,000
Capacity at 74-1/4" Mid-Position (lbs.): 770 Capacity at 74-1/4" Fully Extended (lbs.): 600 Capacity at 86-13/16" Fully Retracted (lbs.): 1,250
Capacity at 86-13/16" Mid-Position (lbs.): 950 Capacity at 86-13/16" Fully Extended (lbs.): 780 Capacity at 96-1/8" Fully Retracted (lbs.): 2,000
Capacity at 96-1/8" Mid-Position (lbs.): 1,500 Capacity at 96-1/8" Fully Extended (lbs.): 1,200 Compliant: CSA
