Model Details

WTJ-20-4-DC-GAL

WTJ-20-4-DC-GAL

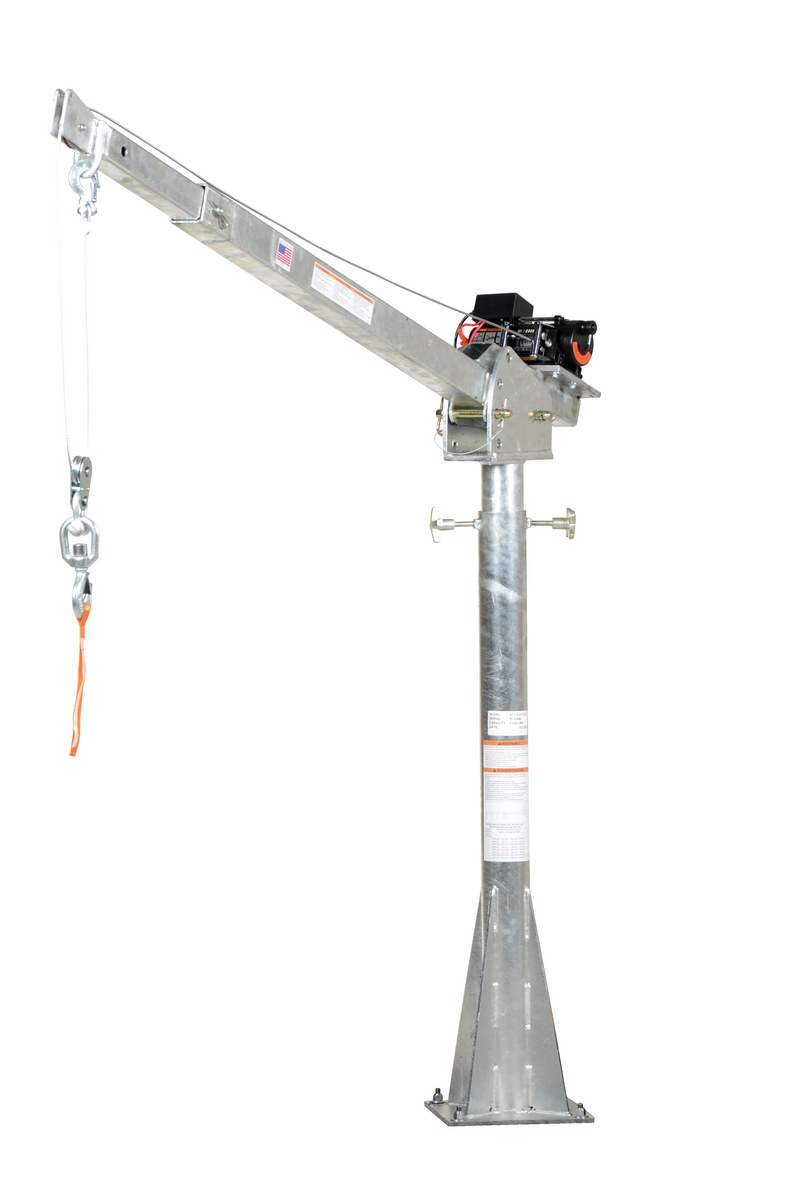

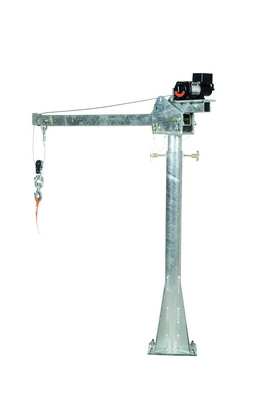

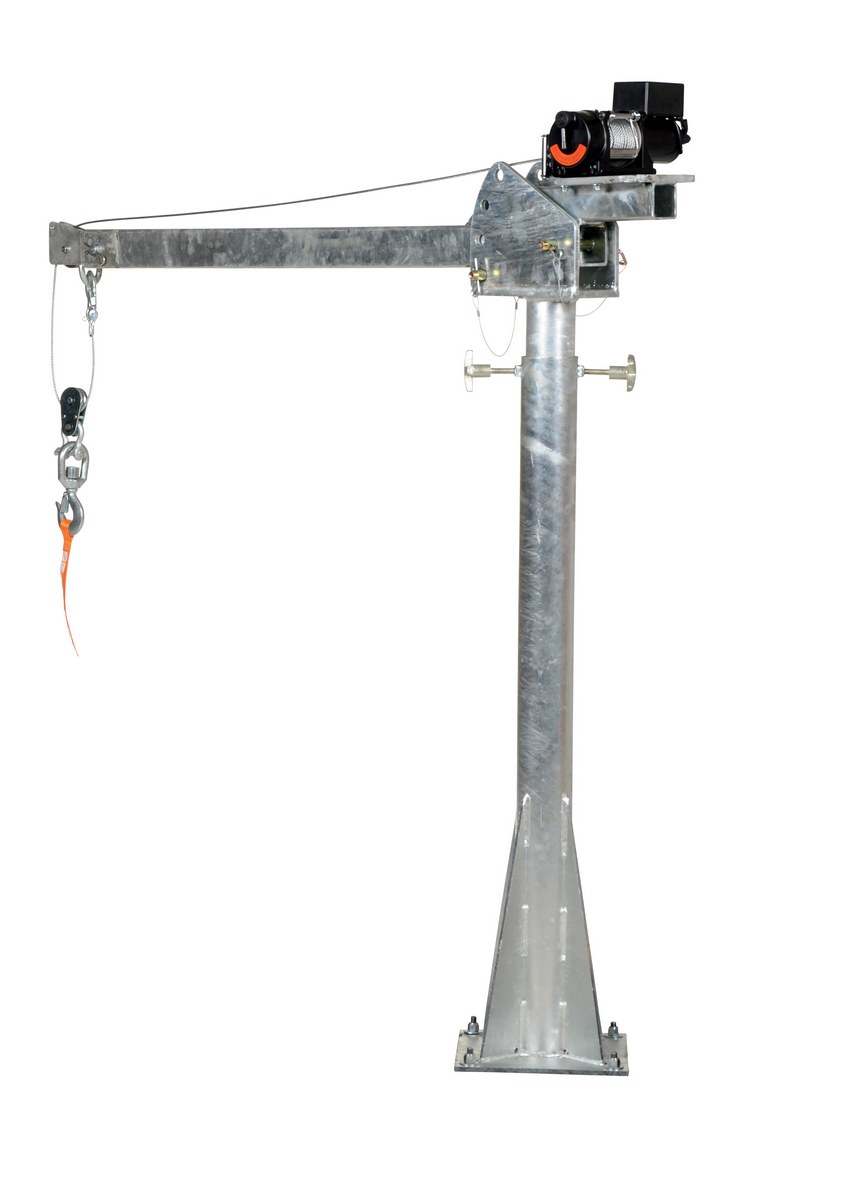

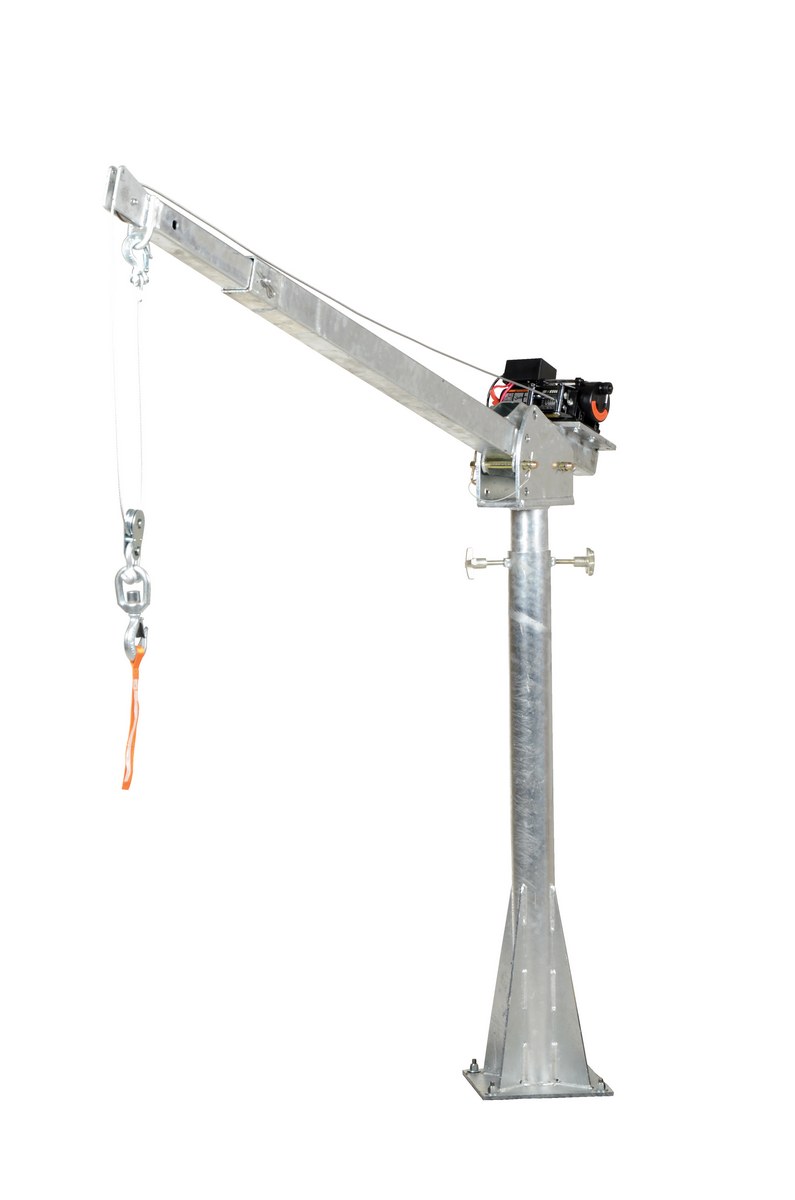

Galvanized Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Gray

The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a plug in handheld winch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 266 (only 1 package) Size: 13.5"W x 63.8125"L x 68.8125"H Color: Gray Non-Returnable

Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 46
Cable Diameter (in.): 3/16 DC (volts): 12 Horsepower (HP): 1
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-5/16" Fully Retracted (lbs.): 1,100
Capacity at 59-5/16" Second Position (lbs.): 800 Capacity at 59-5/16" Third Position (lbs.): 600 Capacity at 59-5/16" Fully Extended (lbs.): 250
Capacity at 78-1/4" Fully Retracted (lbs.): 1,500 Capacity at 78-1/4" Second Position (lbs.): 1,200 Capacity at 78-1/4" Third Position (lbs.): 1,000
Capacity at 78-1/4" Fully Extended (lbs.): 600 Capacity at 94-1/2" Fully Retracted (lbs.): 1,850

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-20-4-DC-GAL


WTJ-20-4-DC-GAL

Galvanized Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Gray

The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a plug in handheld winch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 13.5"W x 63.8125"L x 68.8125"H Sell UOM: EA-Each Color: Gray
Material: Galvanized Steel UPC: 691215102872 GTIN: 00691215102872
Warranty: -- Shipping Weight: 266 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 46
Cable Diameter (in.): 3/16 DC (volts): 12 Horsepower (HP): 1
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-5/16" Fully Retracted (lbs.): 1,100
Capacity at 59-5/16" Second Position (lbs.): 800 Capacity at 59-5/16" Third Position (lbs.): 600 Capacity at 59-5/16" Fully Extended (lbs.): 250
Capacity at 78-1/4" Fully Retracted (lbs.): 1,500 Capacity at 78-1/4" Second Position (lbs.): 1,200 Capacity at 78-1/4" Third Position (lbs.): 1,000
Capacity at 78-1/4" Fully Extended (lbs.): 600 Capacity at 94-1/2" Fully Retracted (lbs.): 1,850
