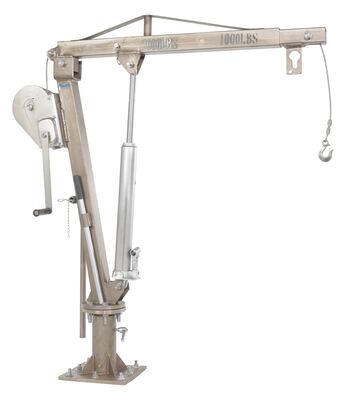

WTJ-4-SS

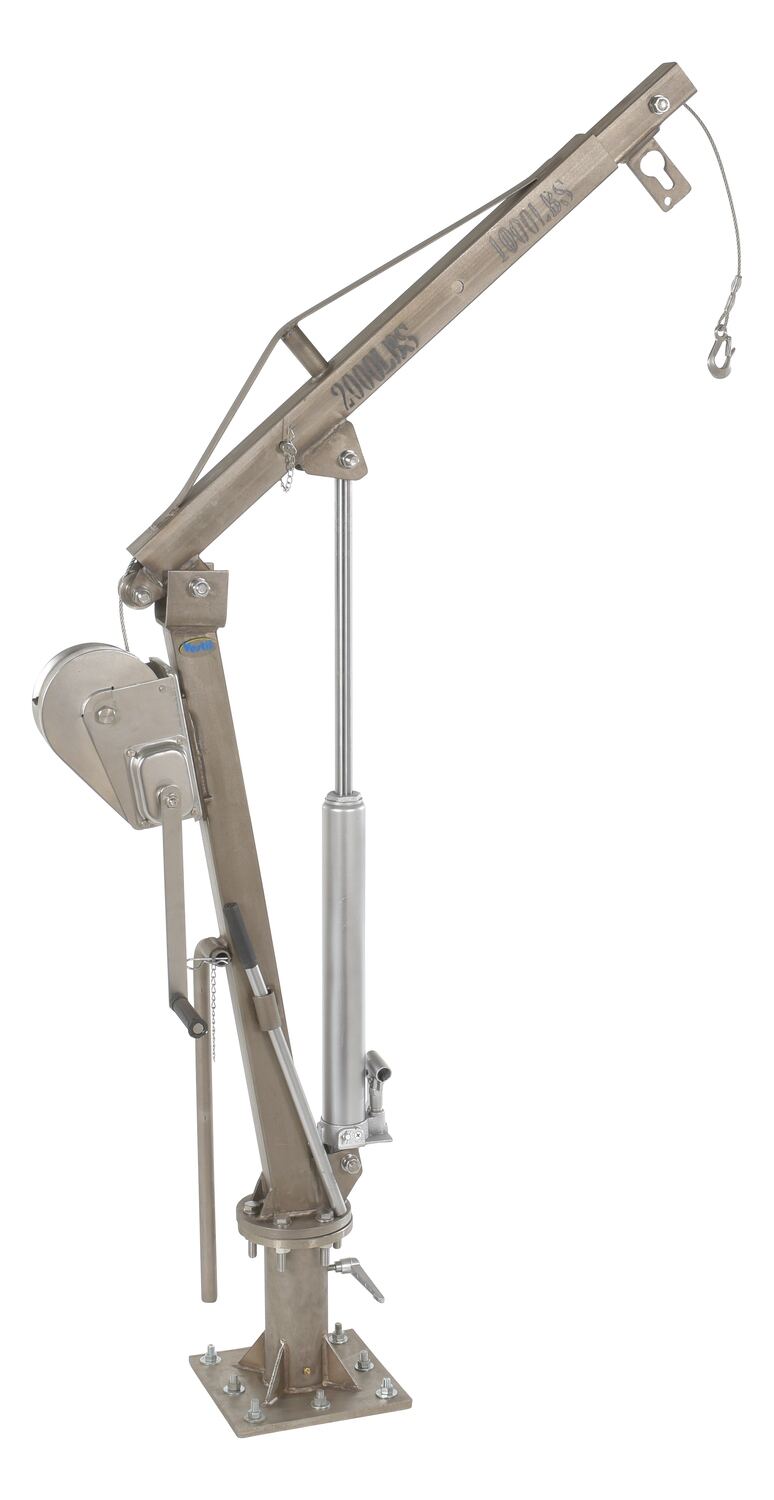

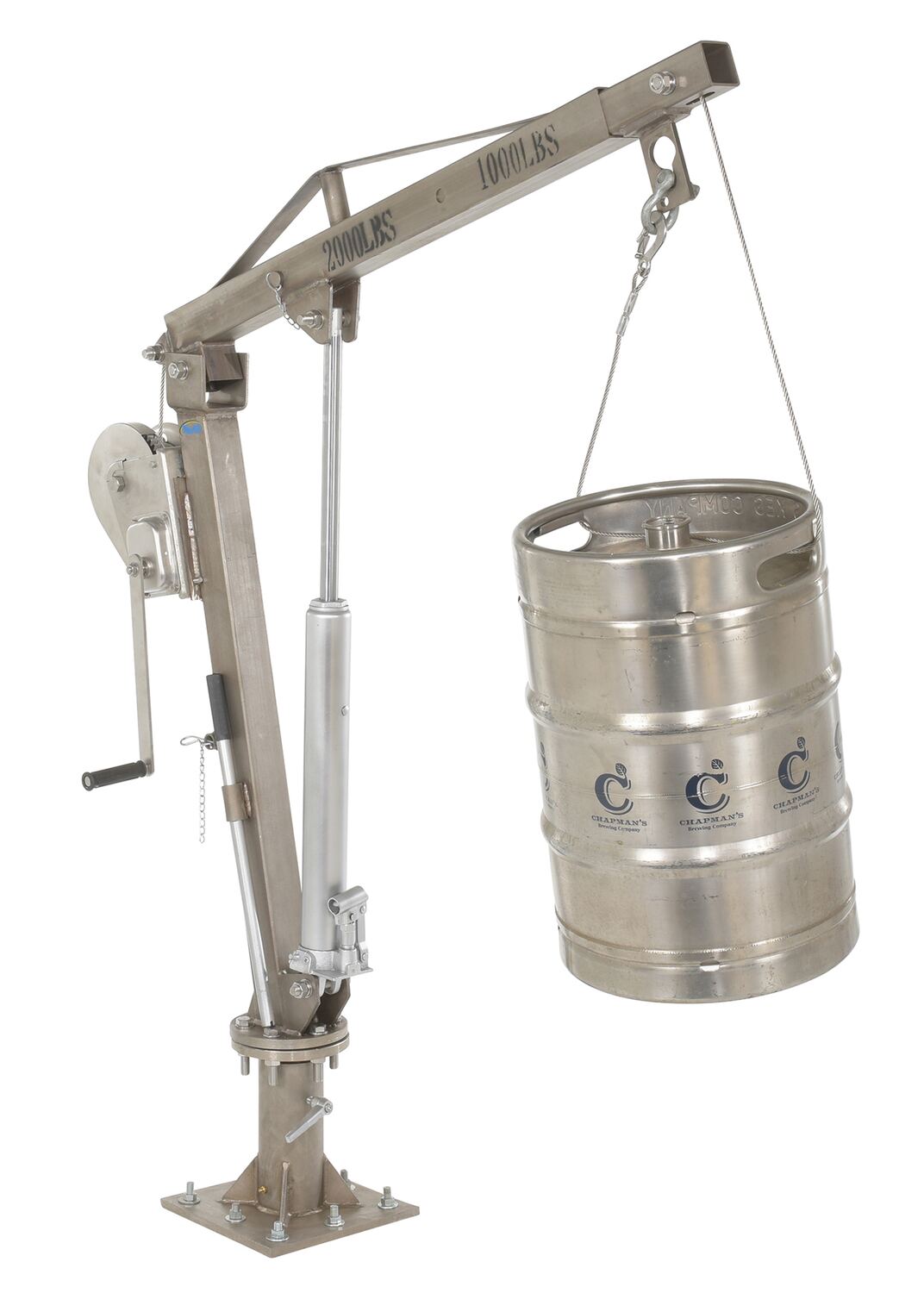

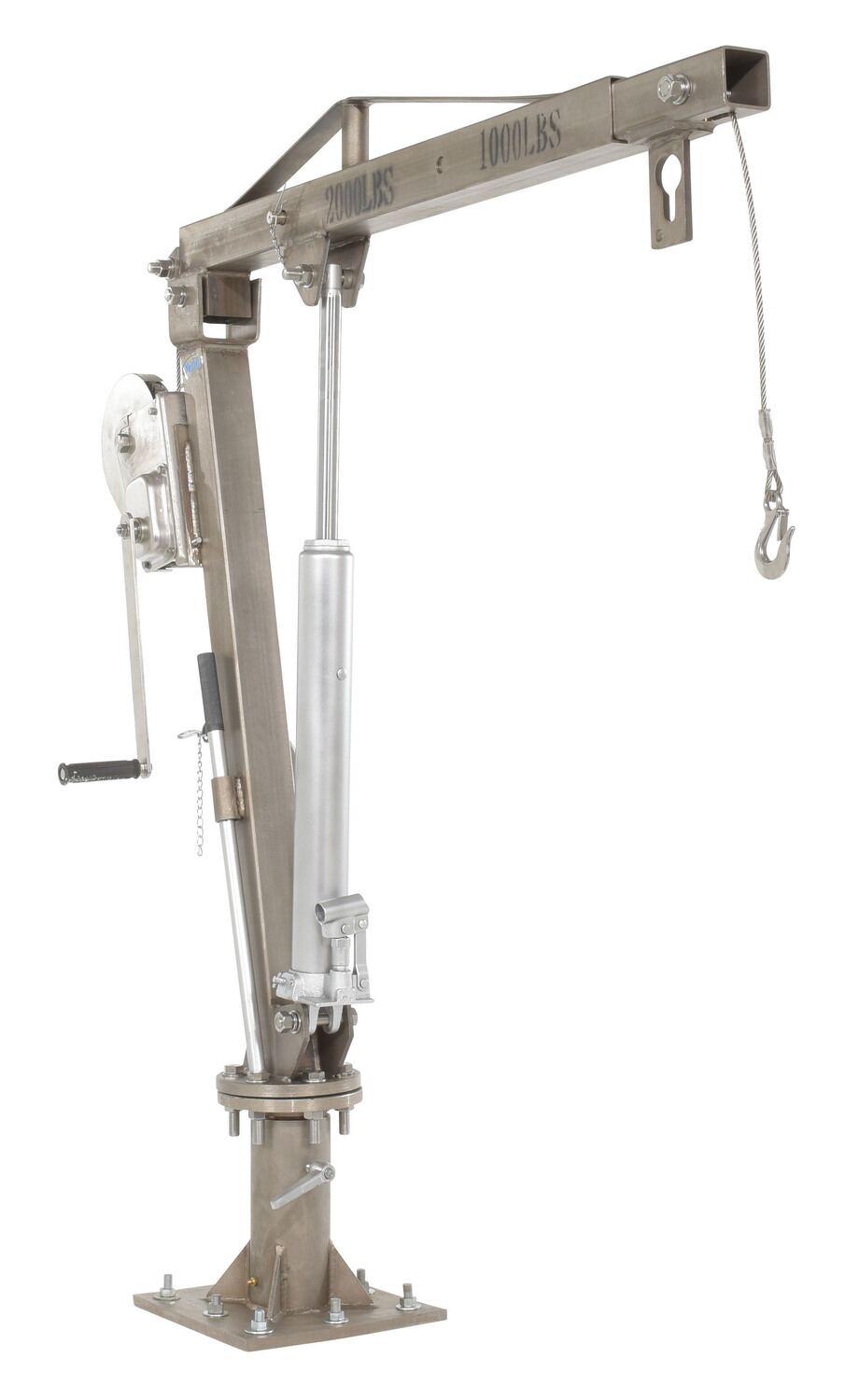

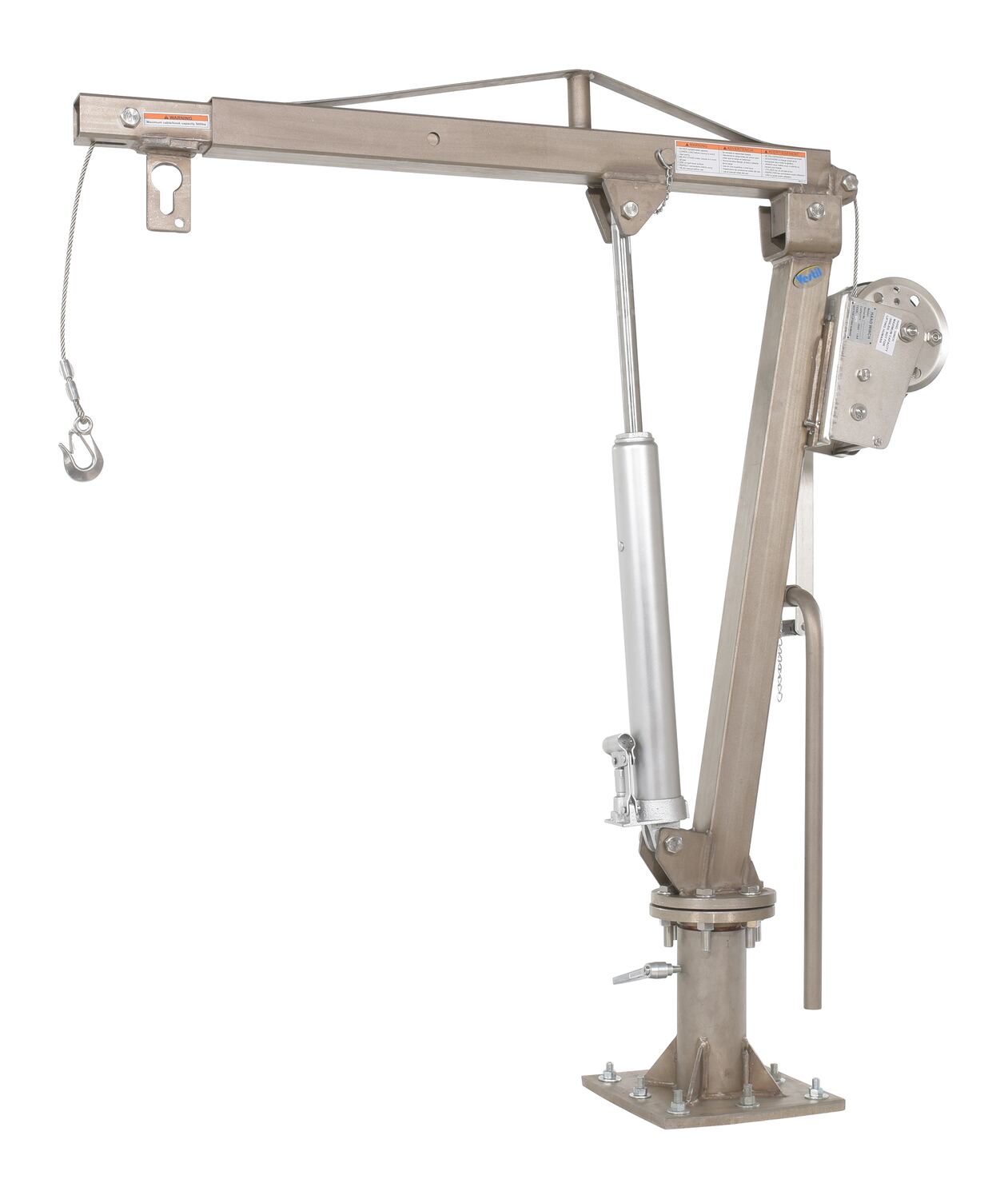

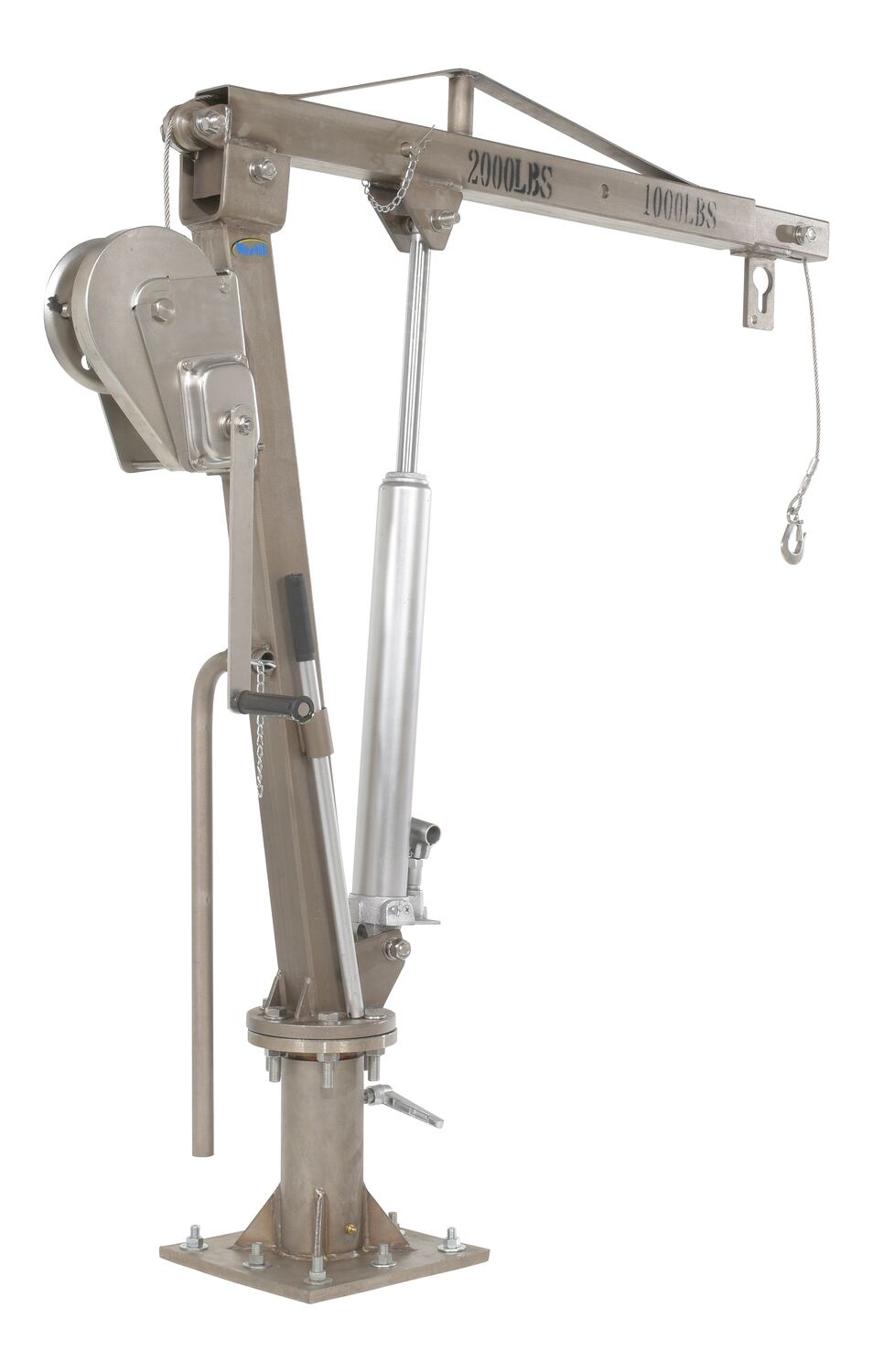

Stainless Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity Silver

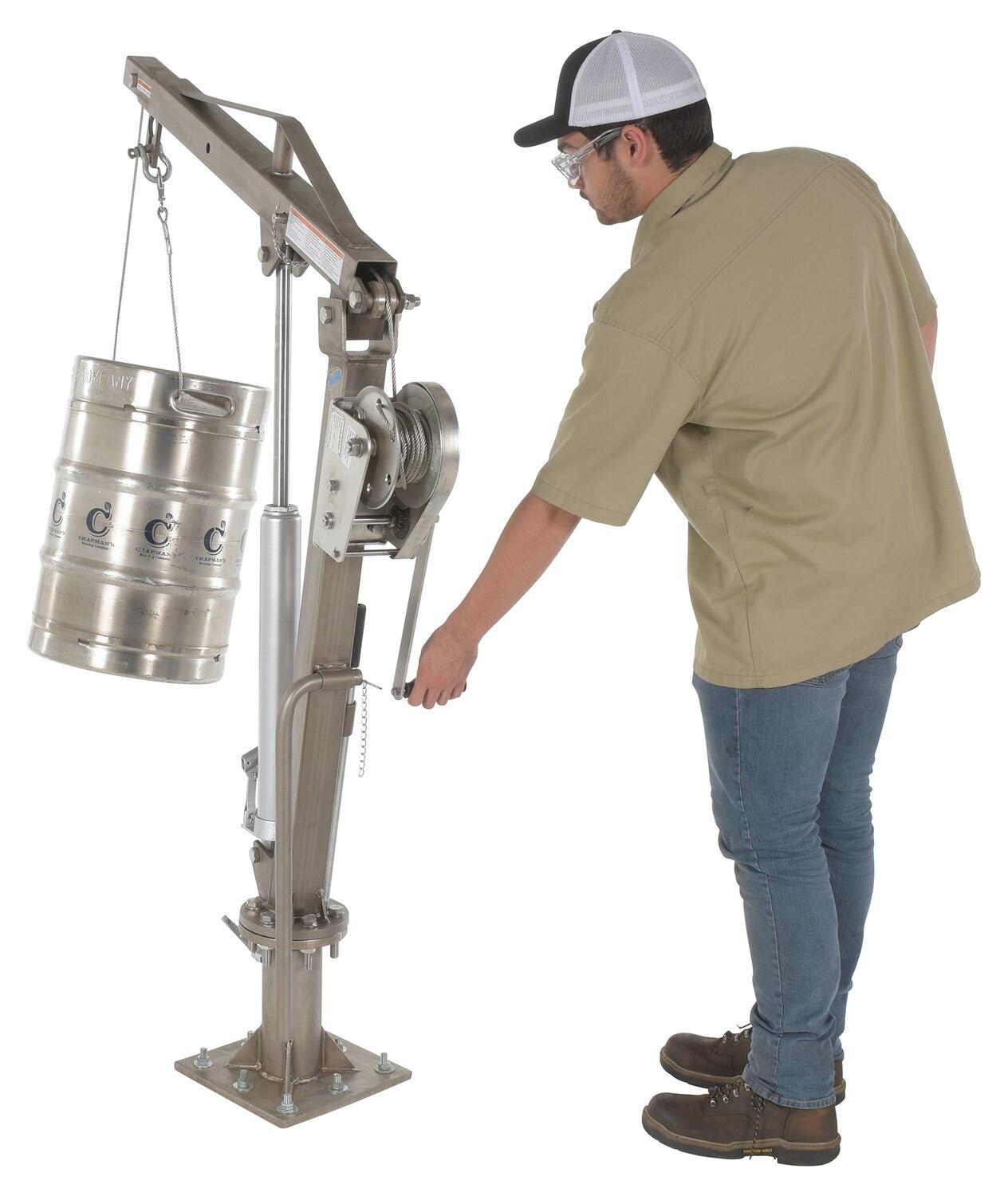

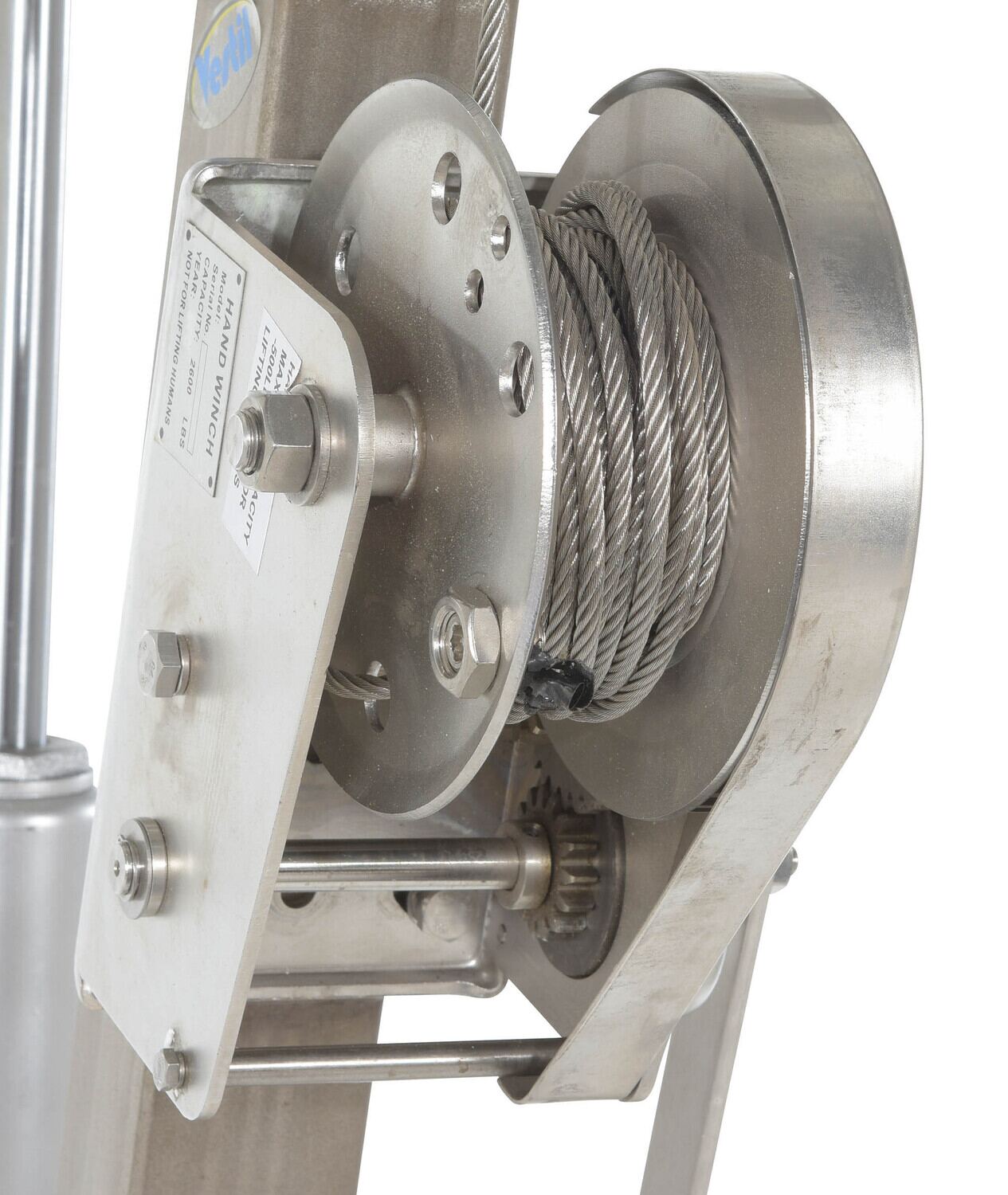

This Stainless Steel winch operated truck Jib crane lifts items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. Unit comes with one grab hook, one chain slot lock, and one sling hook with latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 218 (only 1 package) Size: 32.875"W x 11"L x 59.75"H Color: Silver Non-Returnable

Uniform Cable Winch Capacity (lb.): 500 Extended Fixed Hook Capacity (lb.): 1,000 Extended Usable Reach (in.): 52
Extended Maximum Hook Height (in.): 85-7/8 Extended Minimum Hook Height (in.): Zero Retracted Fixed Hook Capacity (lb.): 2,000
Retracted Usable Reach (in.): 31 Retracted Maximum Hook Height (in.): 74-1/2 Retracted Minimum Hook Height (in.): 15-1/2
Overall Cable Length (ft.): 32 Usable Cable Length (ft.): 24 Cable Diameter (in.): 3/16
Mounting Plate Length (in.): 11 Mounting Plate Width (in.): 11 Base Height (in.): 11-1/2
Rotation (degrees): 360 Piston Stroke (in.): 16-3/8 Piston Stroke Per Pump (in.): 1/16
Cable Retracts/Extension Per Crank (in.): 1-1/2 Number of Cranks to Retract/Extend Cable: 72

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-4-SS
WTJ-4-SS

Stainless Steel Winch Truck Jib Crane 52 In. Reach 1,000 Lb. Extended Capacity Silver

This Stainless Steel winch operated truck Jib crane lifts items from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. Unit comes with one grab hook, one chain slot lock, and one sling hook with latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 32.875"W x 11"L x 59.75"H Sell UOM: EA-Each Color: Silver
Material: Stainless Steel UPC: 691215129541 GTIN: 00691215129541
Warranty: -- Shipping Weight: 218 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Cable Winch Capacity (lb.): 500 Extended Fixed Hook Capacity (lb.): 1,000 Extended Usable Reach (in.): 52
Extended Maximum Hook Height (in.): 85-7/8 Extended Minimum Hook Height (in.): Zero Retracted Fixed Hook Capacity (lb.): 2,000
Retracted Usable Reach (in.): 31 Retracted Maximum Hook Height (in.): 74-1/2 Retracted Minimum Hook Height (in.): 15-1/2
Overall Cable Length (ft.): 32 Usable Cable Length (ft.): 24 Cable Diameter (in.): 3/16
Mounting Plate Length (in.): 11 Mounting Plate Width (in.): 11 Base Height (in.): 11-1/2
Rotation (degrees): 360 Piston Stroke (in.): 16-3/8 Piston Stroke Per Pump (in.): 1/16
Cable Retracts/Extension Per Crank (in.): 1-1/2 Number of Cranks to Retract/Extend Cable: 72
