Model Details

WTJ-E-15-3-AC-GAL

WTJ-E-15-3-AC-GAL

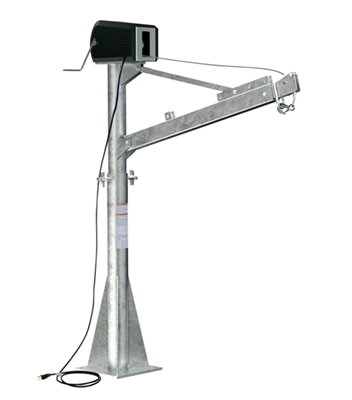

Galvanized Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray

The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a fingertip switch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 305 (only 1 package) Size: 12"W x 51.0625"L x 66.9375"H Color: Gray Non-Returnable

Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 1,500 lb. Capacity at Boom Extension (in.): 27-13/16
Capacity at 47-1/8" Fully Retracted (lbs.): 650 Capacity at 47-1/8" Mid-Position (lbs.): 300 Capacity at 47-1/8" Fully Extended (lbs.): 200
Capacity at 56-3/16" Fully Retracted (lbs.): 1100 Capacity at 56-3/16" Mid-Position (lbs.): 650 Capacity at 56-3/16" Fully Extended (lbs.): 550
Capacity at 64-3/4" Fully Retracted (lbs.): 1,250 Capacity at 64-3/4" Mid-Position (lbs.): 850

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-E-15-3-AC-GAL


WTJ-E-15-3-AC-GAL

Galvanized Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray

The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a fingertip switch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 12"W x 51.0625"L x 66.9375"H Sell UOM: EA-Each Color: Gray
Material: Galvanized Steel UPC: 691215102889 GTIN: 00691215102889
Warranty: -- Shipping Weight: 305 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 1,500 lb. Capacity at Boom Extension (in.): 27-13/16
Capacity at 47-1/8" Fully Retracted (lbs.): 650 Capacity at 47-1/8" Mid-Position (lbs.): 300 Capacity at 47-1/8" Fully Extended (lbs.): 200
Capacity at 56-3/16" Fully Retracted (lbs.): 1100 Capacity at 56-3/16" Mid-Position (lbs.): 650 Capacity at 56-3/16" Fully Extended (lbs.): 550
Capacity at 64-3/4" Fully Retracted (lbs.): 1,250 Capacity at 64-3/4" Mid-Position (lbs.): 850
