WTJ-HITCH-ML-6

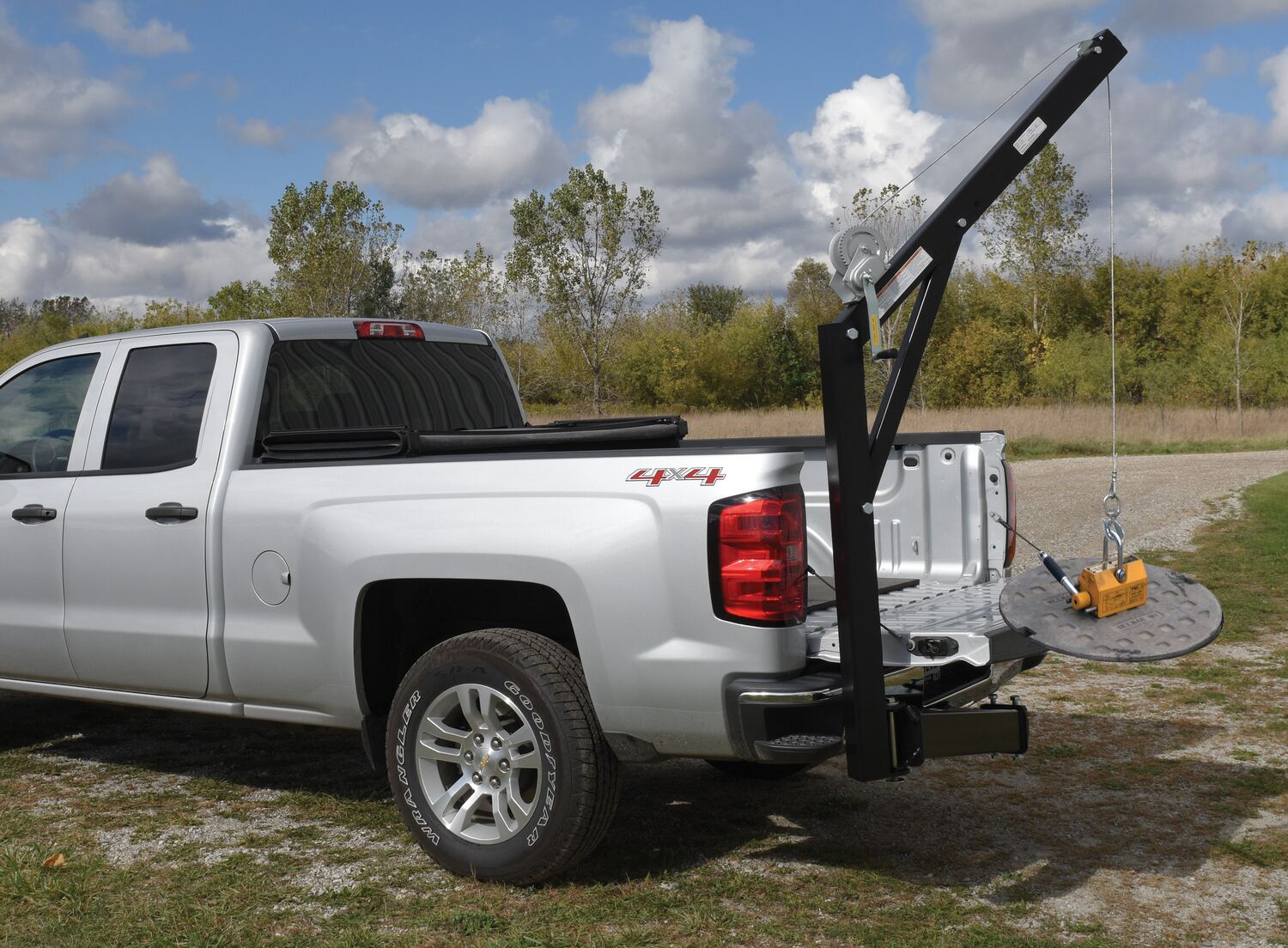

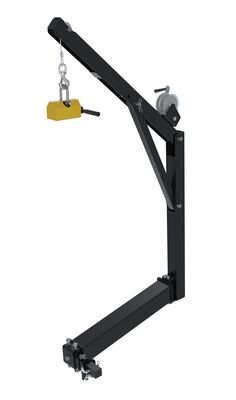

Steel Hitch Mounted Truck Jib Crane With Magnet 600 Lb. Capacity Black

A hitch-mounted truck Jib crane with magnet easily mounts in standard class III or higher 2" receivers. The jib may be adjusted or leveled to best fit the setting and the users needs. Maximum uniform lifting capacity is 600 pounds. Manual hand brake winch with a lifting hook and 15 feet of cable is included. The industrial magnet includes a clevis for a simpler lifting and lowering process.

  • Requires no modifications to truck
  • Magnet is activated or deactivated by a simple lever rotation
  • Offset design allows for full use of tailgate while winch is in operation
  • Crane may be installed on either side of the truck bed
Total Ship Wt.(lbs.): 168 (only 1 package) Size: 19.8125"W x 44.5"L x 84.625"H Color: Black

Uniform Capacity (lb.): 600 Mounts to Receiver: Class III or Higher 2" Receiver Boom Reach (in.): 47-1/2
Maximum Boom Height (in.): 84-5/8 Cable Length (ft.): 15 Cable Diameter (in.): 3/16
Overall Width (in.): 19-13/16 Overall Length (in.): 44-1/2 Overall Height (in.): 74-5/16
Maximum Height (in.): 84-5/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-HITCH-ML-6
WTJ-HITCH-ML-6

Steel Hitch Mounted Truck Jib Crane With Magnet 600 Lb. Capacity Black

A hitch-mounted truck Jib crane with magnet easily mounts in standard class III or higher 2" receivers. The jib may be adjusted or leveled to best fit the setting and the users needs. Maximum uniform lifting capacity is 600 pounds. Manual hand brake winch with a lifting hook and 15 feet of cable is included. The industrial magnet includes a clevis for a simpler lifting and lowering process.

  • Requires no modifications to truck
  • Magnet is activated or deactivated by a simple lever rotation
  • Offset design allows for full use of tailgate while winch is in operation
  • Crane may be installed on either side of the truck bed
Dimensions: 19.8125"W x 44.5"L x 84.625"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215375986 GTIN: 00691215375986
Warranty: -- Shipping Weight: 168 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Mounts to Receiver: Class III or Higher 2" Receiver Boom Reach (in.): 47-1/2
Maximum Boom Height (in.): 84-5/8 Cable Length (ft.): 15 Cable Diameter (in.): 3/16
Overall Width (in.): 19-13/16 Overall Length (in.): 44-1/2 Overall Height (in.): 74-5/16
Maximum Height (in.): 84-5/8
