Model Details

YR-25-8536

Printer Friendly
YR-25-8536

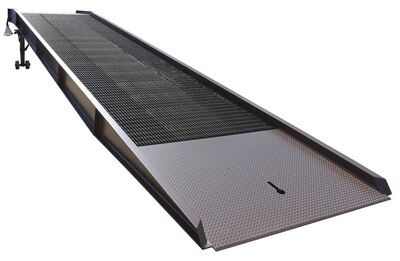

Steel Overlap Yard Ramp 85 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Painted neutral earth-tone brown. Includes landing gear and crank mechanism.

  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Manual two-speed crank easily adjusts to different dock heights
Total Ship Wt.(lbs.): 7175 (only 1 package) Size: 102.375"W x 432"L x 46"H Color: Earth Tone Brown Non-Returnable

Uniform Capacity (lb.): 25000 Overall Ramp Width (in.): 85 Usable Ramp Width (in.): 78
Caster Material: Steel Caster Diameter (in.): 8-5/8 Caster Width (in.): 3-5/8
Safety Curb (in.): 4 Usable Lip Support Edge Length (in.): 13-7/8 Lowered Height (in.): 45
Raised Height (in.): 62 Straight Ramp (in.): 360 Level Off (in.): 72
Deck Type: Grating

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: YR-25-8536
YR-25-8536

Steel Overlap Yard Ramp 85 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Painted neutral earth-tone brown. Includes landing gear and crank mechanism.

  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Manual two-speed crank easily adjusts to different dock heights
Dimensions: 102.375"W x 432"L x 46"H Sell UOM: EA-Each Color: Earth Tone Brown
Material: Steel UPC: 691215048514 GTIN: 00691215048514
Warranty: -- Shipping Weight: 7175 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 25000 Overall Ramp Width (in.): 85 Usable Ramp Width (in.): 78
Caster Material: Steel Caster Diameter (in.): 8-5/8 Caster Width (in.): 3-5/8
Safety Curb (in.): 4 Usable Lip Support Edge Length (in.): 13-7/8 Lowered Height (in.): 45
Raised Height (in.): 62 Straight Ramp (in.): 360 Level Off (in.): 72
Deck Type: Grating
