Model Details

YRD-16-7236-M

Printer Friendly
YRD-16-7236-M

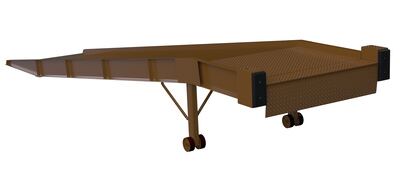

Steel Yard Ramp Mechanical Dock Leveler 72 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual hand crank design for easy one (1) person height adjustment. The standard features include: positive traction surface design, safety locking chains, rubber bumpers and fork positioning loop. Steel wheels included for quick maneuvering and portability of unit. Painted neutral earth-tone brown.

  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Included a mechanical leveler for a perfect transition
Total Ship Wt.(lbs.): 6495 (only 1 package) Size: 72"W x 432"L x 46"H Color: Earth Tone Brown Non-Returnable

Uniform Capacity (lb.): 16000 Usable Ramp Width (in.): 66 Dock Leveler Width (in.): 64
Caster Material: Steel Caster Diameter (in.): 8-5/8 Caster Width (in.): 3-5/8
Safety Curb (in.): 4 Usable Lip Support Edge Length (in.): 13-1/2 Lowered Height (in.): 45
Raised Height (in.): 62 Straight Ramp (in.): 360 Level Off (in.): 72

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: YRD-16-7236-M
YRD-16-7236-M

Steel Yard Ramp Mechanical Dock Leveler 72 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual hand crank design for easy one (1) person height adjustment. The standard features include: positive traction surface design, safety locking chains, rubber bumpers and fork positioning loop. Steel wheels included for quick maneuvering and portability of unit. Painted neutral earth-tone brown.

  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Included a mechanical leveler for a perfect transition
Dimensions: 72"W x 432"L x 46"H Sell UOM: EA-Each Color: Earth Tone Brown
Material: Steel UPC: 691215102681 GTIN: 00691215102681
Warranty: -- Shipping Weight: 6495 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 16000 Usable Ramp Width (in.): 66 Dock Leveler Width (in.): 64
Caster Material: Steel Caster Diameter (in.): 8-5/8 Caster Width (in.): 3-5/8
Safety Curb (in.): 4 Usable Lip Support Edge Length (in.): 13-1/2 Lowered Height (in.): 45
Raised Height (in.): 62 Straight Ramp (in.): 360 Level Off (in.): 72
