Pallet Pullers

model: PAL-21



Featured Loading Dock Equipment


Aluminum Hand Truck Dockplates
Heavy-Duty Fiberglass Walk Ramps
Cargo Strapping
Trailer Wheel Locks
Premium Truck Scissor Dock Lifts
Yard Ramps
Aluminum Grip-Strut Walk Ramps
Overhead Door Warning Barriers
Magnetic Rail Car Wheel Chock
model chart

Product Family Overview

Print Friendly
Pallet Pullers
SERIES: PAL

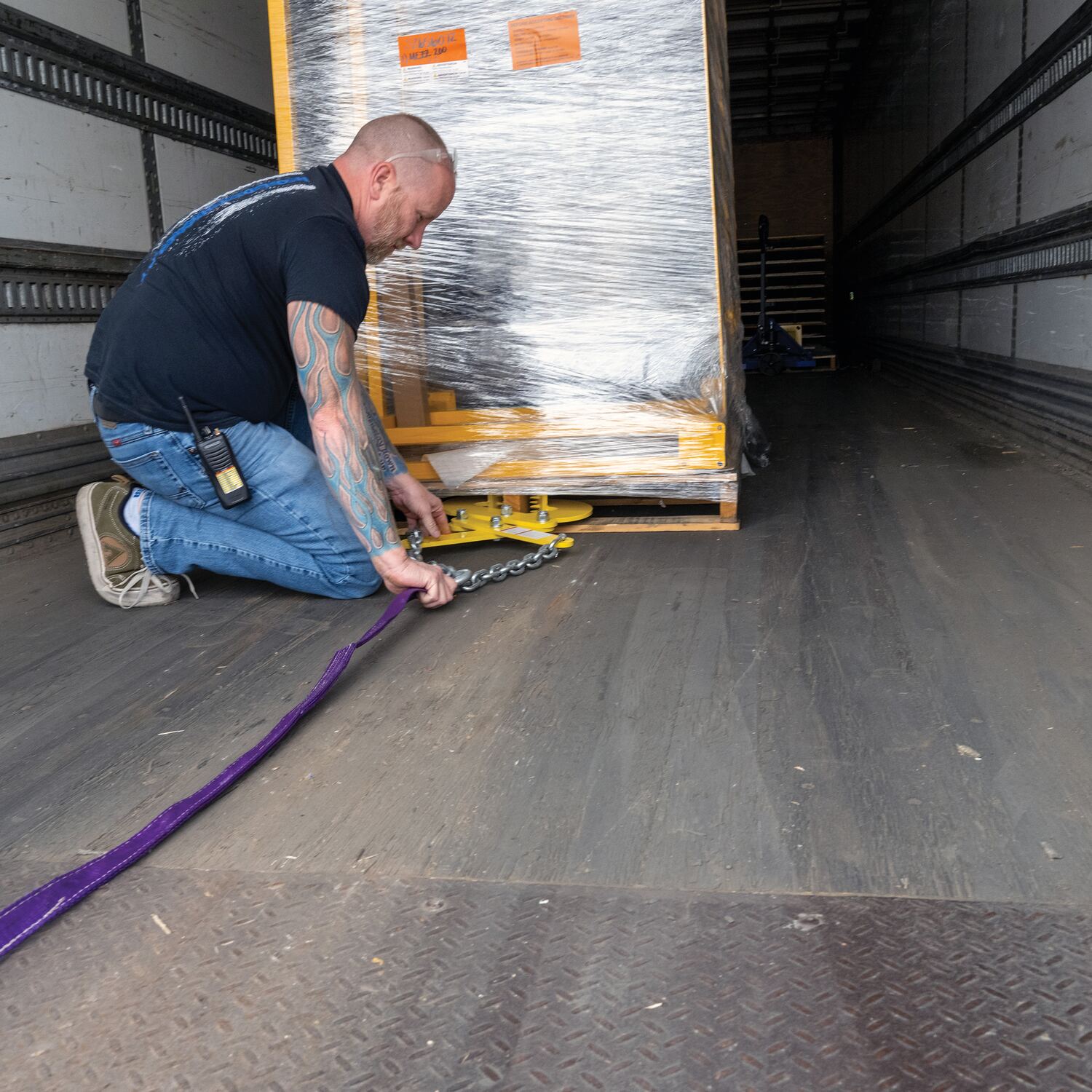

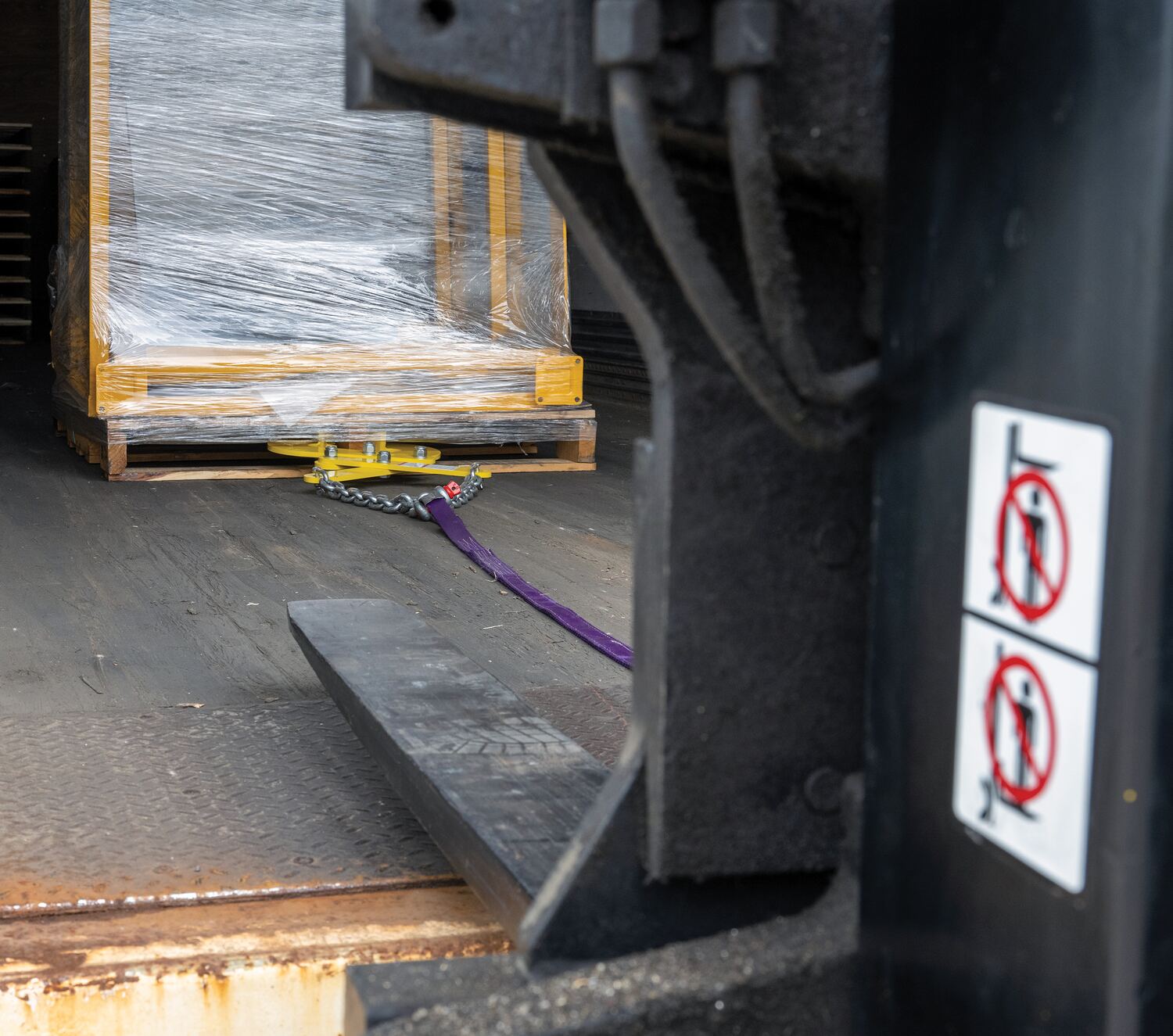

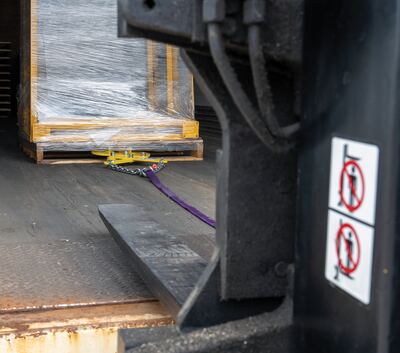

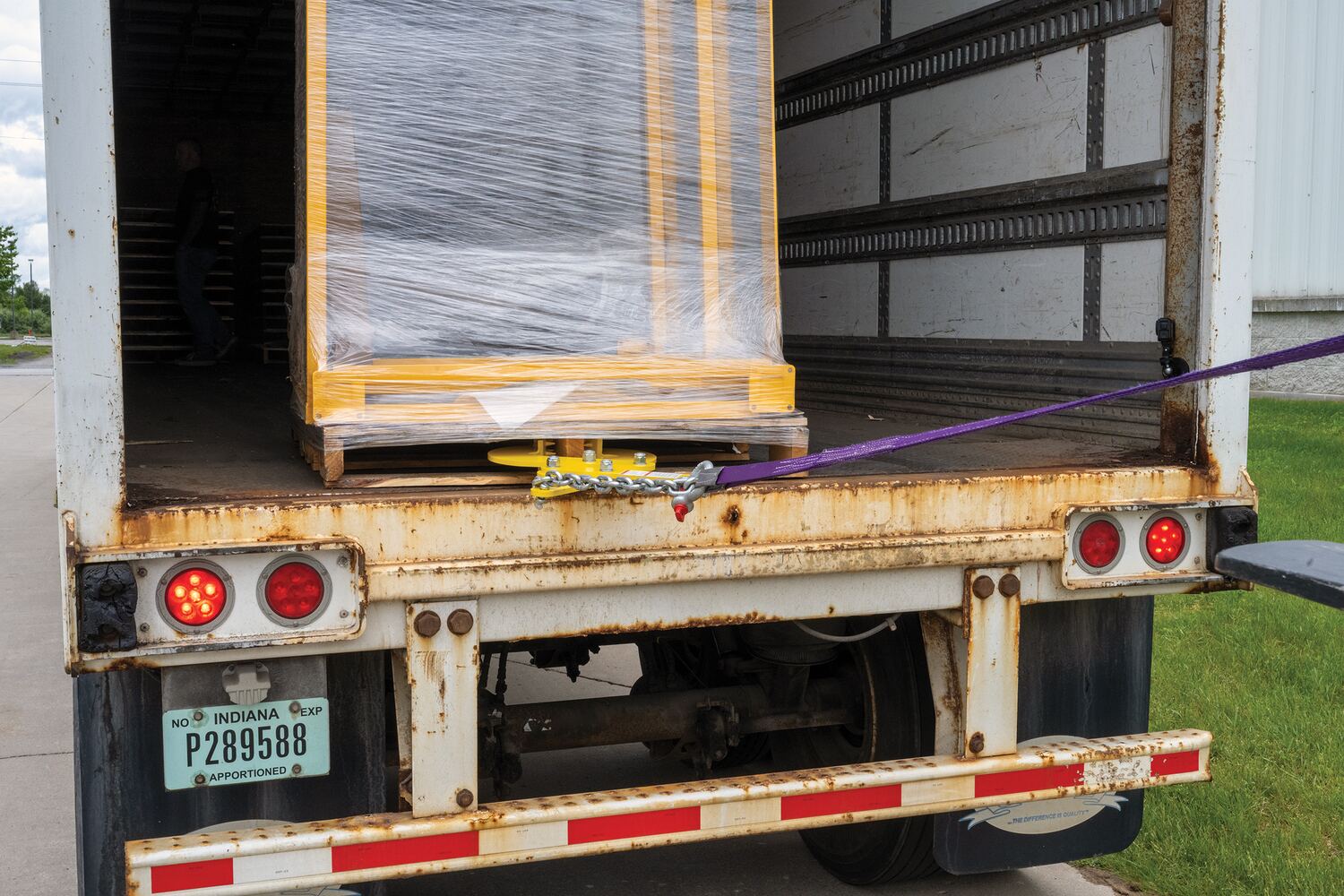

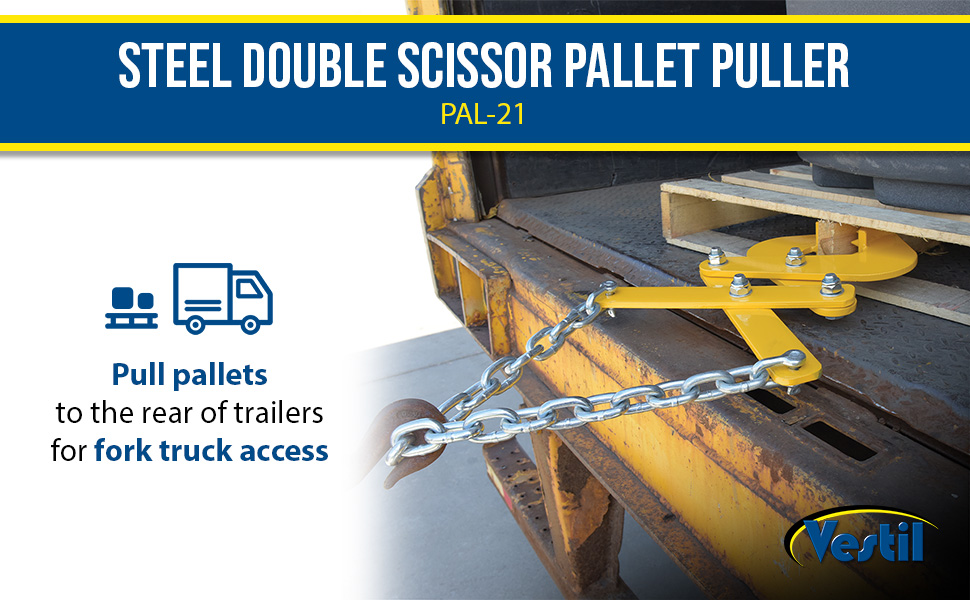

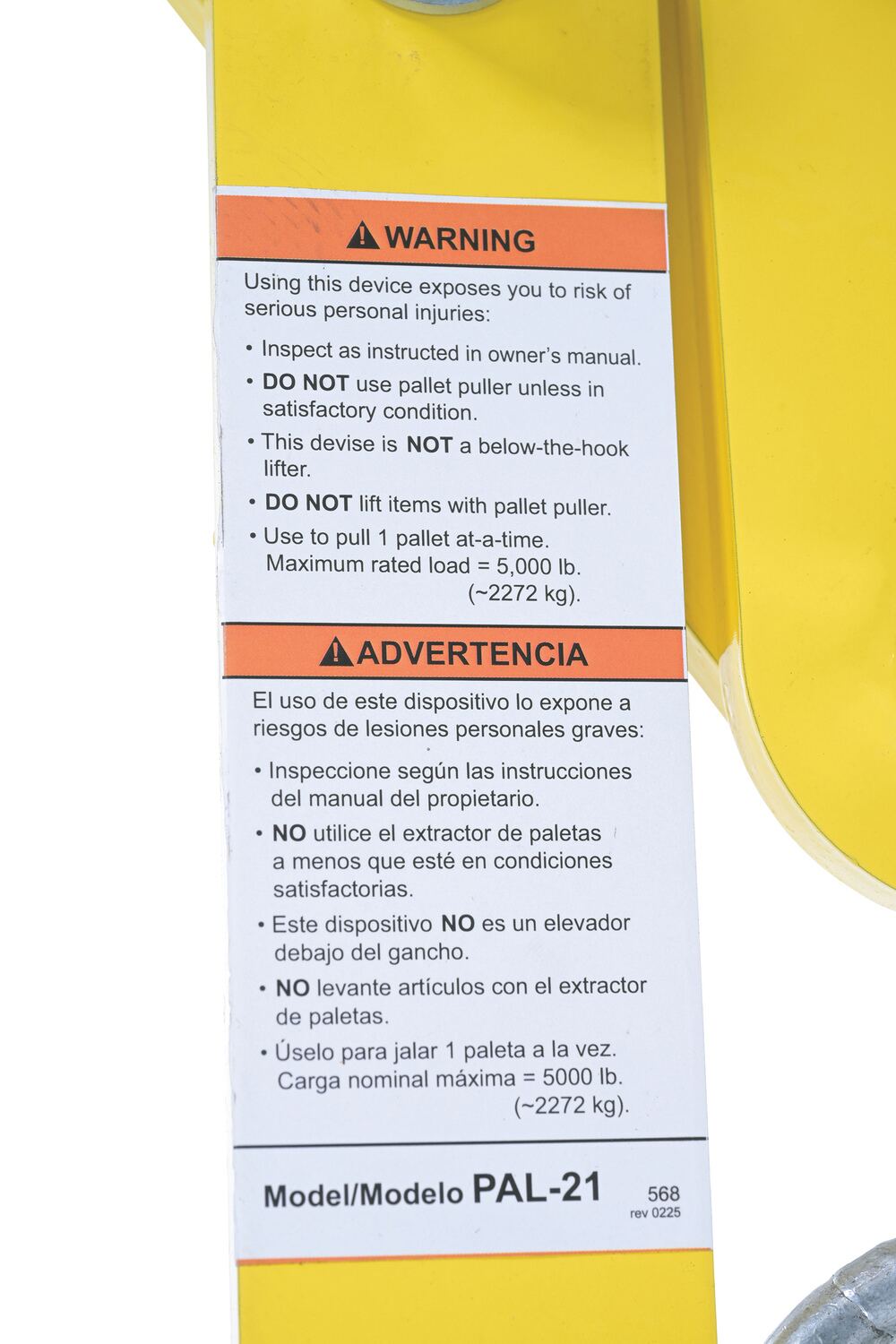

Pallet pullers are used to pull pallets from the rear of trailers, to the front, for easy fork truck access. Rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. Pallet pullers and chains are NOT designed for lifting.

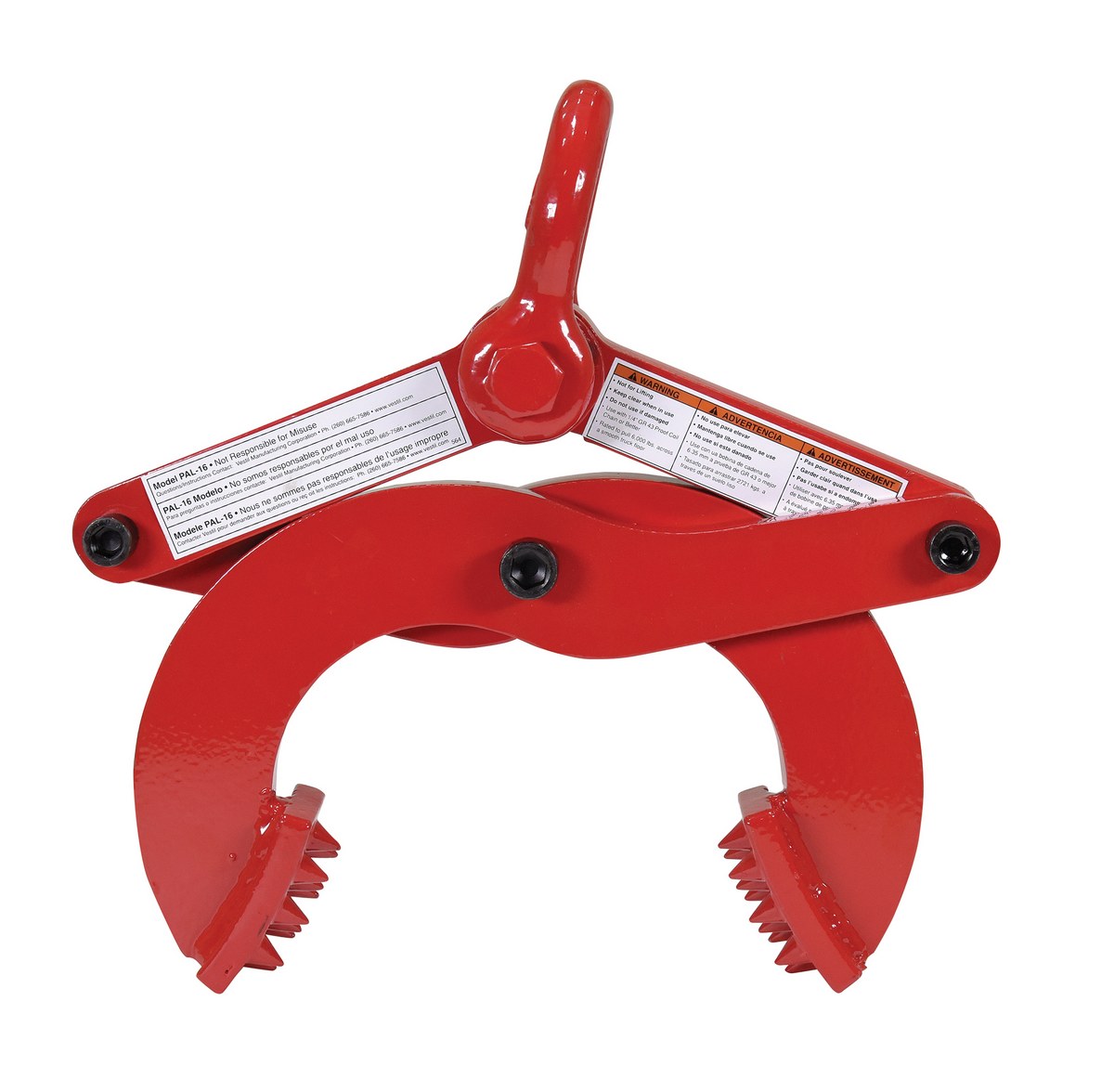

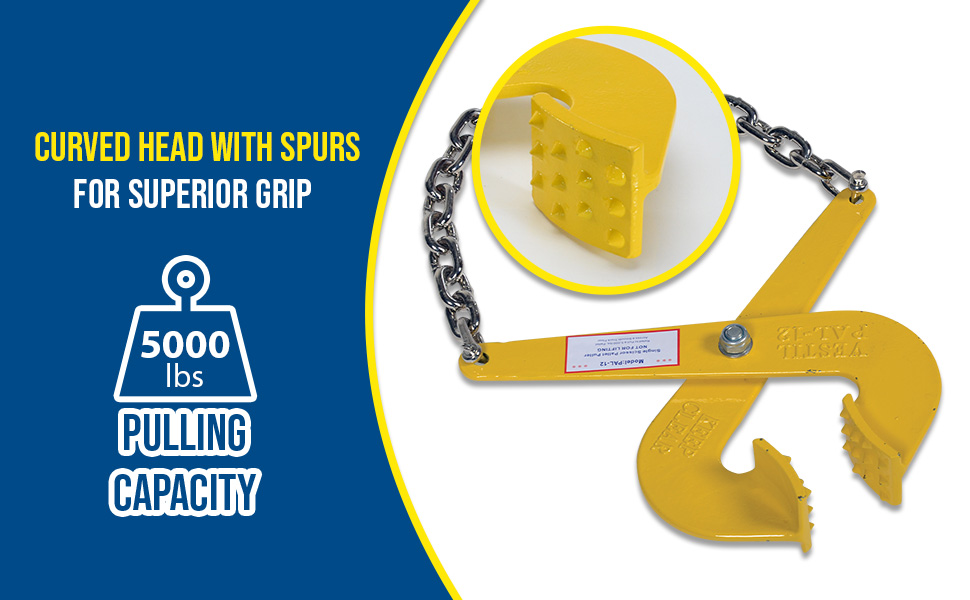

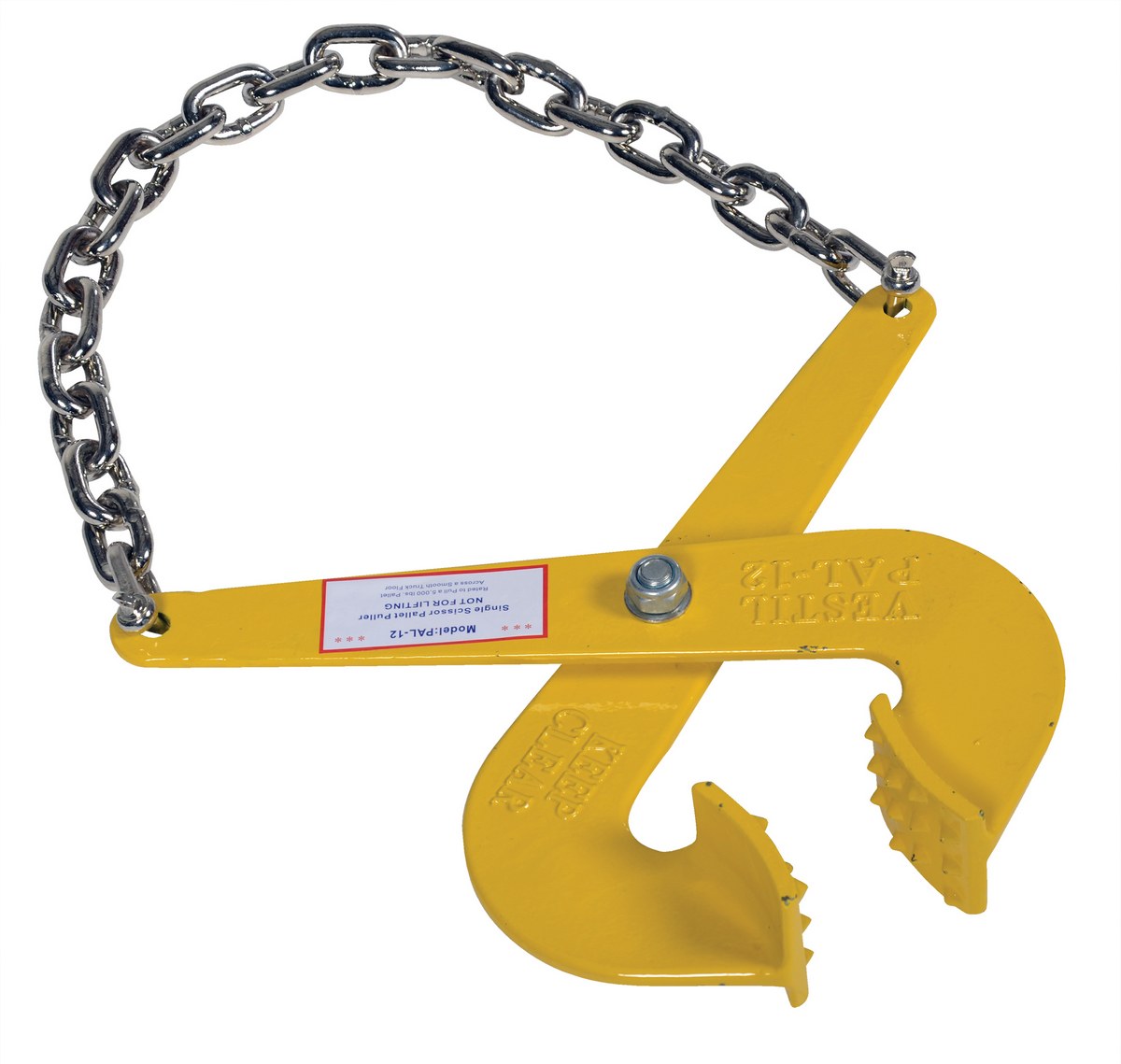

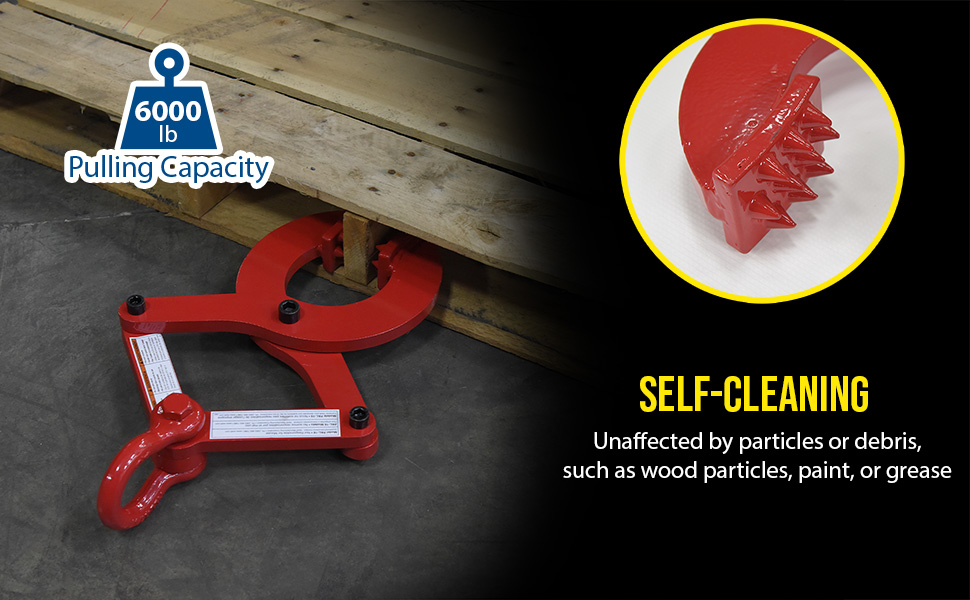

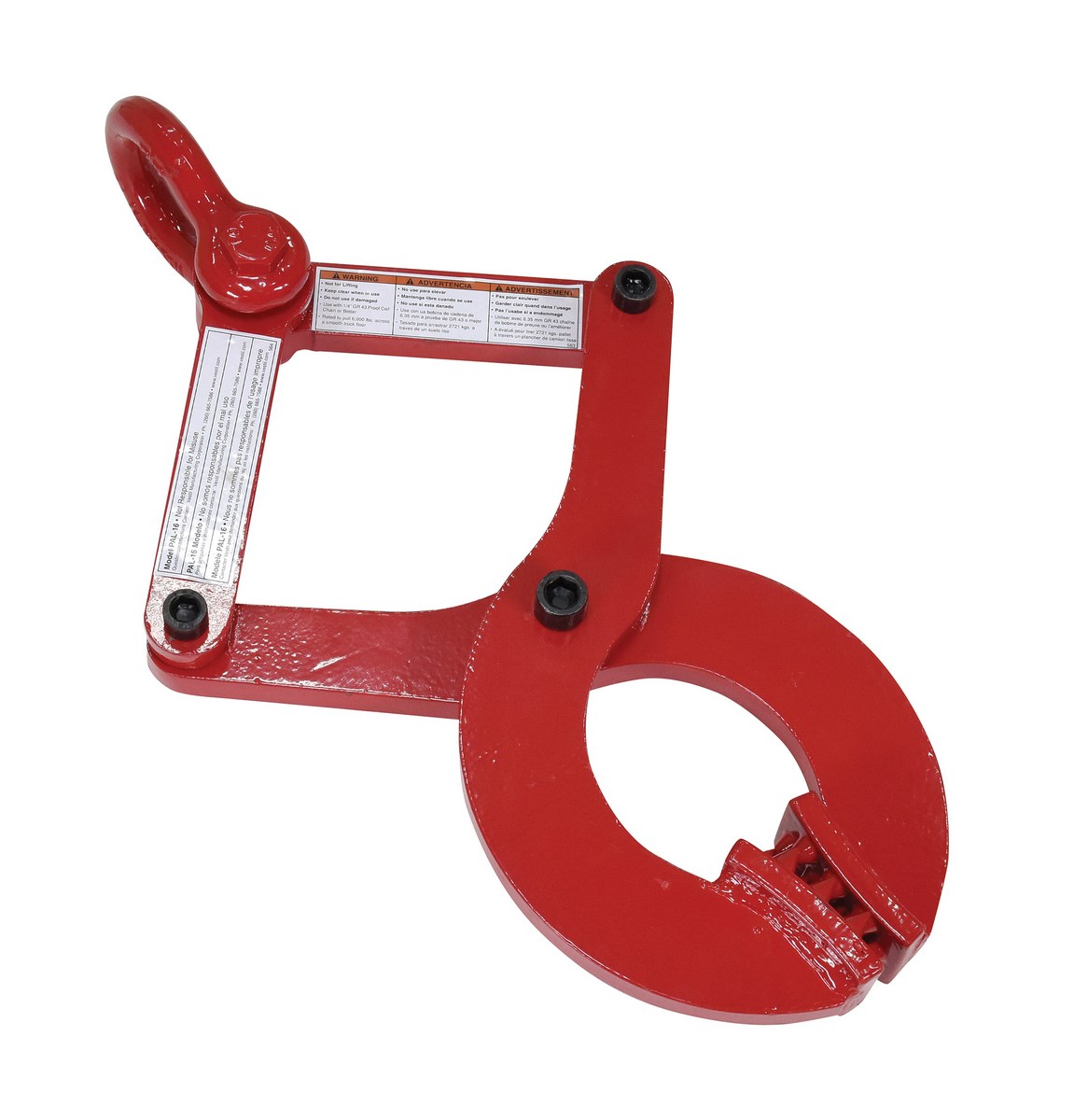

PAL-12 and PAL-16 - Single scissor action allows for wider jaw opening.

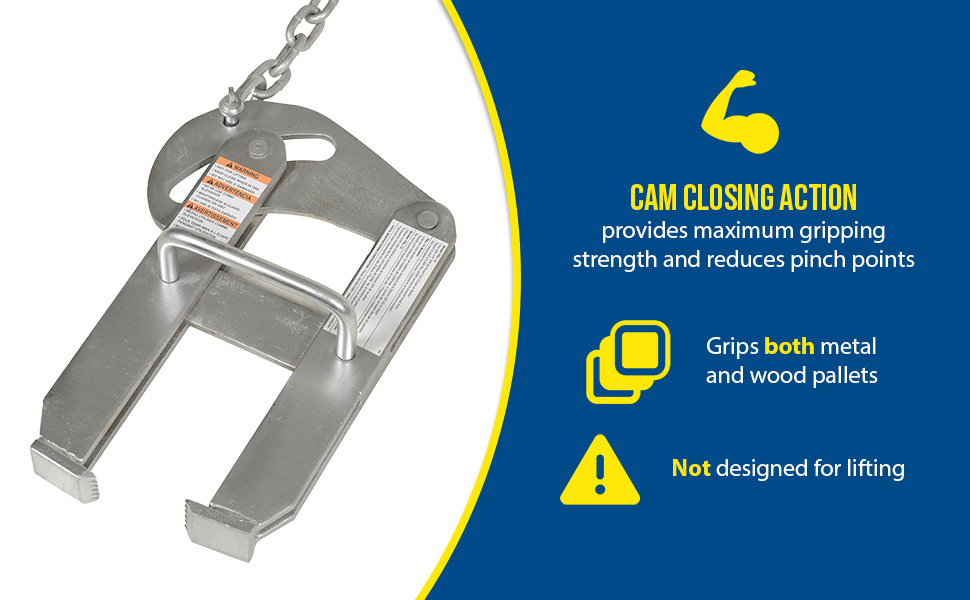

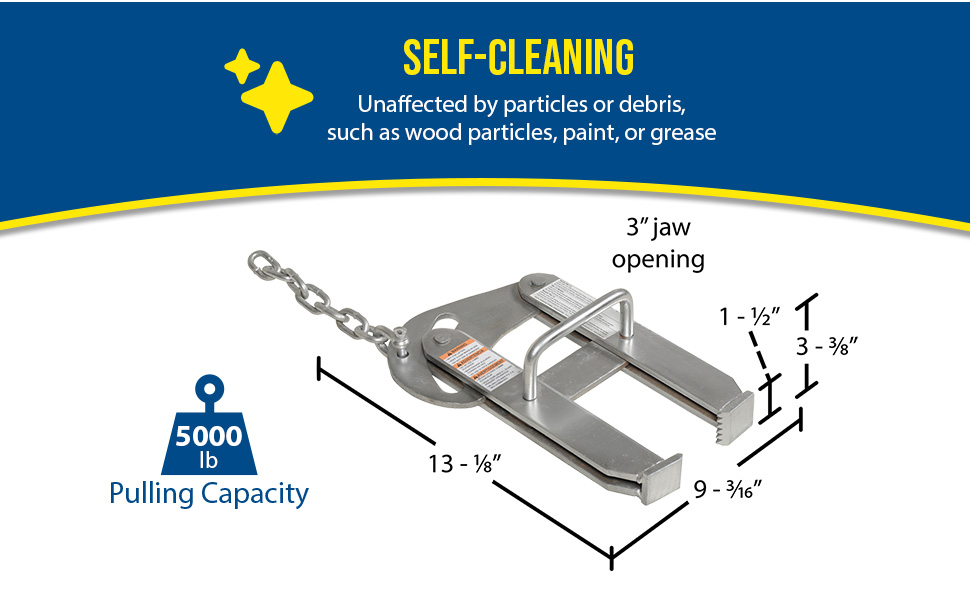

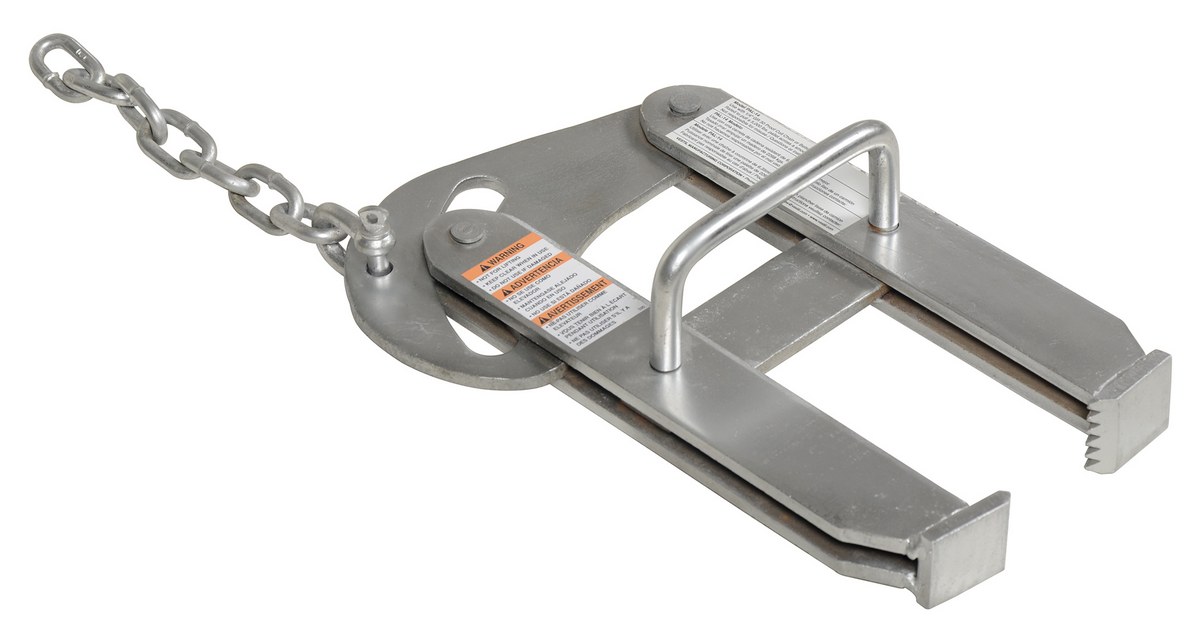

PAL-14 - Cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action.

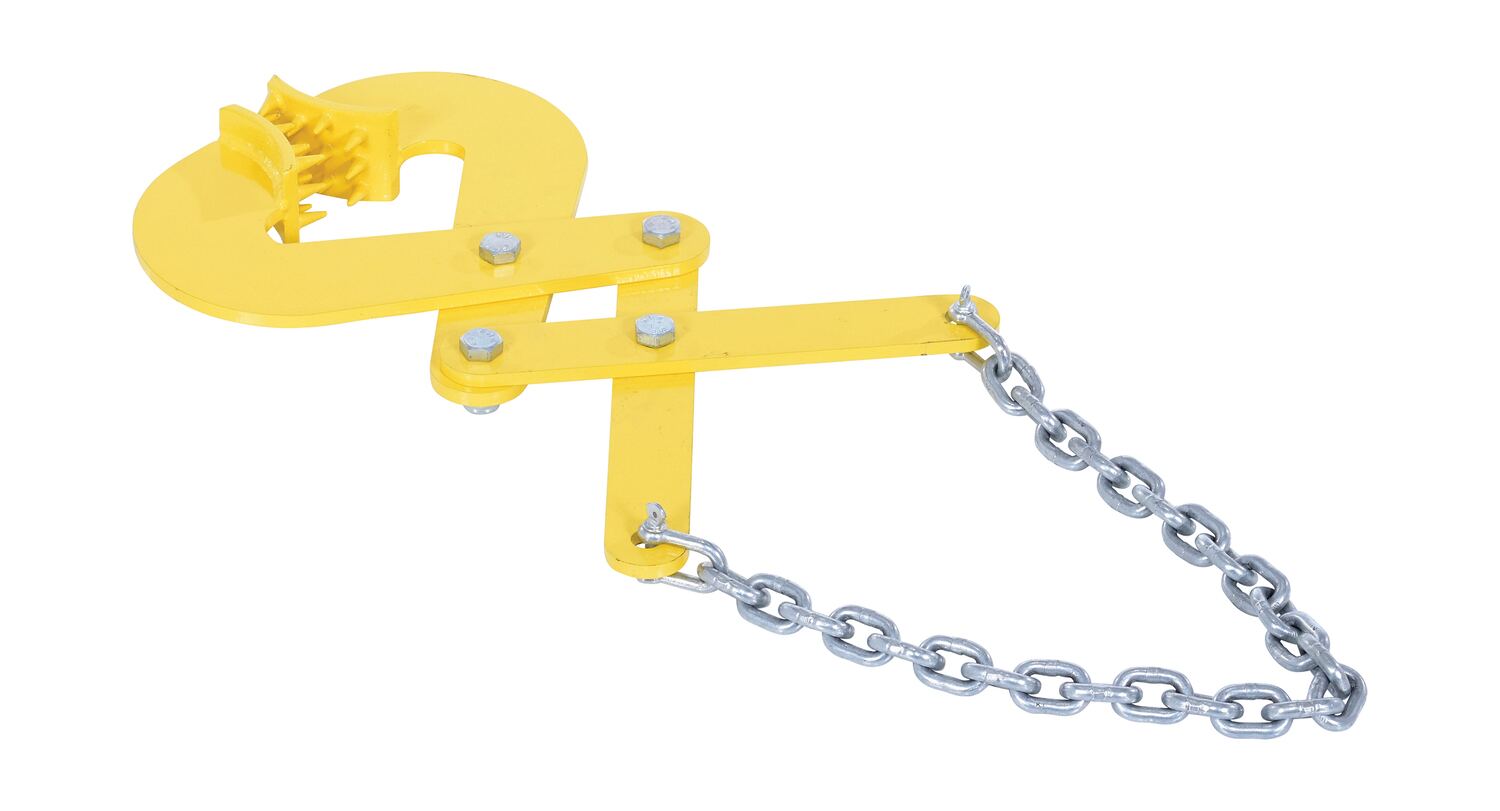

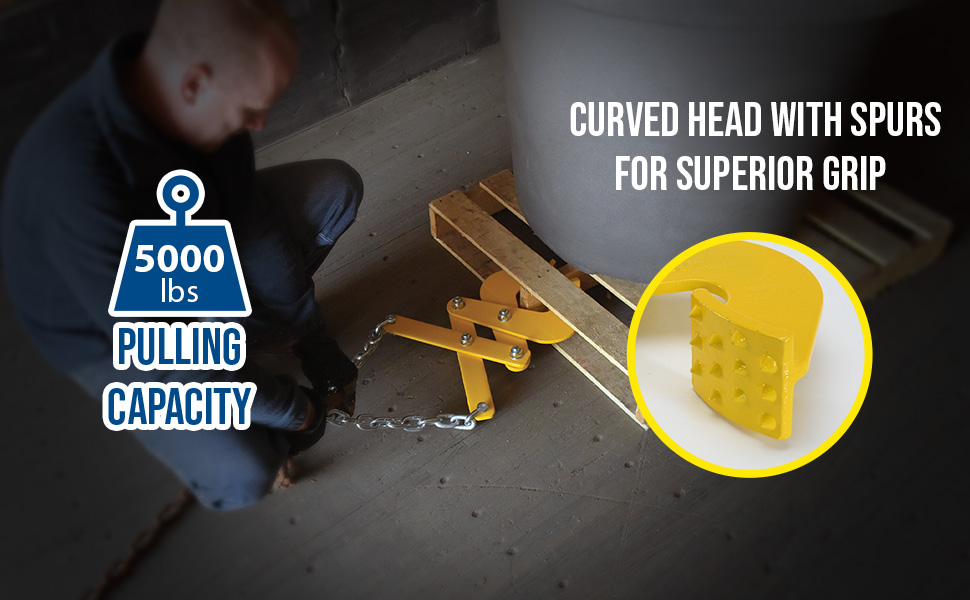

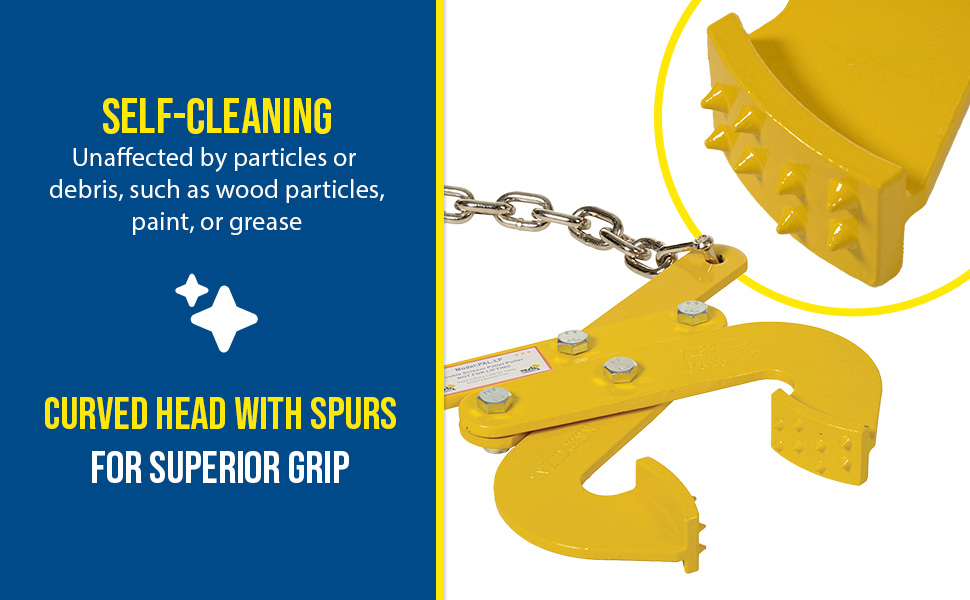

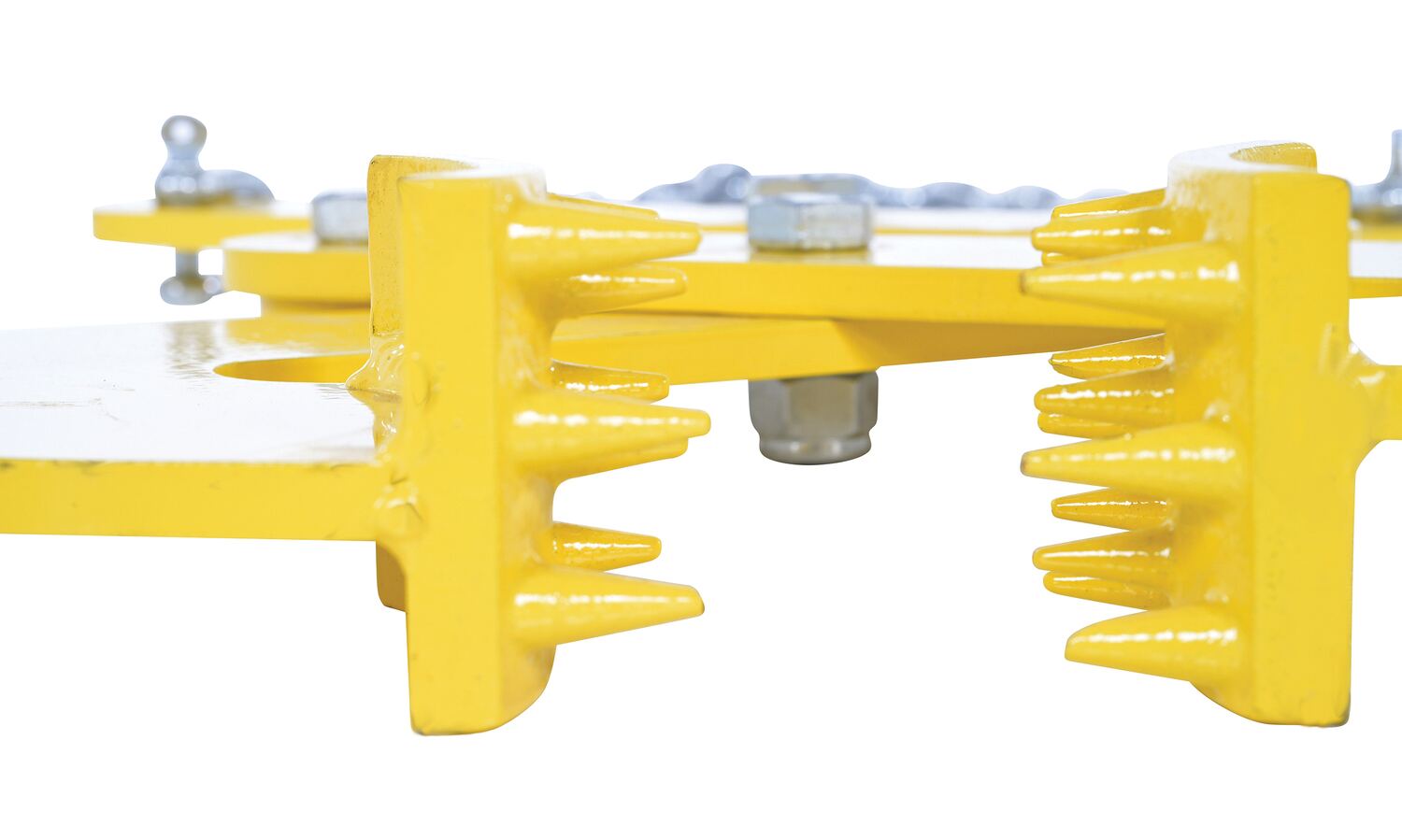

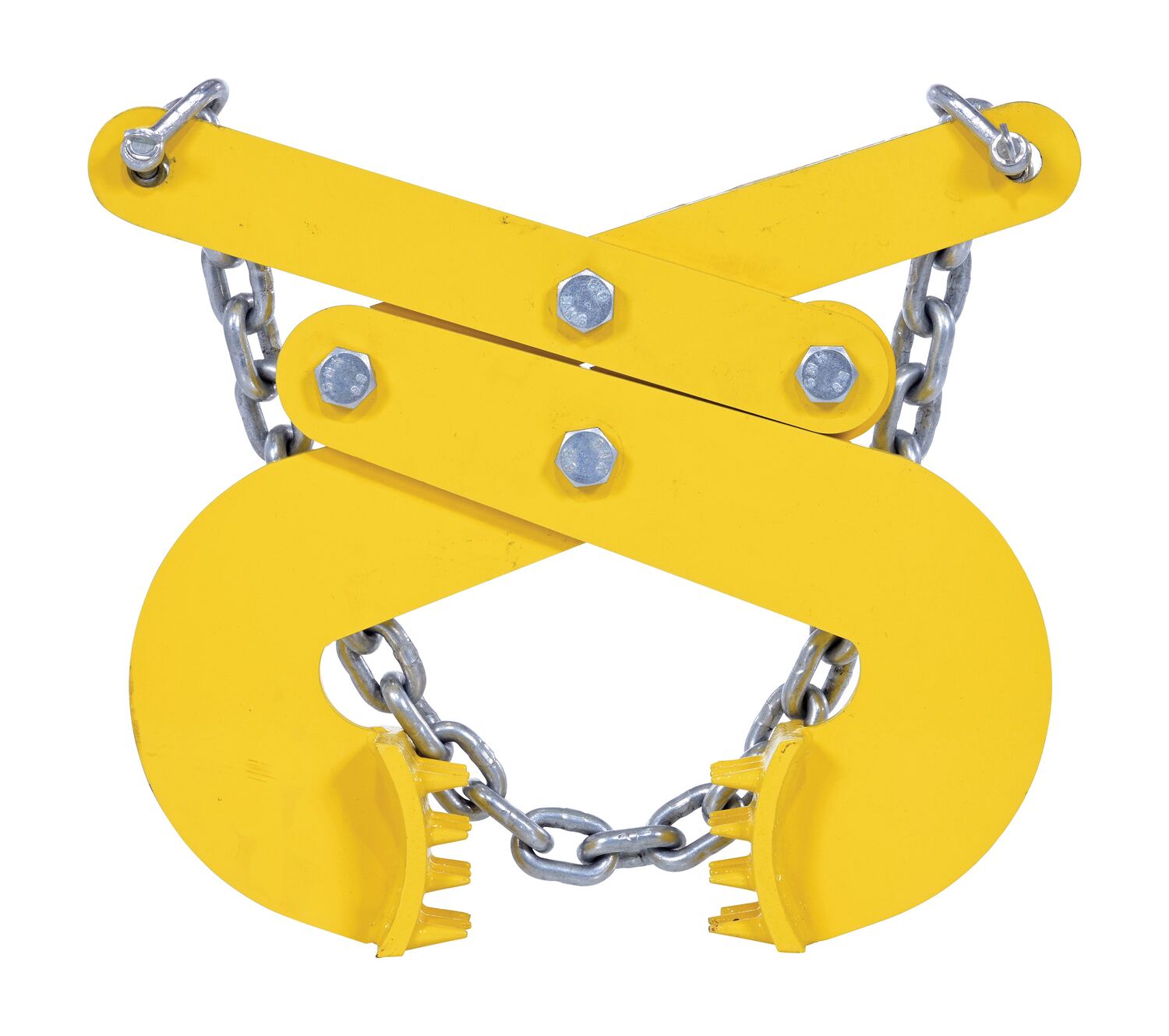

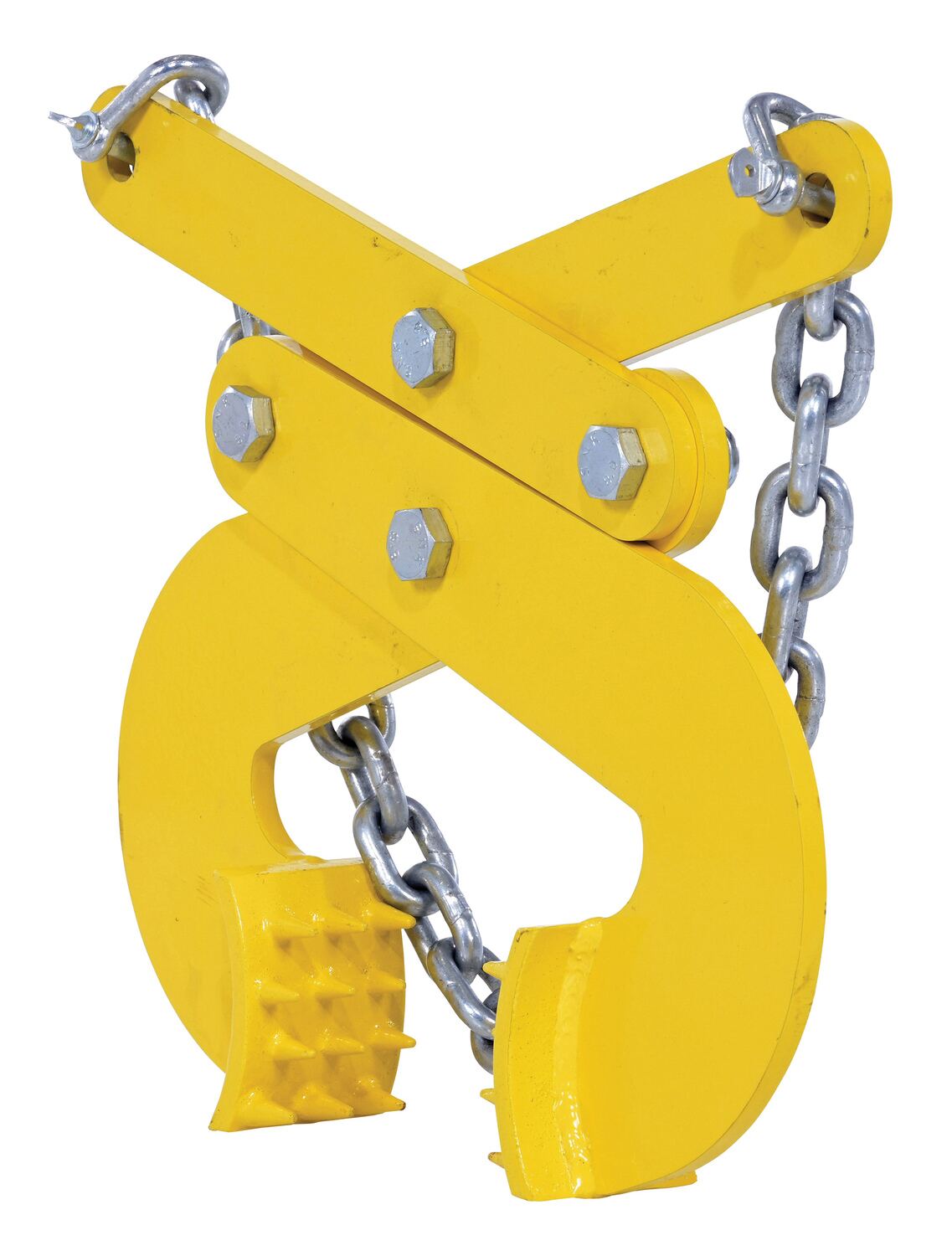

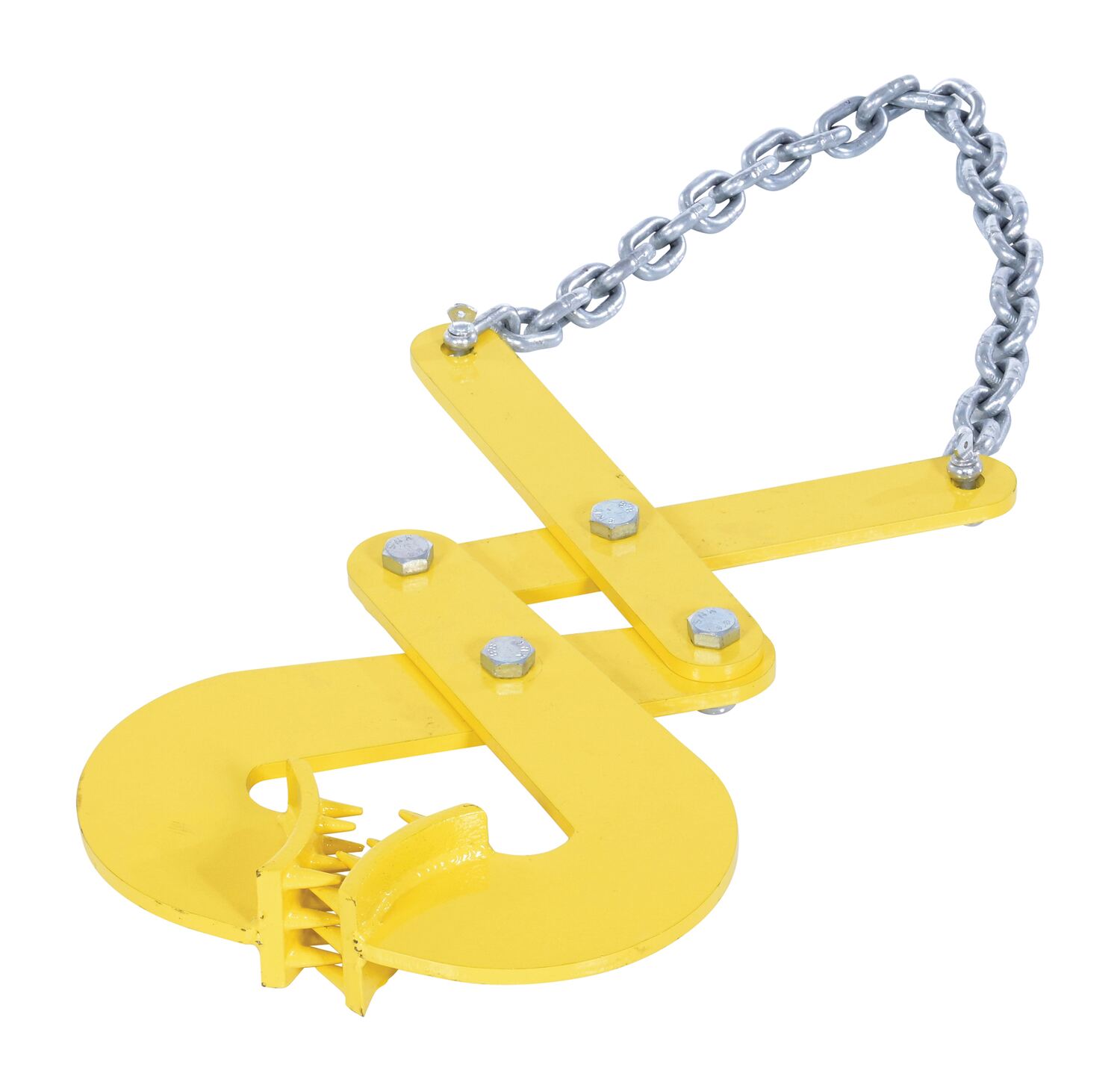

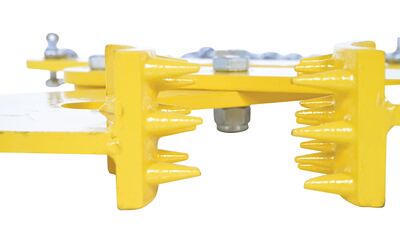

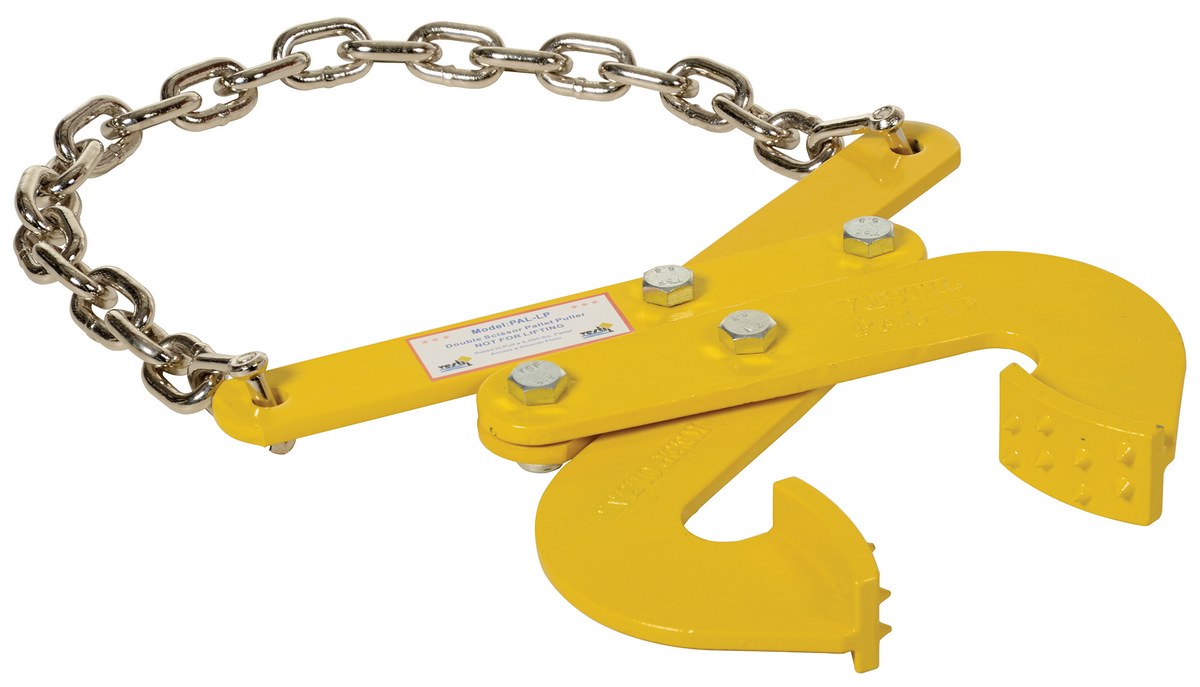

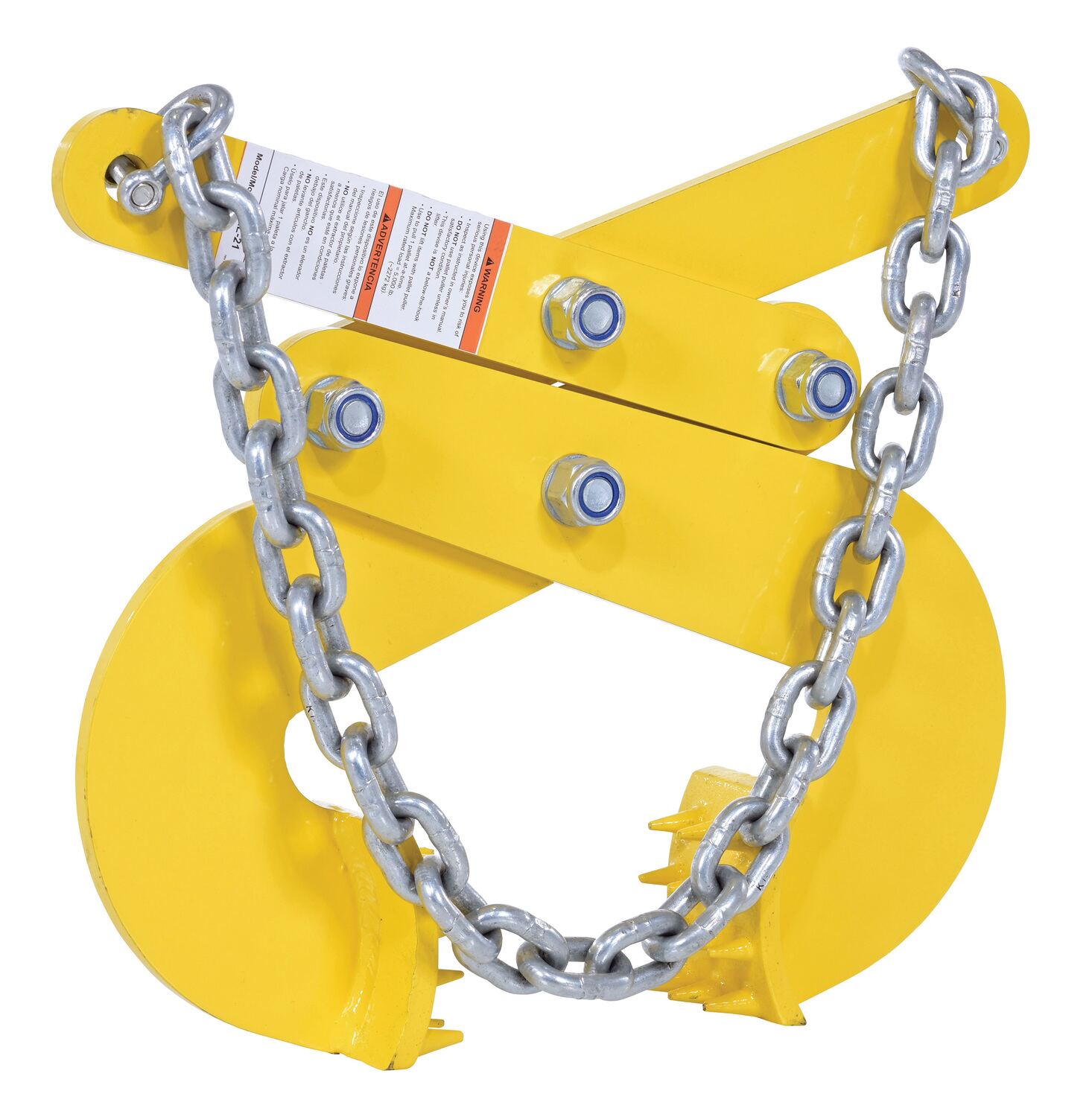

PAL-21 and PAL-LP - One piece curved heads have integral spurs for gripping pallet stringers.

Pallet pullers are used to pull pallets from the rear of trailers, to the front, for easy fork truck access. Rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. Pallet pullers and chains are NOT designed for lifting.

PAL-12 and PAL-16 - Single scissor action allows for wider jaw opening.

PAL-14 - Cam closing action provides maximum gripping strength and reduces pinch points. Safety handle enables easier positioning and removal. Grips both metal and wood pallets with biting action.

PAL-21 and PAL-LP - One piece curved heads have integral spurs for gripping pallet stringers.

Other Loading Dock Accessories

 Pallet Busters Trailer Wheel Locks Pry-Lever Bars Pallet Pullers

Additional Models In This Family
view entire Image Gallery

PAL-12

PAL-12

PAL-21

PAL-21

PPC-40

PPC-40

PAL-14

PAL-14

PAL-16

PAL-16

PAL-16

PAL-16

PPC-20

PPC-20

PAL-21

PAL-21

PAL-21

PAL-21

PPC-40

PPC-40

PAL-21

PAL-21

PAL-LP

PAL-LP

PAL-21

PAL-21

PAL-12

PAL-12

PAL-16

PAL-16

Applications



Aerospace

Trucking Companies

Breweries

Construction Projects

Farming and Agriculture

Hospitals

Laboratories

Warehouses

Military

Moving Companies

Postal Services

Restaurants
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

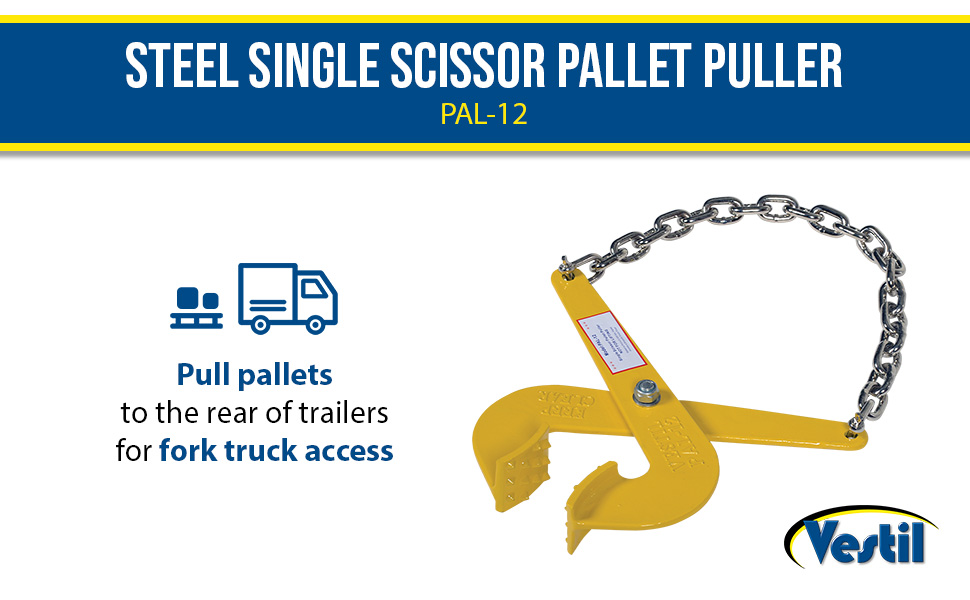

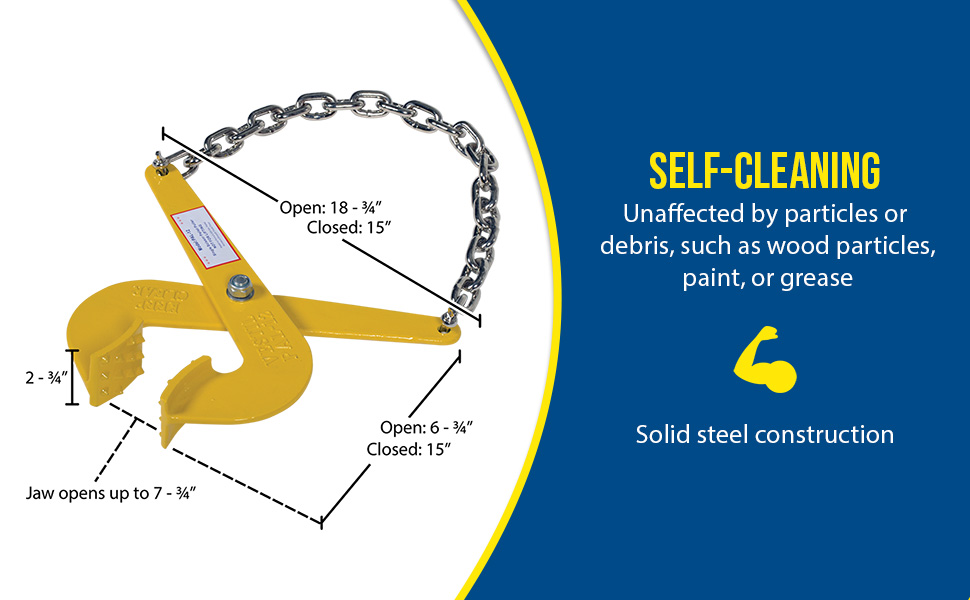

PAL-12 PAL-1230 Days Limited WarrantySteel Single Scissor Pallet Puller 7 In. Jaw Opening 5000 Lb. Pulling Capacity YellowUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4		14
PAL-14 PAL-1430 Days Limited WarrantySteel Cam Action Pallet Puller 3 In. Jaw Opening 5000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2		17

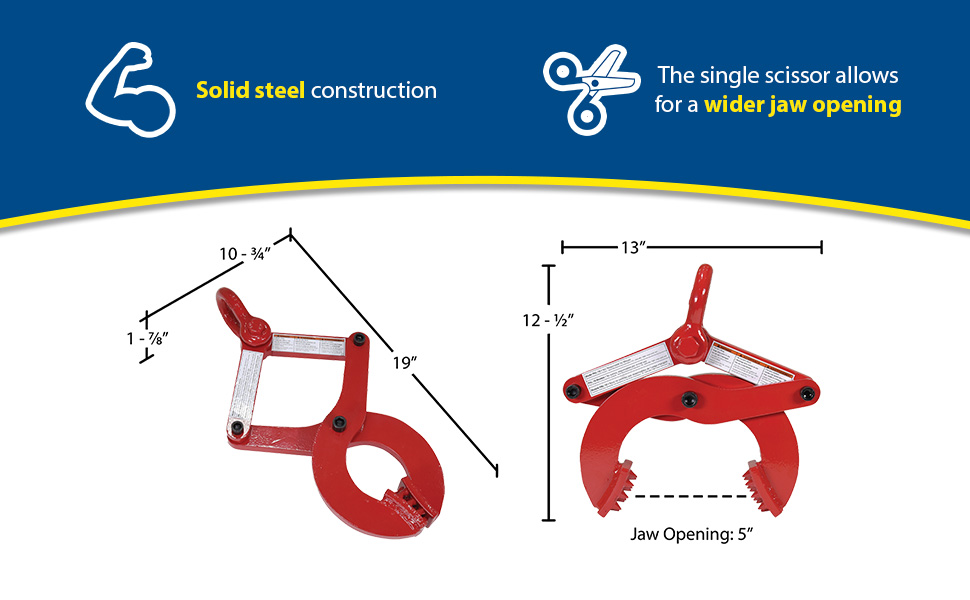

PAL-16 PAL-1630 Days Limited WarrantySteel Single Scissor Pallet Puller 5 In. Jaw Opening 6000 Lb. Pulling Capacity RedUniform Pulling Capacity (lb.): 6000
Teeth Pad Height (in.): 2		21

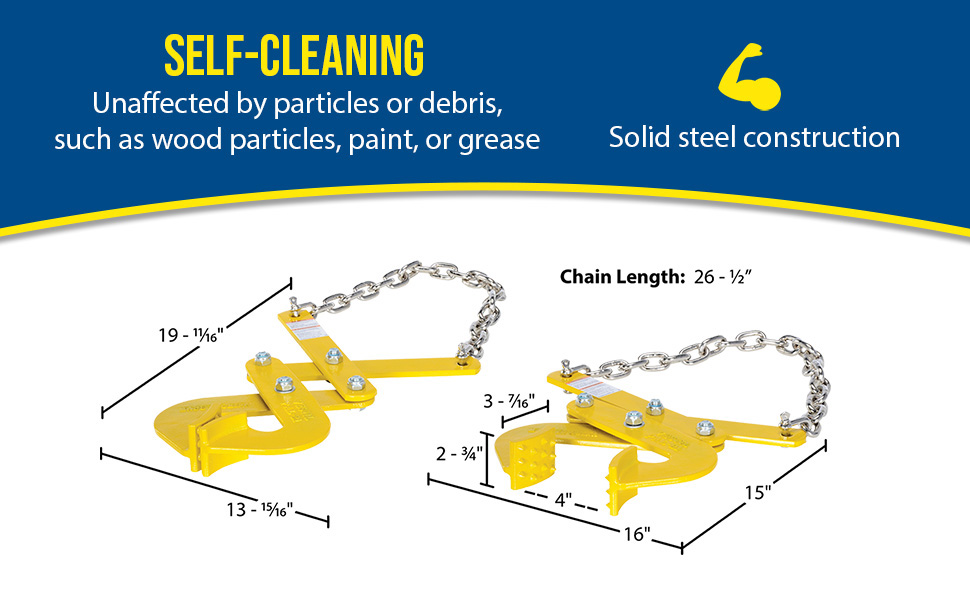

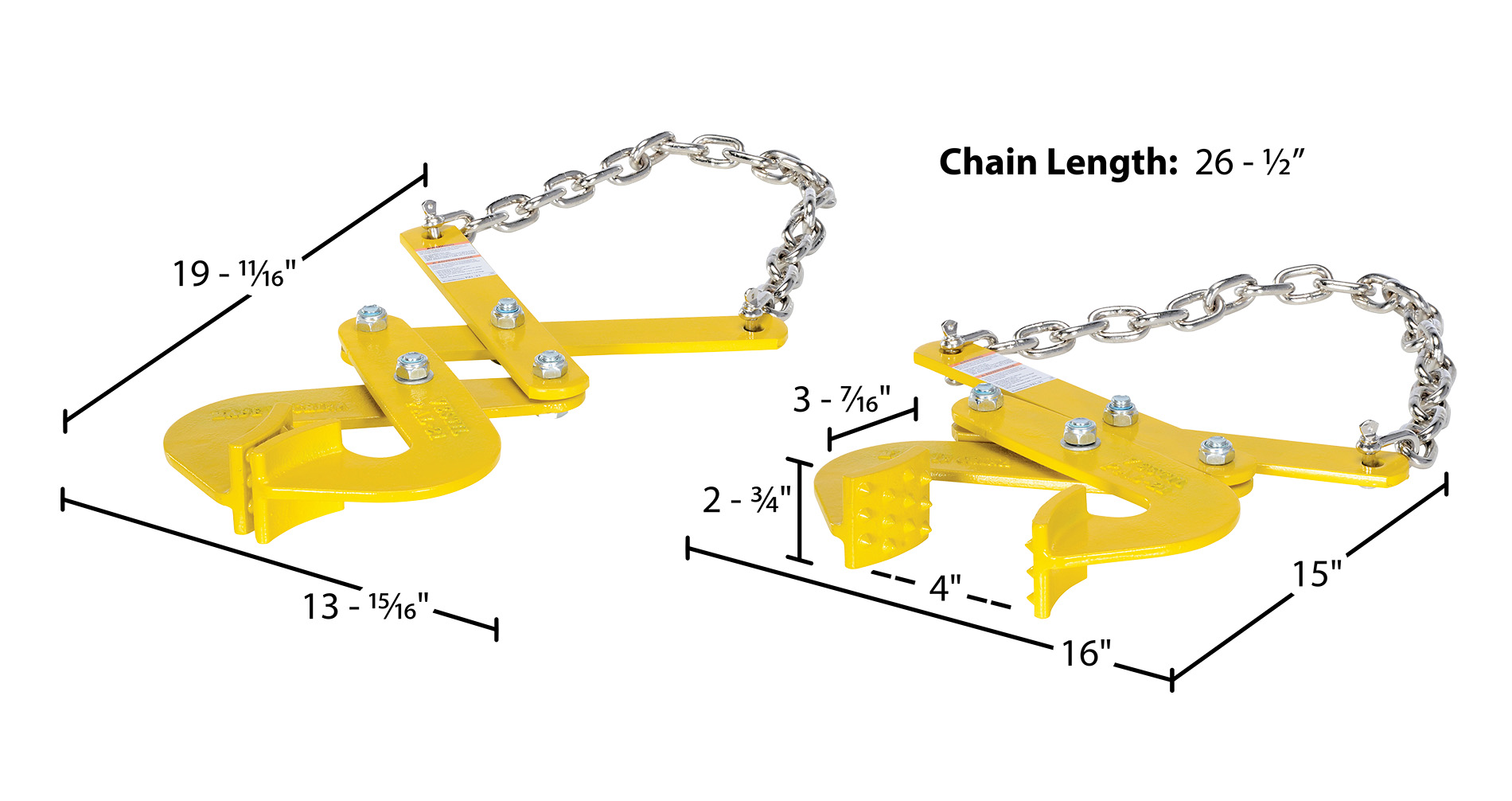

PAL-21 PAL-2130 Days Limited WarrantySteel Double Scissor Pallet Puller 4 In. Jaw Opening 5000 Lb. Pulling Capacity YellowUniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4		25

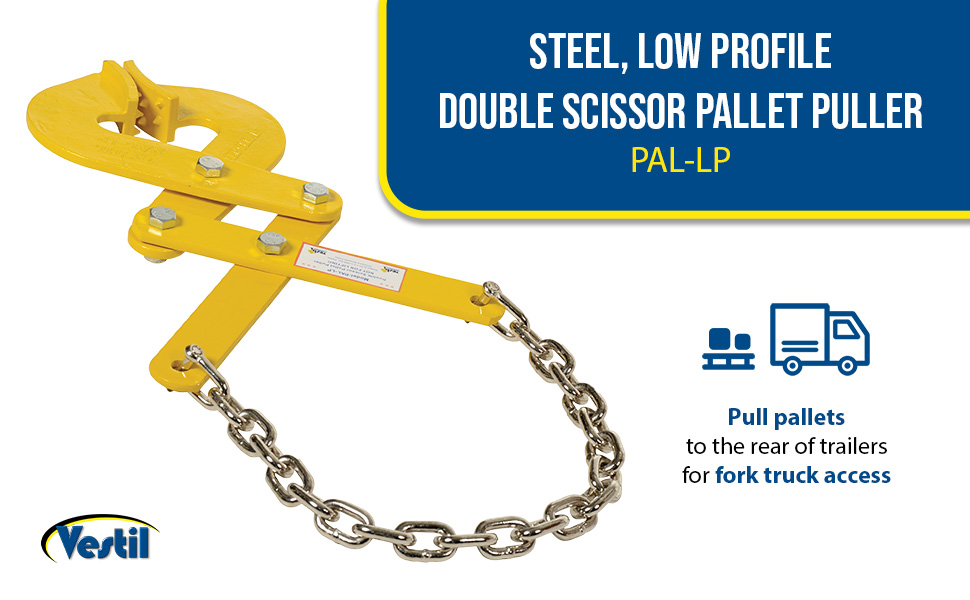

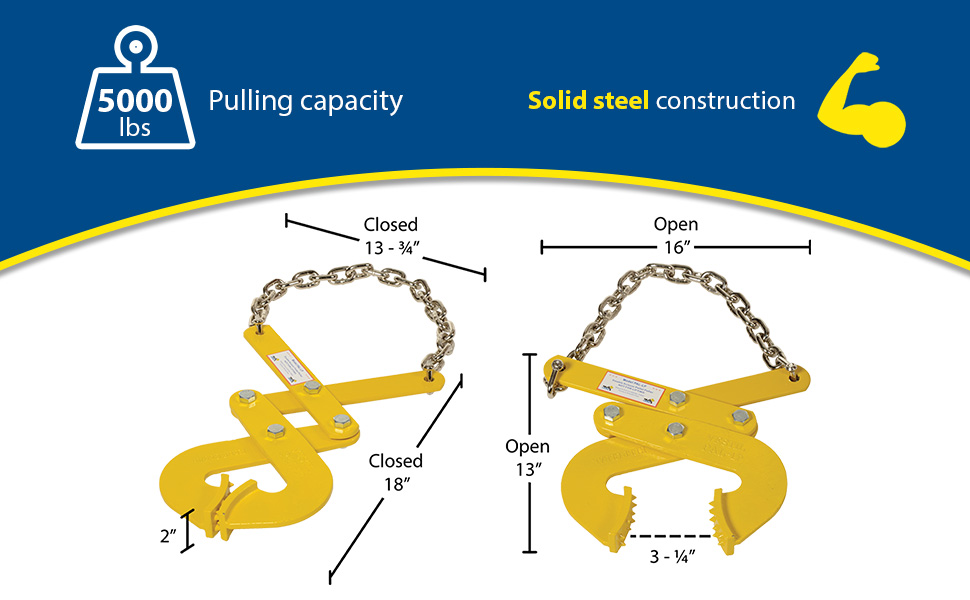

PAL-LP PAL-LP30 Days Limited WarrantySteel Low Profile Double Scissor Pallet Puller 2 In. x 16-3/4 In. x 13-3/4 In. 5000 Lb. Capacity YellowUniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2		24

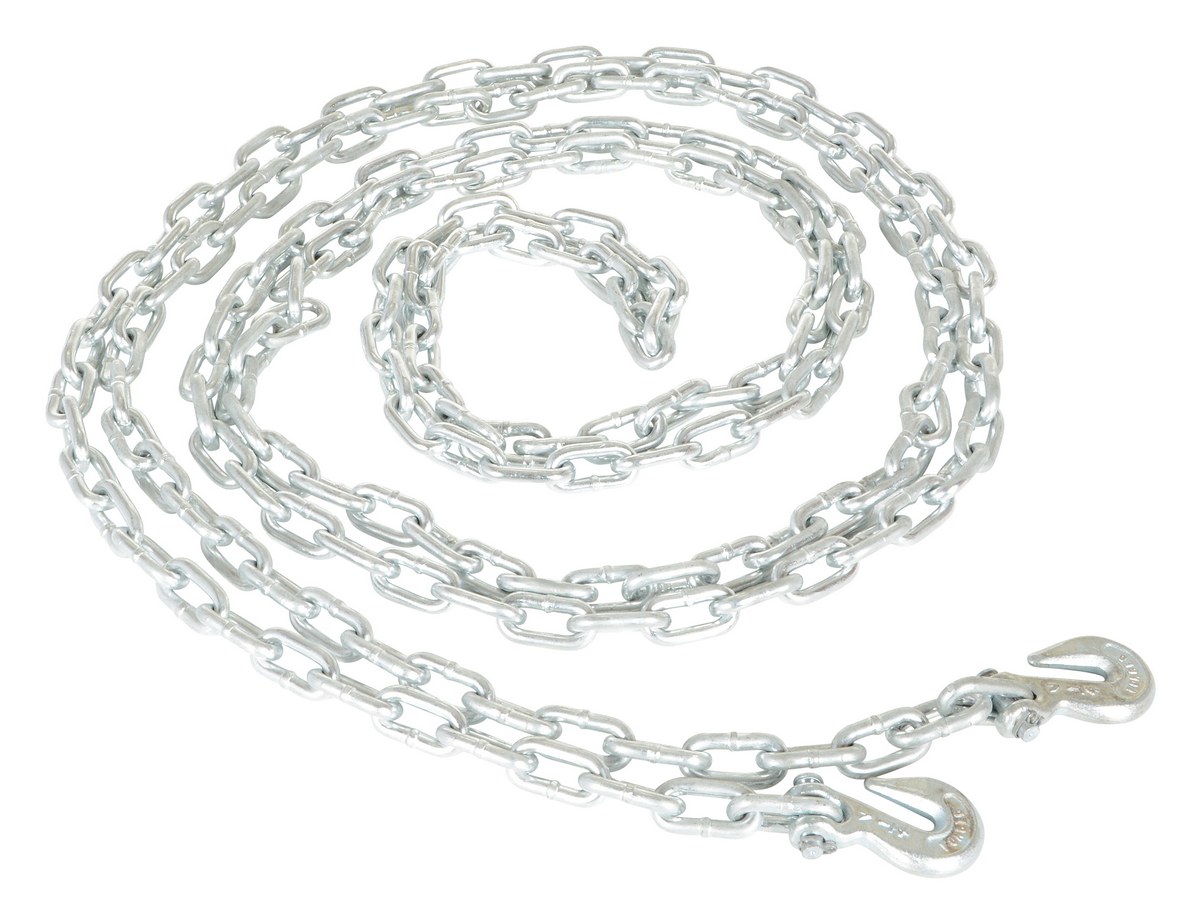

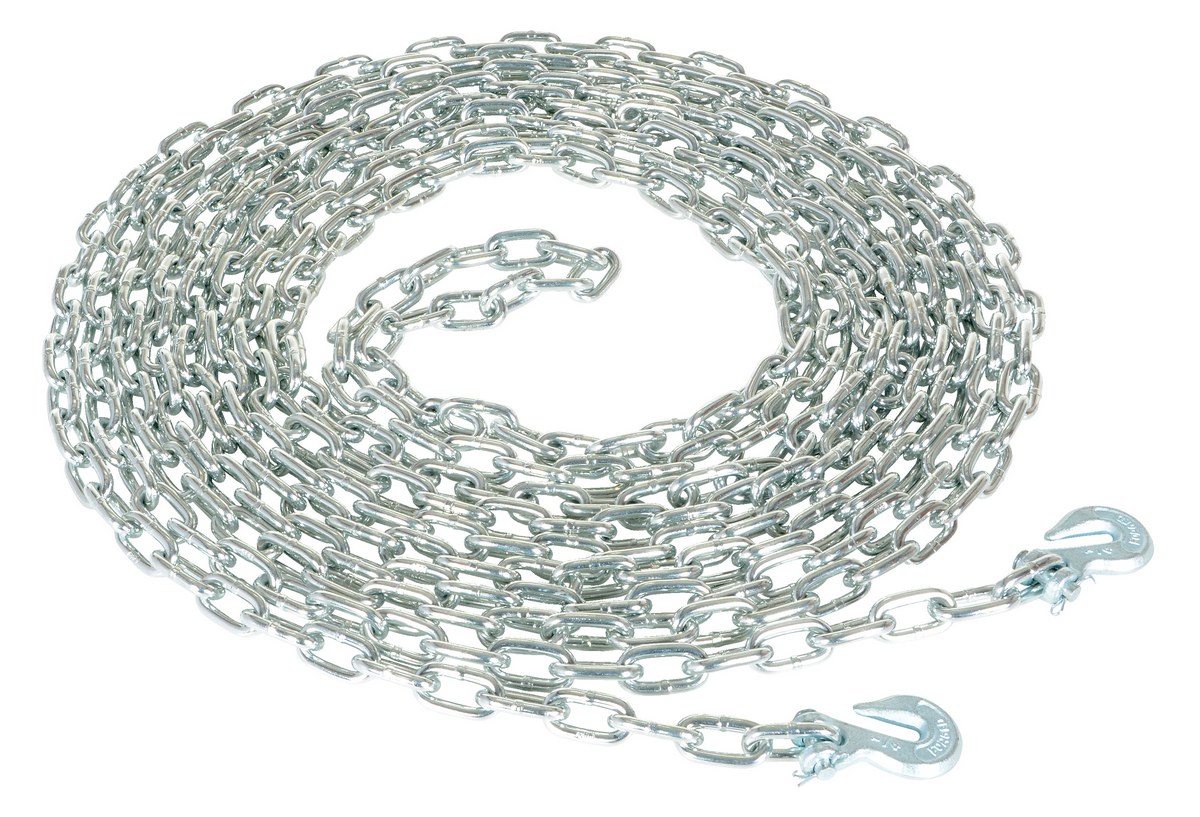

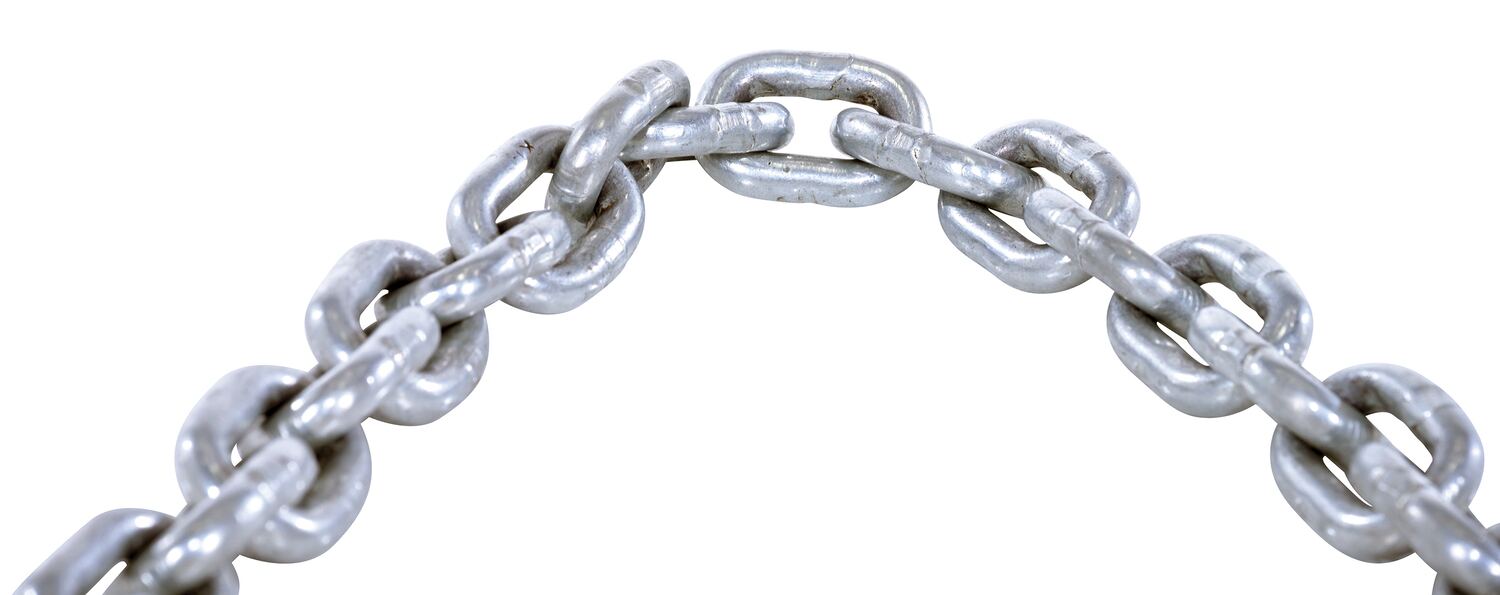

PPC-20 PPC-2030 Days Limited WarrantySteel Chain with Grab Hook 20 Ft. Length 1/4 In. Chain 6000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4		14

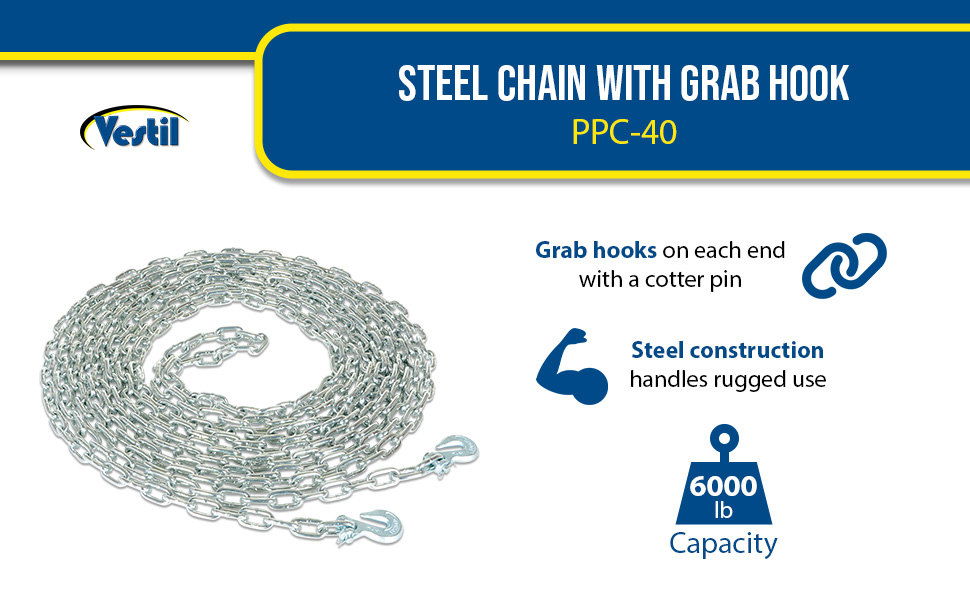

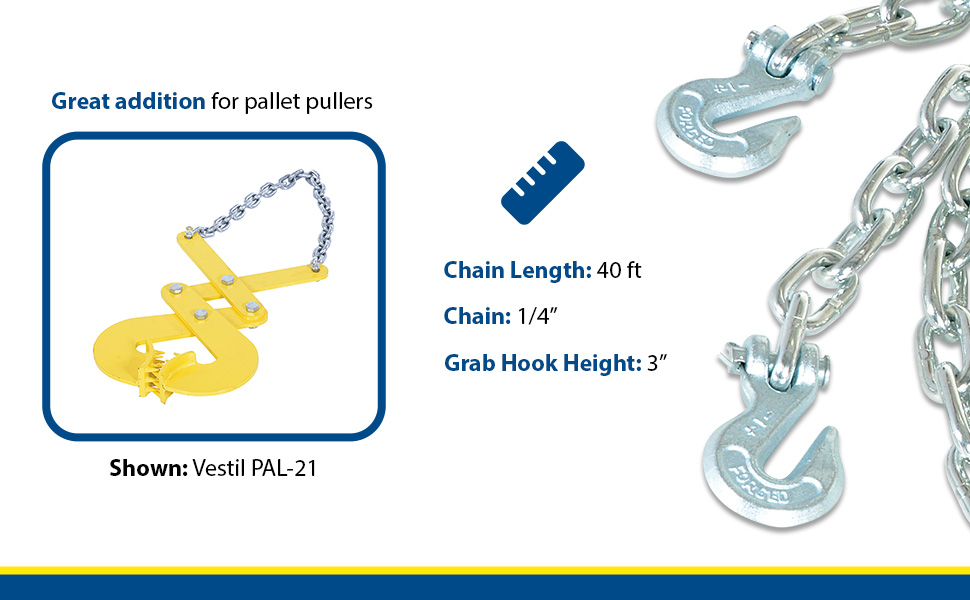

PPC-40 PPC-4030 Days Limited WarrantySteel Chain with Grab Hook 40 Ft. Length 1/4 In. Chain 6000 Lb. Pulling Capacity SilverUniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4		28

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PAL-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4

PAL-14
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 1-1/2

PAL-16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 6000
Teeth Pad Height (in.): 2
Uniform Pulling Capacity (lb.): 6000
Teeth Pad Height (in.): 2

PAL-21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4
Uniform Pulling Capacity (lb.): 5000
Teeth Pad Height (in.): 2-3/4

PAL-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2
Uniform Pulling Capacity (lb.): 5000
Jaw Height (in.): 2

PPC-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4

PPC-40
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
Uniform Pulling Capacity (lb.): 6000
Chain (in.): 1/4
Pallet Pullers PDF's will open in a new window when clicked.

Manuals


PAL
Owners Manual

PAL-21
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PAL-12

PAL-14

PAL-16

PAL-21

PAL-LP

PPC-20

PPC-40

Testing Certificates


PAL-12

PAL-14

PAL-16

PAL-21

PAL-LP

PPC-20

PPC-40

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How wide does mouth open on the PAL-16?

A: 5" jaw opening.

Q: What is the anti-corrosion treatment on the PPC chains?

A: The PPC chains are galvanized
