Heavy-Duty Cradle Carts

- - - -

Description
Model Chart
PDF's
Image Gallery

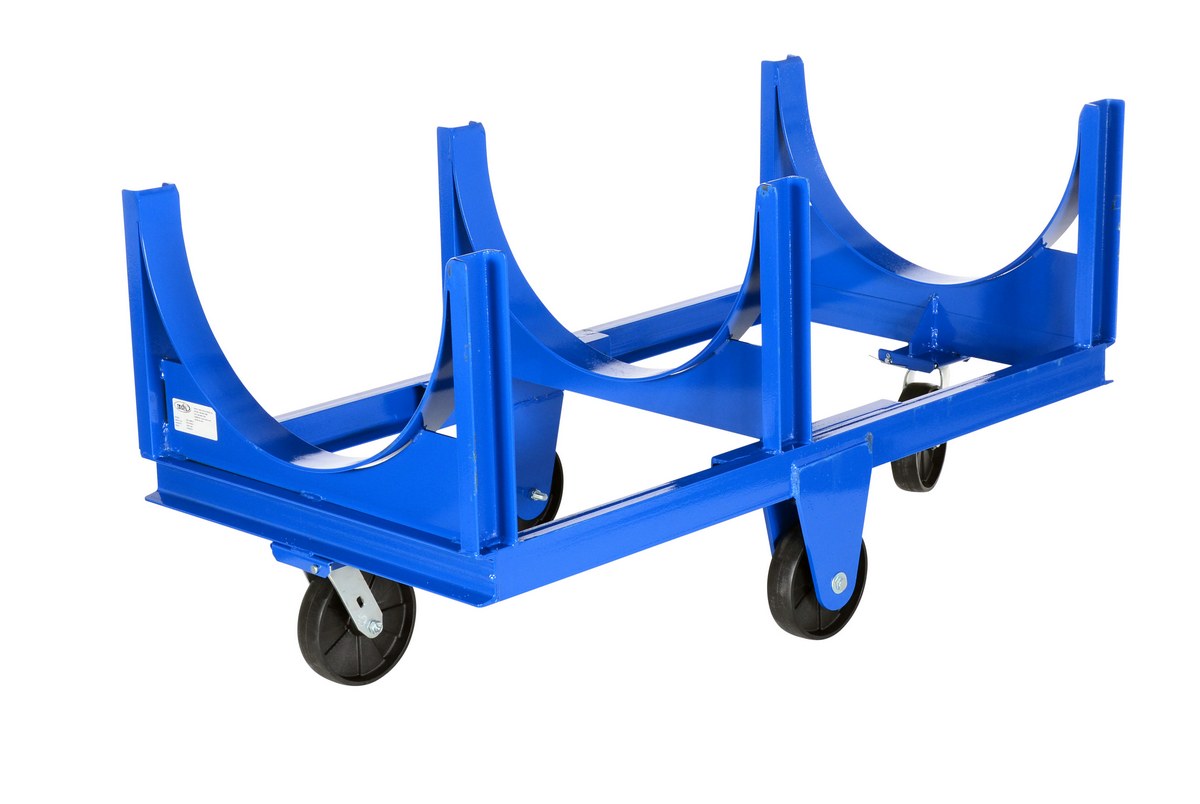

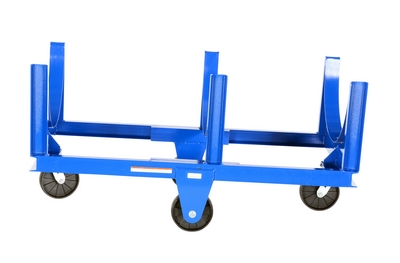

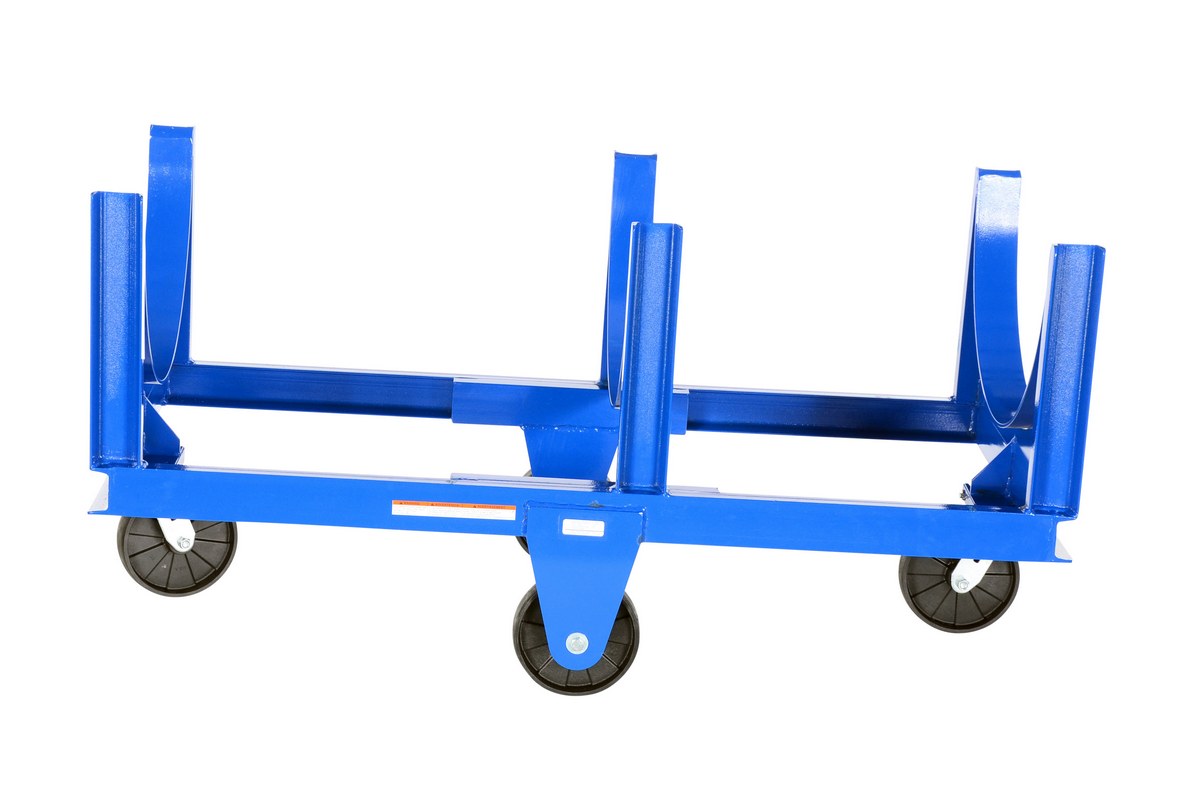

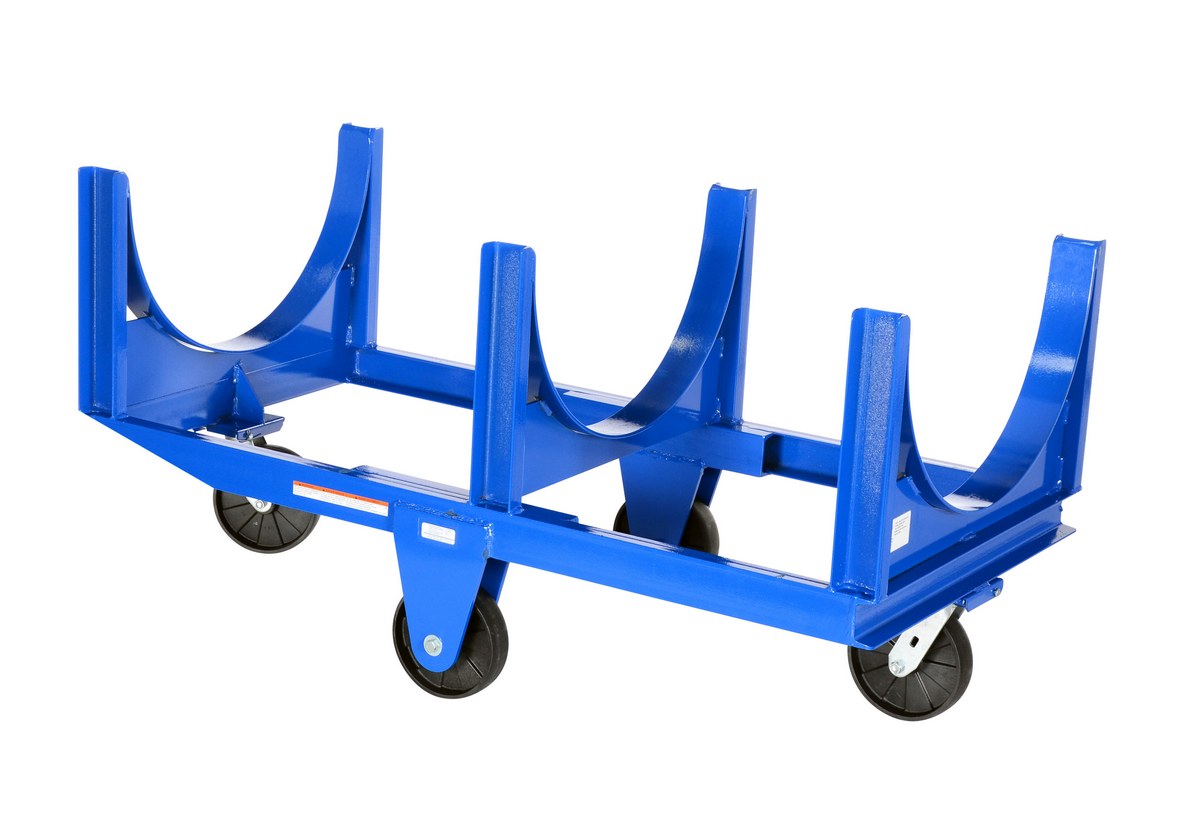

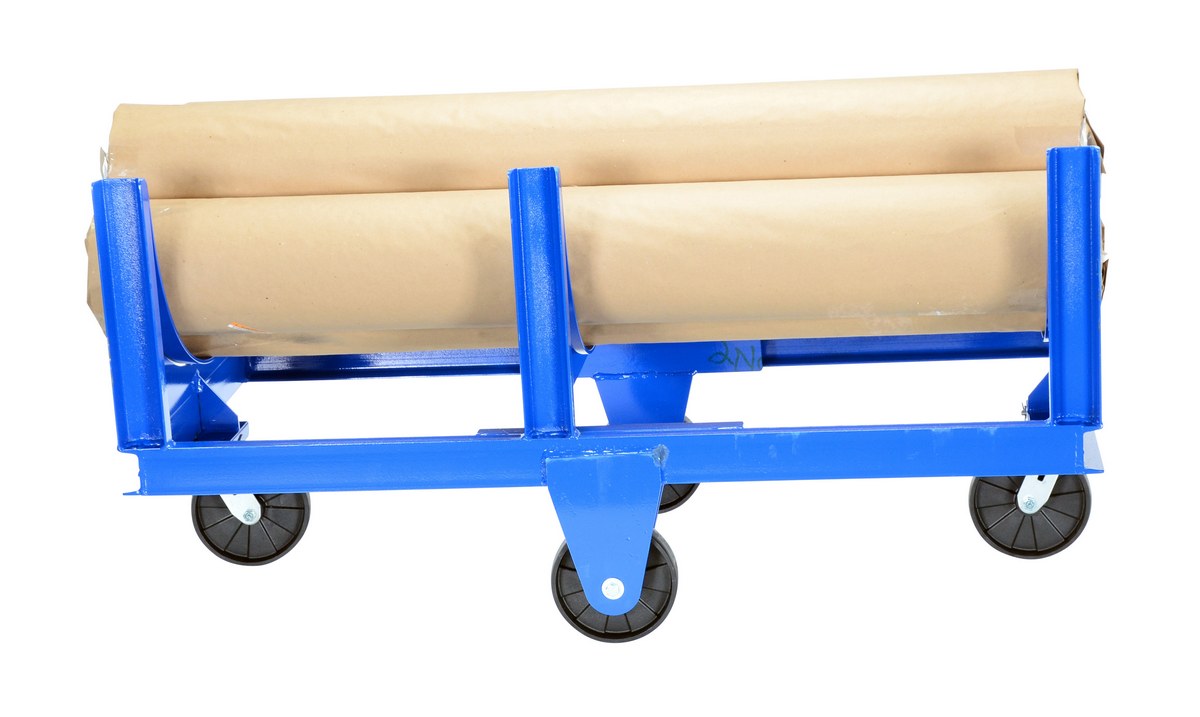

DCC-2860-4_D.jpg DCC-2860-4_A.jpg DCC-2860-4_B.jpg DCC-2860-4_C.jpg
Heavy-Duty Cradle Carts

model: DCC-2860-4



Featured Industrial Carts & Dollies


Flush Top Dolly
Multi-Tier Stock Carts
Heavy-Duty Extruded Aluminum Platform Trucks
Plastic Dollies
Hardwood Dollies
Hand Trucks
Four Wheel Multi-Position Steel Hand Trucks
Steel Folding Handle Platform Truck
High Back Aluminum Hand Truck with Push Out
model chart

Product Family Overview

Print Friendly
Heavy-Duty Cradle Carts
SERIES: DCC

Move and store pipe, channel, bar stock, barrels, or drums with these Heavy-Duty Cradle Carts. A large open design that makes loading and unloading by fork trucks and slings easy. All welded construction. Wheels are mounted in a diamond pattern to allow the truck to tilt when going over thresholds and turnabout on its own center. The 4,000 pound units roll on (2) rigid and (2) swivel glass filled nylon casters with the exception of models DCC-17 rolls on four (4) swivel (hard rubber) and DCC-80 rolls on four (4) swivel glass filled nylon. The 10,000 pound carts roll on (2) rigid steel and (2) swivel phenolic casters. Powder coat finish standard on steel cart.

Move and store pipe, channel, bar stock, barrels, or drums with these Heavy-Duty Cradle Carts. A large open design that makes loading and unloading by fork trucks and slings easy. All welded construction. Wheels are mounted in a diamond pattern to allow the truck to tilt when going over thresholds and turnabout on its own center. The 4,000 pound units roll on (2) rigid and (2) swivel glass filled nylon casters with the exception of models DCC-17 rolls on four (4) swivel (hard rubber) and DCC-80 rolls on four (4) swivel glass filled nylon. The 10,000 pound carts roll on (2) rigid steel and (2) swivel phenolic casters. Powder coat finish standard on steel cart.

Other Specialty Carts

 PRAIL Cart Portable Carpet Dollies & Dispensers All Wheel Steer Truck V-Groove Pipe Movers

Additional Models In This Family
view entire Image Gallery

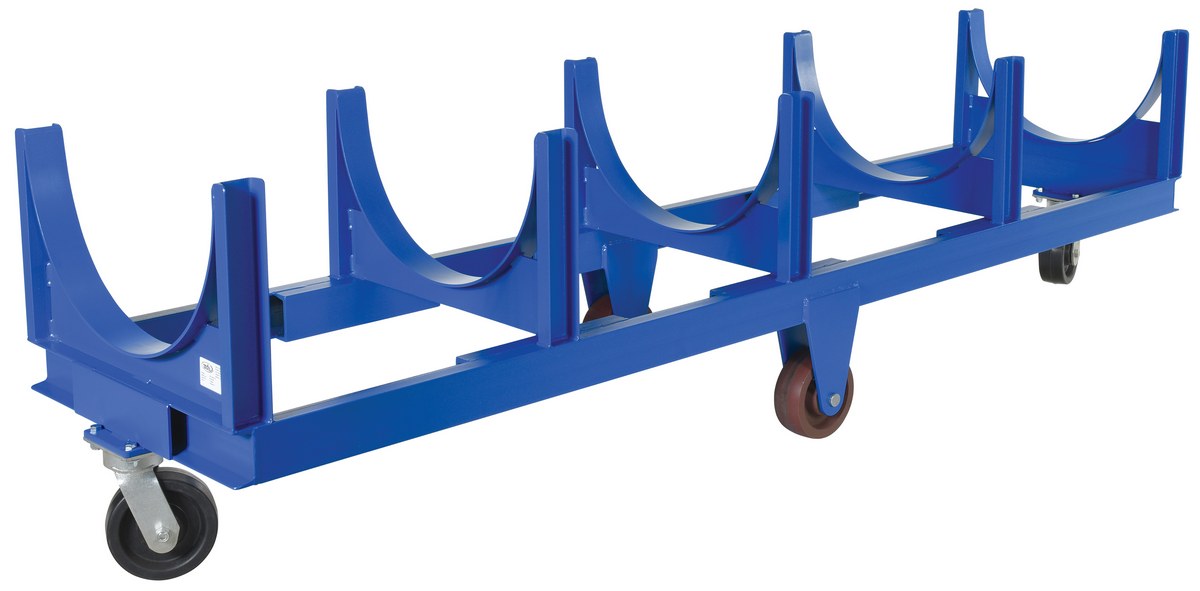

DCC-28120-10

DCC-28120-10

DCC-2860-4

DCC-2860-4

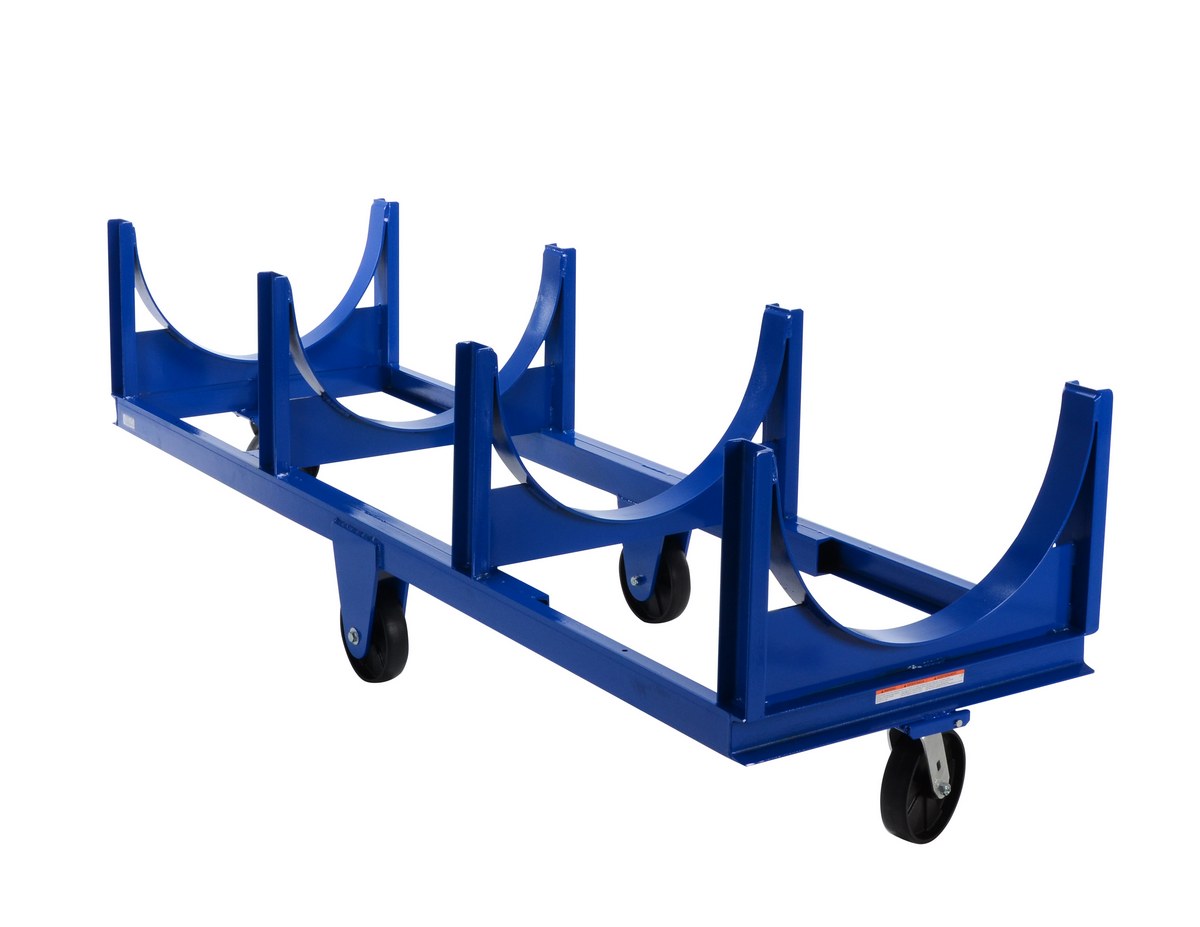

DCC-2896-4

DCC-2896-4

DCC-2860-4

DCC-2860-4

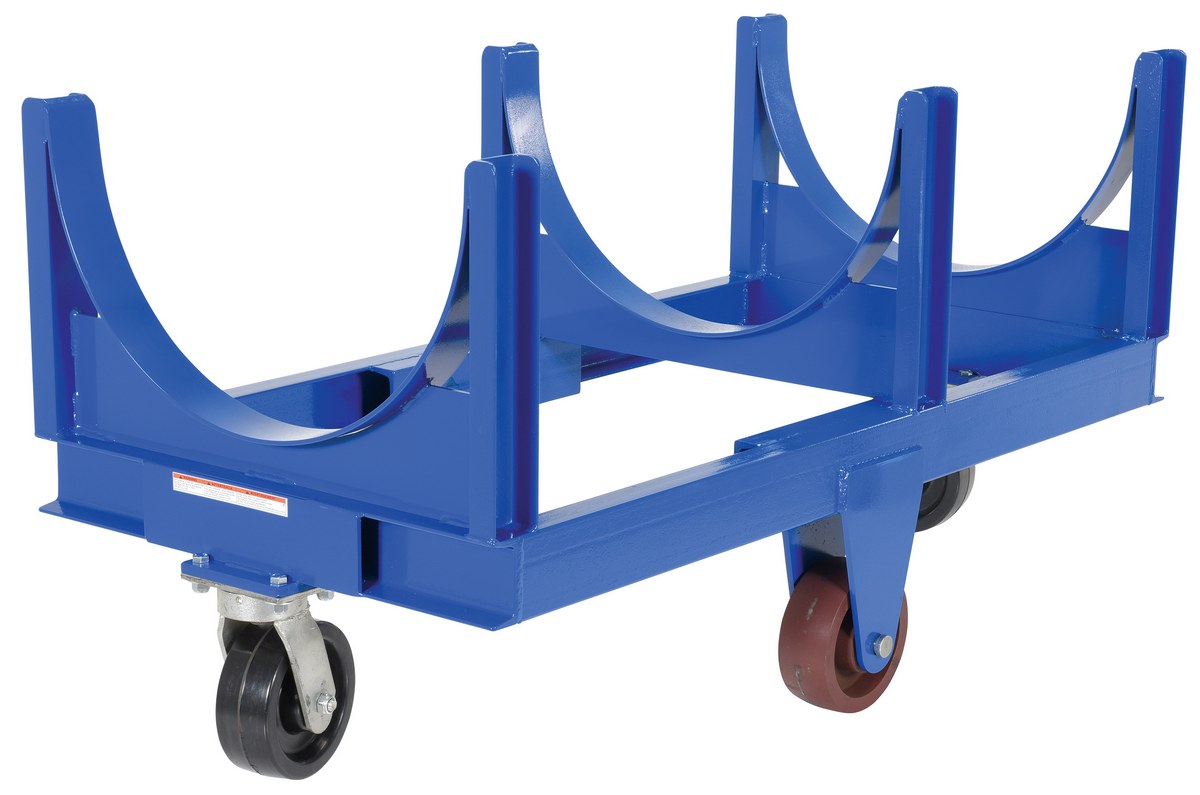

DCC-2860-10

DCC-2860-10

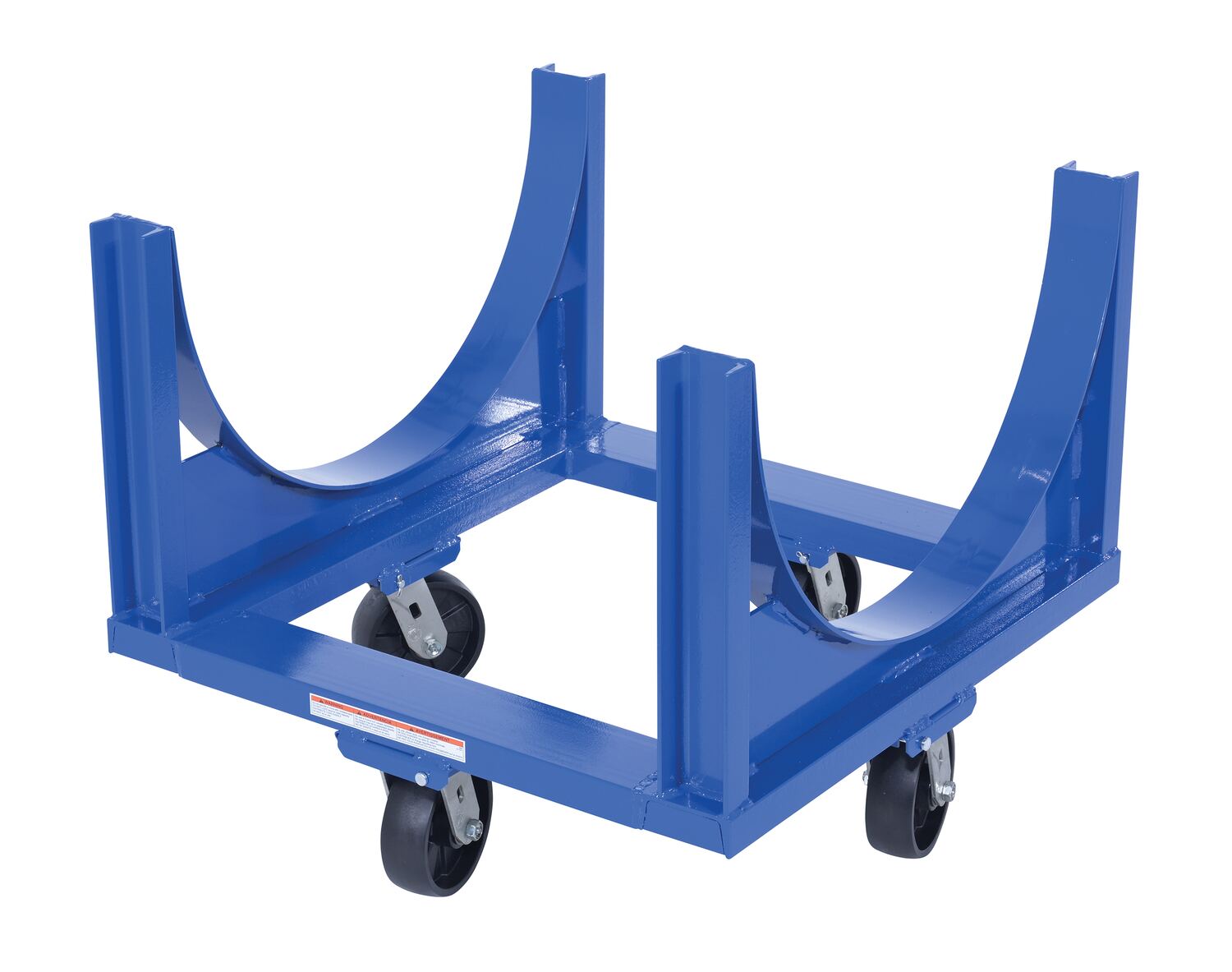

DCC-80

DCC-80

DCC-28120-10

DCC-28120-10

DCC-2896-4

DCC-2896-4

DCC-2860-10

DCC-2860-10

DCC-28120-10

DCC-28120-10

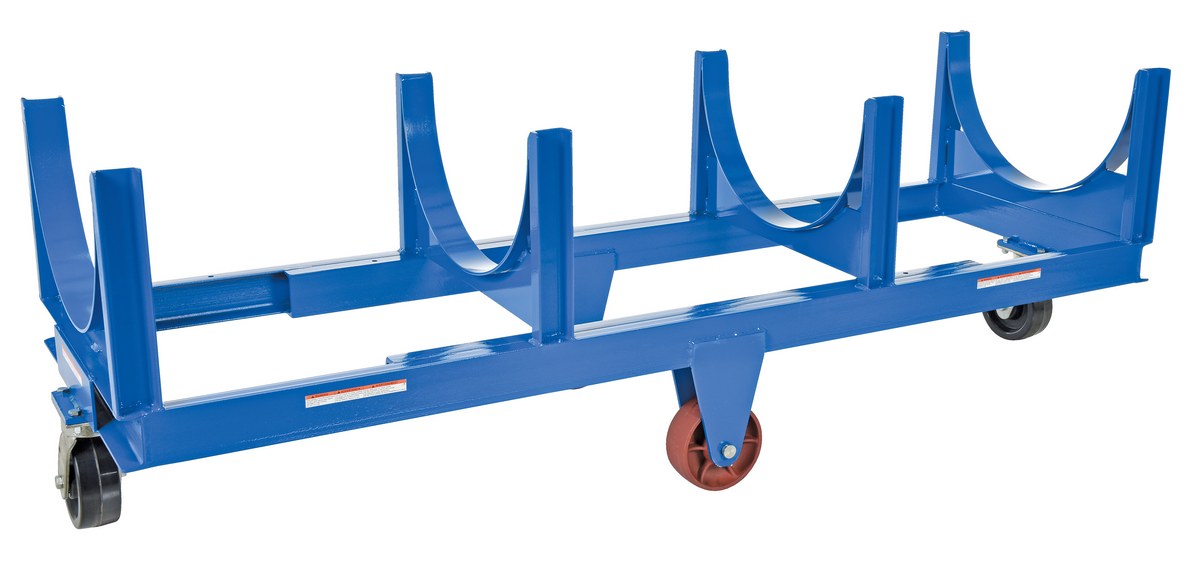

DCC-2896-10

DCC-2896-10

DCC-2896-10

DCC-2896-10

DCC-2896-10

DCC-2896-10

DCC-2860-10

DCC-2860-10

DCC-2860-4

DCC-2860-4

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
DCC-28120-10 DCC-28120-1090 Days Limited WarrantySteel Heavy Duty Cradle 123-1/16 In. x 31-1/2 In. x 32-3/8 In. 10000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3		601
DCC-2860-10 DCC-2860-1090 Days Limited WarrantySteel Heavy Duty Cradle 63-1/16 In. x 31-1/2 In. x 32-3/8 In. 10000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3		370
DCC-2860-4 DCC-2860-490 Days Limited WarrantySteel Heavy Duty Cradle 60-5/16 In. x 31-1/2 In. x 30 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2		240
DCC-2896-10 DCC-2896-1090 Days Limited WarrantySteel Heavy Duty Cradle 99-1/16 In. x 31-1/2 In. x 32-3/8 In. 10000 Lb. Capacity BlueUniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3		550
DCC-2896-4 DCC-2896-490 Days Limited WarrantySteel Heavy Duty Cradle 96-5/16 In. x 31-1/2 In. x 30 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2		344
DCC-80 DCC-8090 Days Limited WarrantySteel Heavy Duty Cradle 30-11/16 In. x 30-3/8 In. x 25-5/8 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Caster Diameter (in.): 6		148

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

DCC-28120-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3

DCC-2860-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3

DCC-2860-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

DCC-2896-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3
Uniform Capacity (lb.): 10,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 3

DCC-2896-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Uniform Capacity (lb.): 4,000
Caster Quantity/Diameter/Width (in.): (4) 8 x 2

DCC-80
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Caster Diameter (in.): 6
Uniform Capacity (lb.): 4,000
Caster Diameter (in.): 6
Heavy-Duty Cradle Carts PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


DCC-28120-10

DCC-2860-10

DCC-2860-4

DCC-2896-10

DCC-2896-4

DCC-80

Testing Certificates


DCC-28120-10

DCC-2860-10

DCC-2860-4

DCC-2896-10

DCC-2896-4

DCC-80

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How do you move the Heavy-Duty Cradle Carts (DCC) around?

A: These units are designed to be pushed as there is NOT a handle or a tow bar to pull it with.

Q: Are the DCCs hard to push around with a full load? How much force do I need to move them at capacity?

A: START PUSHING 4,000 LBS UNITS: LOAD: 30-40 LBS. pressure START PUSHING 10,000 LBS. LOAD: 75-100 LBS. pressure
