Heavy Duty Roll-Out Shelving

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

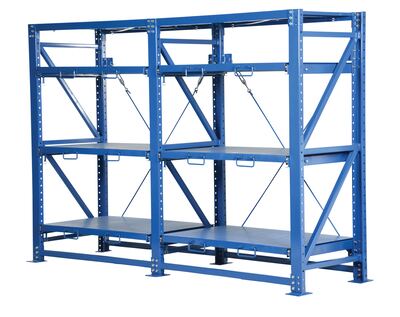

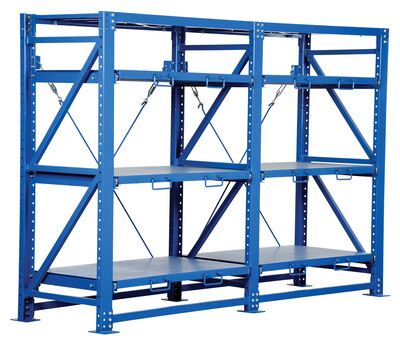

VRSOR-120_A.jpg VRSOR-120_B.jpg
Heavy Duty Roll-Out Shelving

model: VRSOR-120



Featured Storage Solutions


Aluminum Carrying Case
Pallet Racking & Accessories
Structural Rack Guards
Aluminum Tread Plate Trailer Tool Box
Carton Flow Racks
Wire Containers
Pallet Rack Wire Decking
Low Profile Rack Guards
Steel Tread Plate Portable Tool Boxes
model chart

Product Family Overview

Print Friendly
Heavy Duty Roll-Out Shelving
SERIES: VRSOR

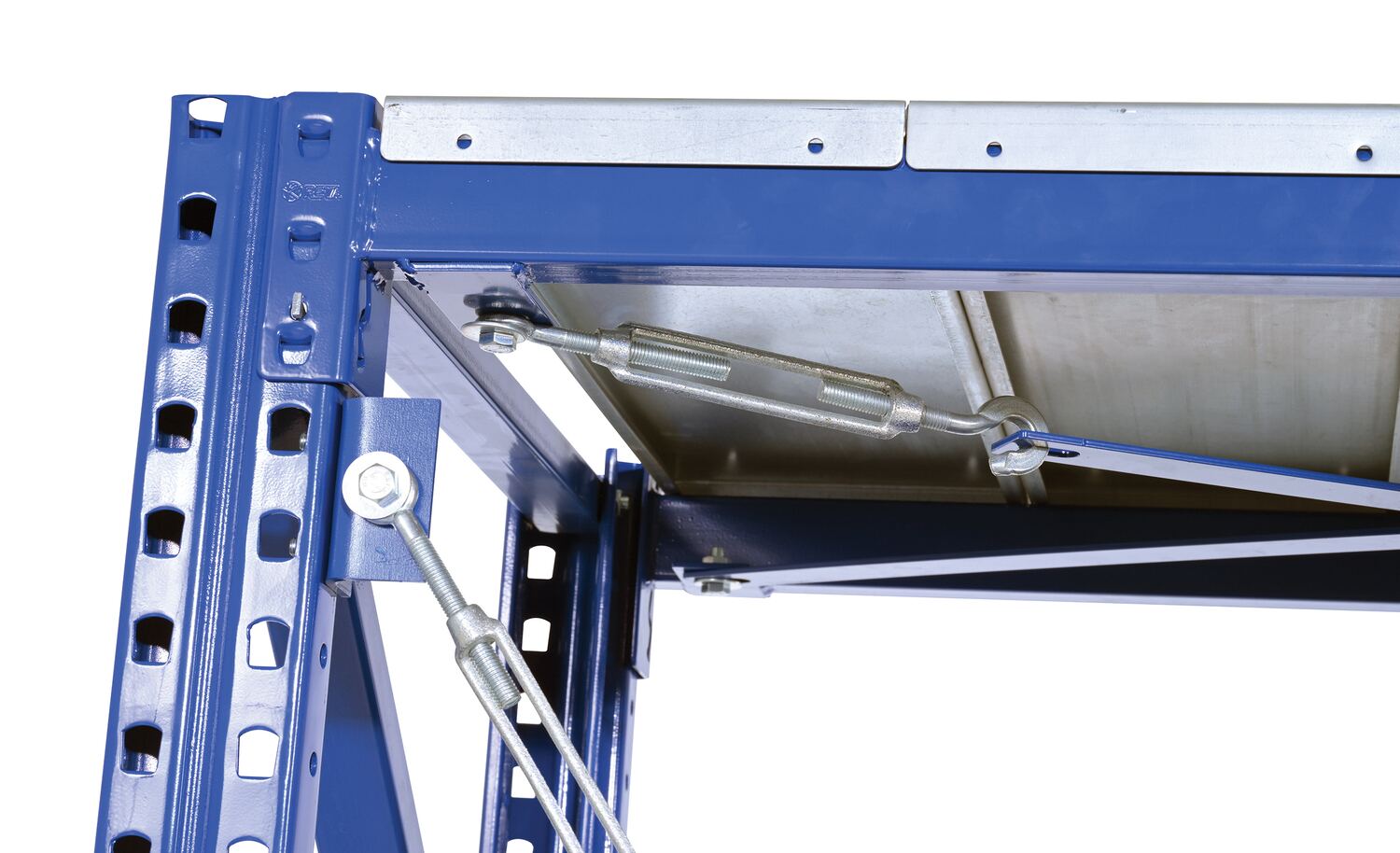

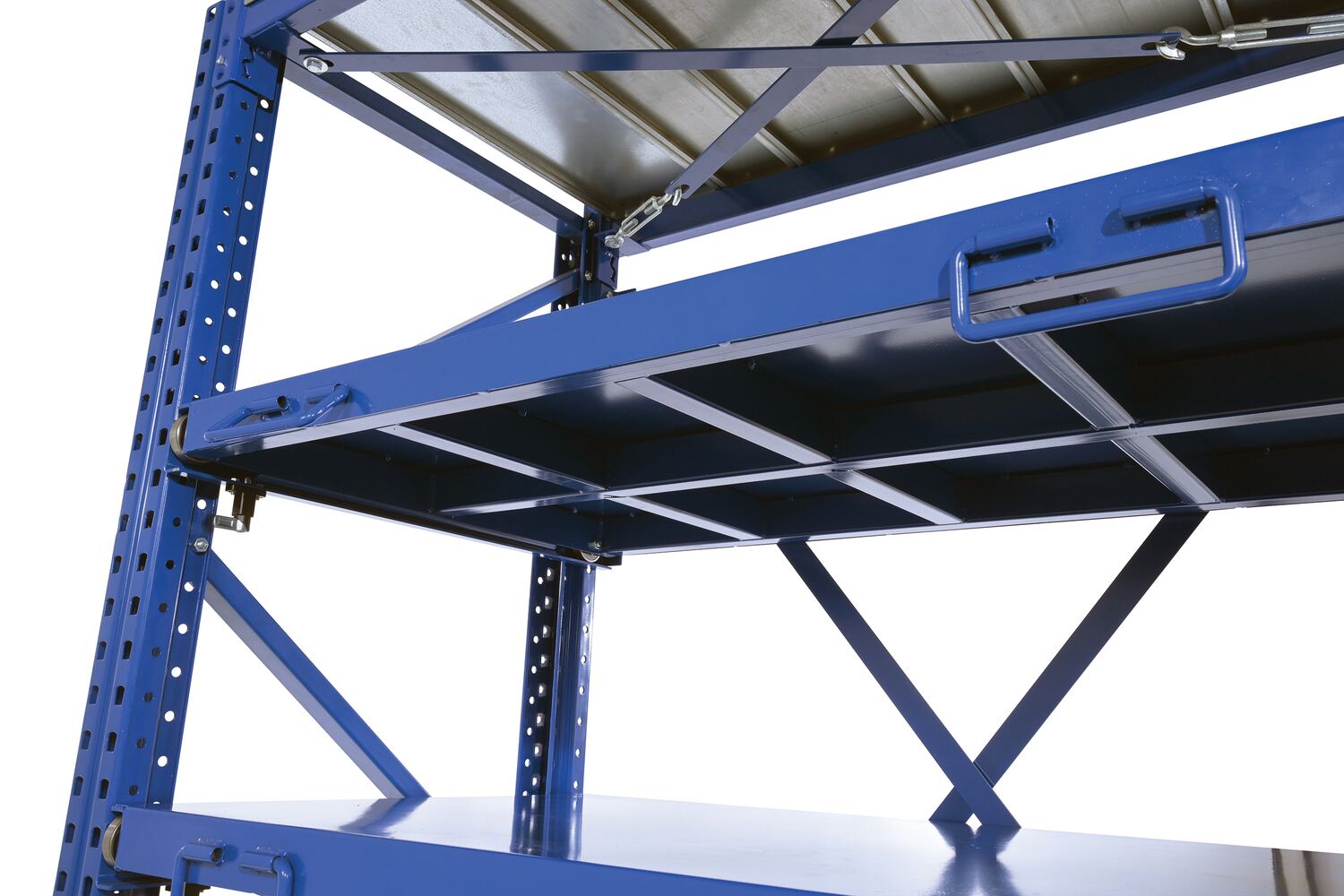

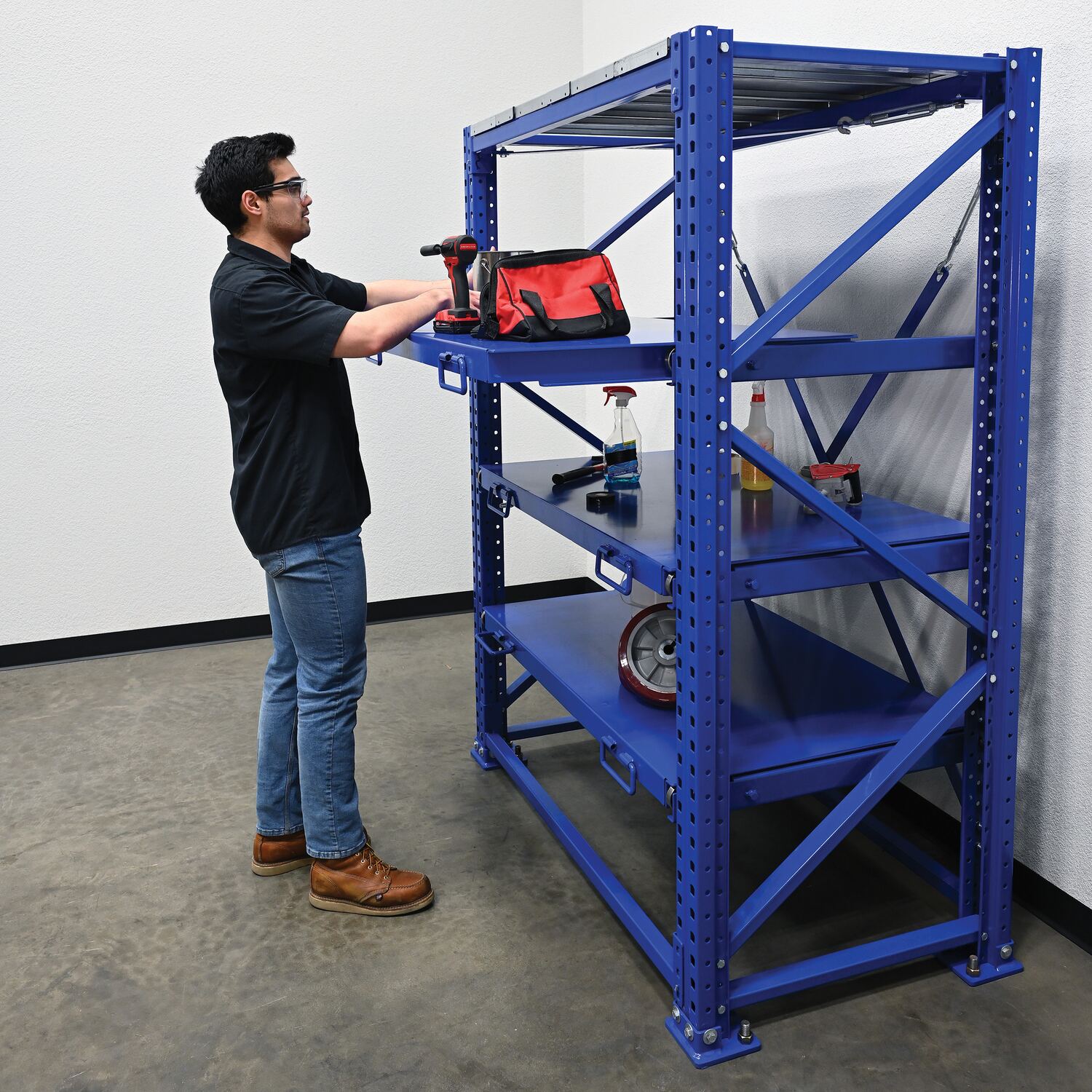

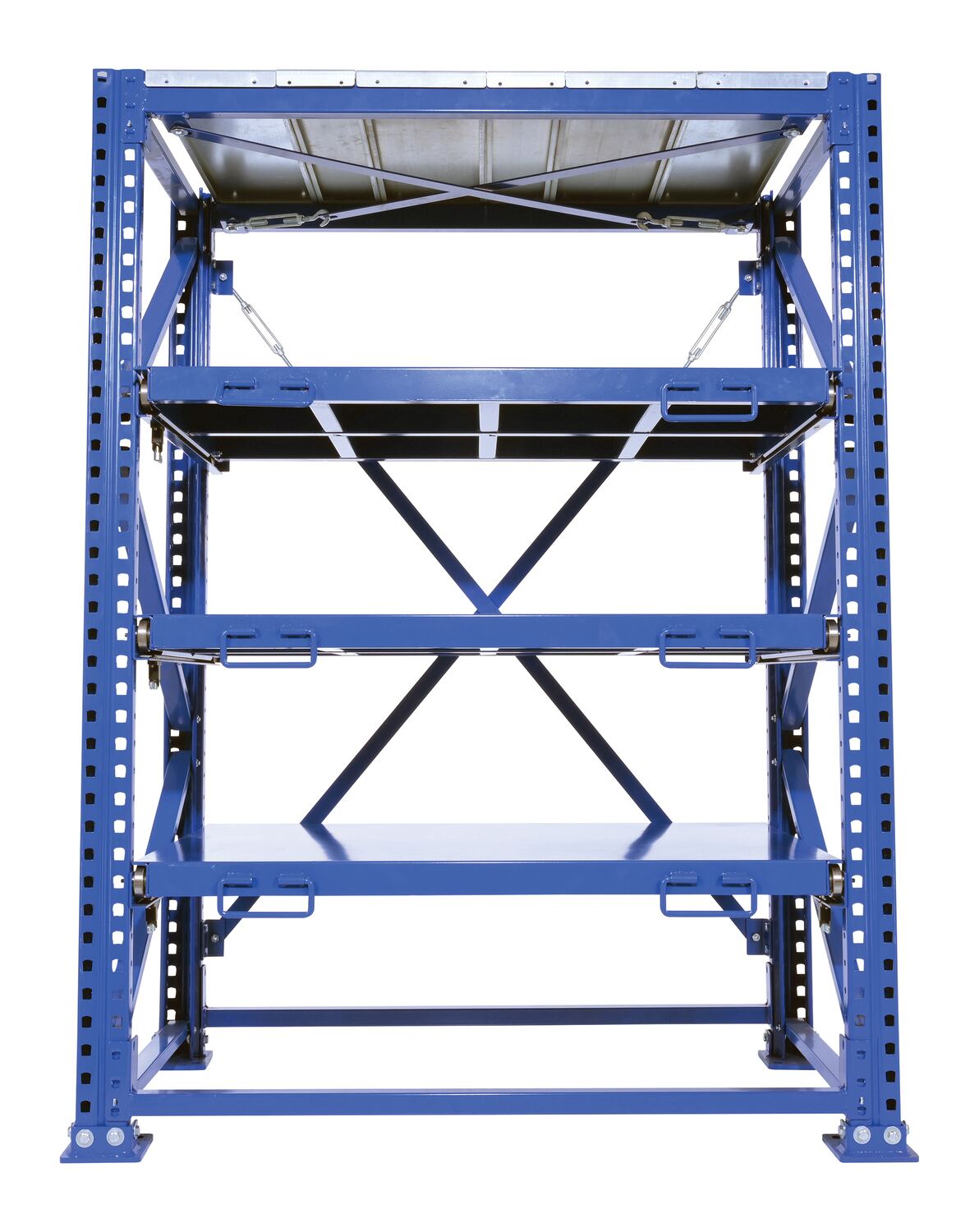

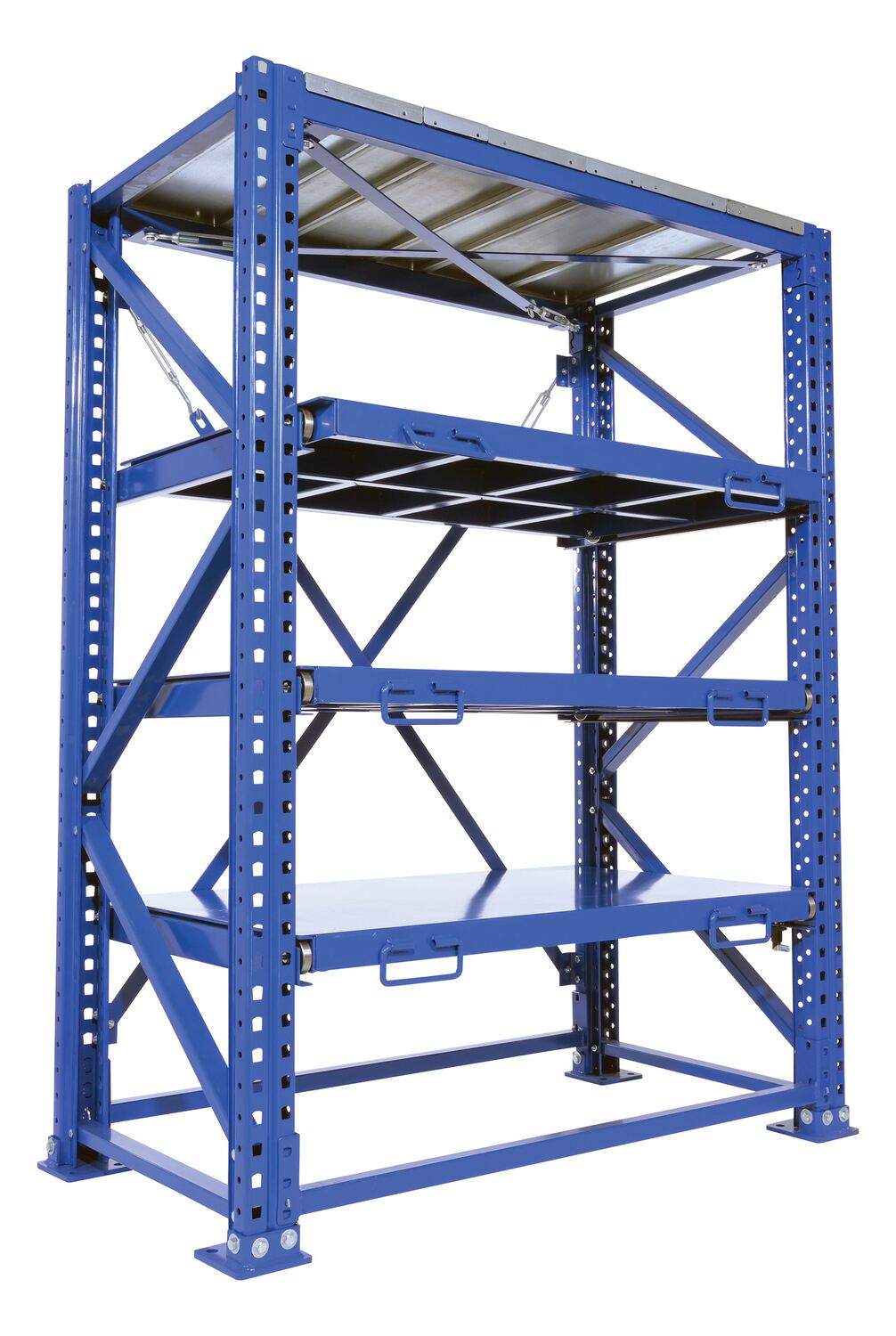

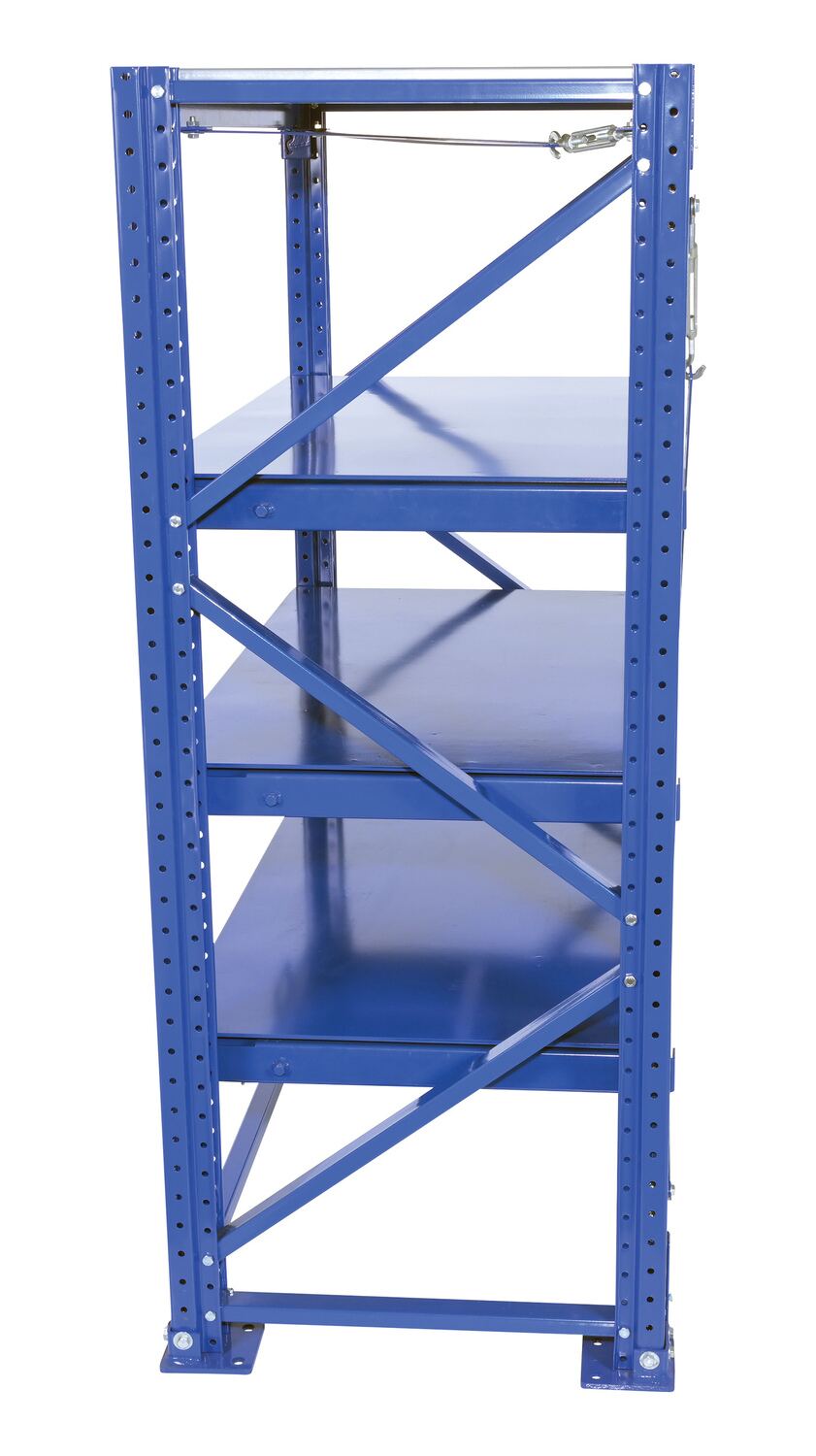

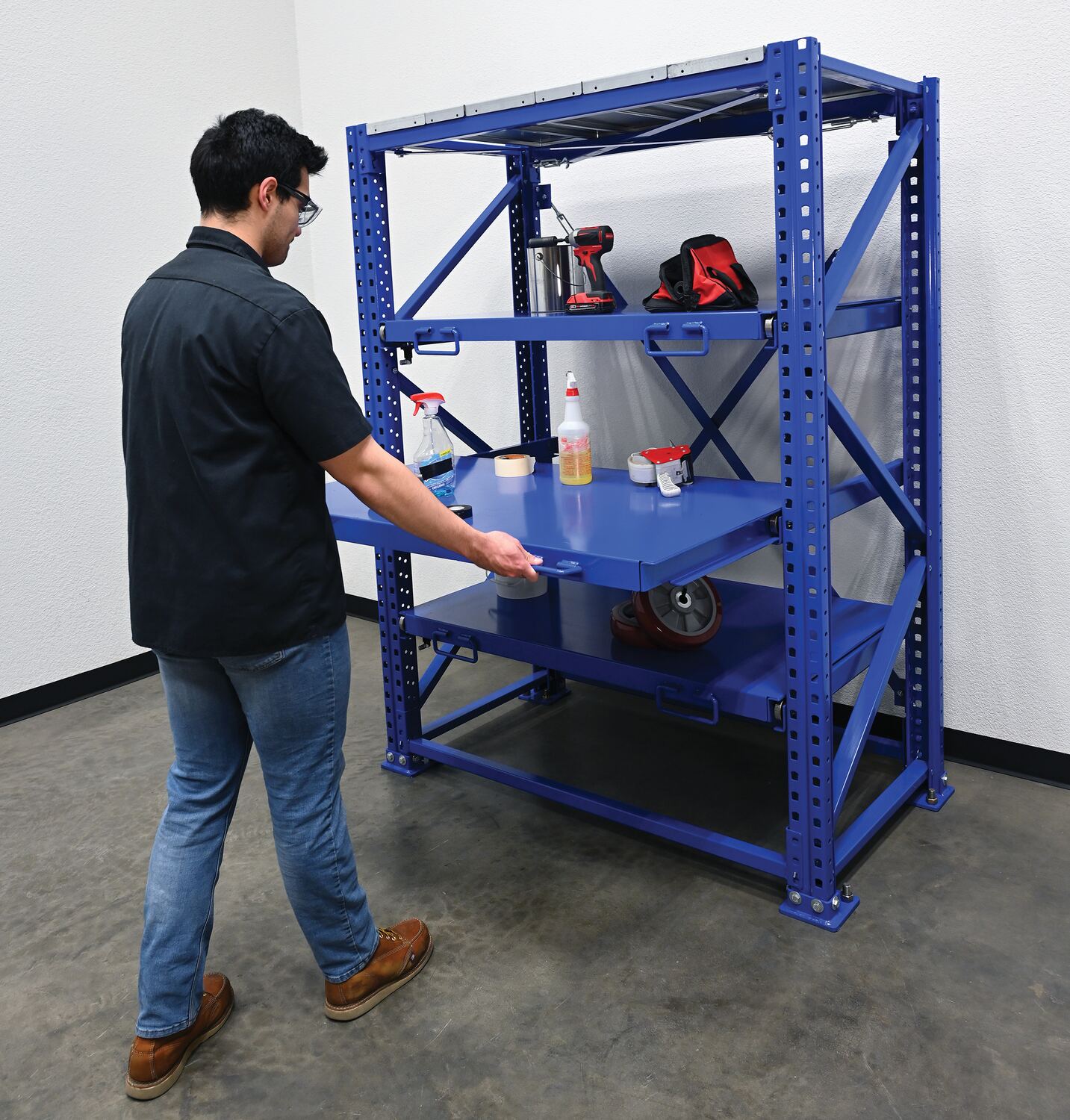

Heavy Duty roll-out shelving supports and stores heavy dies, fixtures and machinery. Shelves should be rolled out one at a time for simple product placement, as well as, personnel safety. All steel construction with powder coat finish. Mounting holes are predrilled. Assembly hardware is included. Mounting hardware is available separately.

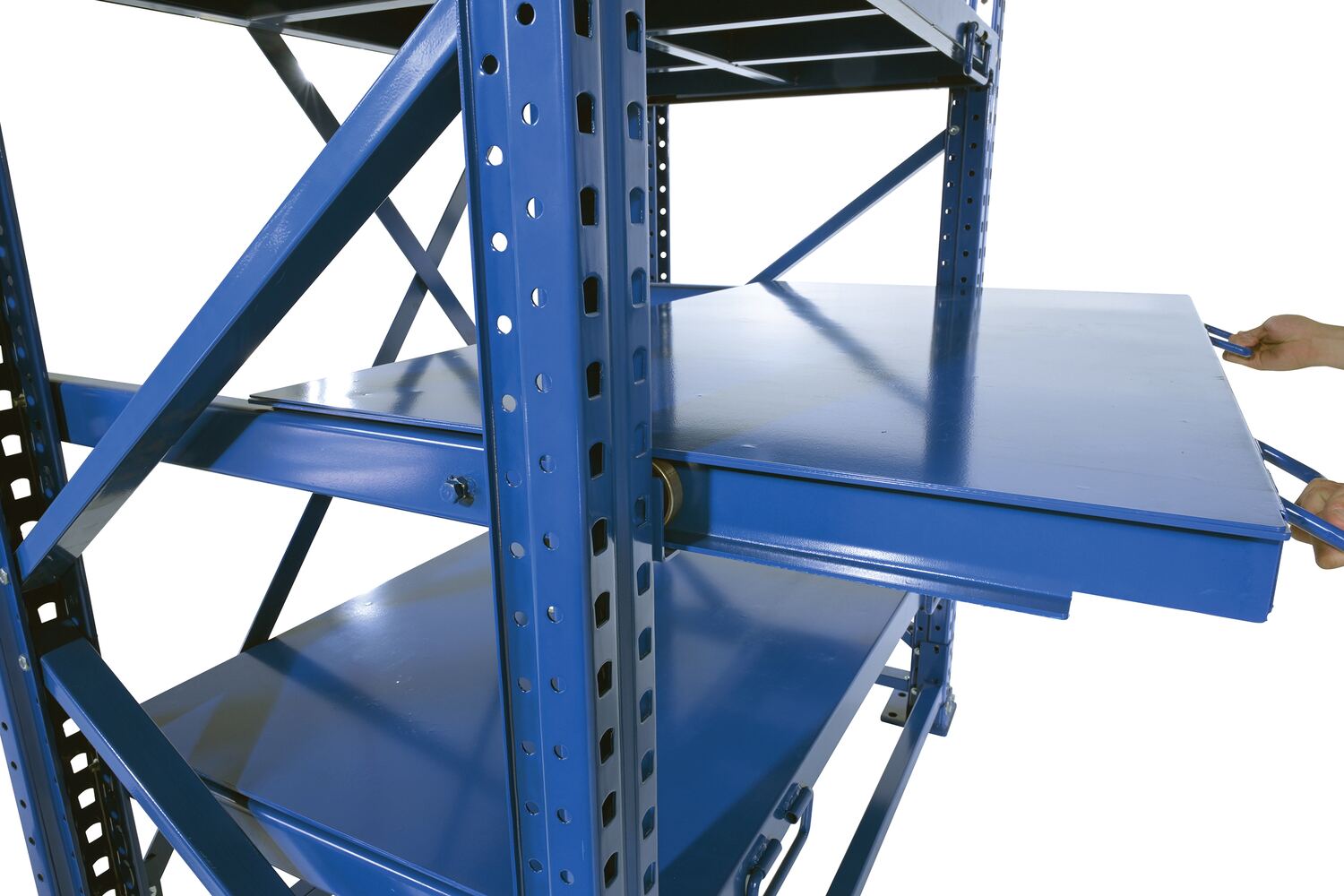

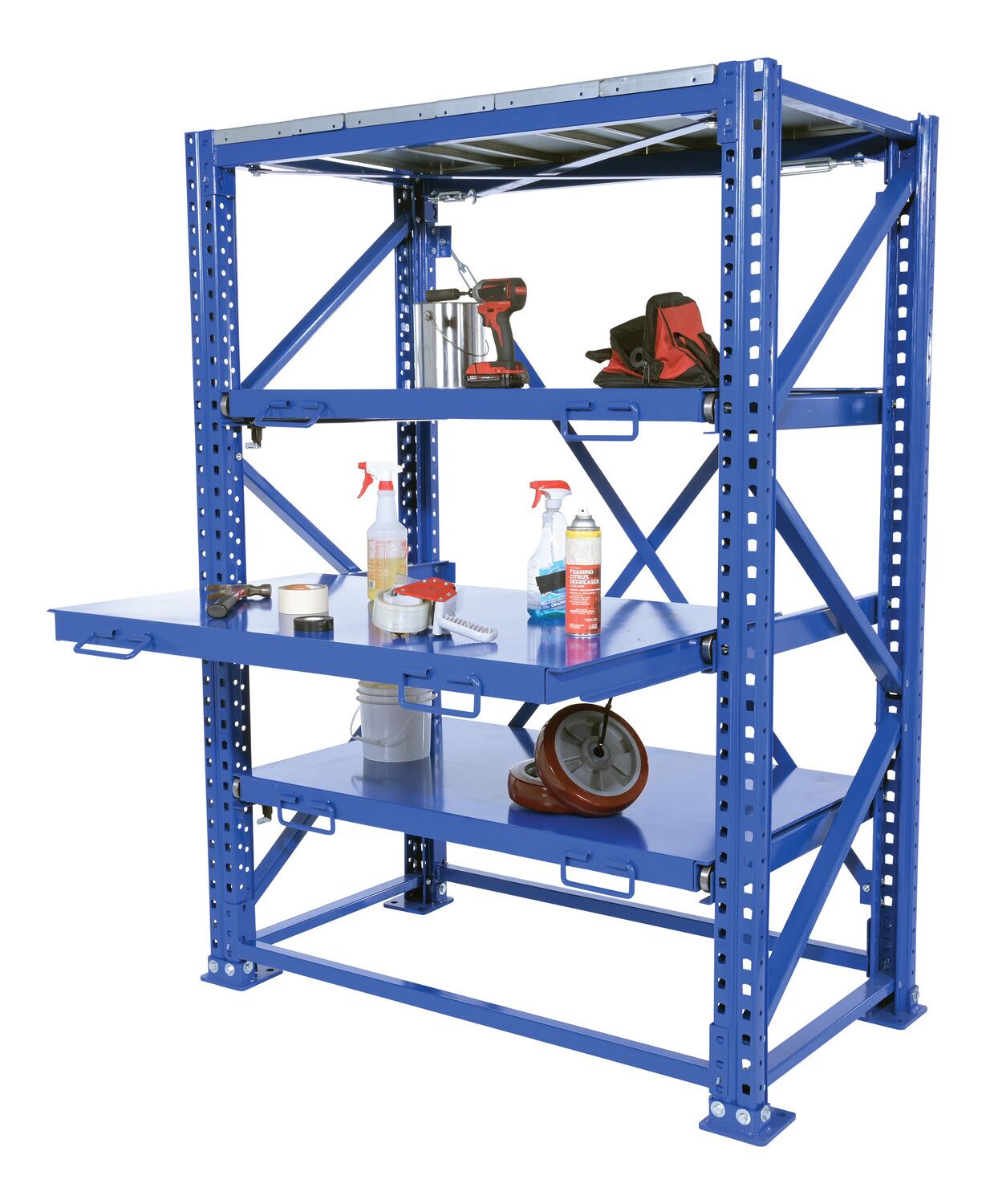

  • Shelves can be extended outward 20"

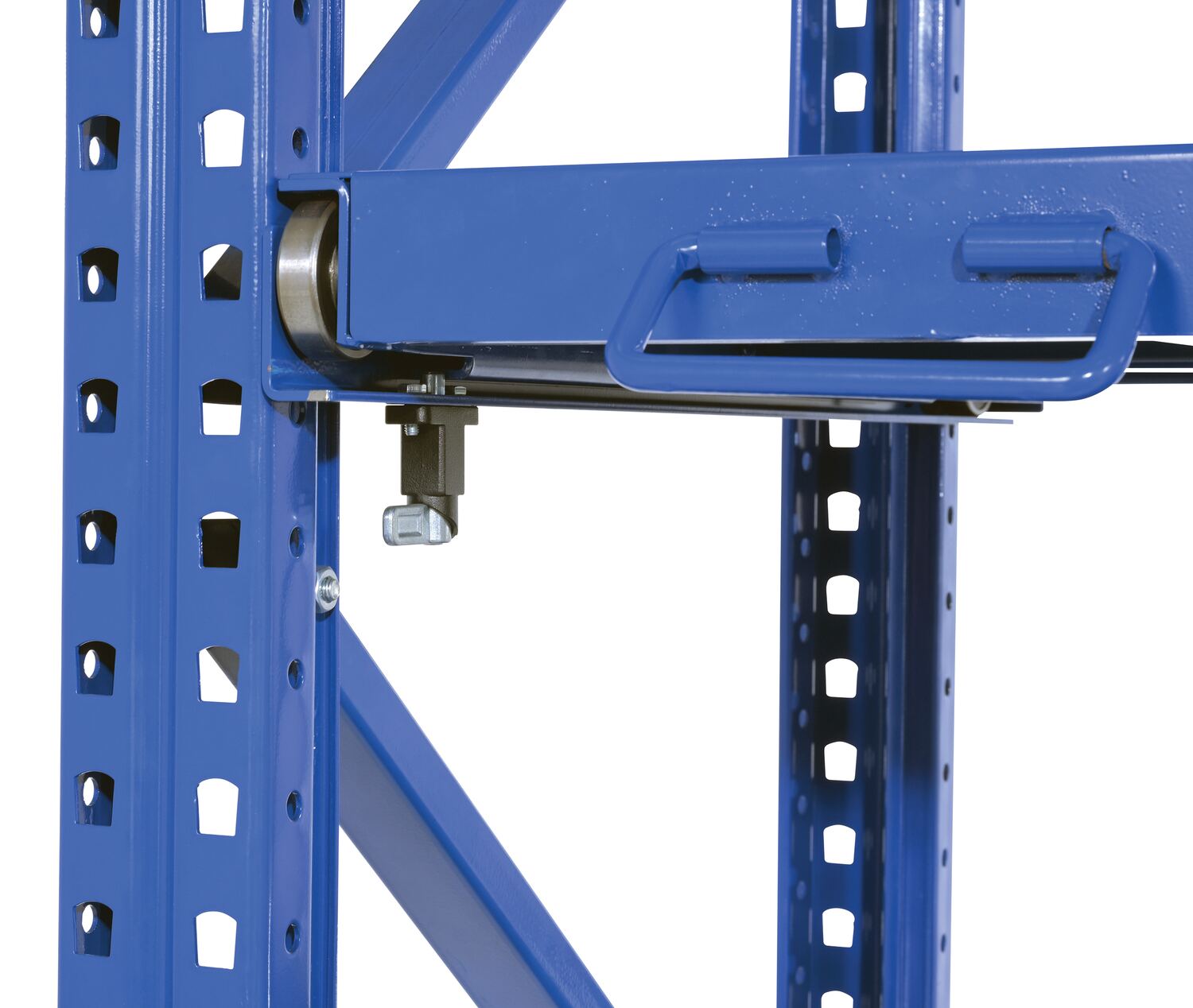

  • Shelves are lockable in extended position
  • Individual shelf heights are adjustable

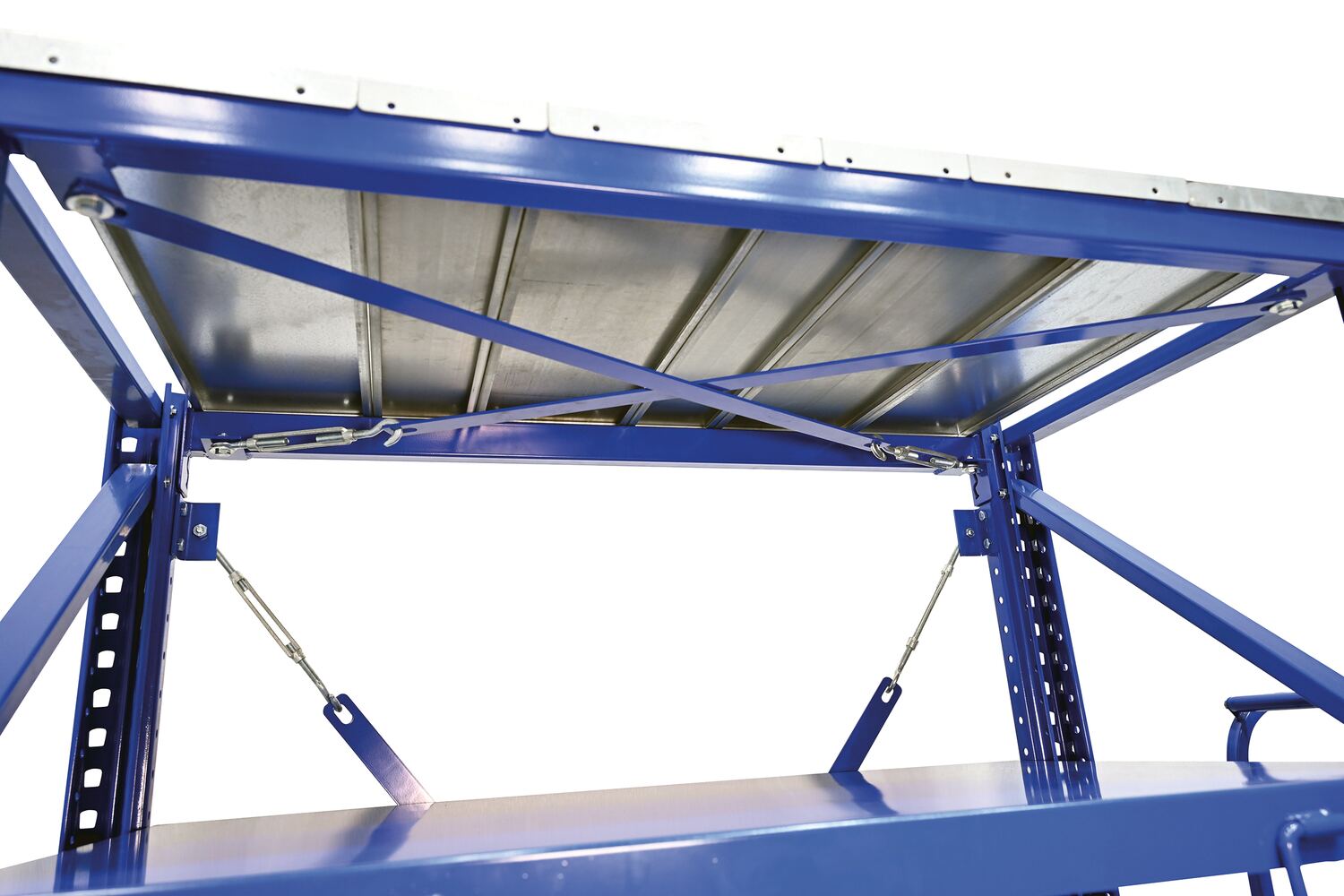

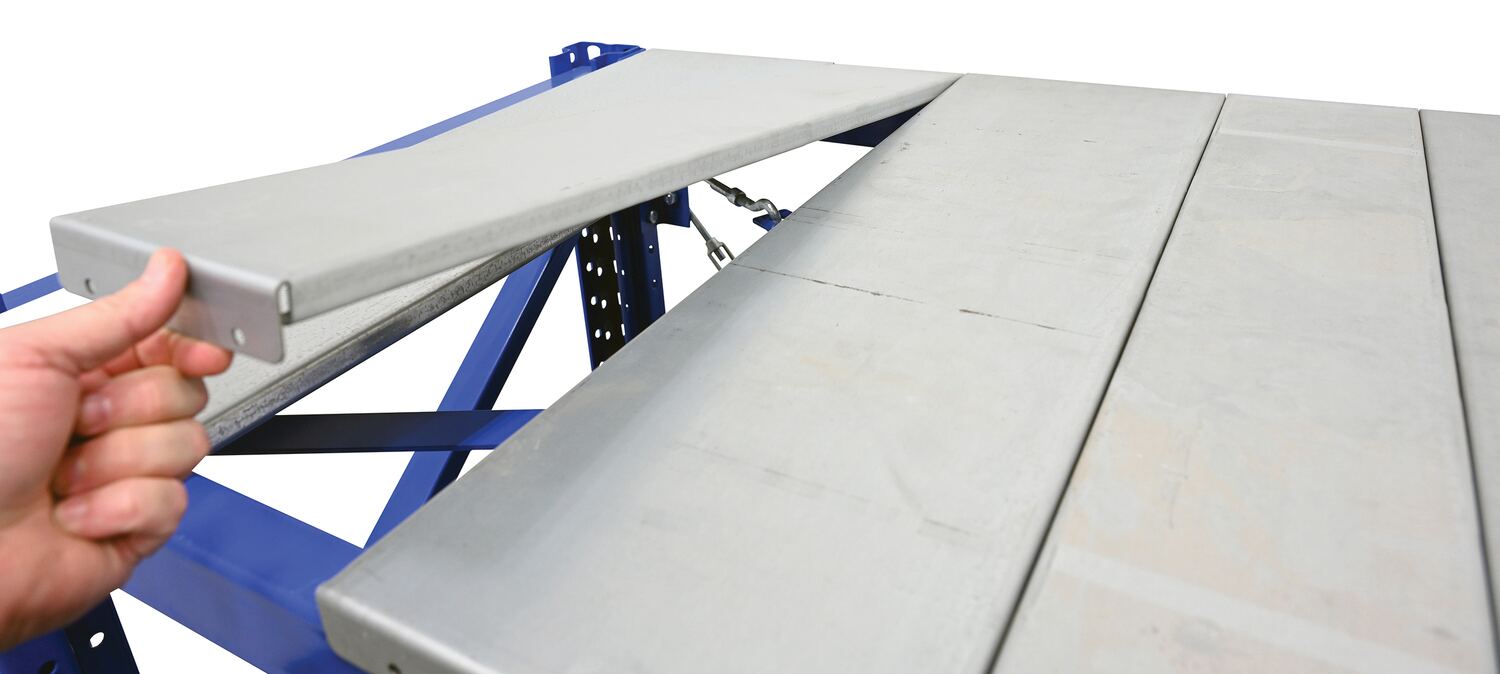

  • Top shelf is fixed and non-adjustable

VRSOR-A-60_C.jpgAdd-On Kit

Add on unit is available for the VRSOR-60 unit. Simply bolt on the VRSOR-A-60 to the existing VRSOR-60 to add another bay of shelves. Add On Unit is 32"L x 57"W x 80"H with a 6,000 Lb. Capacity

Heavy Duty roll-out shelving supports and stores heavy dies, fixtures and machinery. Shelves should be rolled out one at a time for simple product placement, as well as, personnel safety. All steel construction with powder coat finish. Mounting holes are predrilled. Assembly hardware is included. Mounting hardware is available separately.

  • Shelves can be extended outward 20"
  • Shelves are lockable in extended position
  • Individual shelf heights are adjustable
  • Top shelf is fixed and non-adjustable

VRSOR-A-60_C.jpgAdd-On Kit

Add on unit is available for the VRSOR-60 unit. Simply bolt on the VRSOR-A-60 to the existing VRSOR-60 to add another bay of shelves. Add On Unit is 32"L x 57"W x 80"H with a 6,000 Lb. Capacity

Other Various Racking

 Vertical Bar Storage Racks Reel Racks Long Bar Pigeon Hole Rack Variable Height Sheet Racks

Additional Models In This Family
view entire Image Gallery

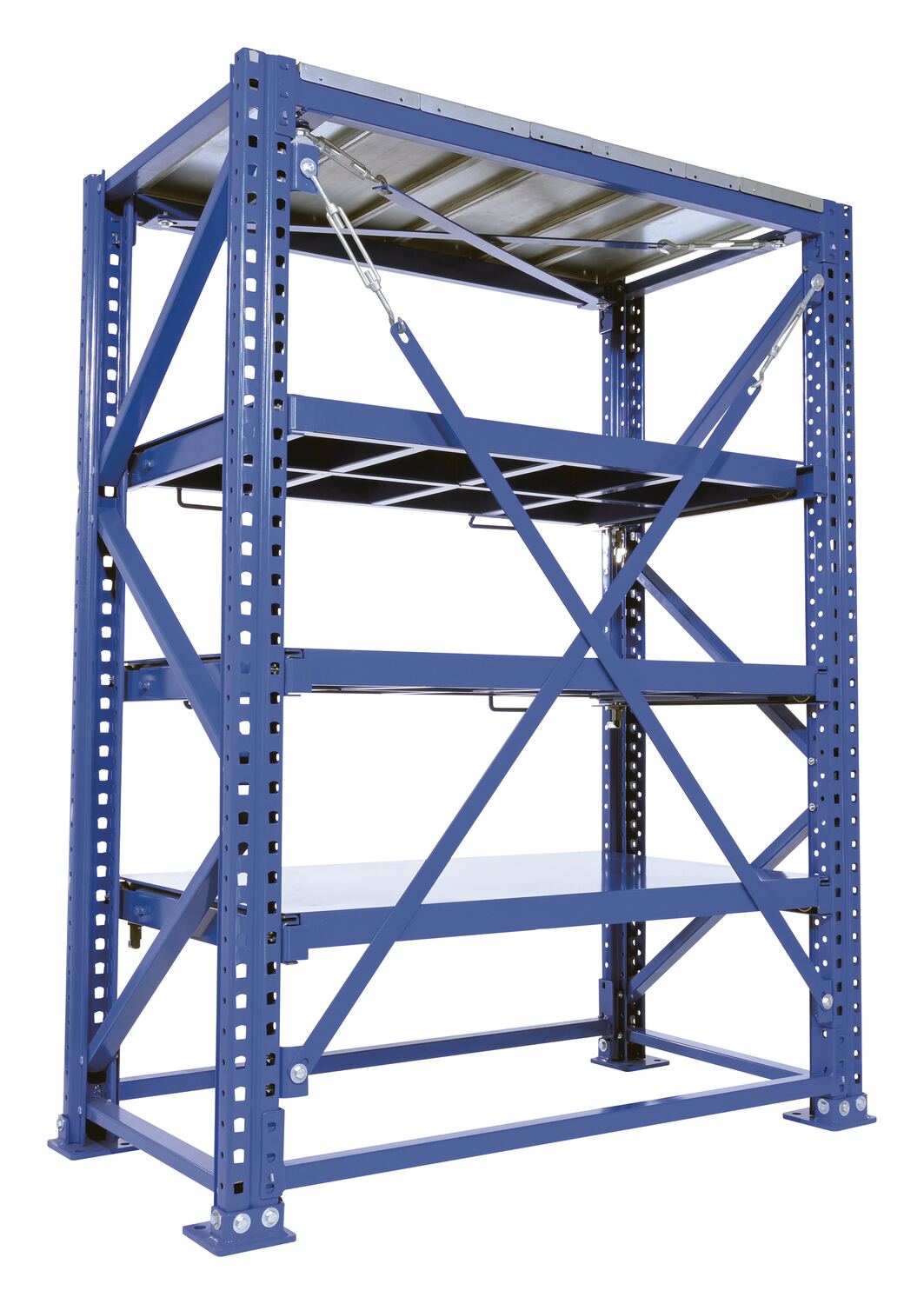

VRSOR-60

model VRSOR-60

VRSOR-A-60

model VRSOR-A-60

VRSOR-SLF

model VRSOR-SLF

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

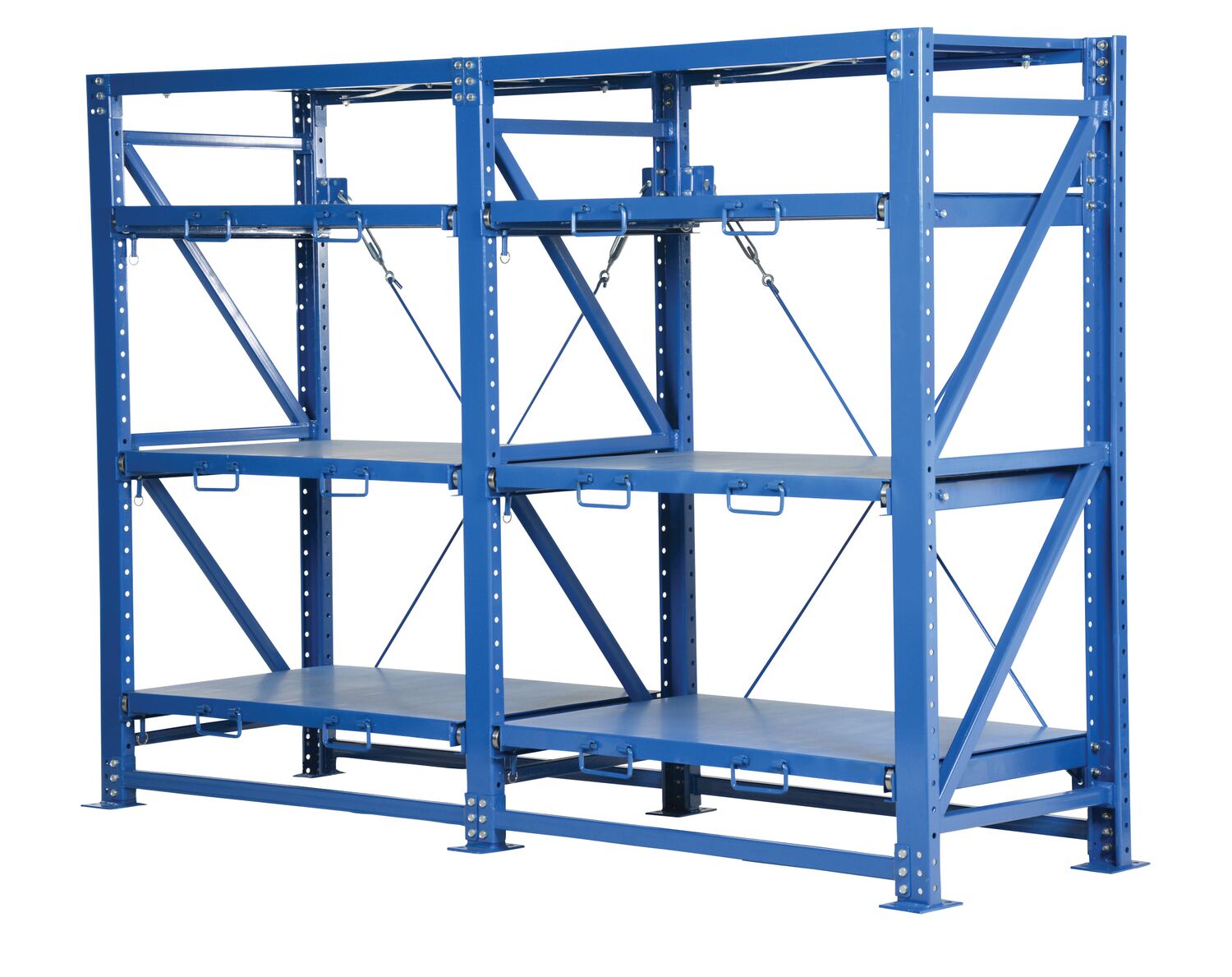

VRSOR-120 NEW VRSOR-12090 Days Limited WarrantySteel Heavy Duty Roll-Out Shelving 32L X 120W X 80H 6,000 Lb. Capacity BlueTiers: 3
Edge Finish: Square		1148

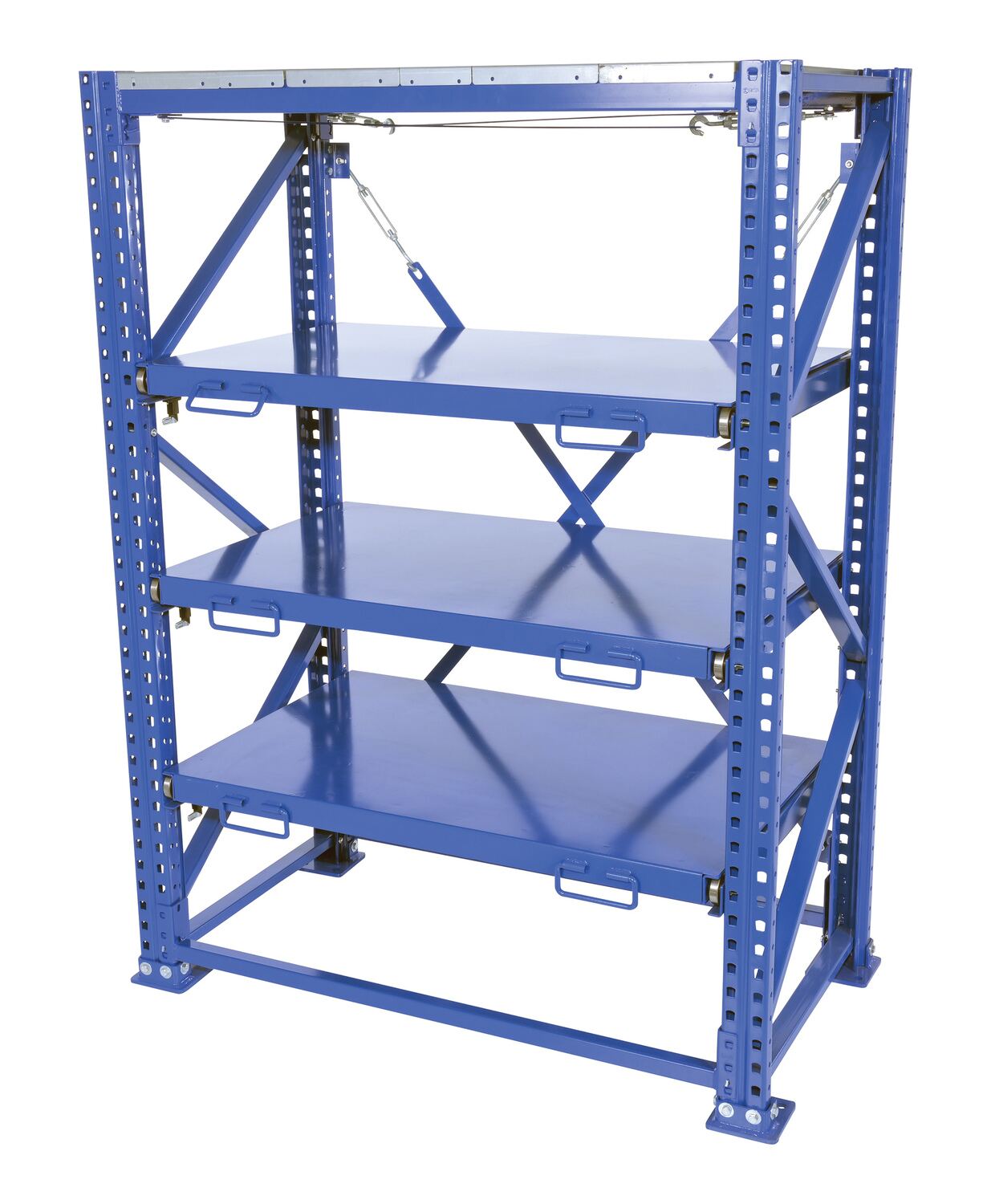

VRSOR-60 NEW VRSOR-6090 Days Limited WarrantySteel Heavy Duty Roll-Out Shelving 32L X 60W X 80H 6,000 Lb. Capacity BlueTiers: 3
Edge Finish: Square		498
VRSOR-A-60 NEW VRSOR-A-6090 Days Limited WarrantySteel Roll Out Shelving-Add On Unit 32"l X 57"w X 80"h 6,000 Lb. Capacity BlueTiers: 3
Edge Finish: Square		423

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

VRSOR-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square

VRSOR-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square

VRSOR-A-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Tiers: 3
Edge Finish: Square
Tiers: 3
Edge Finish: Square
For More Details of the Option Click the Red Model Button

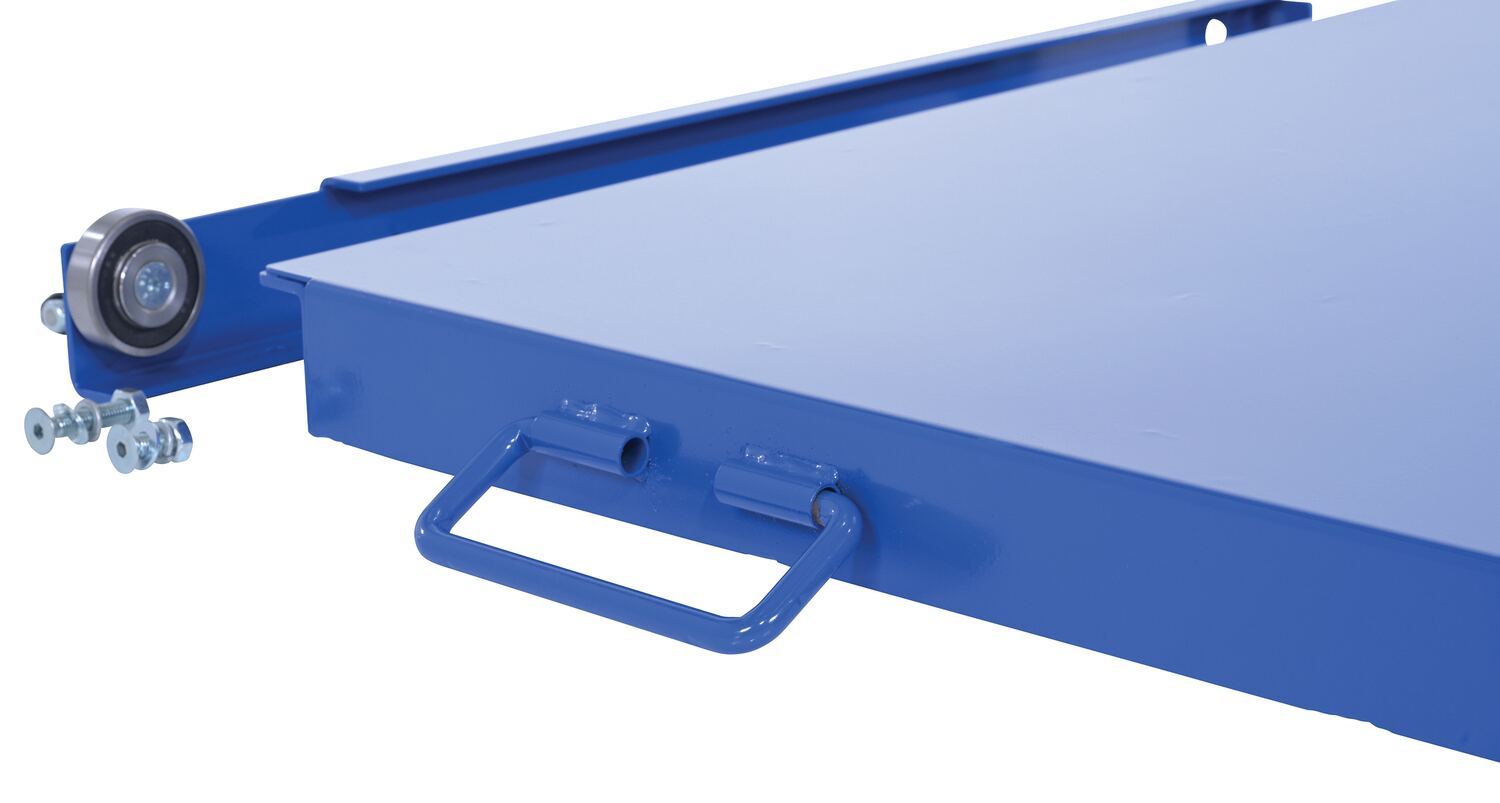

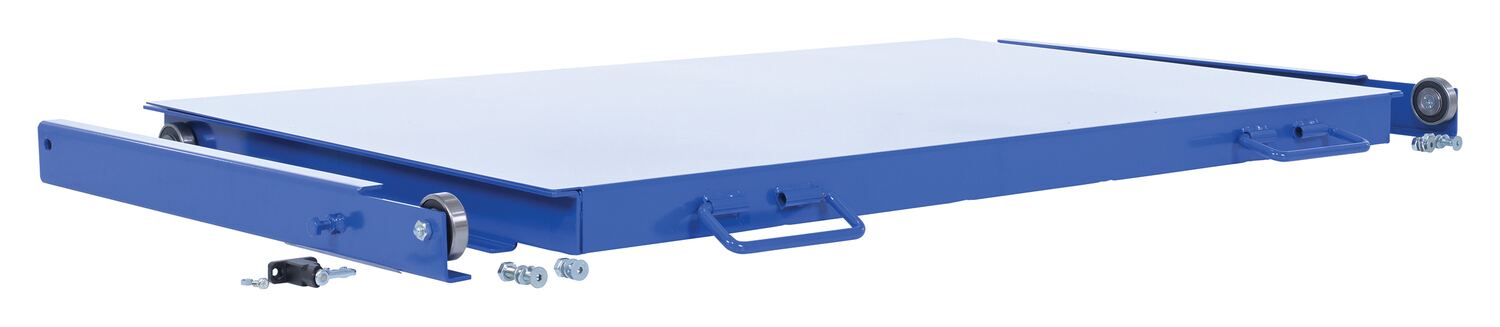

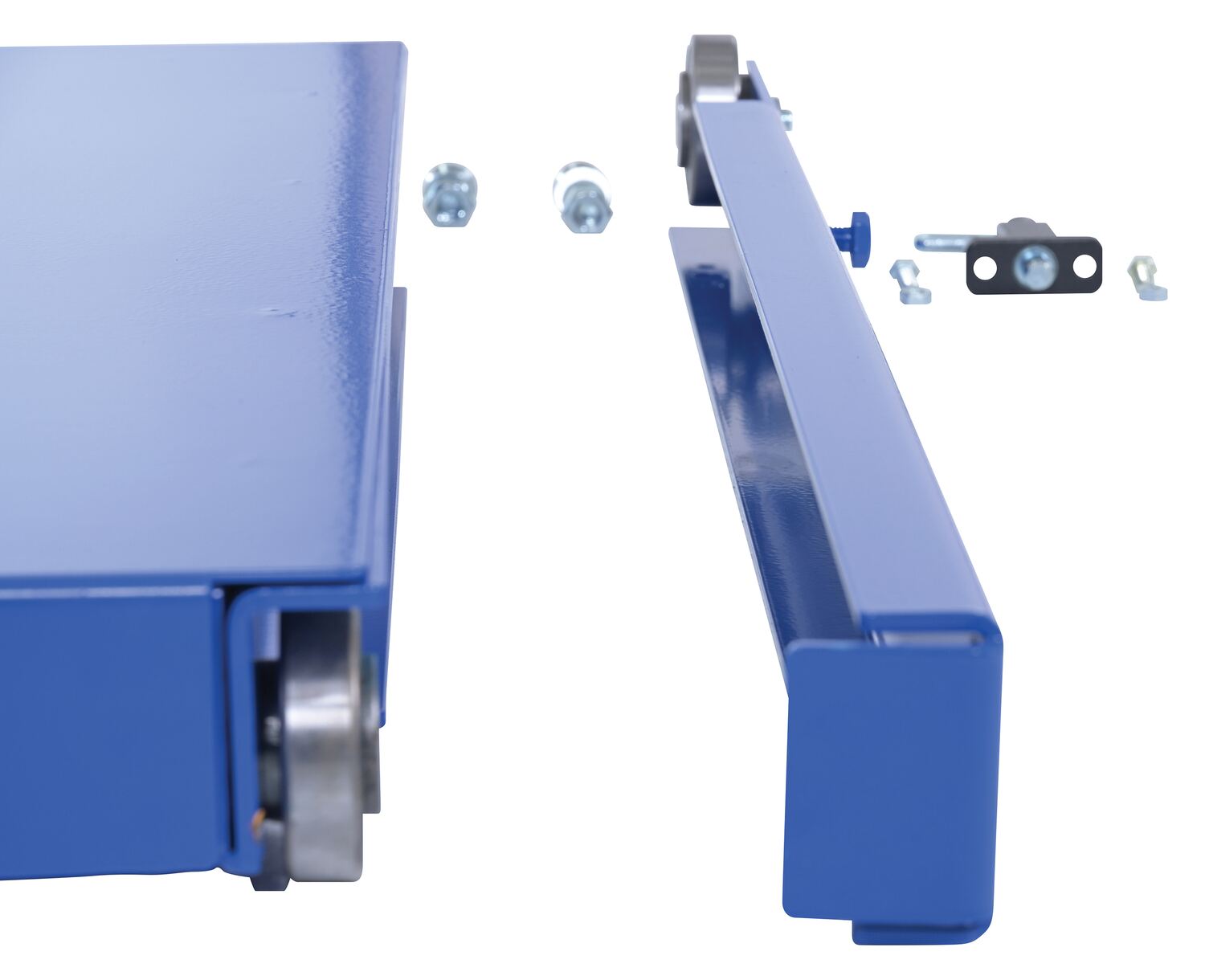

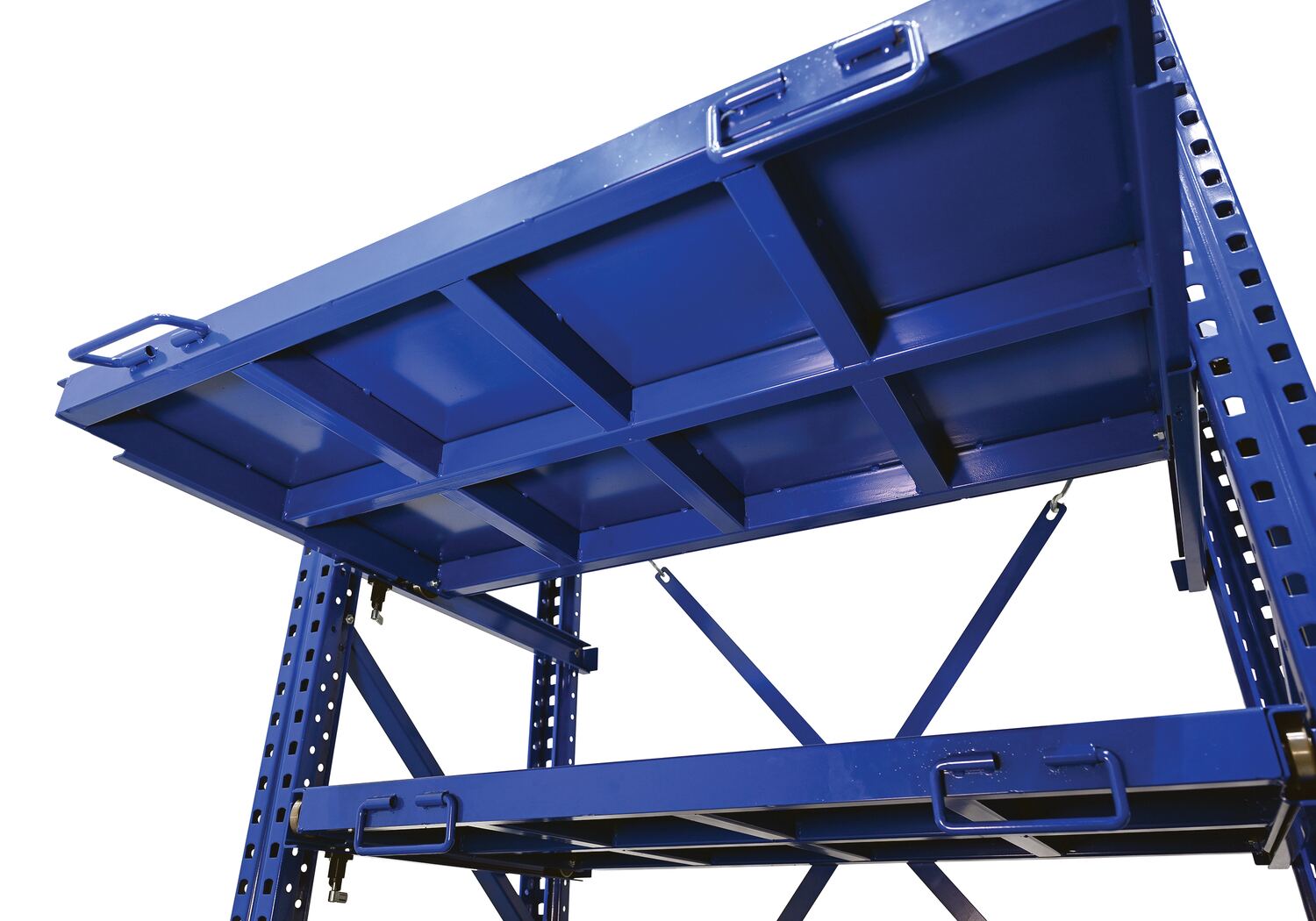

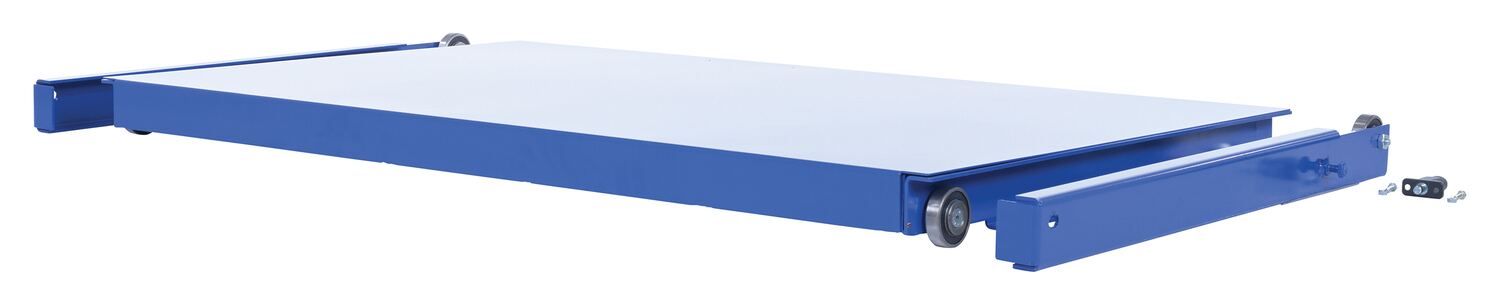

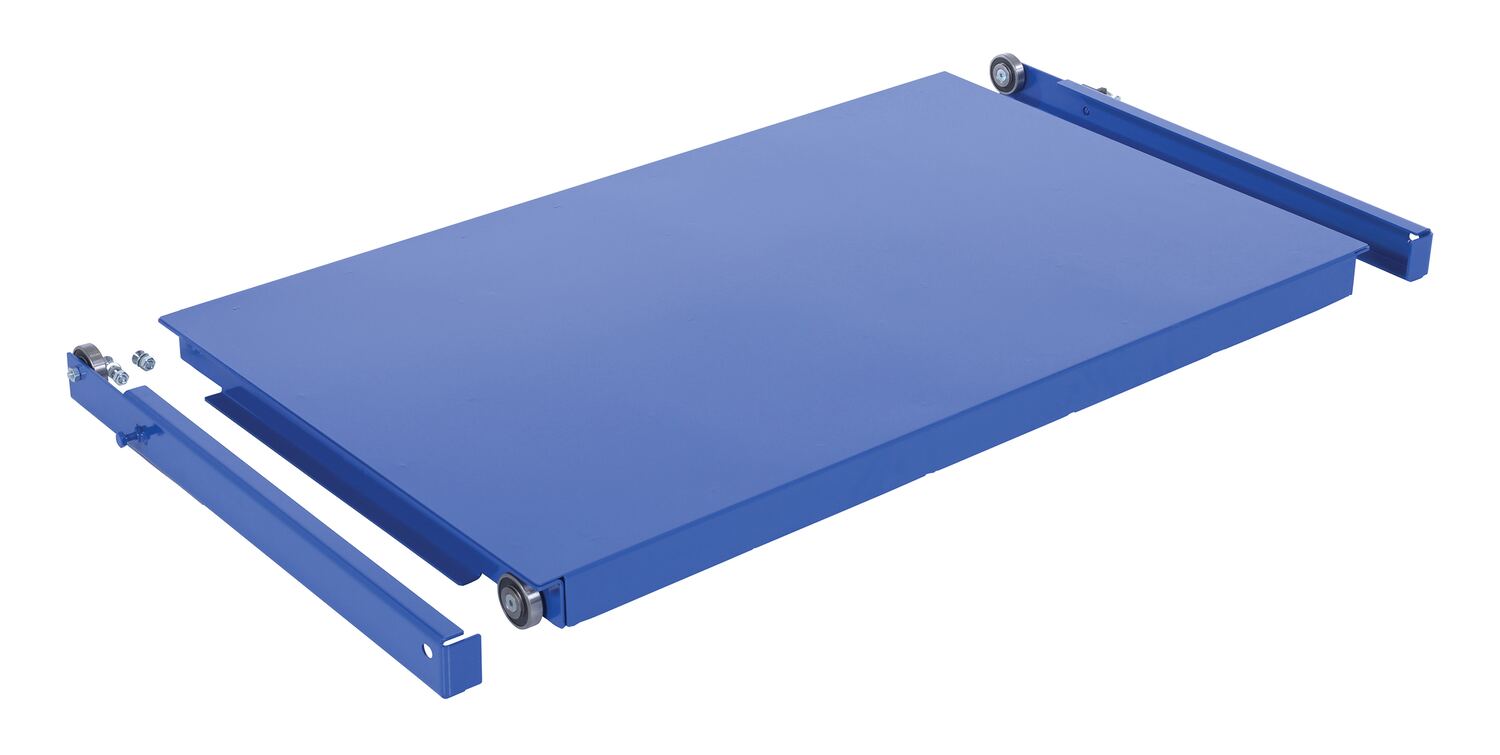

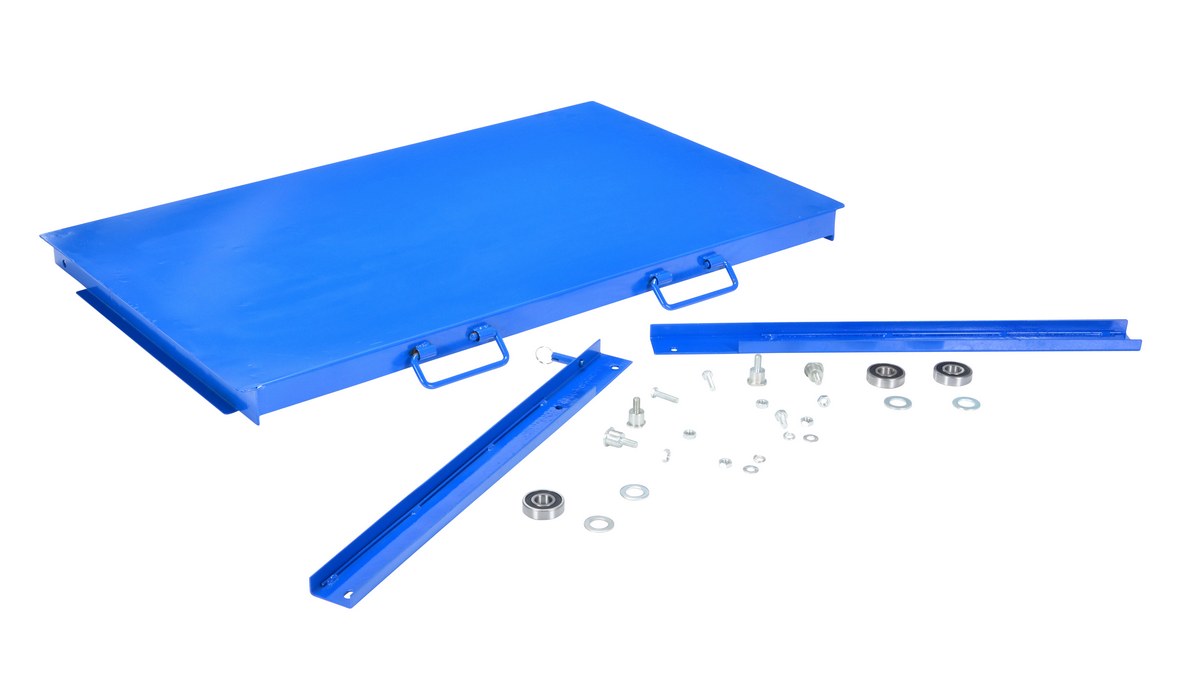

VRSOR-SLF VRSOR-SLF90 Days Limited WarrantySteel Additional Shelf 32 In. Length 1,500 Lb. Capacity For VRSOR Models BlueUniform Capacity per Shelf (lb.): 1500
Shelf Steel (gauge): 10		110

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Heavy Duty Roll-Out Shelving PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


VRSOR-120

VRSOR-60

VRSOR-A-60

VRSOR-SLF

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: Can I add a shelf to this racking?

A: Yes, the (VRSOR-SLF) shelf can be added to the VRSOR-120 or the VRSOR-60.

Q: What is the maximum number of shelves can be added for VRSOR-60?

A: The unit has 67 in useable space with mounting holes 2-1/4 in apart. Each shelf needs approximately 6 in to function properly. Capacity is 6,000 per set and 1,500 per shelf.
