Product Family Overview


Versa Racks
SERIES: V,VP

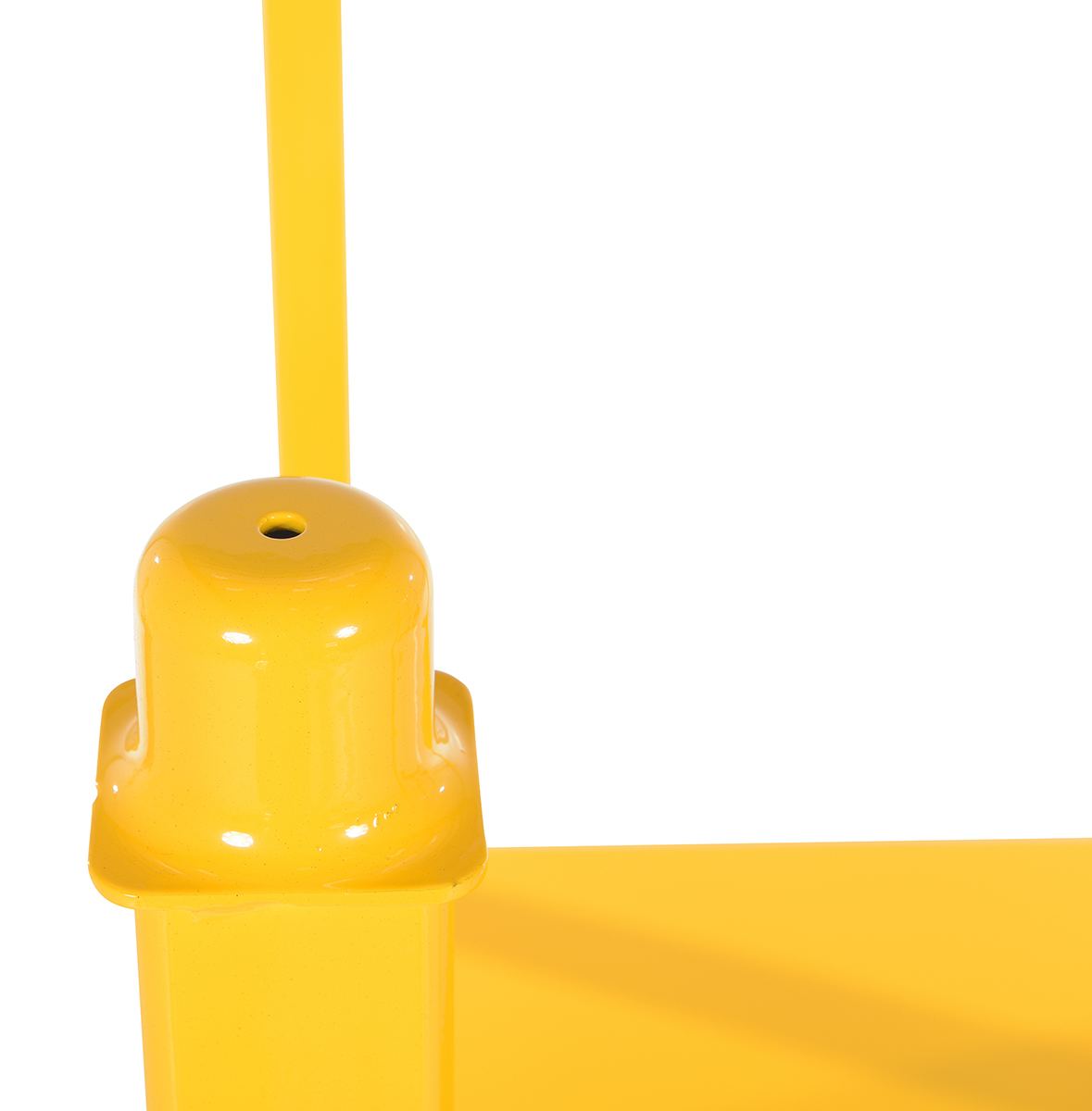

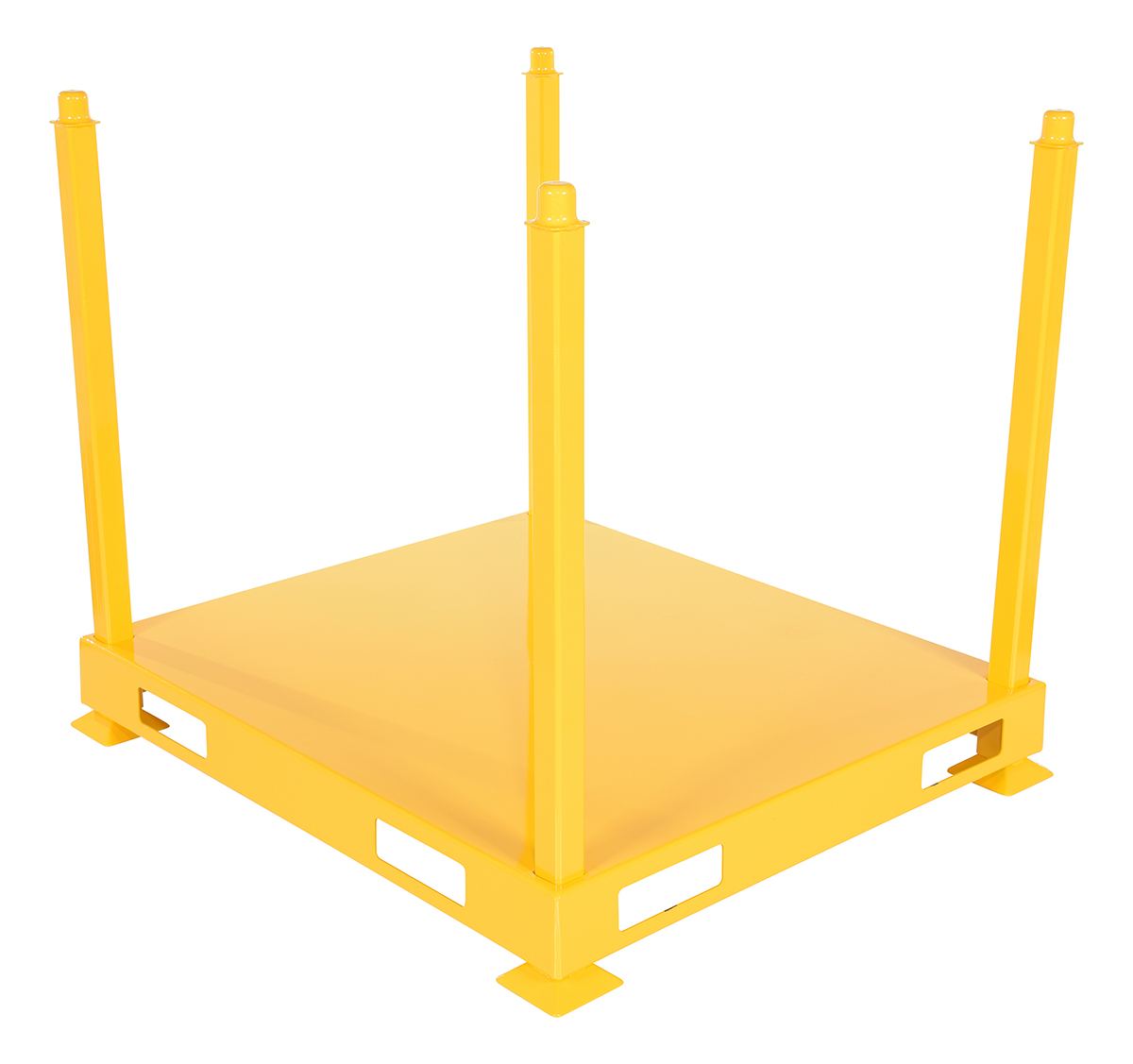

Versa Racks are great for transporting or storing items. Steel construction provides versatility, efficiency, and durability. Baked-in powder-coated toughness. Corner posts can be removed or changed to fit the needs of various applications. Double post pins provide support up to 4,000 uniform pounds. All models contain a four way fork entry for simple transference and can be stacked five (5) units high, while models using the 24"and 36" posts can be stacked three (3) high, during use. Four-way fork entry on all models. Usable fork opening is 8"W x 2-1/2"H. The overall model size is 49-7/16"W x 43-7/16"L. Custom sizes and configurations are available upon request.

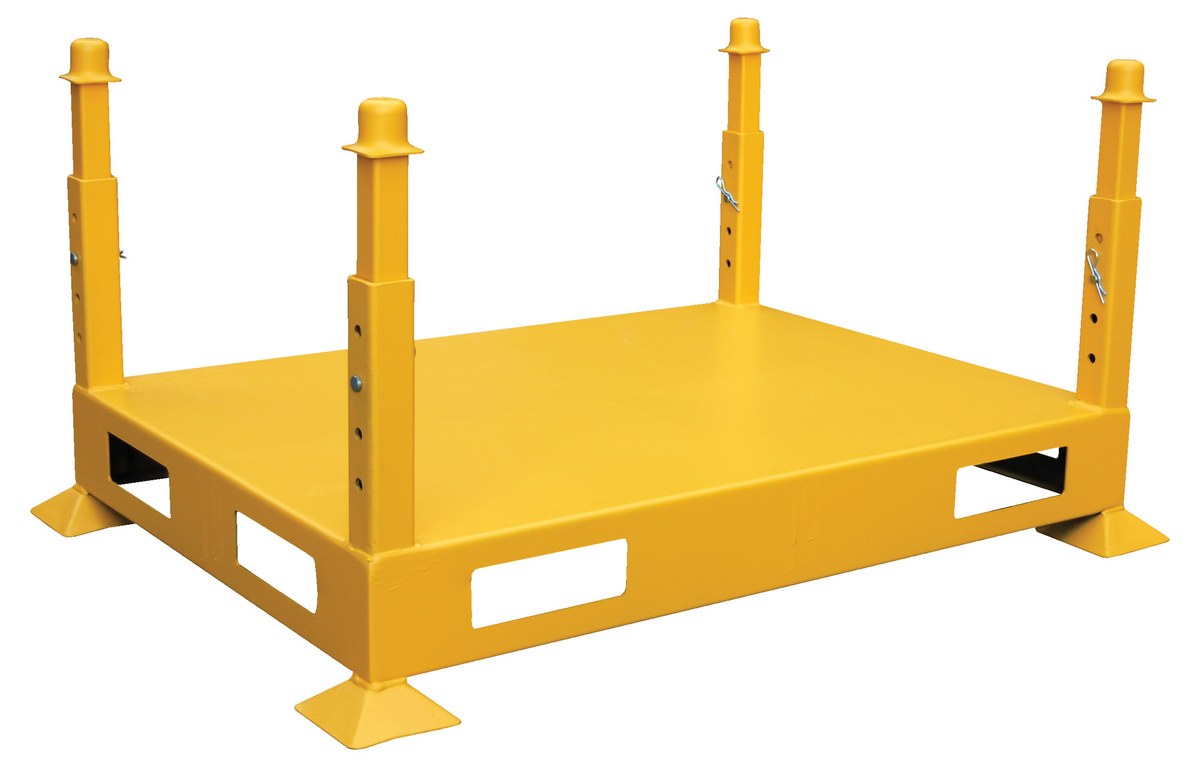

Model V-1 has four adjustable-height non-removable posts, fixed base targets, 4-way fork entry, and solid steel deck. The usable height is adjustable in 1" increments from 11-1/4" to 17-1/4". These carts may be stacked no more than five (5) units high.

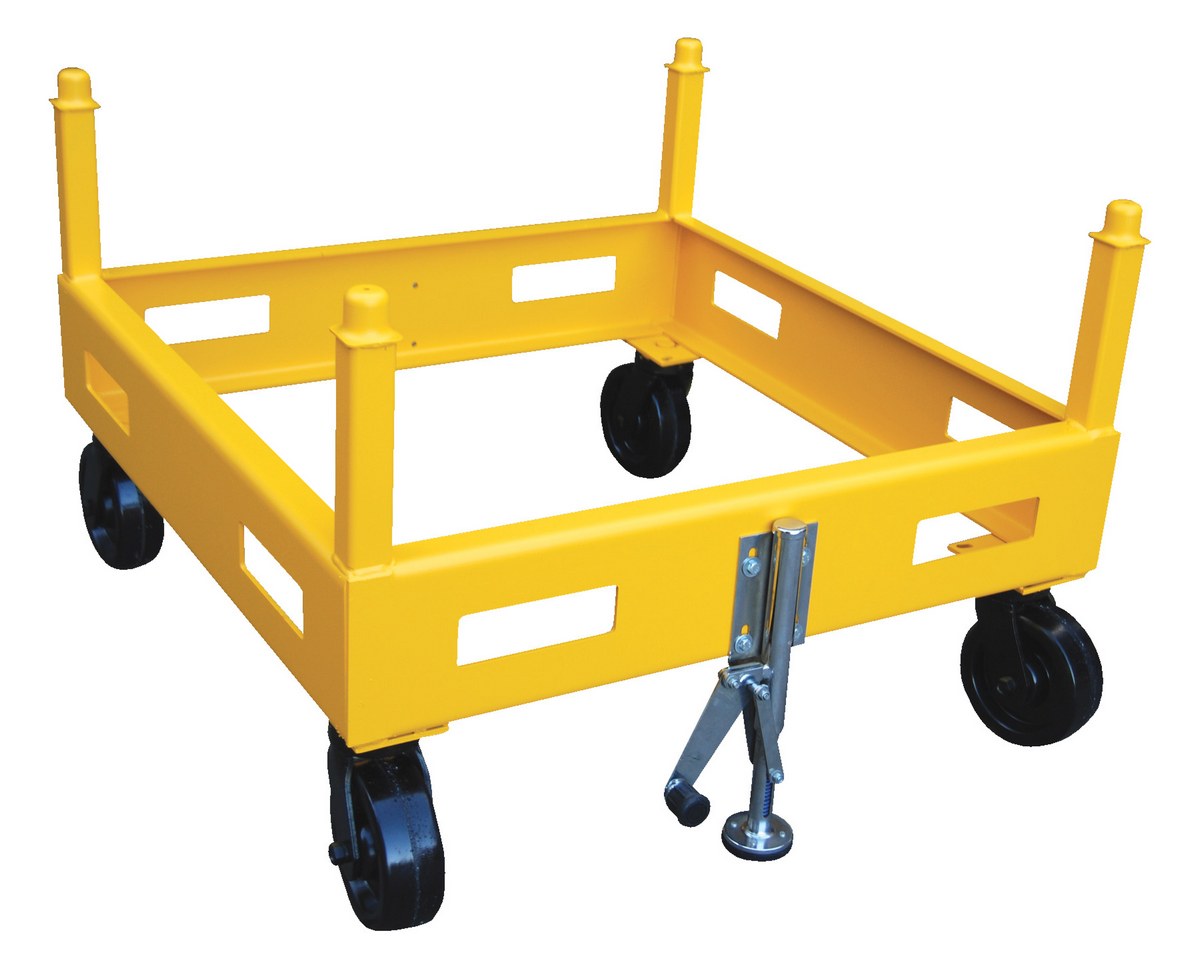

Model V-3 is ideal for transporting long, oversized loads of material. The model is a stand/ cart which has 8" phenolic caster and a floor lock. 12" high non-removable fixed-height corner posts. Overall height is 30-1/2".

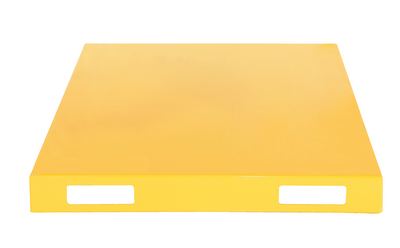

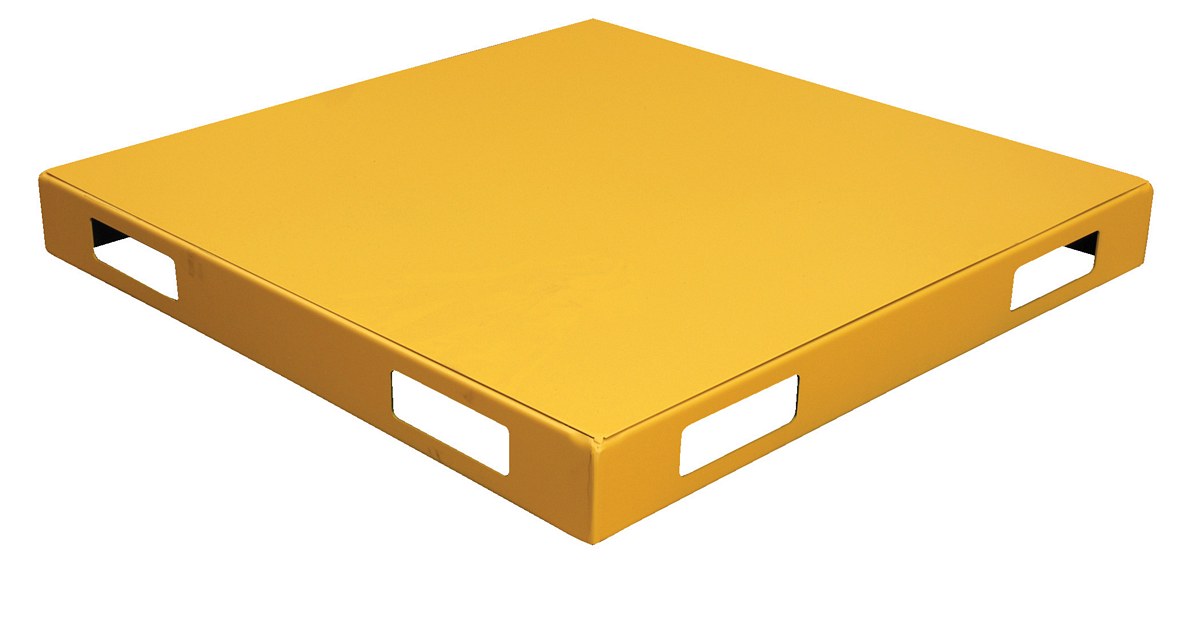

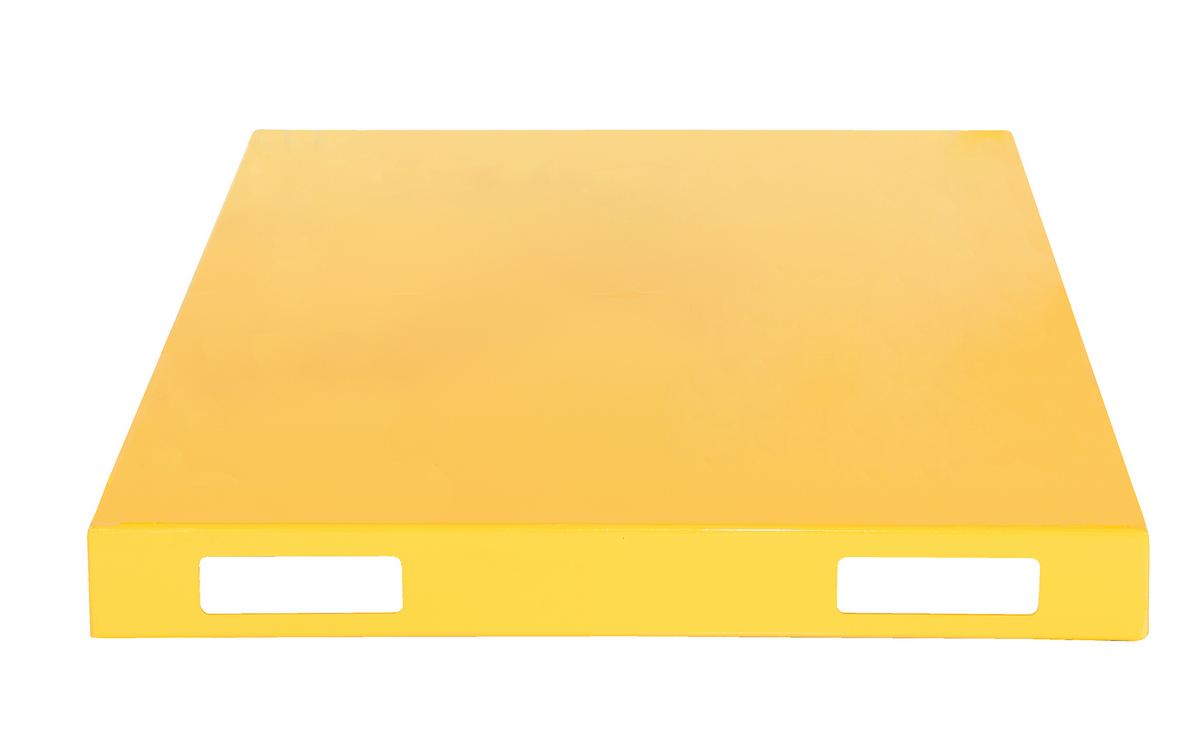

Model V-4 is a versa rack pallet with no posts or sockets. Solid deck steel pallet is a durable way to transfer products.

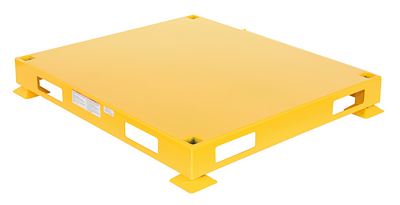

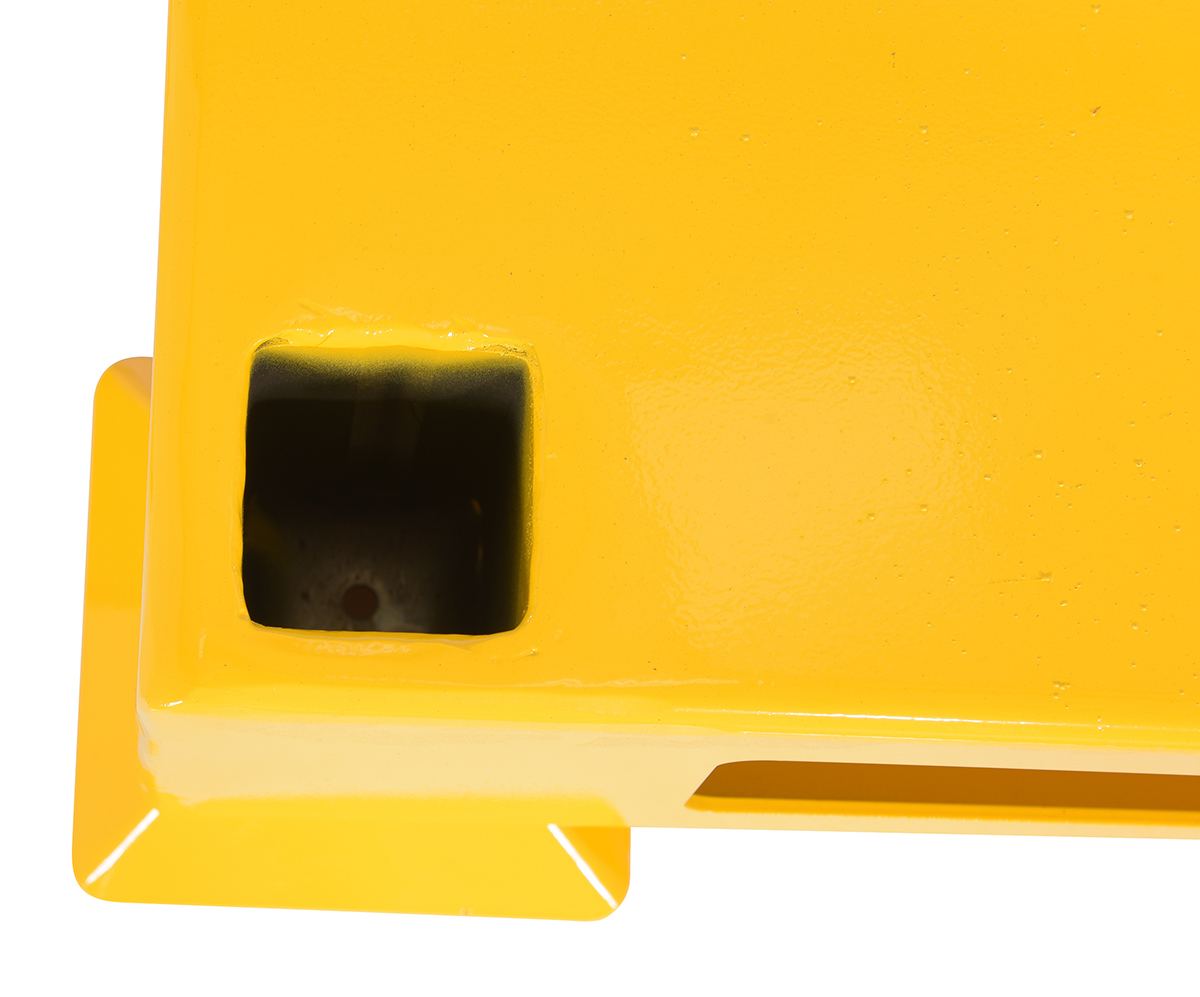

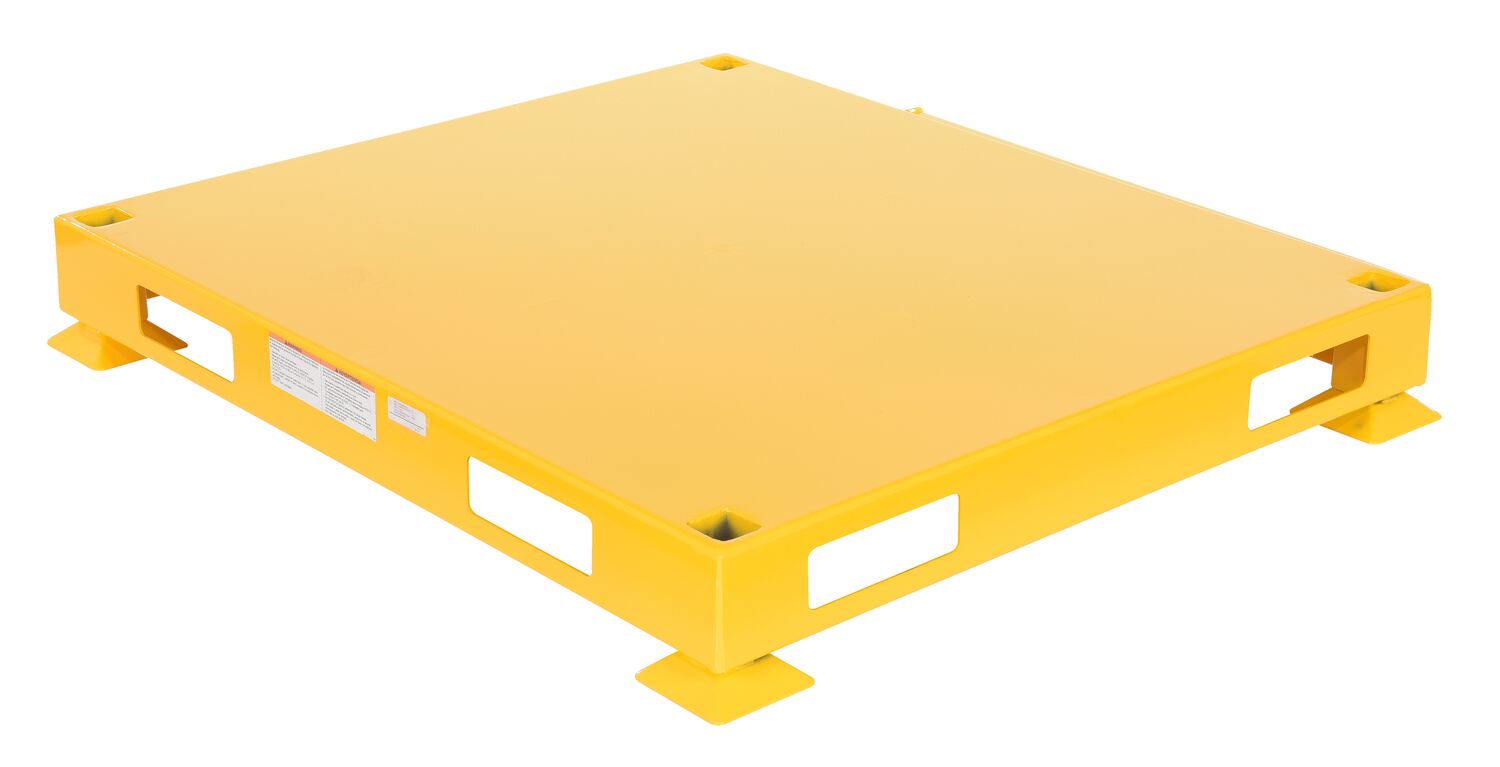

Model V-2 is a versa rack base, with no posts. Sockets included. The V-2 and V-3 can be used together by stacking a single V-2 onto a V-3 to create a larger, more versatile, model. A four way fork entrance enables the unit to be quickly transferred from workstation to workstation.

Versa Racks are great for transporting or storing items. Steel construction provides versatility, efficiency, and durability. Baked-in powder-coated toughness. Corner posts can be removed or changed to fit the needs of various applications. Double post pins provide support up to 4,000 uniform pounds. All models contain a four way fork entry for simple transference and can be stacked five (5) units high, while models using the 24"and 36" posts can be stacked three (3) high, during use. Four-way fork entry on all models. Usable fork opening is 8"W x 2-1/2"H. The overall model size is 49-7/16"W x 43-7/16"L. Custom sizes and configurations are available upon request.

Model V-1 has four adjustable-height non-removable posts, fixed base targets, 4-way fork entry, and solid steel deck. The usable height is adjustable in 1" increments from 11-1/4" to 17-1/4". These carts may be stacked no more than five (5) units high.

Model V-3 is ideal for transporting long, oversized loads of material. The model is a stand/ cart which has 8" phenolic caster and a floor lock. 12" high non-removable fixed-height corner posts. Overall height is 30-1/2".

Model V-4 is a versa rack pallet with no posts or sockets. Solid deck steel pallet is a durable way to transfer products.

Model V-2 is a versa rack base, with no posts. Sockets included. The V-2 and V-3 can be used together by stacking a single V-2 onto a V-3 to create a larger, more versatile, model. A four way fork entrance enables the unit to be quickly transferred from workstation to workstation.

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
V-1 V-190 Days Limited WarrantyWelded Steel Versa Rack Base with Non-Removable Post 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Base w/Non-Removable Posts
214
V-2 V-290 Days Limited WarrantyWelded Steel Versa Rack Base Only (No Post) 8 In. x 2-1/2 In. Fork Pockets 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Base/No Posts
162
V-3 V-390 Days Limited WarrantyWelded Steel Versa Rack Stand/Cart 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Stand/Cart
248
V-4 V-490 Days Limited WarrantyWelded Steel Versa Rack Base (No Post or Socket) 8 In. x 2-1/2 In. Fork Pockets 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Base/No Posts or Sockets
133
VP-12 VP-1290 Days Limited WarrantyWelded Steel Versa Rack Removable Post Kit 17 In. Height YellowTotal Stackable (qty.): 5
Component: Removable Posts
25

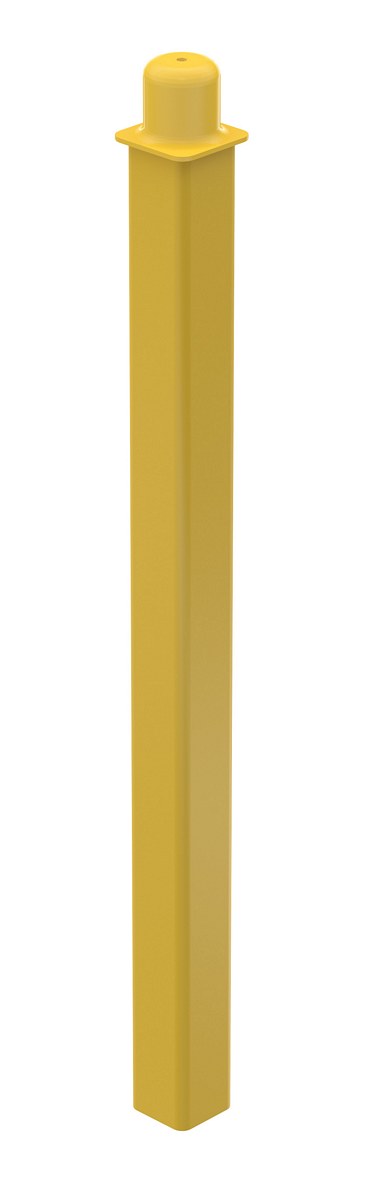

VP-24 VP-2490 Days Limited WarrantyWelded Steel Versa Rack Removable Post Kit 29 In. Height YellowTotal Stackable (qty.): 3
Component: Removable Posts
40

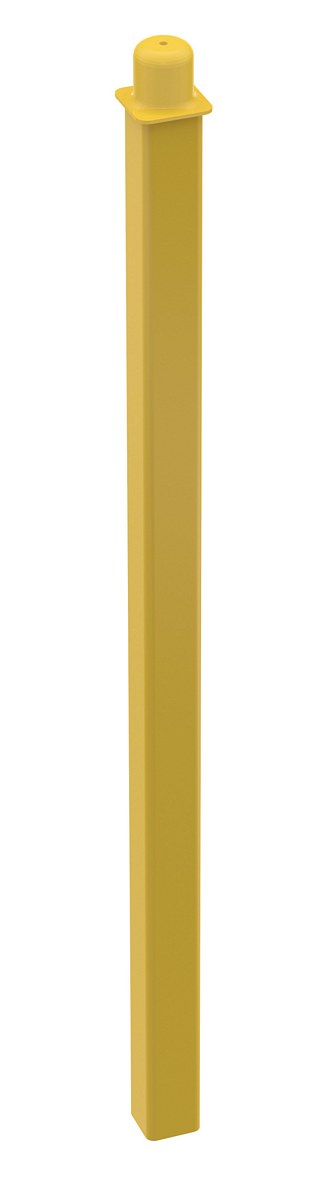

VP-36 VP-3690 Days Limited WarrantyWelded Steel Versa Rack Removable Post Kit 41 In. Height YellowTotal Stackable (qty.): 3
Component: Removable Posts
50

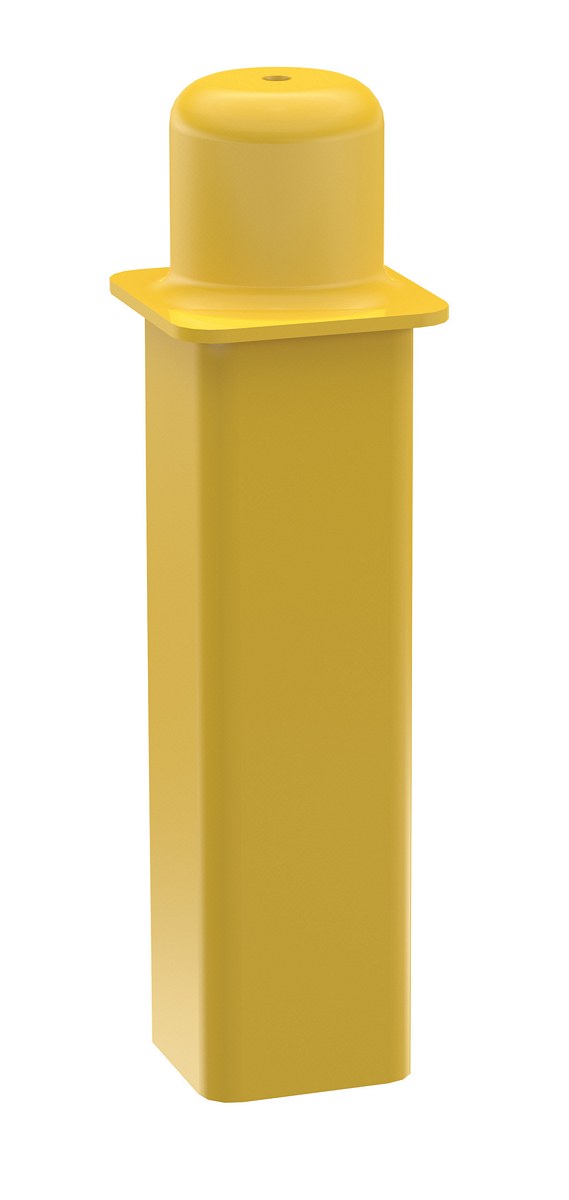

VP-4 VP-490 Days Limited WarrantyWelded Steel Versa Rack Removable Post Kit 9 In. Height YellowTotal Stackable (qty.): 5
Component: Removable Posts
15

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

V-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Component: Base w/Non-Removable Posts
Uniform Capacity (lb.): 4,000
Component: Base w/Non-Removable Posts

V-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Component: Base/No Posts
Uniform Capacity (lb.): 4,000
Component: Base/No Posts

V-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Component: Stand/Cart
Uniform Capacity (lb.): 4,000
Component: Stand/Cart

V-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Component: Base/No Posts or Sockets
Uniform Capacity (lb.): 4,000
Component: Base/No Posts or Sockets

VP-12
Unit:
Size: W x L x H
Weight:
Limited Warranty
Total Stackable (qty.): 5
Component: Removable Posts
Total Stackable (qty.): 5
Component: Removable Posts

VP-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Total Stackable (qty.): 3
Component: Removable Posts
Total Stackable (qty.): 3
Component: Removable Posts

VP-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Total Stackable (qty.): 3
Component: Removable Posts
Total Stackable (qty.): 3
Component: Removable Posts

VP-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Total Stackable (qty.): 5
Component: Removable Posts
Total Stackable (qty.): 5
Component: Removable Posts

Versa Racks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


V-1

V-2

V-3

V-4

VP-12

VP-24

VP-36

VP-4

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Versa Racks

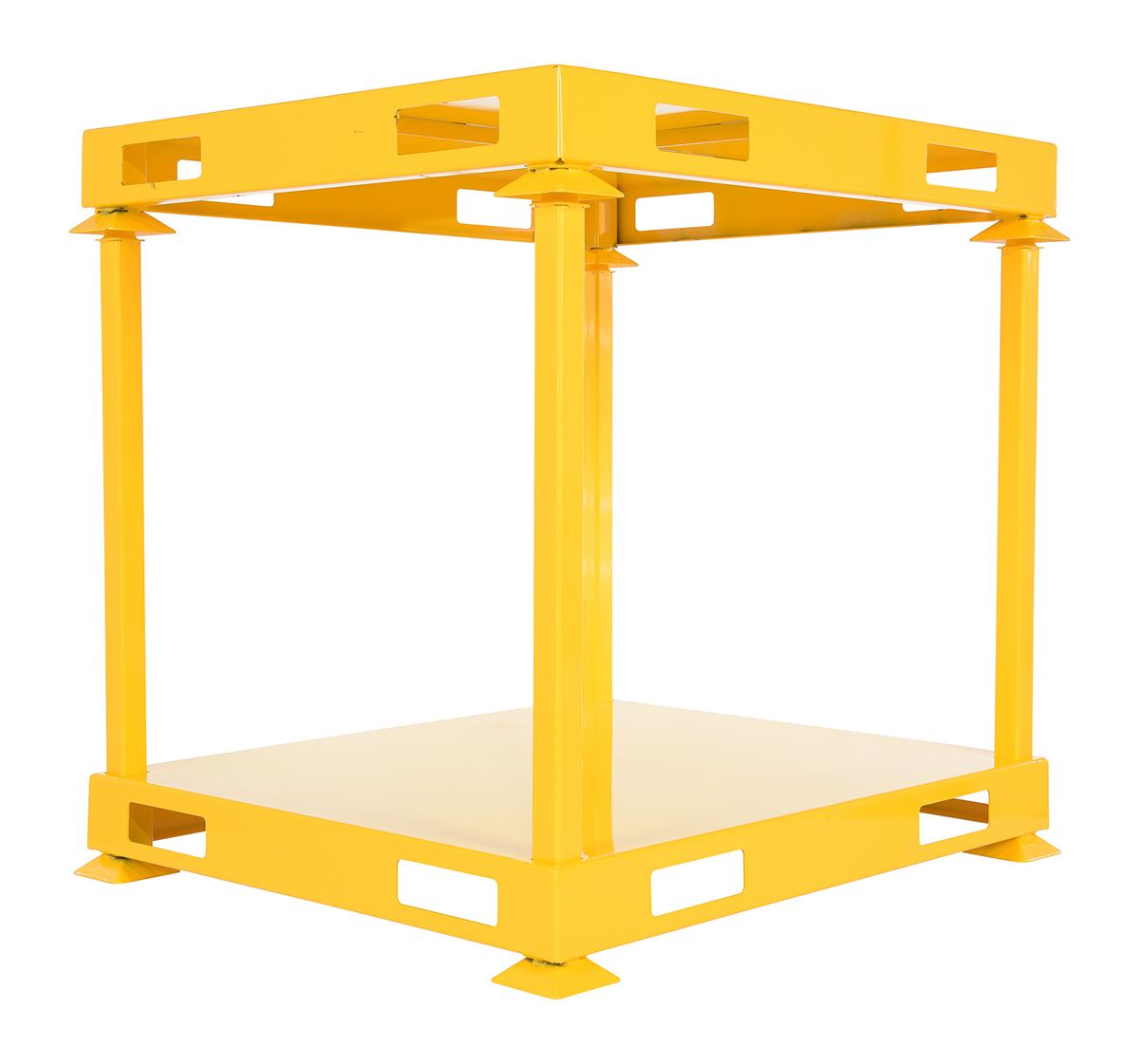

V series Configuration_A.jpg


Versa Racks are great for transporting or storing items. Steel construction provides versatility, efficiency, and durability. Baked-in powder-coated toughness. Corner posts can be removed or changed to fit the needs of various applications. Double post pins provide support up to 4,000 uniform pounds. All models contain a four way fork entry for simple transference and can be stacked five (5) units high, while models using the 24"and 36" posts can be stacked three (3) high, during use. Four-way fork entry on all models. Usable fork opening is 8"W x 2-1/2"H. The overall model size is 49-7/16"W x 43-7/16"L. Custom sizes and configurations are available upon request.

Model V-1 has four adjustable-height non-removable posts, fixed base targets, 4-way fork entry, and solid steel deck. The usable height is adjustable in 1" increments from 11-1/4" to 17-1/4". These carts may be stacked no more than five (5) units high.

Model V-3 is ideal for transporting long, oversized loads of material. The model is a stand/ cart which has 8" phenolic caster and a floor lock. 12" high non-removable fixed-height corner posts. Overall height is 30-1/2".

Model V-4 is a versa rack pallet with no posts or sockets. Solid deck steel pallet is a durable way to transfer products.

Model V-2 is a versa rack base, with no posts. Sockets included. The V-2 and V-3 can be used together by stacking a single V-2 onto a V-3 to create a larger, more versatile, model. A four way fork entrance enables the unit to be quickly transferred from workstation to workstation.



Model # Description Attributes Net Wt.
(lbs)
V-1 V-1Welded Steel Versa Rack Base with Non-Removable Post 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Base w/Non-Removable Posts
214
V-2 V-2Welded Steel Versa Rack Base Only (No Post) 8 In. x 2-1/2 In. Fork Pockets 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Base/No Posts
162
V-3 V-3Welded Steel Versa Rack Stand/Cart 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Stand/Cart
248
V-4 V-4Welded Steel Versa Rack Base (No Post or Socket) 8 In. x 2-1/2 In. Fork Pockets 4,000 Lb. Capacity YellowUniform Capacity (lb.): 4,000
Component: Base/No Posts or Sockets
133
VP-12 VP-12Welded Steel Versa Rack Removable Post Kit 17 In. Height YellowTotal Stackable (qty.): 5
Component: Removable Posts
25
VP-24 VP-24Welded Steel Versa Rack Removable Post Kit 29 In. Height YellowTotal Stackable (qty.): 3
Component: Removable Posts
40
VP-36 VP-36Welded Steel Versa Rack Removable Post Kit 41 In. Height YellowTotal Stackable (qty.): 3
Component: Removable Posts
50
VP-4 VP-4Welded Steel Versa Rack Removable Post Kit 9 In. Height YellowTotal Stackable (qty.): 5
Component: Removable Posts
15
