Portable Electric Salamanders

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
Click Image to Enlarge

model: PES-1024-1



Featured Facilities Maintenance


Fans, Air Conditioning & Heaters
Hanging Magnetic Sweepers
Tilt Trucks with Tow-Bar
Electric DEF Pumps
Molded Rubber Speed Bumps
Rubber Speed Humps
Fixture Welding Tables
Manhole Guard Rails
Bicycle Racks
model chart

Product Family Overview

Print Friendly
Portable Electric Salamanders
SERIES: PES

The Portable Electric Salamander is the perfect odorless, flameless electric alternative to propane and kerosene space heaters. Safety yellow heater enclosure with safety screens on both air intake and output openings. These units include long-life finned tubular heating elements, thermostat adjustment from 40 to 100 degree Fahrenheit, and fan only operating feature. Includes access panel for direct wiring connections and 10" wheels and handle for easy portability over all surface types. Units are ETL C/US listed. Indoor use only. Model PES-1024-1 is pre-wired with 10' cable and straight blade range plug.

  • Odorless and flame less alternative to propane and kerosene space heaters
  • Enclosed with safety screens on both air intake and output openings
  • Includes long-life finned tubular heating elements
  • Features handle for easy portability over all surface types

The Portable Electric Salamander is the perfect odorless, flameless electric alternative to propane and kerosene space heaters. Safety yellow heater enclosure with safety screens on both air intake and output openings. These units include long-life finned tubular heating elements, thermostat adjustment from 40 to 100 degree Fahrenheit, and fan only operating feature. Includes access panel for direct wiring connections and 10" wheels and handle for easy portability over all surface types. Units are ETL C/US listed. Indoor use only. Model PES-1024-1 is pre-wired with 10' cable and straight blade range plug.

  • Odorless and flame less alternative to propane and kerosene space heaters
  • Enclosed with safety screens on both air intake and output openings
  • Includes long-life finned tubular heating elements
  • Features handle for easy portability over all surface types

Other Fans, Air Conditioning & Heaters

 Shutter Mounted Exhaust Fans Portable Infrared Heat Panels Commercial Floor Fans Portable Electric Heaters

Additional Models In This Family
view entire Image Gallery

PES-64-SO

PES-64-SO

PES-3048-3

PES-3048-3

PES-1524-3

PES-1524-3

PES-1524-1

PES-1524-1

PES-43-SO

PES-43-SO

PES-1024-1

PES-1024-1

PES-124-SO

PES-124-SO

PES-1520-3

PES-1520-3

PES-1548-3

PES-1548-3

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

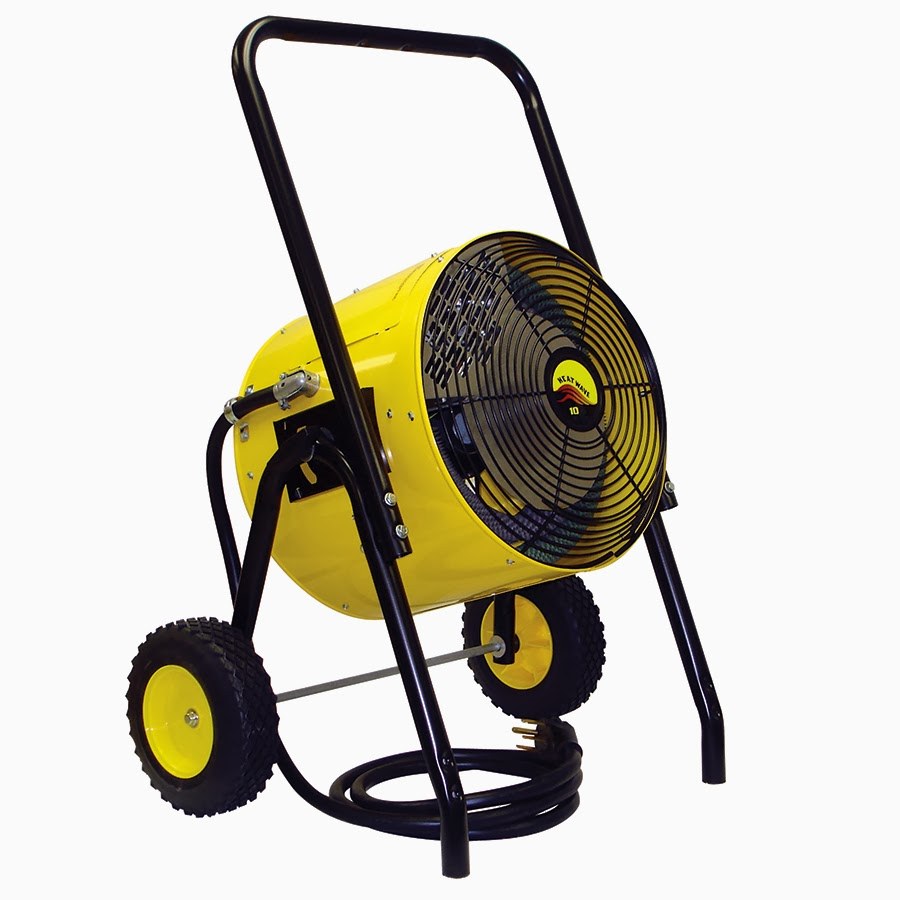

PES-1024-1 PES-1024-11 Year Limited WarrantySteel Portable Electric Heat Salamander 10KW 240 Volt 1 Phase YellowKW / Amps: 10/42
Volts/Phase: 240/1		63

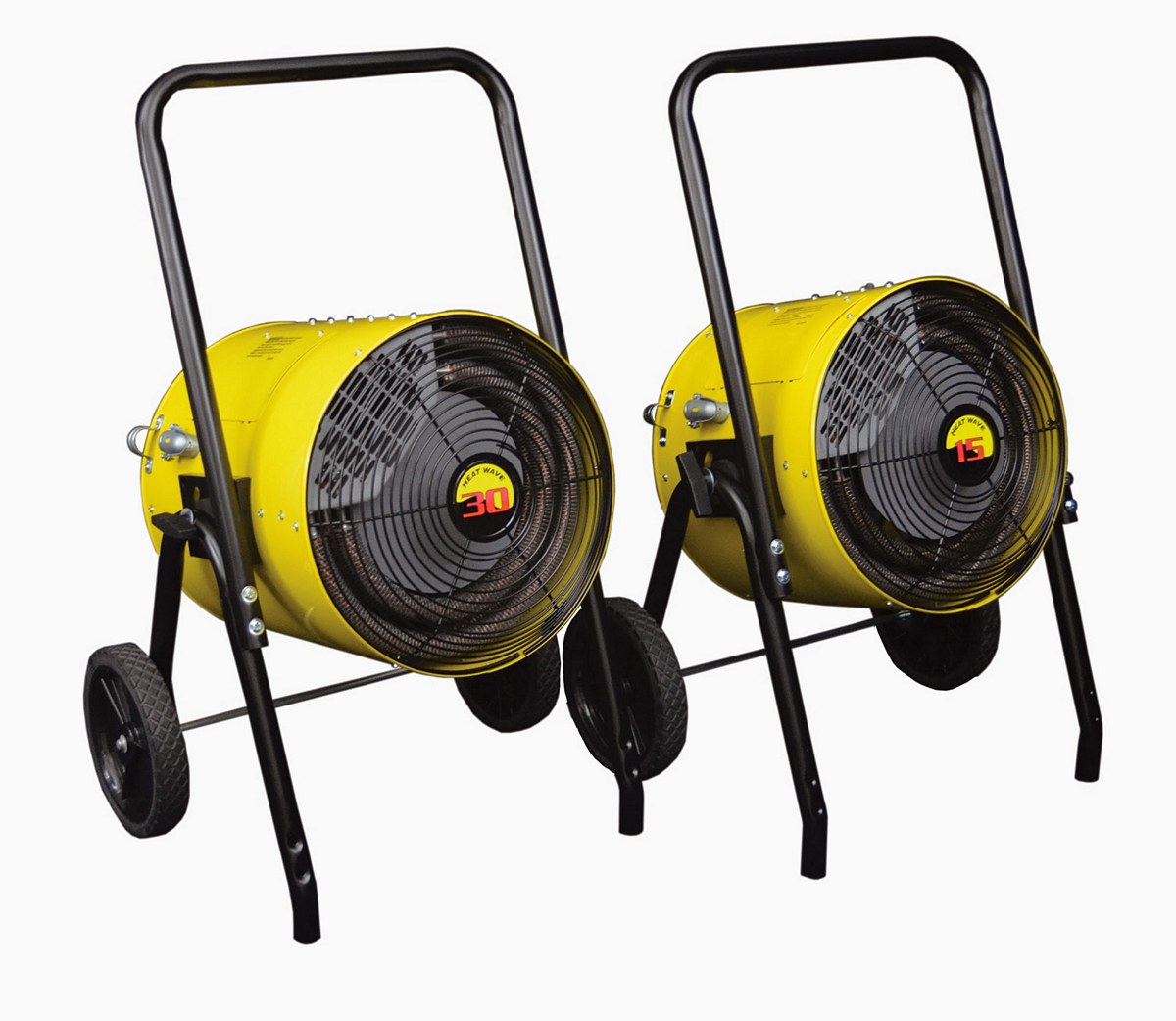

PES-1520-3 PES-1520-31 Year Limited WarrantySteel Portable Electric Heat Salamander 15KW 208 Volt 3 Phase YellowKW / Amps: 15/42
Volts/Phase: 208/3		65
PES-1524-1 PES-1524-11 Year Limited WarrantySteel Portable Electric Heat Salamander 15KW 240 Volt 1 Phase YellowKW / Amps: 15/63
Volts/Phase: 240/1		69
PES-1524-3 PES-1524-31 Year Limited WarrantySteel Portable Electric Heat Salamander 15KW 240 Volt 3 Phase YellowKW / Amps: 15/36
Volts/Phase: 240/3		69
PES-1548-3 PES-1548-31 Year Limited WarrantySteel Portable Electric Heat Salamander 15KW 480 Volt 3 Phase YellowKW / Amps: 15/18
Volts/Phase: 480/3		65

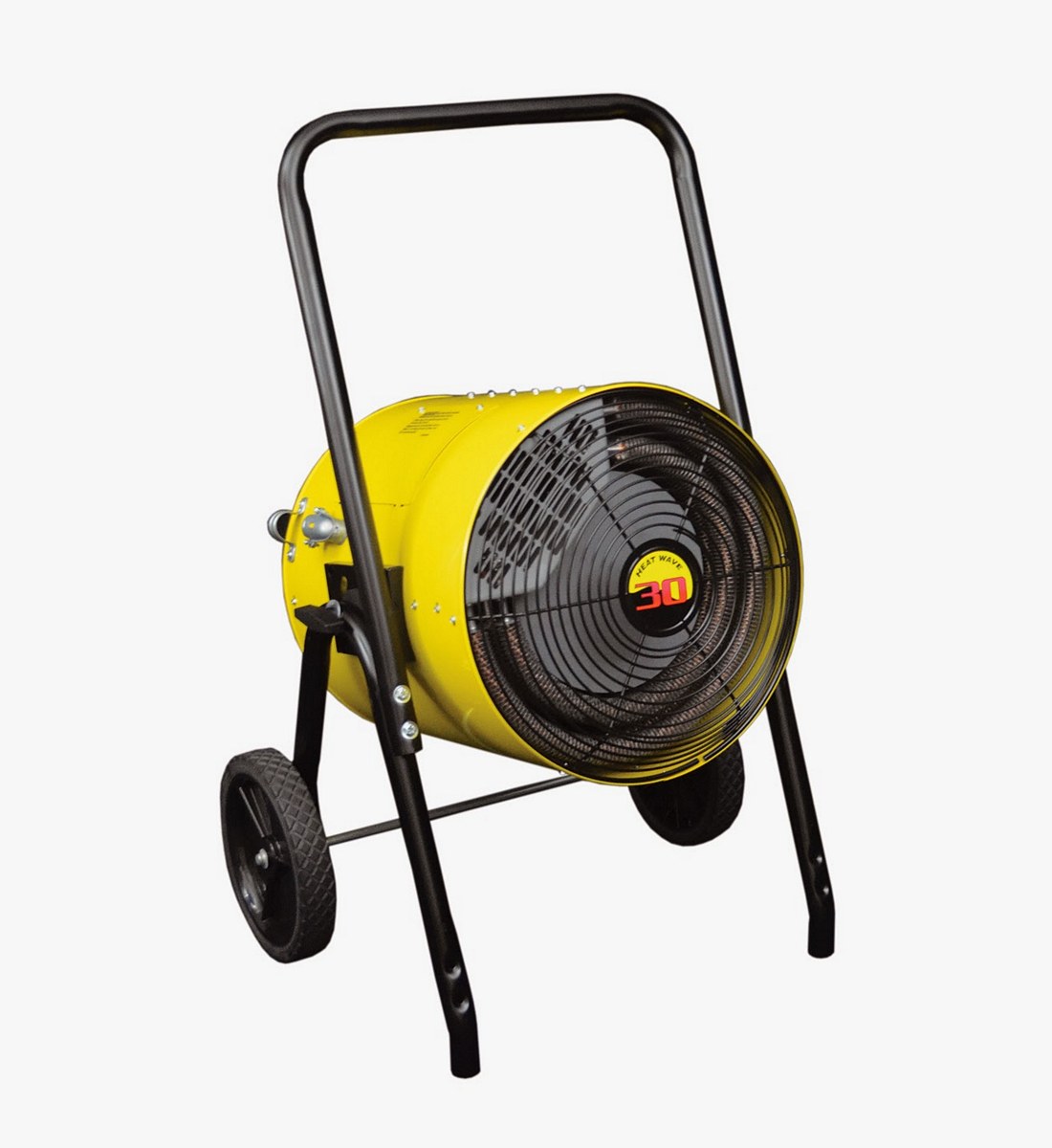

PES-3048-3 PES-3048-31 Year Limited WarrantySteel Portable Electric Heat Salamander 30KW 480 Volt 3 Phase YellowKW / Amps: 30/36
Volts/Phase: 480/3		83

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

PES-1024-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
KW / Amps: 10/42
Volts/Phase: 240/1
KW / Amps: 10/42
Volts/Phase: 240/1

PES-1520-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
KW / Amps: 15/42
Volts/Phase: 208/3
KW / Amps: 15/42
Volts/Phase: 208/3

PES-1524-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
KW / Amps: 15/63
Volts/Phase: 240/1
KW / Amps: 15/63
Volts/Phase: 240/1

PES-1524-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
KW / Amps: 15/36
Volts/Phase: 240/3
KW / Amps: 15/36
Volts/Phase: 240/3

PES-1548-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
KW / Amps: 15/18
Volts/Phase: 480/3
KW / Amps: 15/18
Volts/Phase: 480/3

PES-3048-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
KW / Amps: 30/36
Volts/Phase: 480/3
KW / Amps: 30/36
Volts/Phase: 480/3
For More Details of the Option Click the Red Model Button

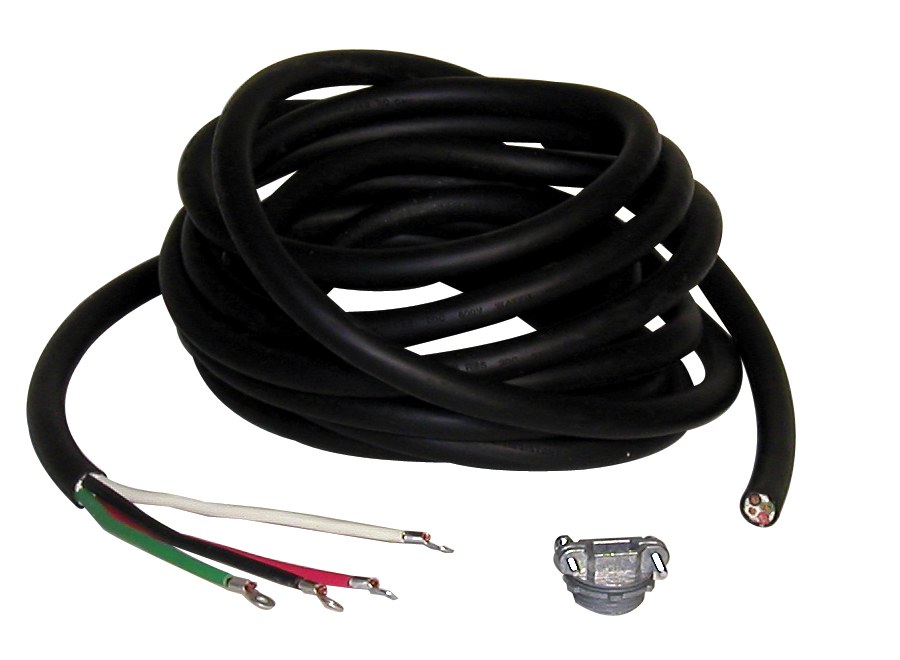

PES-124-SO PES-124-SO1 Year Limited WarrantyRubber 25 Ft. 12/4 SO Power Cord BlackCord Length (ft.): 25
64

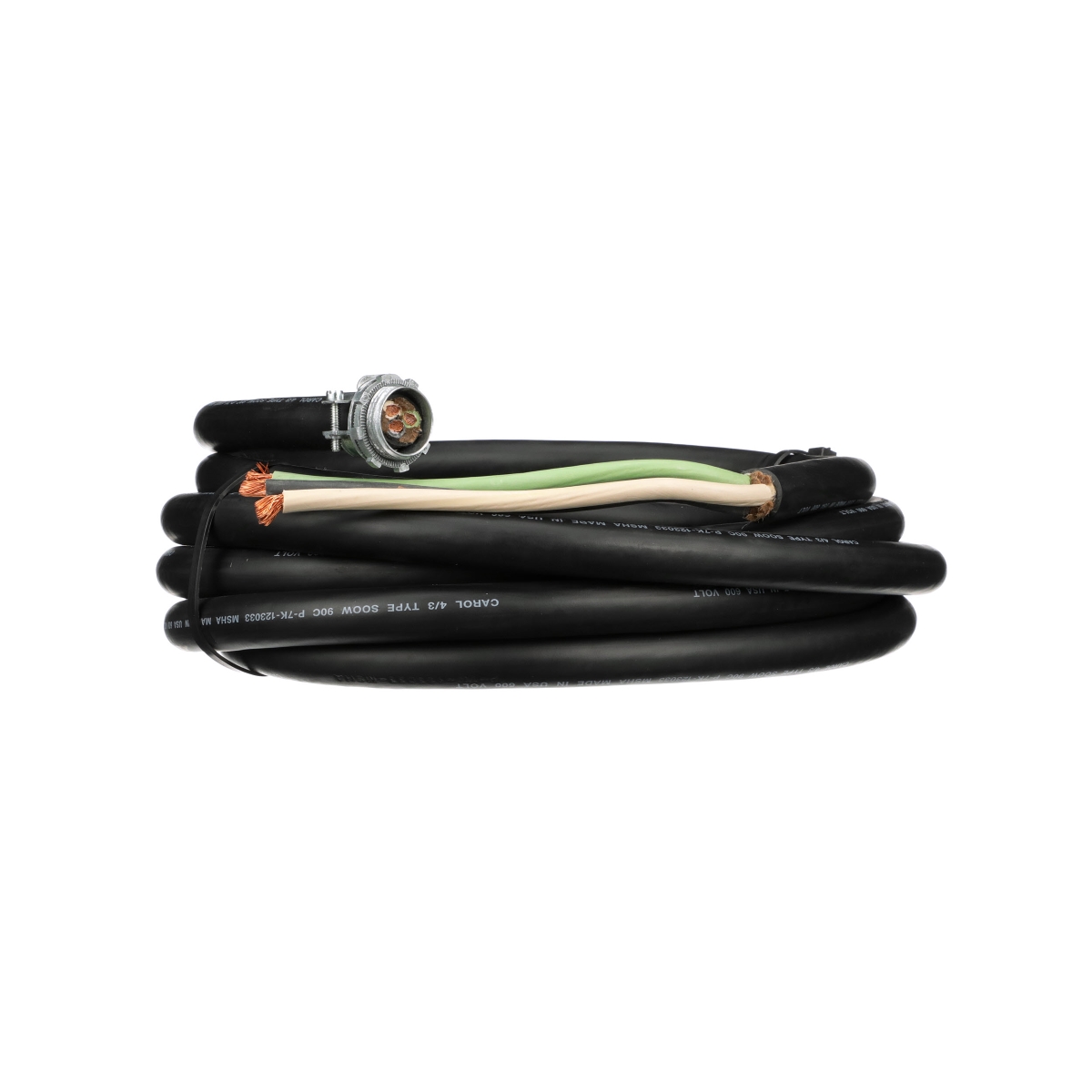

PES-43-SO PES-43-SO1 Year Limited WarrantyRubber 25 Ft. 4/3 SO Power Cord BlackCord Length (ft.): 25
83

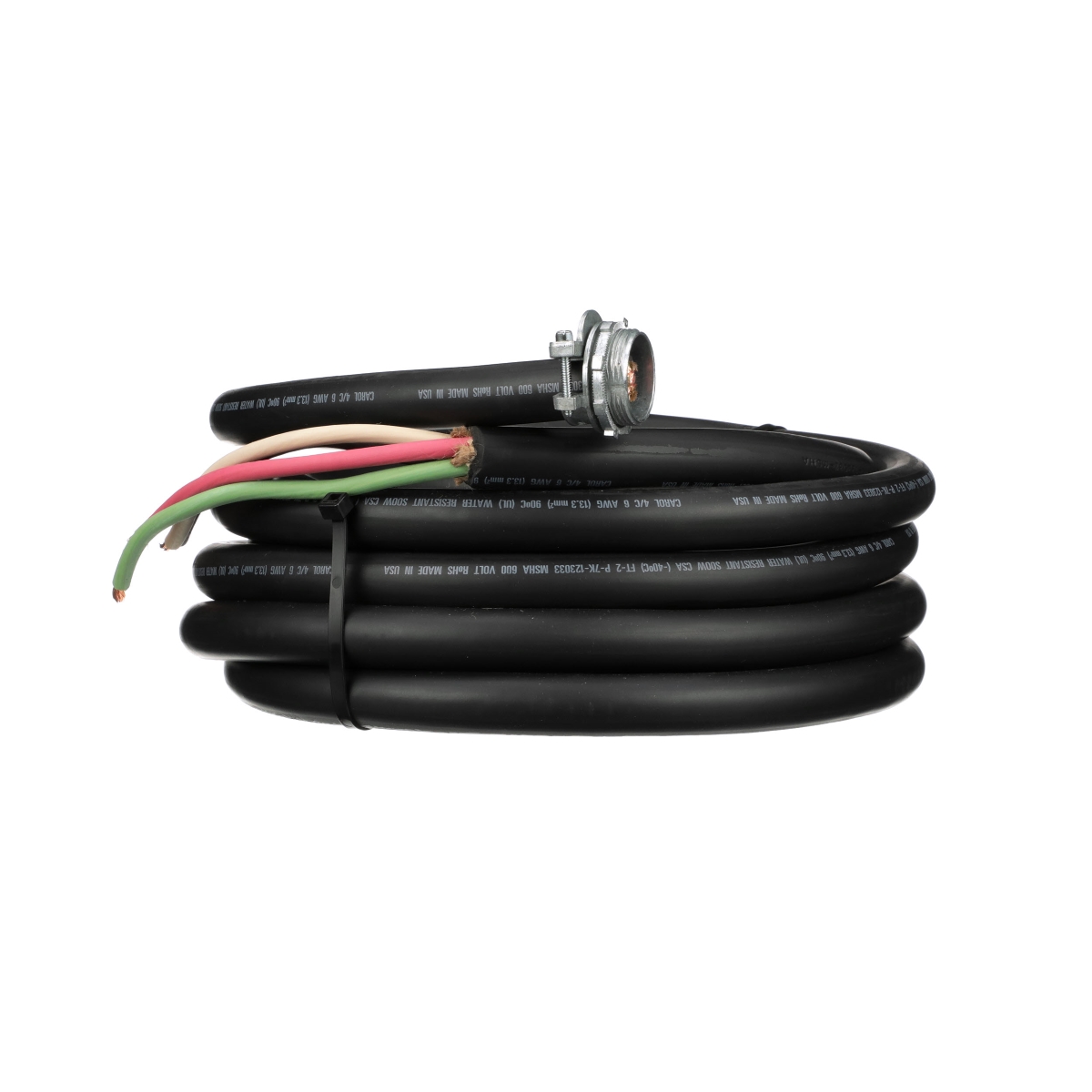

PES-64-SO PES-64-SO1 Year Limited WarrantyRubber 25 Ft. 6/4 SO Power Cord BlackCord Length (ft.): 25
84

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Portable Electric Salamanders PDF's will open in a new window when clicked.

Manuals


PES
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Portable Electric Heat Products Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Portable Electric Heaters
Product

Portable Electric Heaters

Portable Electric Infrared Heaters
Product

Portable Electric Infrared Heaters

Quartz Infrared Spot Heaters
Product

Quartz Infrared Spot Heaters

Infrared Heaters
Product

Infrared Heaters

Portable Quartz Infrared Spot Heater
Product

Portable Quartz Infrared Spot Heater

Portable Infrared Heat Panels
Product

Portable Infrared Heat Panels

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Electric Salamanders




The Portable Electric Salamander is the perfect odorless, flameless electric alternative to propane and kerosene space heaters. Safety yellow heater enclosure with safety screens on both air intake and output openings. These units include long-life finned tubular heating elements, thermostat adjustment from 40 to 100 degree Fahrenheit, and fan only operating feature. Includes access panel for direct wiring connections and 10" wheels and handle for easy portability over all surface types. Units are ETL C/US listed. Indoor use only. Model PES-1024-1 is pre-wired with 10' cable and straight blade range plug.

  • Odorless and flame less alternative to propane and kerosene space heaters
  • Enclosed with safety screens on both air intake and output openings
  • Includes long-life finned tubular heating elements
  • Features handle for easy portability over all surface types

Model # Description Attributes Net Wt.
(lbs)
PES-1024-1 PES-1024-1Steel Portable Electric Heat Salamander 10KW 240 Volt 1 Phase YellowKW / Amps: 10/42
Volts/Phase: 240/1		63
PES-1520-3 PES-1520-3Steel Portable Electric Heat Salamander 15KW 208 Volt 3 Phase YellowKW / Amps: 15/42
Volts/Phase: 208/3		65
PES-1524-1 PES-1524-1Steel Portable Electric Heat Salamander 15KW 240 Volt 1 Phase YellowKW / Amps: 15/63
Volts/Phase: 240/1		69
PES-1524-3 PES-1524-3Steel Portable Electric Heat Salamander 15KW 240 Volt 3 Phase YellowKW / Amps: 15/36
Volts/Phase: 240/3		69
PES-1548-3 PES-1548-3Steel Portable Electric Heat Salamander 15KW 480 Volt 3 Phase YellowKW / Amps: 15/18
Volts/Phase: 480/3		65
PES-3048-3 PES-3048-3Steel Portable Electric Heat Salamander 30KW 480 Volt 3 Phase YellowKW / Amps: 30/36
Volts/Phase: 480/3		83
