Product Family Overview

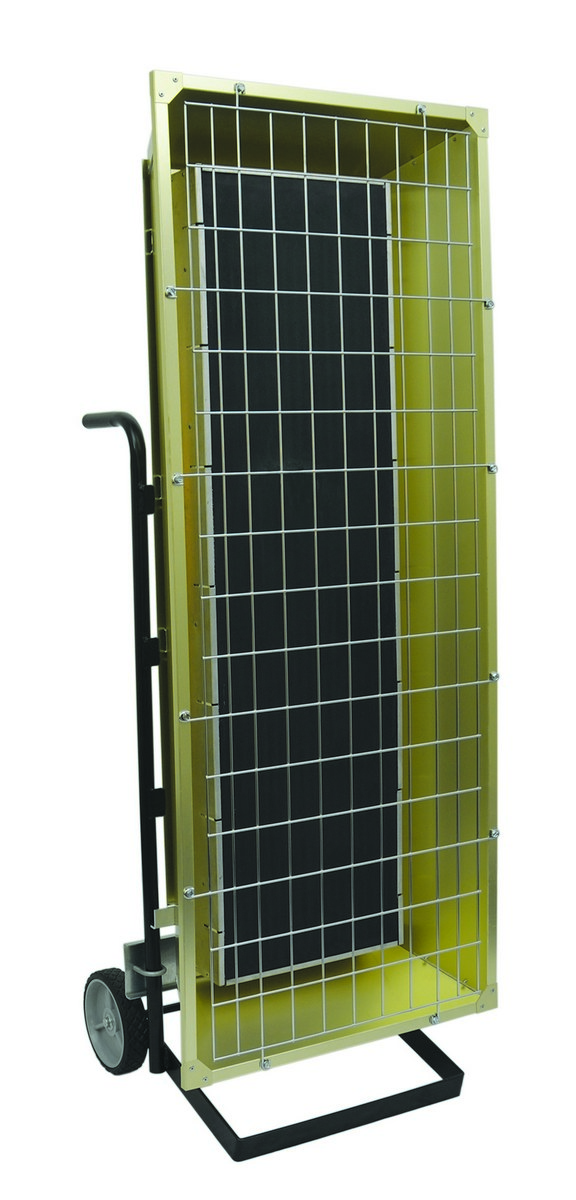

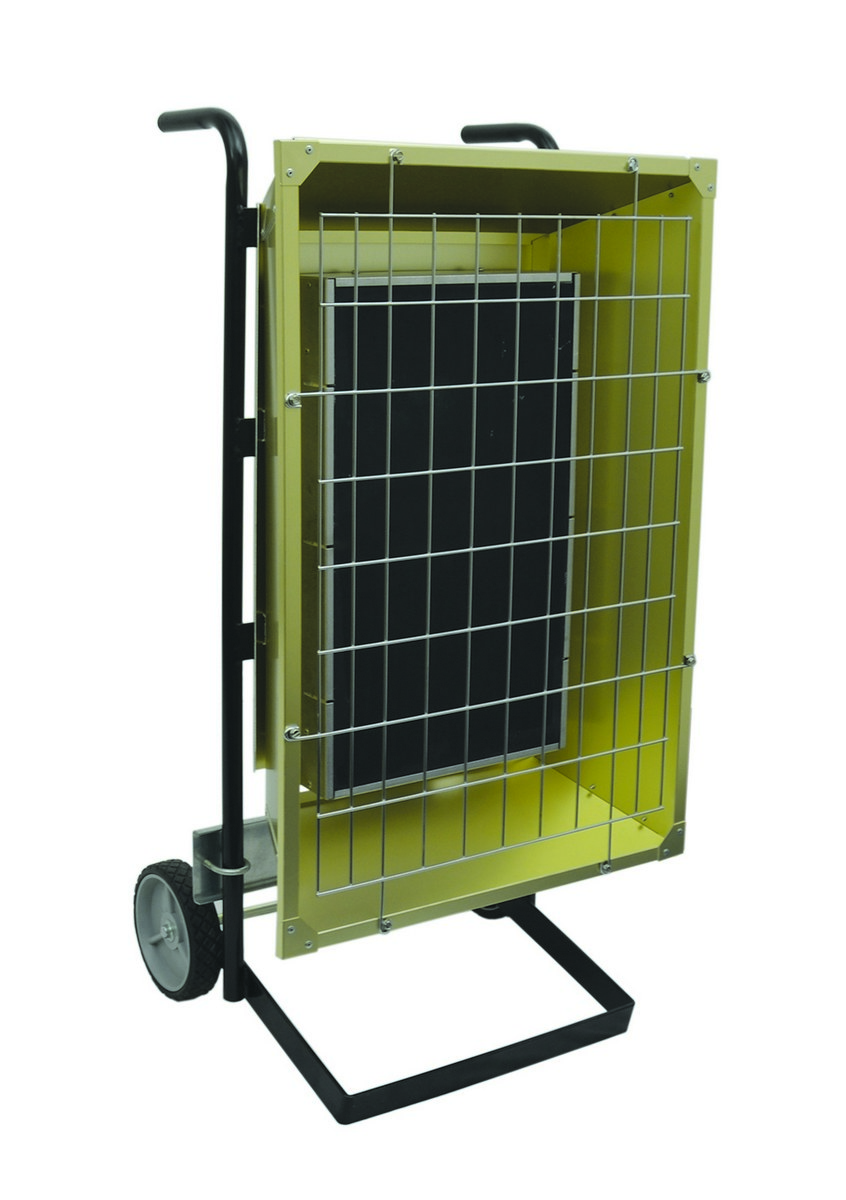

Portable Electric Infrared Heaters
SERIES: VFSP


3-PHASE STANDARD

Provide instant, odor-free heat for indoor and semi-protected outdoor workstations and warehouse areas. Economical electric infrared heat warms only persons and objects, not the air volume. Durable heavy duty flat panel emitter heating elements are designed for a variety of applications using no glass materials. All models have gold anodized aluminum reflectors, terminal box, protective wire screens, and reinforced front edge and corner construction. Heaters can be adjusted on the hand cat to operate in a horizontal or vertical position for maximizing the infrared heating pattern. Carts consists of a rugged steel design and are equipped with 6" rubber wheels, twin hand grips. Heaters are factory wired for three phase, but can be converted to single phase for most units.

  • Portable infrared heater
  • Cart & 6" diameter wheels
  • Factory wired for 3-phase operation, can convert to 1-phase
  • Flat panel emitter heating element operates @ 79% radiant efficiency


3-PHASE STANDARD

Provide instant, odor-free heat for indoor and semi-protected outdoor workstations and warehouse areas. Economical electric infrared heat warms only persons and objects, not the air volume. Durable heavy duty flat panel emitter heating elements are designed for a variety of applications using no glass materials. All models have gold anodized aluminum reflectors, terminal box, protective wire screens, and reinforced front edge and corner construction. Heaters can be adjusted on the hand cat to operate in a horizontal or vertical position for maximizing the infrared heating pattern. Carts consists of a rugged steel design and are equipped with 6" rubber wheels, twin hand grips. Heaters are factory wired for three phase, but can be converted to single phase for most units.

  • Portable infrared heater
  • Cart & 6" diameter wheels
  • Factory wired for 3-phase operation, can convert to 1-phase
  • Flat panel emitter heating element operates @ 79% radiant efficiency

Additional Models In This Family

VFSP-4324-3

model VFSP-4324-3

VFSP-4348-3

model VFSP-4348-3

VFSP-9548-3

model VFSP-9548-3

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
VFSP-4324-3 VFSP-4324-31 Year Limited WarrantySteel Portable Electric Infrared Heater 4.3 KW 240 Volts 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 14000
39
VFSP-4348-3 VFSP-4348-31 Year Limited WarrantySteel Portable Electric Infrared Heater 4.3 KW 480 Volt 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 14000
39
VFSP-9524-3 VFSP-9524-31 Year Limited WarrantySteel Portable Electric Infrared Heater 9.5 KW 240 Volt 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 32000
56
VFSP-9548-3 VFSP-9548-31 Year Limited WarrantySteel Portable Electric Infrared Heater 9.5 KW 480 Volt 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 32000
56

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

VFSP-4324-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Fuel Type: Electric
BTU Heat Rating: 14000
Fuel Type: Electric
BTU Heat Rating: 14000

VFSP-4348-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Fuel Type: Electric
BTU Heat Rating: 14000
Fuel Type: Electric
BTU Heat Rating: 14000

VFSP-9524-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Fuel Type: Electric
BTU Heat Rating: 32000
Fuel Type: Electric
BTU Heat Rating: 32000

VFSP-9548-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Fuel Type: Electric
BTU Heat Rating: 32000
Fuel Type: Electric
BTU Heat Rating: 32000

Portable Electric Infrared Heaters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


VFSP-4324-3

VFSP-4348-3

VFSP-9524-3

VFSP-9548-3

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Electric Infrared Hea...





3-PHASE STANDARD

Provide instant, odor-free heat for indoor and semi-protected outdoor workstations and warehouse areas. Economical electric infrared heat warms only persons and objects, not the air volume. Durable heavy duty flat panel emitter heating elements are designed for a variety of applications using no glass materials. All models have gold anodized aluminum reflectors, terminal box, protective wire screens, and reinforced front edge and corner construction. Heaters can be adjusted on the hand cat to operate in a horizontal or vertical position for maximizing the infrared heating pattern. Carts consists of a rugged steel design and are equipped with 6" rubber wheels, twin hand grips. Heaters are factory wired for three phase, but can be converted to single phase for most units.

  • Portable infrared heater
  • Cart & 6" diameter wheels
  • Factory wired for 3-phase operation, can convert to 1-phase
  • Flat panel emitter heating element operates @ 79% radiant efficiency


Model # Description Attributes Net Wt.
(lbs)
VFSP-4324-3 VFSP-4324-3Steel Portable Electric Infrared Heater 4.3 KW 240 Volts 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 14000
39
VFSP-4348-3 VFSP-4348-3Steel Portable Electric Infrared Heater 4.3 KW 480 Volt 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 14000
39
VFSP-9524-3 VFSP-9524-3Steel Portable Electric Infrared Heater 9.5 KW 240 Volt 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 32000
56
VFSP-9548-3 VFSP-9548-3Steel Portable Electric Infrared Heater 9.5 KW 480 Volt 3 Phase Silver/BlackFuel Type: Electric
BTU Heat Rating: 32000
56
