Fully Powered Electric Pallet Truck

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

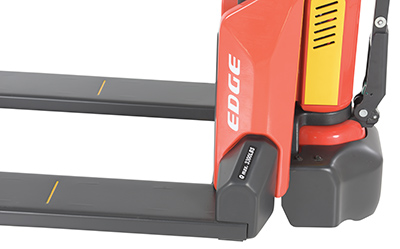

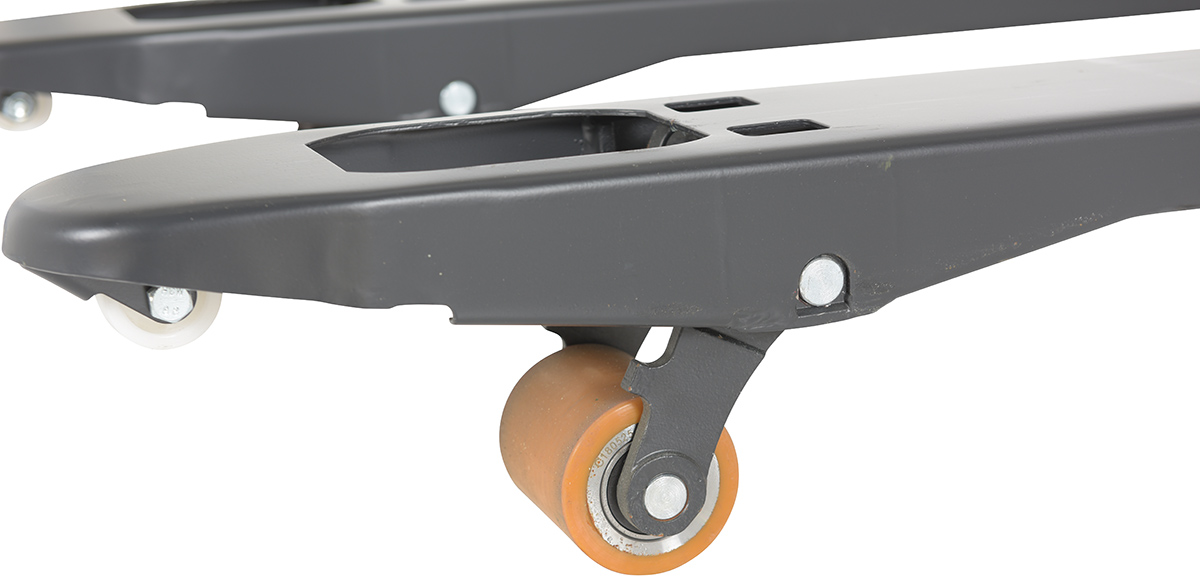

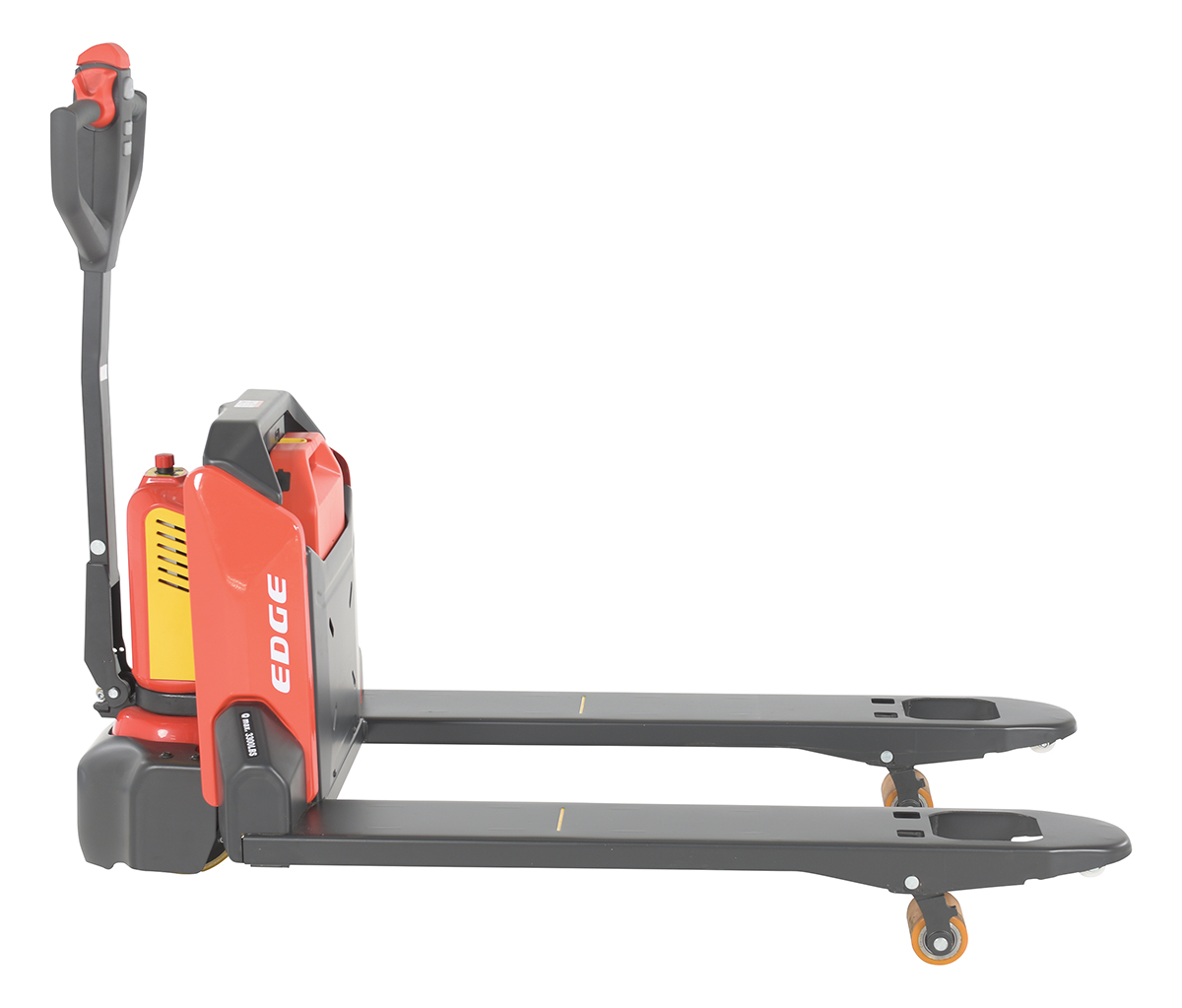

EPT-2745-33_A.jpg EPT-2745-33_C.jpg EPT-2745-33_E.jpg EPT-2745-33_F.jpg
EPT-2745-33_G.jpg EPT-2745-33_I.jpg EPT-2745-33_J.jpg EPT-2745-33_H.jpg

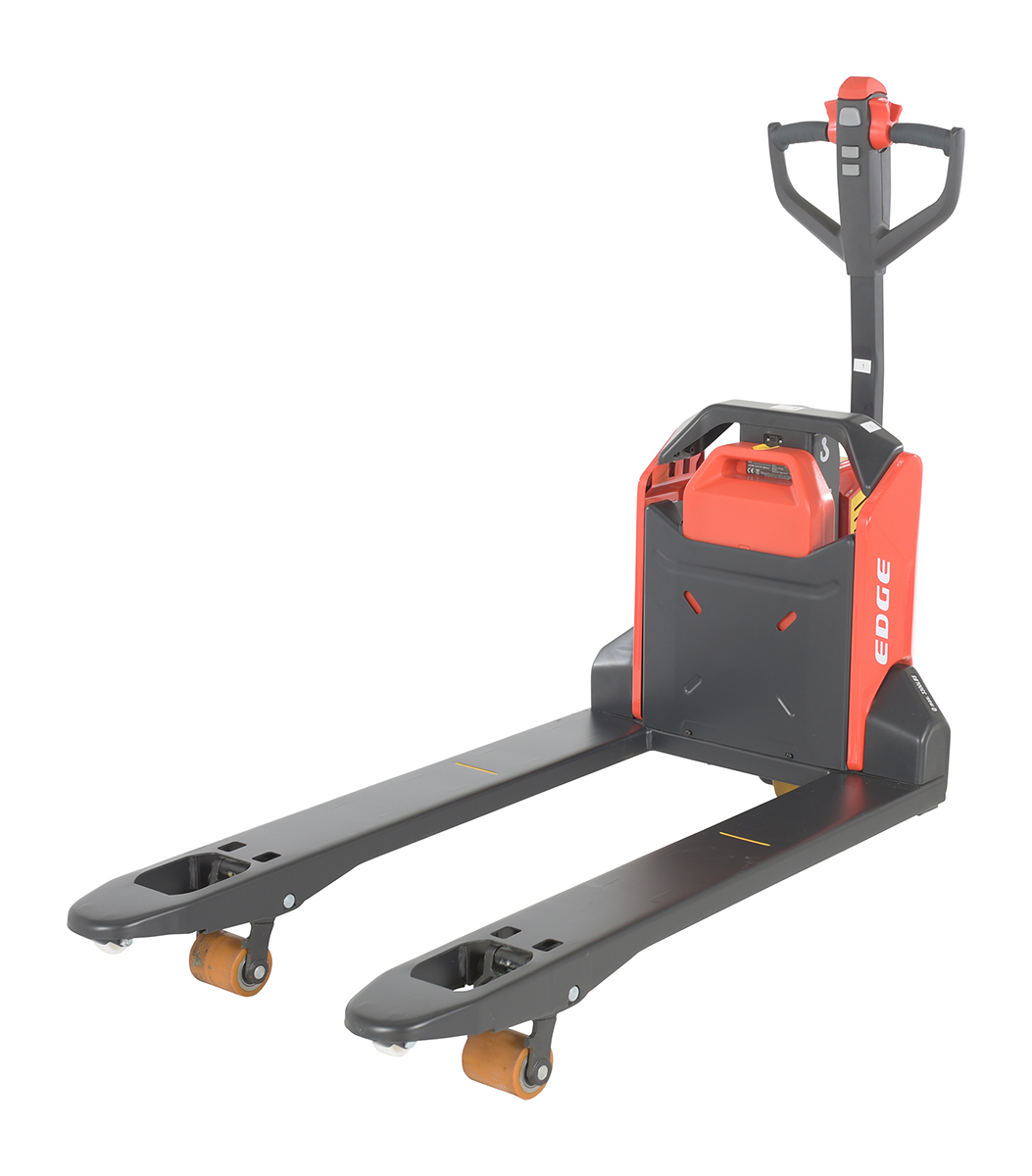

Fully Powered Electric Pallet Truck

model: EPT-2745-33



Featured Ergonomic Solutions


Low Profile Electric Lift Table
Pallet Jockeys for "Walkie" Trucks
Versatile Quick Lifts
Self Elevating Tables
Single Fork Pallet Master
Self-Elevating Spring Tables
Deluxe Roller Stands
Pallet Truck Chock
Options For Electric Hydraulic Equipment
model chart

Product Family Overview

Print Friendly

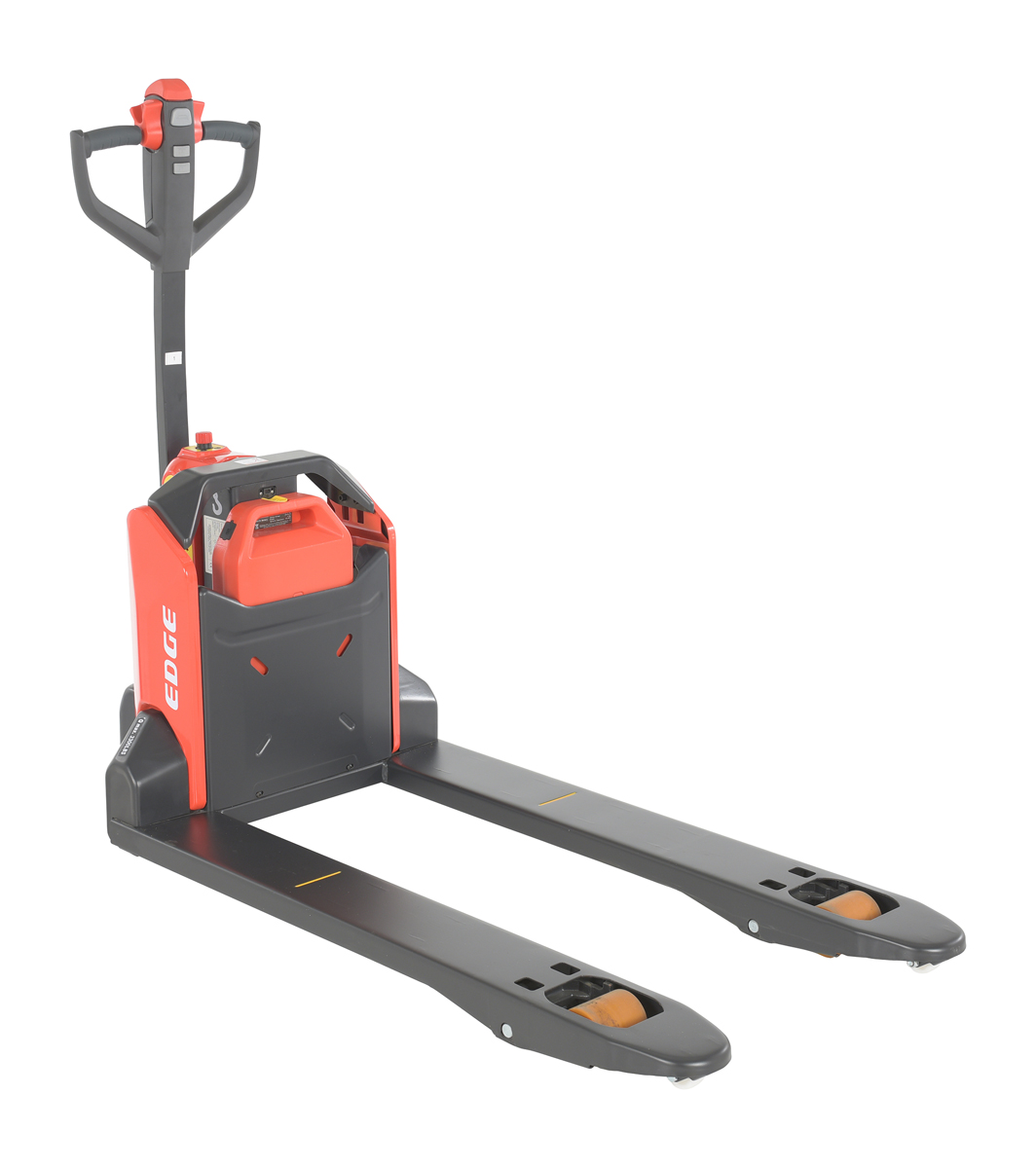

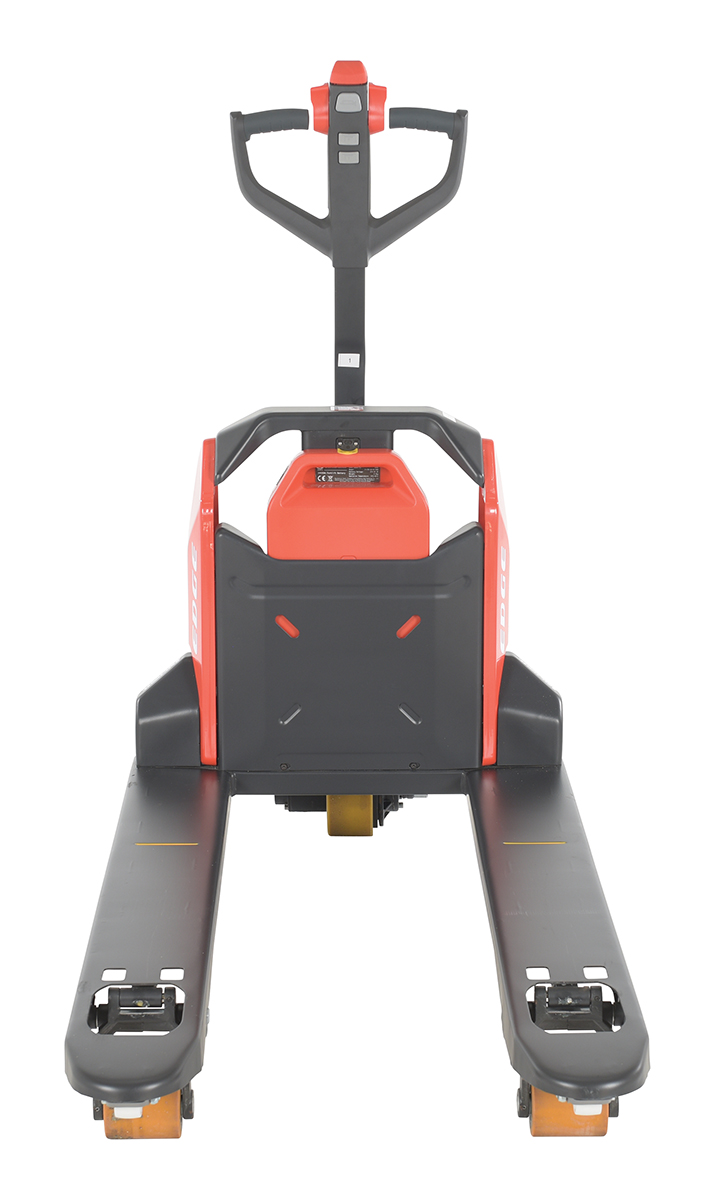

Fully Powered Electric Pallet Truck
SERIES: EPT

Combines the advantages of a manual and an electric pallet truck!

An electric pallet truck is the perfect upgrade from the standard manual design. This functional approach minimizes manual labor and maximizes efficiency when moving products and goods. Speed adjustments as well as raising/lowering forks can be modified without the users' hands leaving the functional handle. Unit is powered by a lithium ion battery for continuous consistent use. Forks are powder coated for a baked in added toughness.

Standard Features:

  • Smart design, high performance, and maintenance friendly.
  • Compact body design is even smaller than conventional hand pallet trucks.
  • Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs.

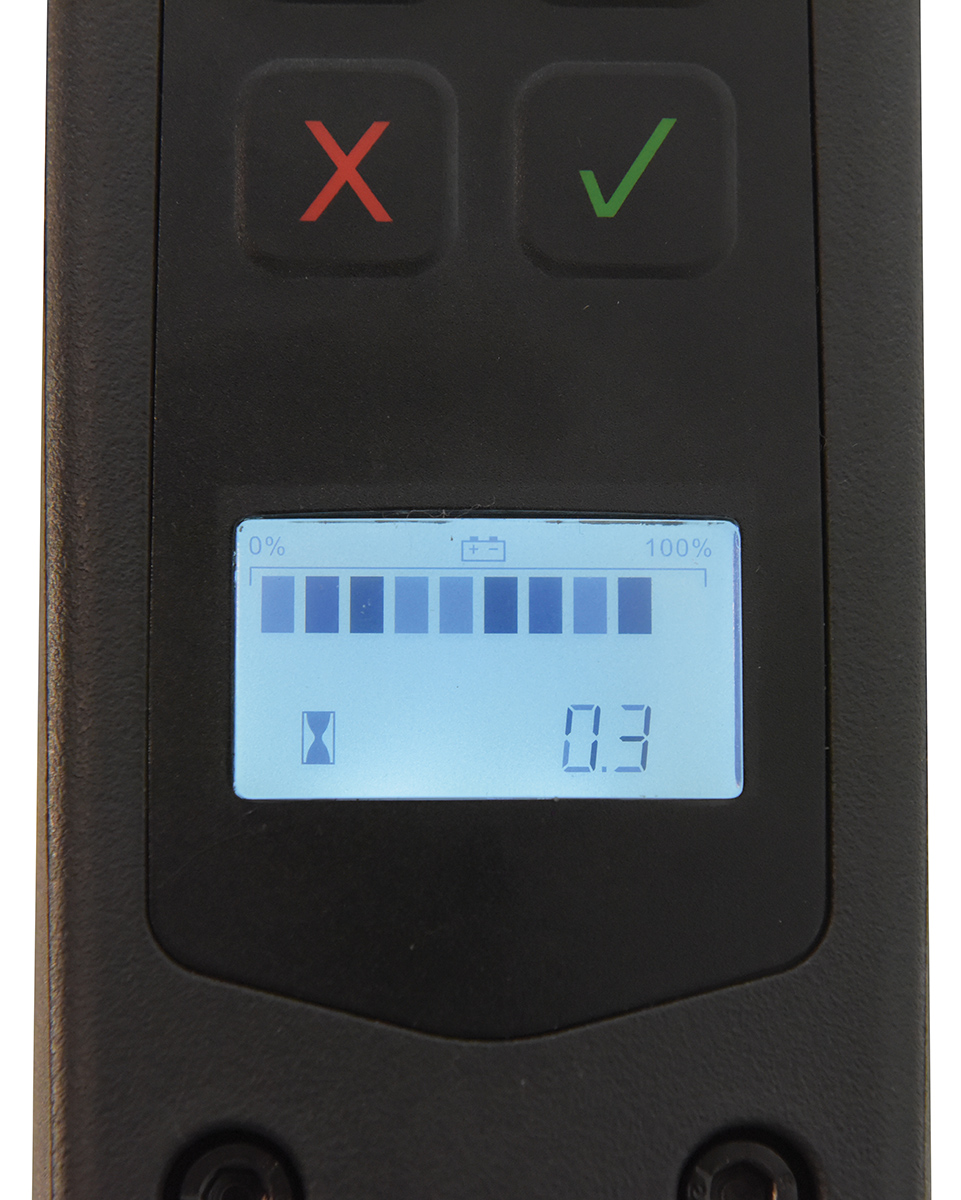

  • LCD display features battery charge indicator, operating hour counter, and on-board diagnostic via error code.
  • Unique auto sensor slows down the truck speed by 50% on sharp turns.
  • Unit can operate when handle is in up position. (UP-RIGHT Driving)
  • Equipped with a maintenance free 24V/20Ah lithium ion battery.
  • Battery pack is interchangeable for continuous usage.
  • Additional battery packs are available.

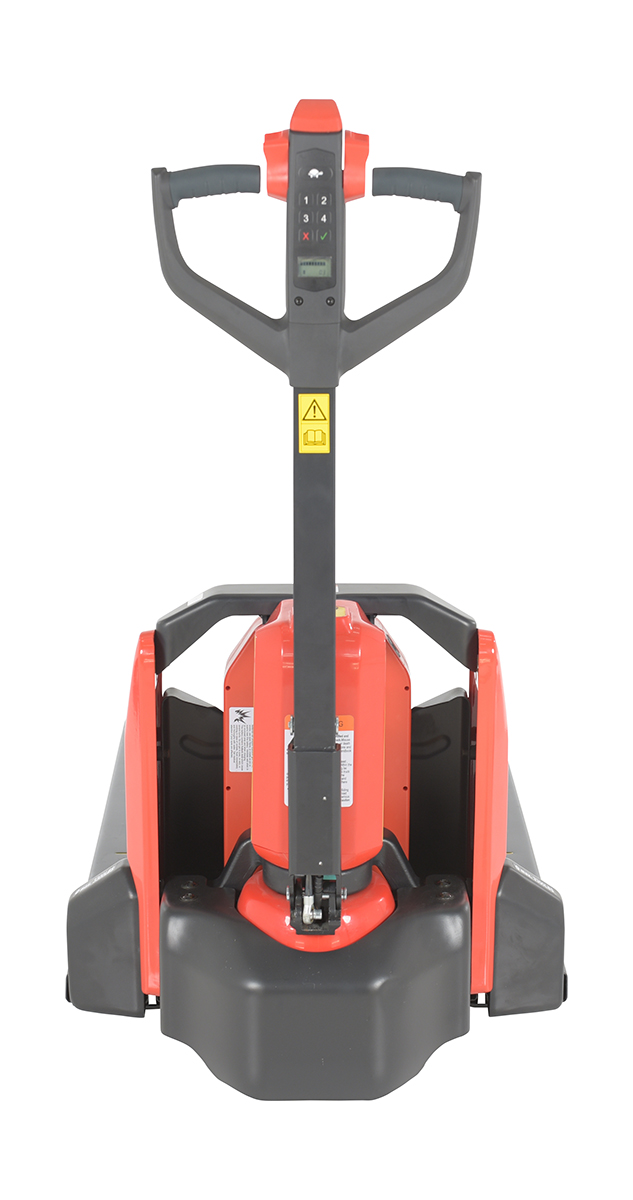

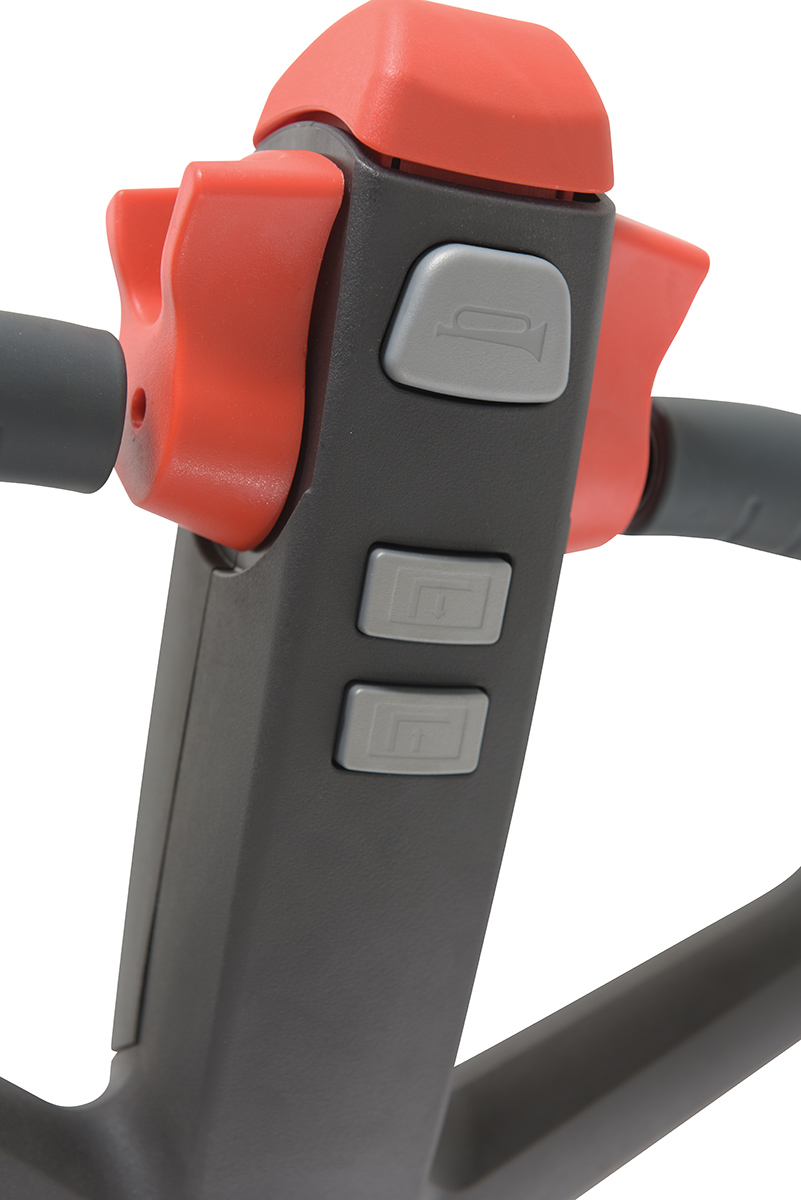

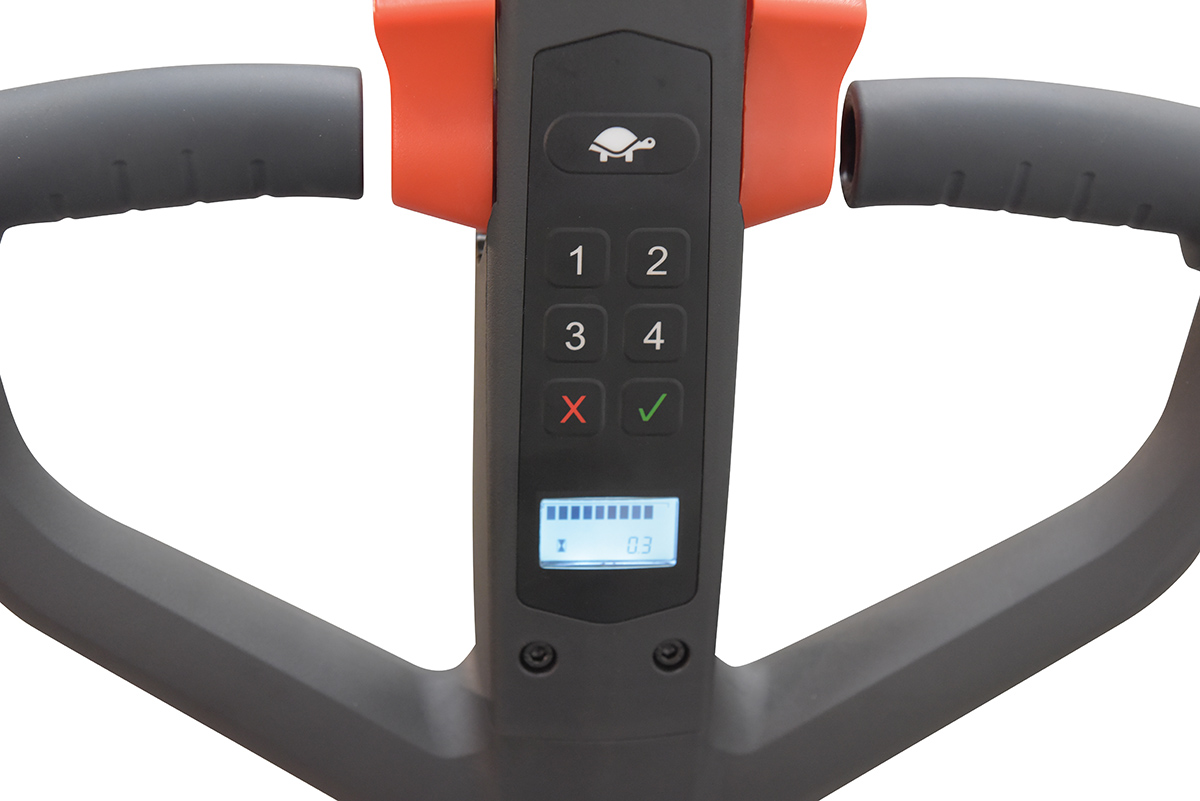

Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs

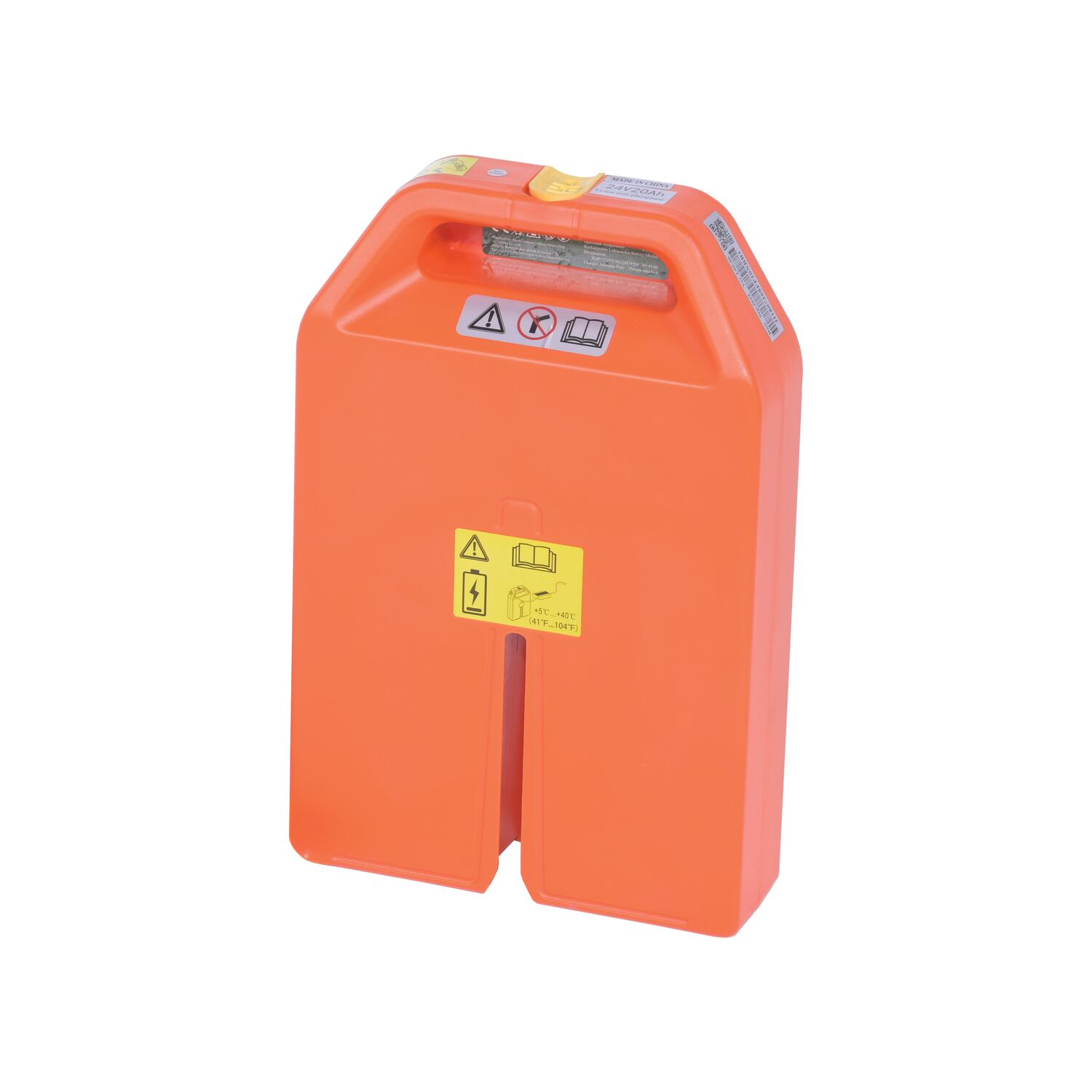

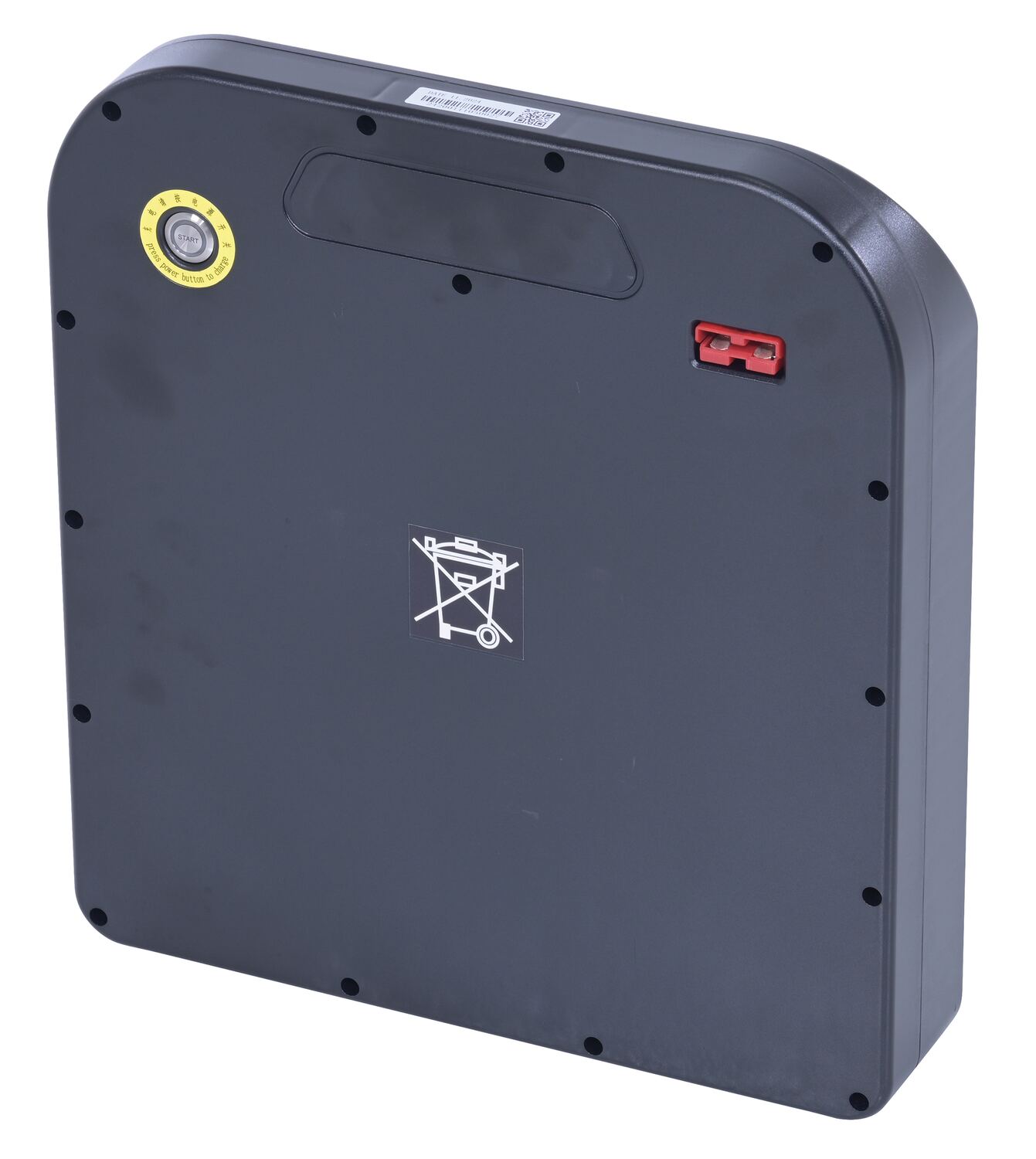

Additional Battery packs are available and interchangeable for continuous use.

Combines the advantages of a manual and an electric pallet truck!

An electric pallet truck is the perfect upgrade from the standard manual design. This functional approach minimizes manual labor and maximizes efficiency when moving products and goods. Speed adjustments as well as raising/lowering forks can be modified without the users' hands leaving the functional handle. Unit is powered by a lithium ion battery for continuous consistent use. Forks are powder coated for a baked in added toughness.

Standard Features:

  • Smart design, high performance, and maintenance friendly.
  • Compact body design is even smaller than conventional hand pallet trucks.
  • Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs.
  • LCD display features battery charge indicator, operating hour counter, and on-board diagnostic via error code.
  • Unique auto sensor slows down the truck speed by 50% on sharp turns.
  • Unit can operate when handle is in up position. (UP-RIGHT Driving)
  • Equipped with a maintenance free 24V/20Ah lithium ion battery.
  • Battery pack is interchangeable for continuous usage.
  • Additional battery packs are available.


Multi-function handle with integrated PIN code LCD display, emergency reverse, raise-lower buttons, horn, turtle speed button, and foward-reverse butterfly knobs


Additional Battery packs are available and interchangeable for continuous use.

Other Powered Pallet Trucks

 Electric Pallet Truck (Pegasolift) Electric Pallet Truck (Pramac) Economy Fully Automatic Electric Pallet Trucks Electric Powered Rough Terrain Pallet Trucks

Additional Models In This Family
view entire Image Gallery

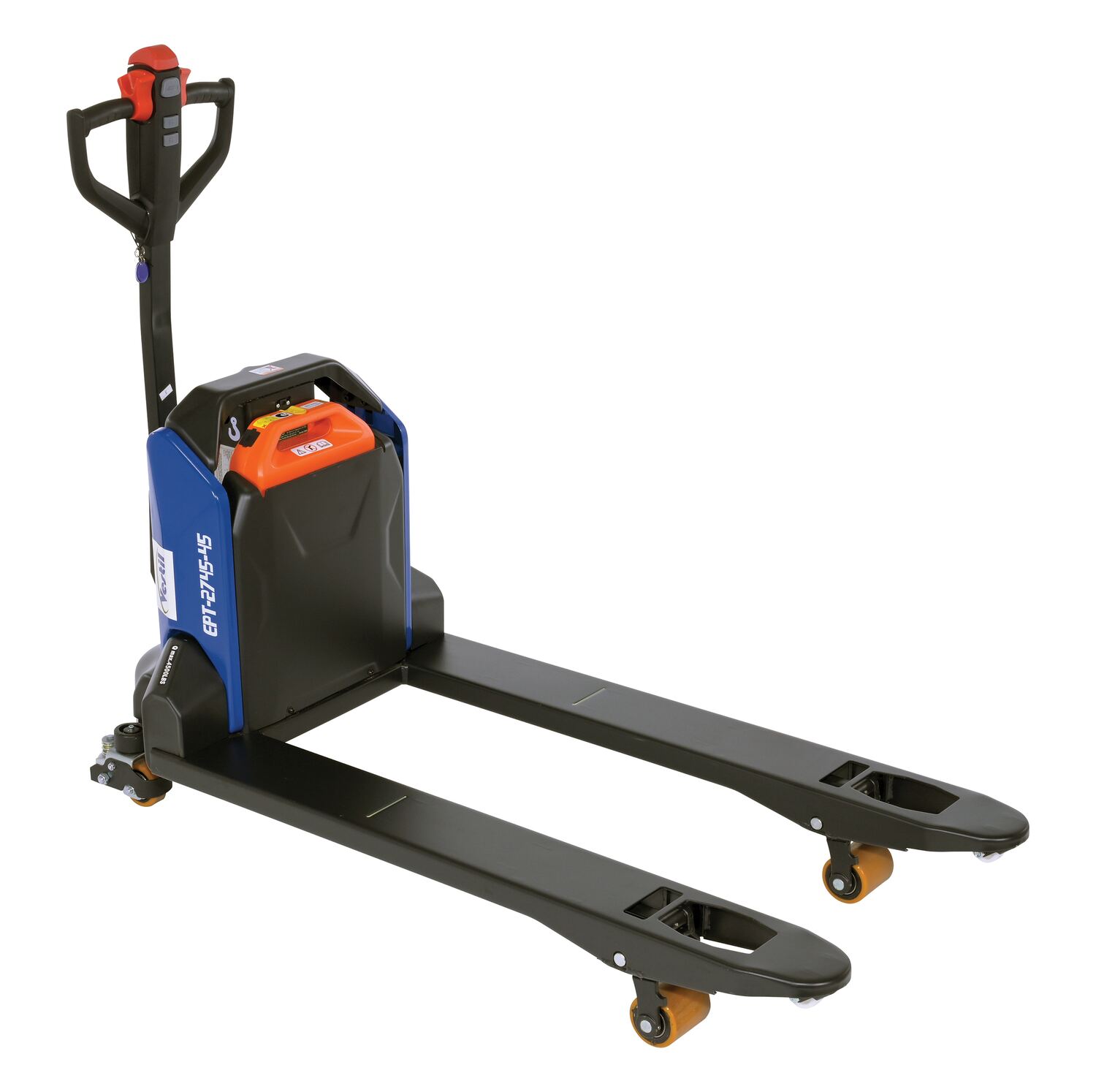

EPT-2745-45

model EPT-2745-45

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

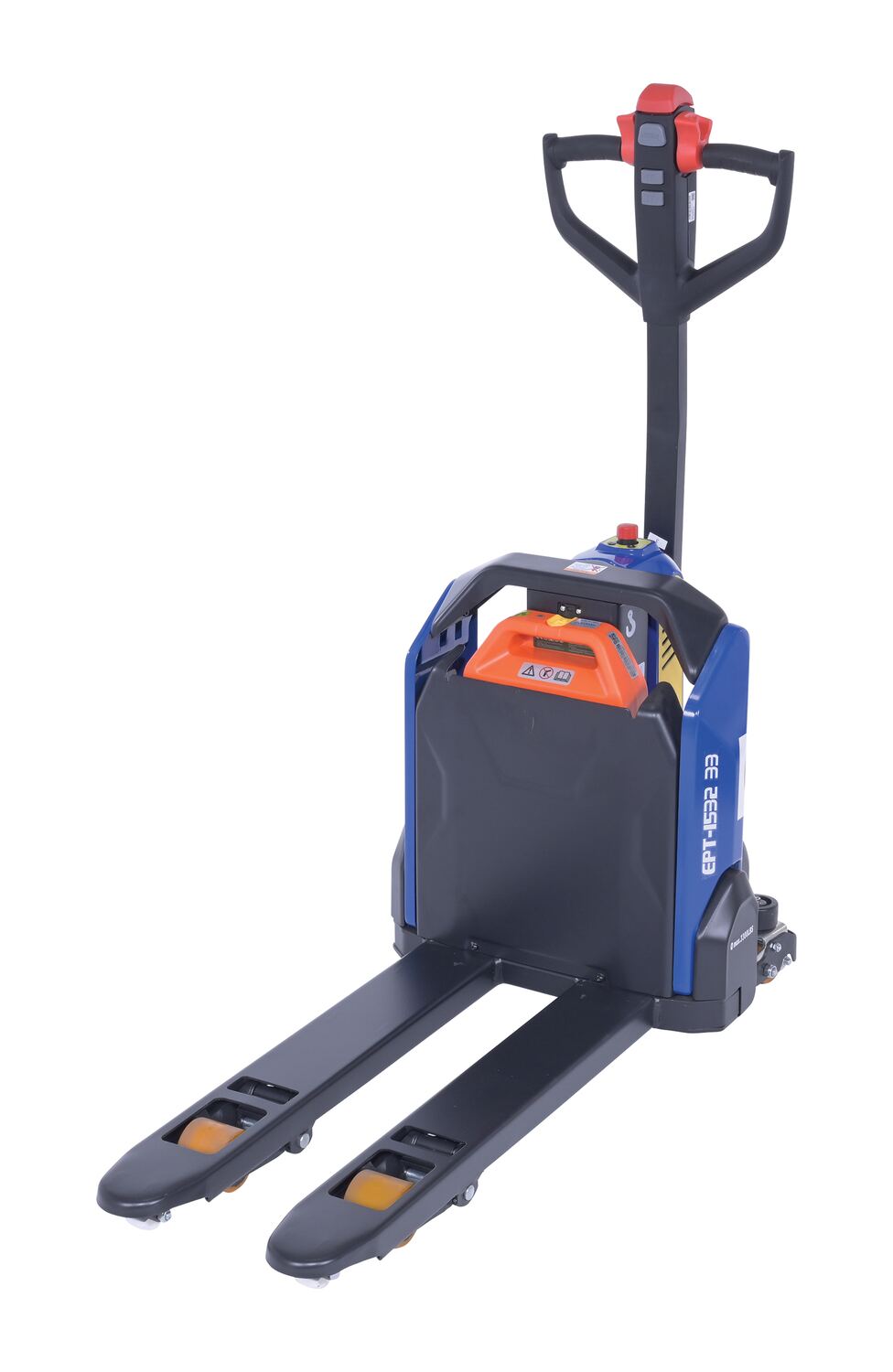

EPT-1532-33 EPT-1532-331 Year Limited WarrantySteel Fully Powered Electric Pallet Truck 15 In. x 32 In. 3,300 Lb. Capacity Blue / BlackOverall Fork Width (in.): 15
Overall Fork Length (in.): 32		330
EPT-2145-33 EPT-2145-331 Year Limited WarrantySteel Fully Powered Electric Pallet Truck 21 In. x 45 In. 3,300 Lb. Capacity BlackOverall Fork Width (in.): 21
Overall Fork Length (in.): 45		327
EPT-2745-33 EPT-2745-331 Year Limited WarrantySteel Electric Pallet Truck 27 In. x 45 In. 3300 Lb. Capacity Black/RedOverall Fork Width (in.): 27
Overall Fork Width (in.): 45		378
EPT-2745-45 EPT-2745-451 Year Limited WarrantySteel Electric Pallet Truck 27 In x 45 In 4,500 Lb. Capacity Black/BlueOverall Fork Width (in.): 27
Overall Fork Width (in.): 45		384

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EPT-1532-33
Unit:
Size: W x L x H
Weight:
Limited Warranty
Overall Fork Width (in.): 15
Overall Fork Length (in.): 32
Overall Fork Width (in.): 15
Overall Fork Length (in.): 32

EPT-2145-33
Unit:
Size: W x L x H
Weight:
Limited Warranty
Overall Fork Width (in.): 21
Overall Fork Length (in.): 45
Overall Fork Width (in.): 21
Overall Fork Length (in.): 45

EPT-2745-33
Unit:
Size: W x L x H
Weight:
Limited Warranty
Overall Fork Width (in.): 27
Overall Fork Width (in.): 45
Overall Fork Width (in.): 27
Overall Fork Width (in.): 45

EPT-2745-45
Unit:
Size: W x L x H
Weight:
Limited Warranty
Overall Fork Width (in.): 27
Overall Fork Width (in.): 45
Overall Fork Width (in.): 27
Overall Fork Width (in.): 45
For More Details of the Option Click the Red Model Button
EPT-1532-33-BATT EPT-1532-33-BATT90 Days Limited WarrantyLithium Ion 24 Volt/20 Ah Battery Pack For EPT-1532-33Battery Application Type: For use with EPT-1532-33
Battery Capacity (mAh): 20000		13
EPT-2145-33-BATT EPT-2145-33-BATT90 Days Limited WarrantyLithium Ion 24 Volt/20 Ah Battery Pack For EPT-2145-33Battery Application Type: For use with EPT-2145-33
Battery Capacity (mAh): 20000		13
EPT-2745-33-BATT EPT-2745-33-BATT90 Days Limited WarrantyLithium Ion 24 Volt/20 Ah Battery Pack For EPT-2745-33Voltage: 24V/20Ah
No. of batteries: 1		13

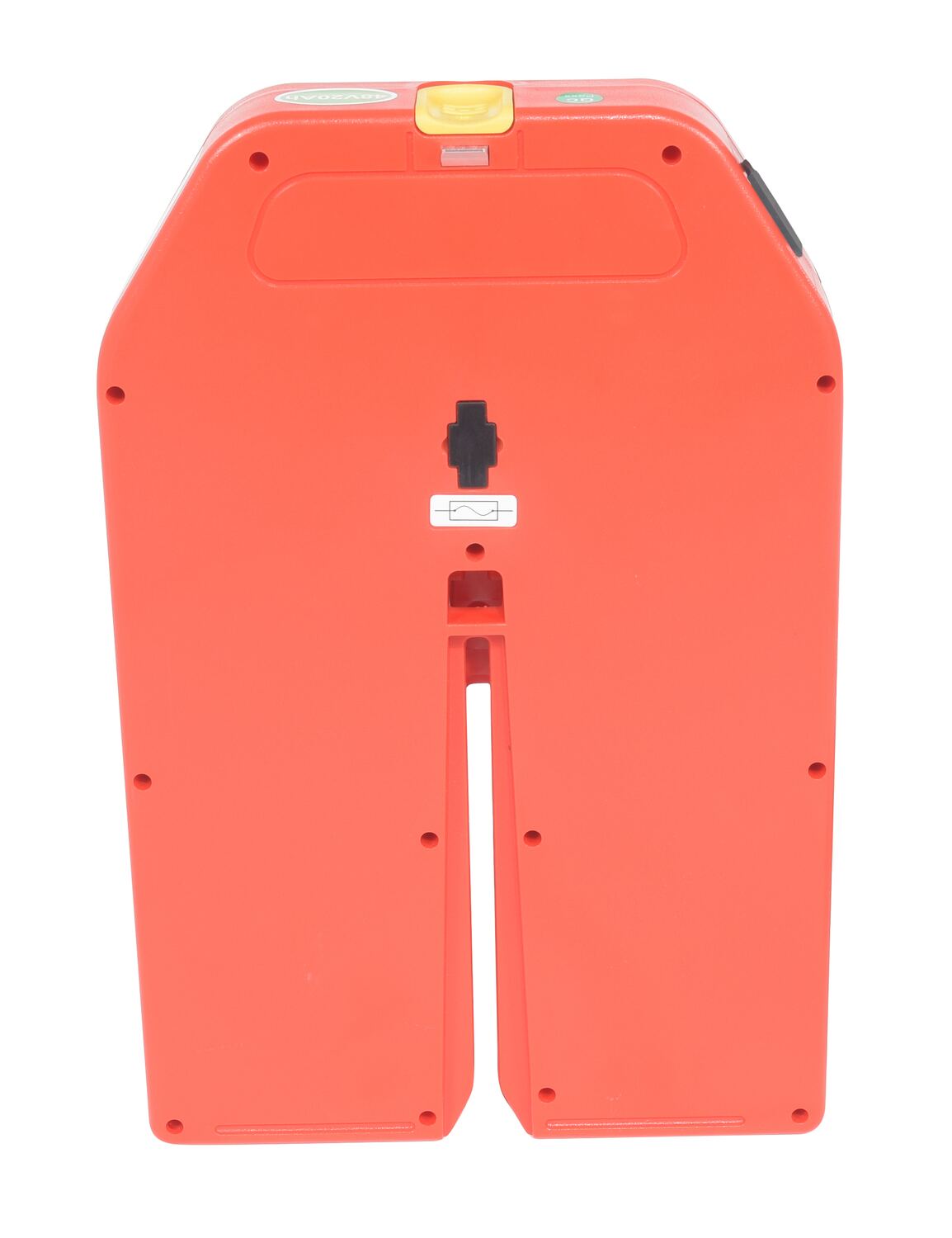

EPT-2745-45-BATT EPT-2745-45-BATT90 Days Limited WarrantyLithium Ion 24 Volt/20 Ah Battery Pack For EPT-2745-45Battery Application Type: For use with EPT-2745-45
Battery Capacity (mAh): 20000		17

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Fully Powered Electric Pallet Truck PDF's will open in a new window when clicked.

Manuals


EPT-2745-33
Owners Manual

EPT-2745-45
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


EPT-1532-33

EPT-1532-33-BATT

EPT-2145-33

EPT-2145-33-BATT

EPT-2745-33

EPT-2745-33-BATT

EPT-2745-45

SDS Sheets

Hydraulic Oil SDS Sheet for: EPT-1532-33
Hydraulic Oil SDS Sheet for: EPT-2145-33
Li-Ion Battery SDS Sheet for: EPT-2745-33
Hydraulic Oil SDS Sheet for: EPT-2745-33
Hydraulic Oil SDS Sheet for: EPT-2745-45
Polymer Lithium Ion Battery SDS Sheet for: EPT-1532-33-BATT
Polymer Lithium Ion Battery SDS Sheet for: EPT-1532-33
Polymer Lithium Ion Battery SDS Sheet for: EPT-2145-33
Polymer Lithium Ion Battery SDS Sheet for: EPT-2145-33-BATT
Li-Ion Battery SDS Sheet for: EPT-2745-45
Li-Ion Battery SDS Sheet for: EPT-2745-45-BATT
Li-Ion Battery SDS Sheet for: EPT-2745-33-BATT

Other PDF's


Electric Pallet Truck Mailing Brochure

Lithium Ion Powered Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the service range of the pallet jack?

A: The service range is 3.4" to 8". Lowered height 3.4" , raised height is 8".

Q: What is the turning radius of the EPT-2745-33 pallet truck?

A: The turning radius is 52.36"

Q: What is the battery life for continuous use?

A: The battery life for the EPT-2745-33 is 2-2.5 hours.

Q: What is the battery charge time for the EPT-2745-33 pallet truck?

A: The charge time is 3-4 hours.
