EPT-45-RP-KIT | 1 Year Limited Warranty | Steel Rider Platform Kit Field Installed For Electric Powered Trucks Black | Usable Length (in.): 11-7/8 Usable Width (in.): 16 | 20 |
.
Vestil Manufacturing Corporation is an industry leader in the manufacturing and distributing of industrial material handling equipment. We feature over 1,000 different product lines, many of which are in stock and ready for immediate shipment.
24V DC Standard

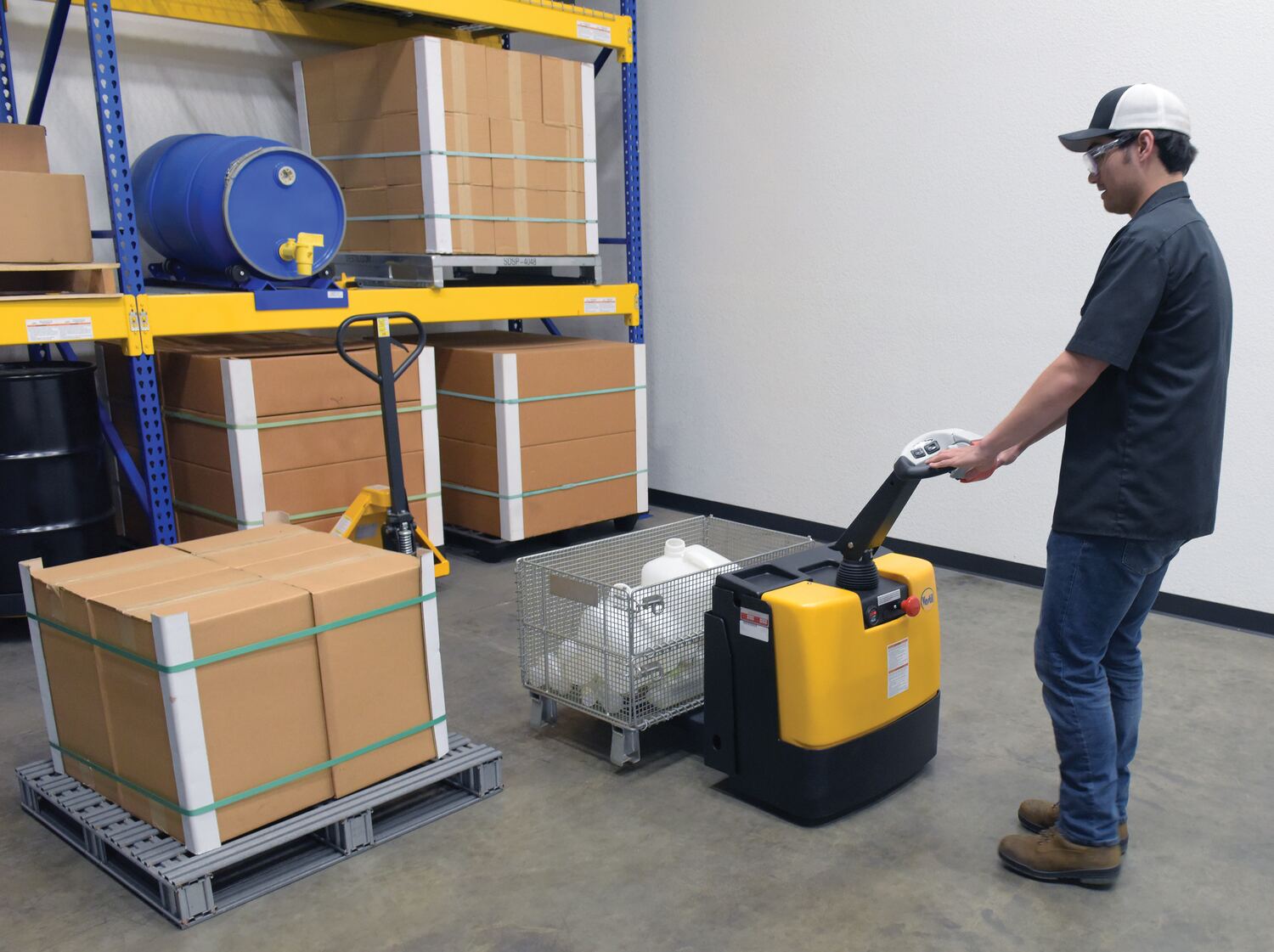

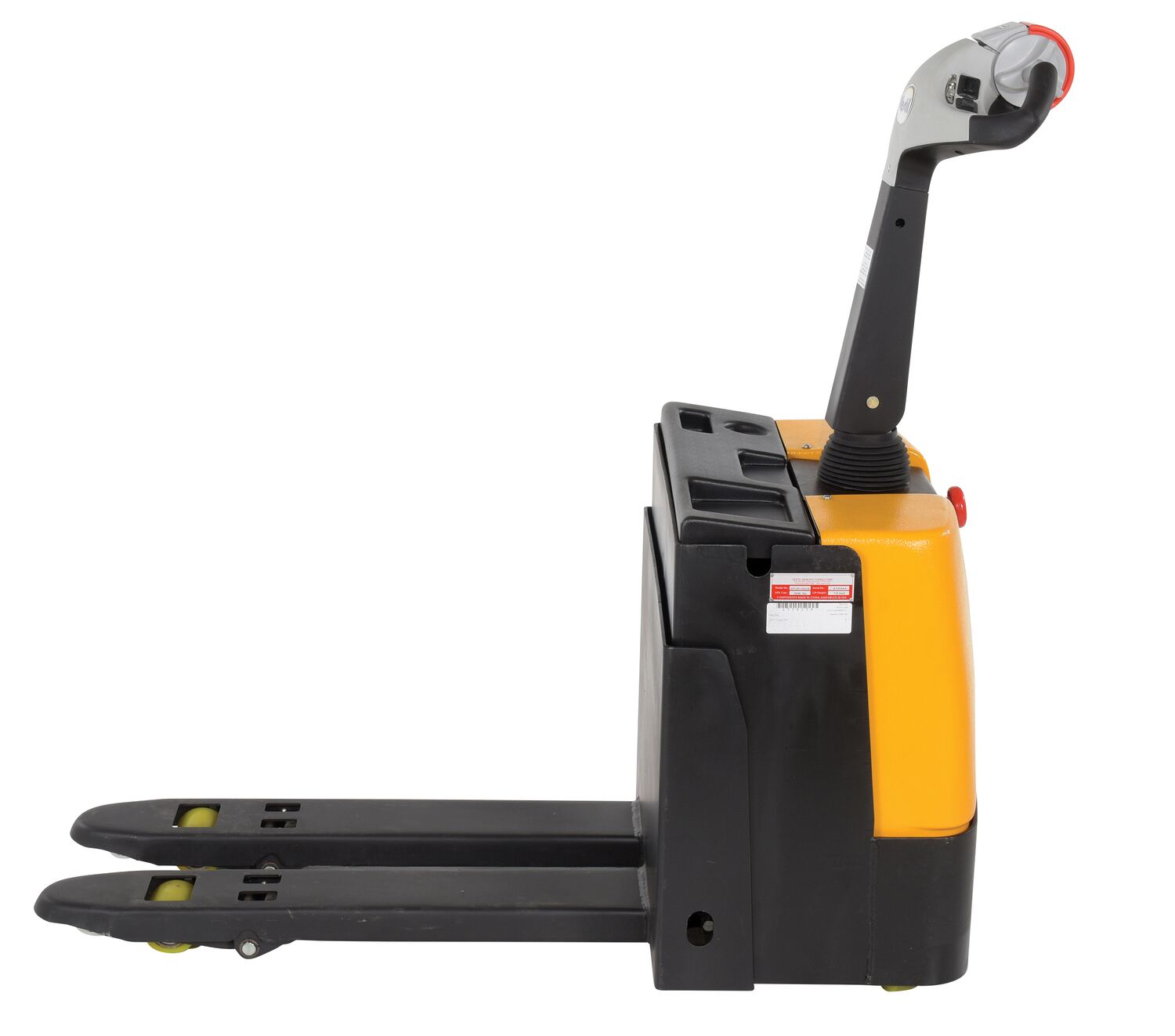

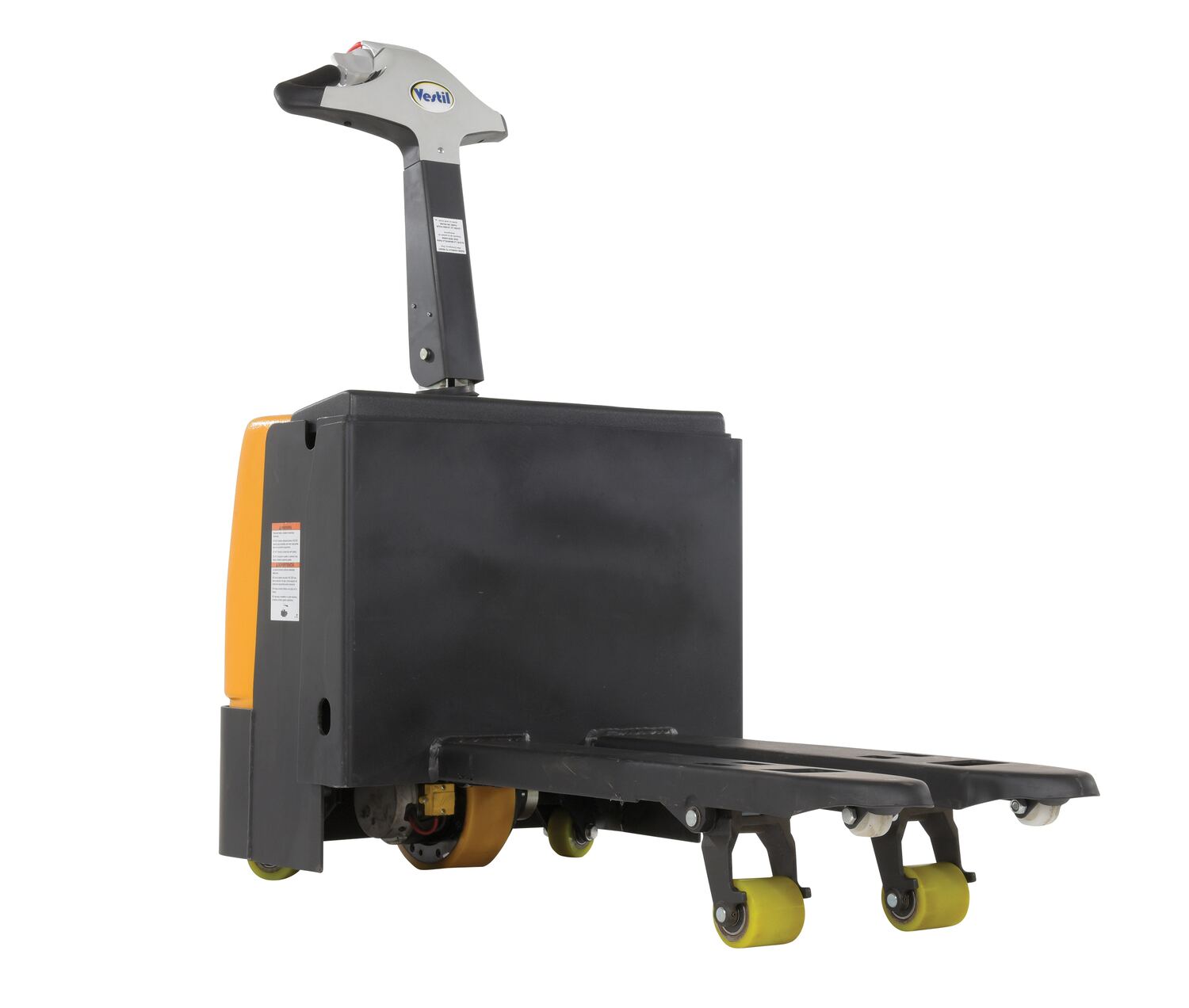

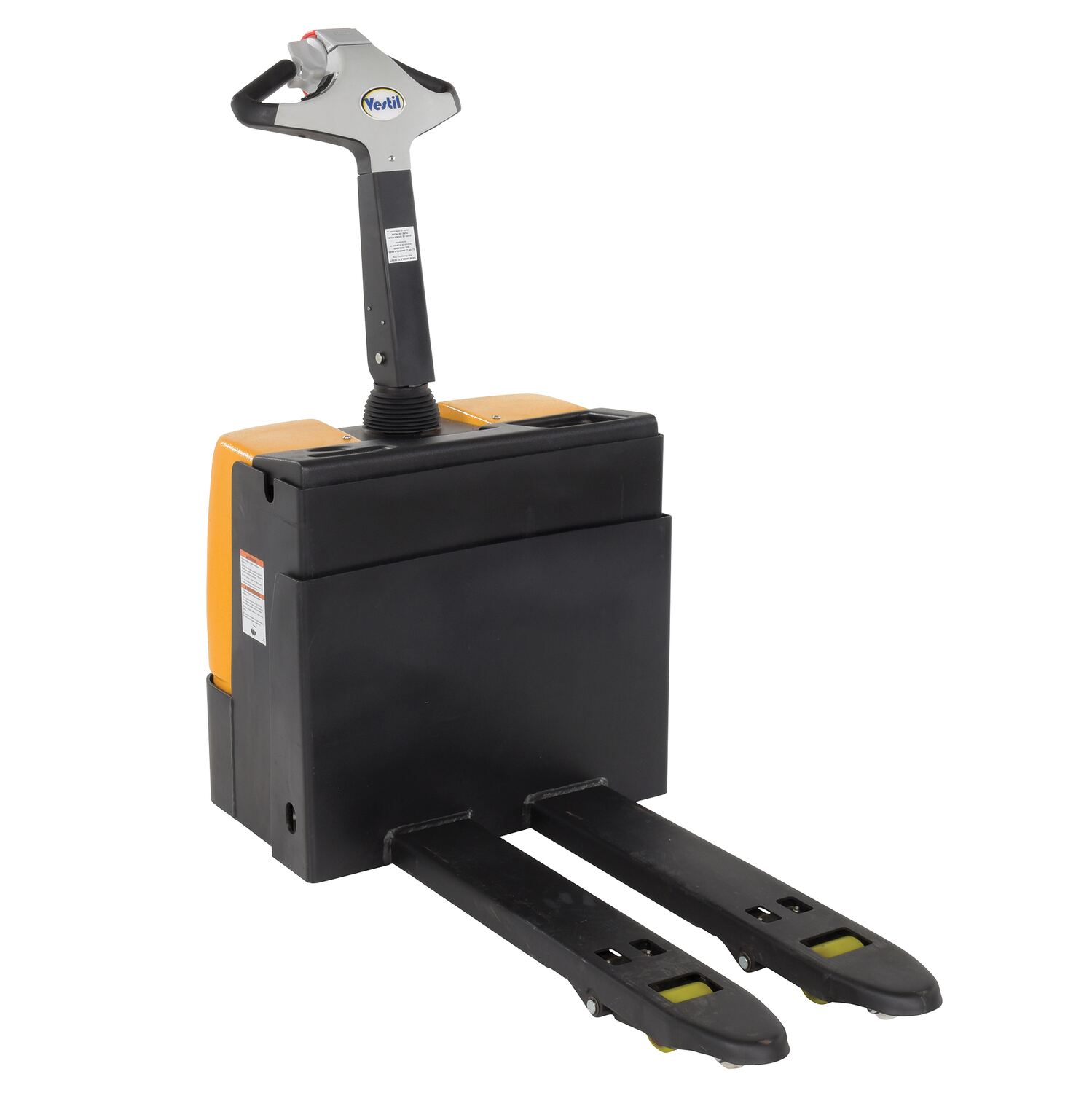

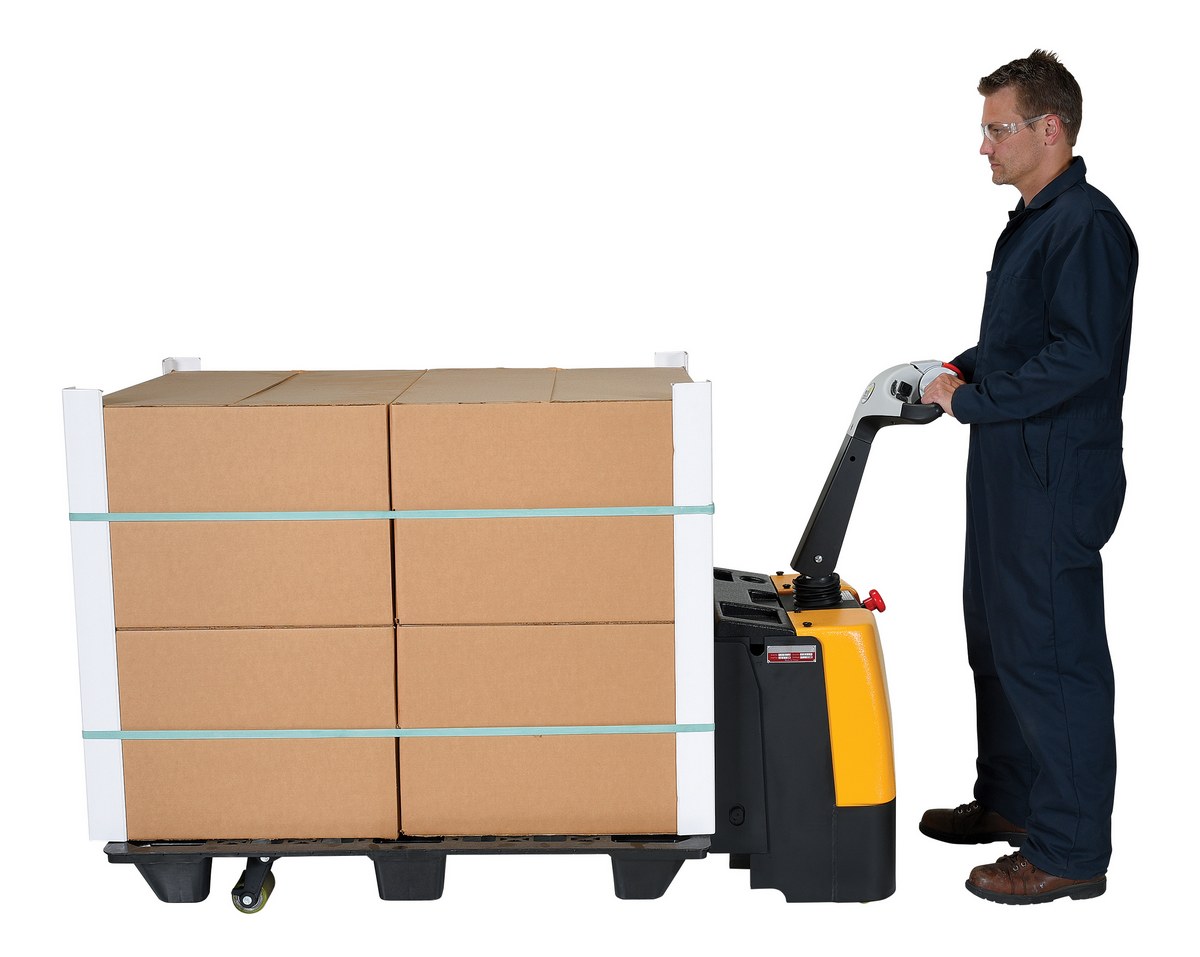

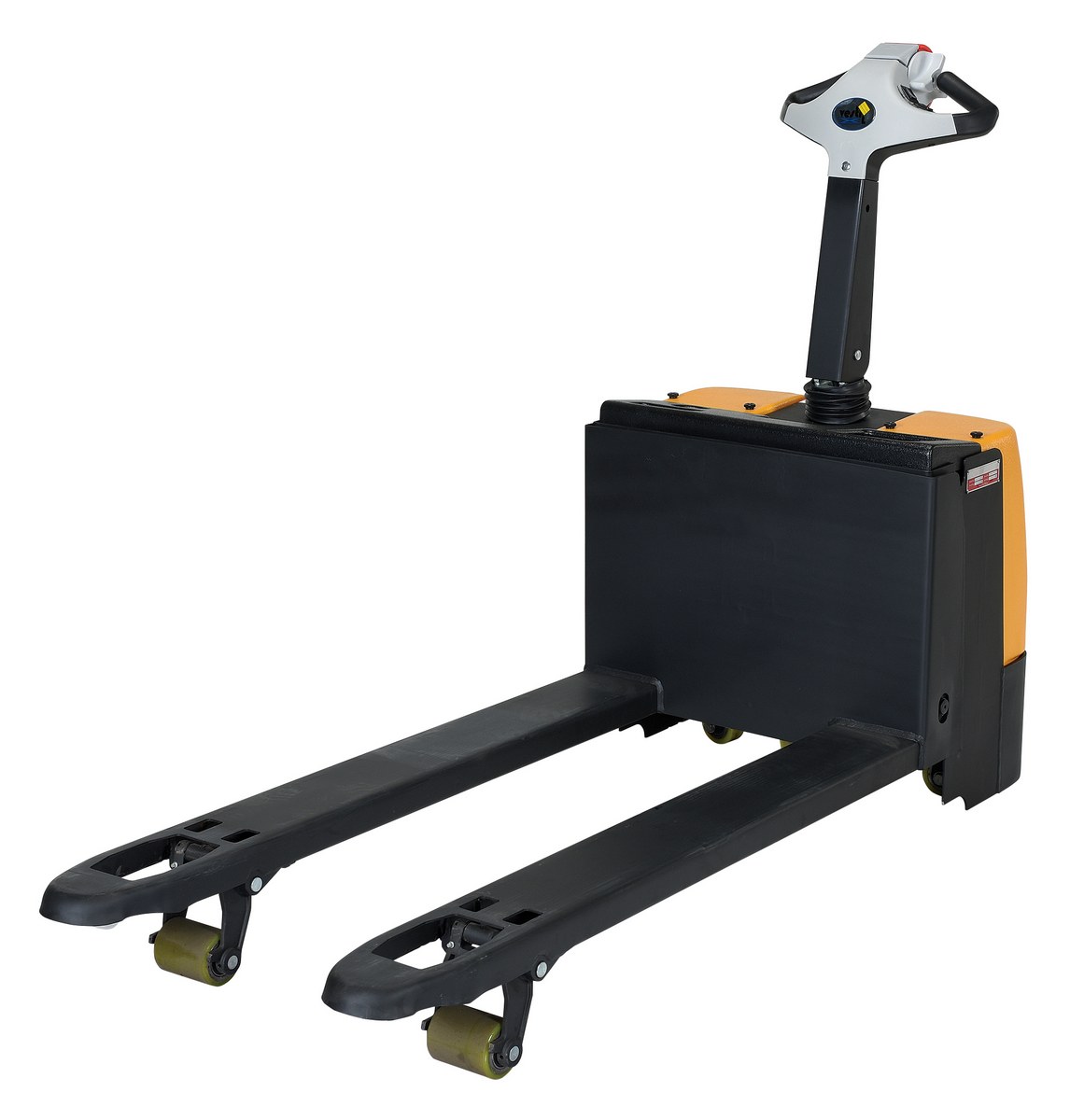

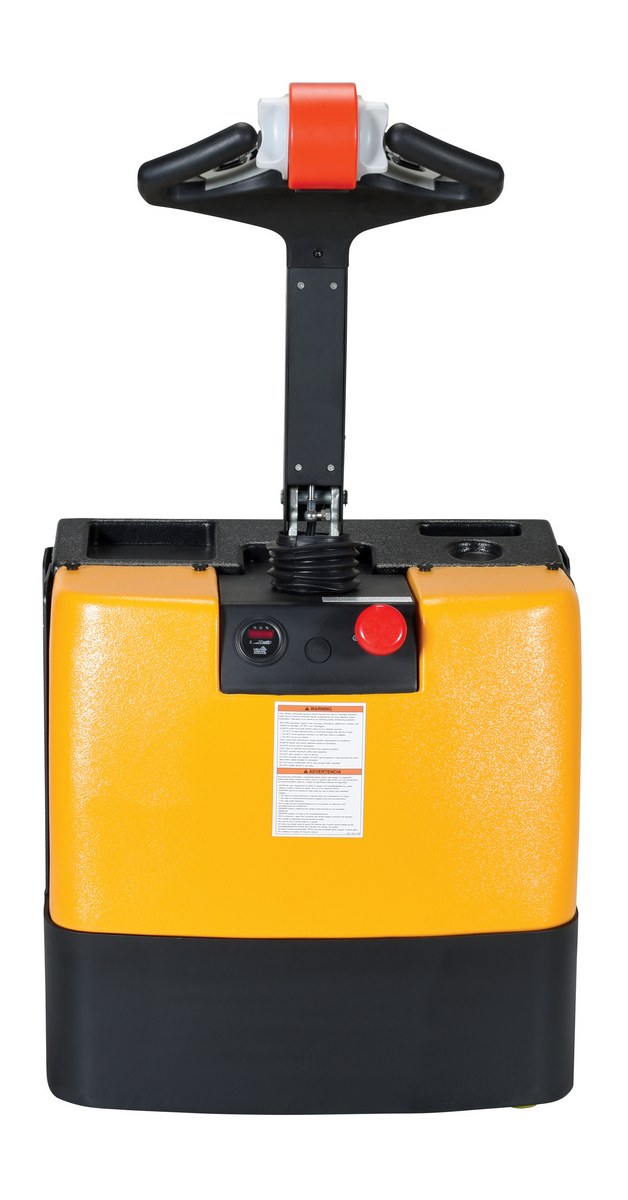

Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

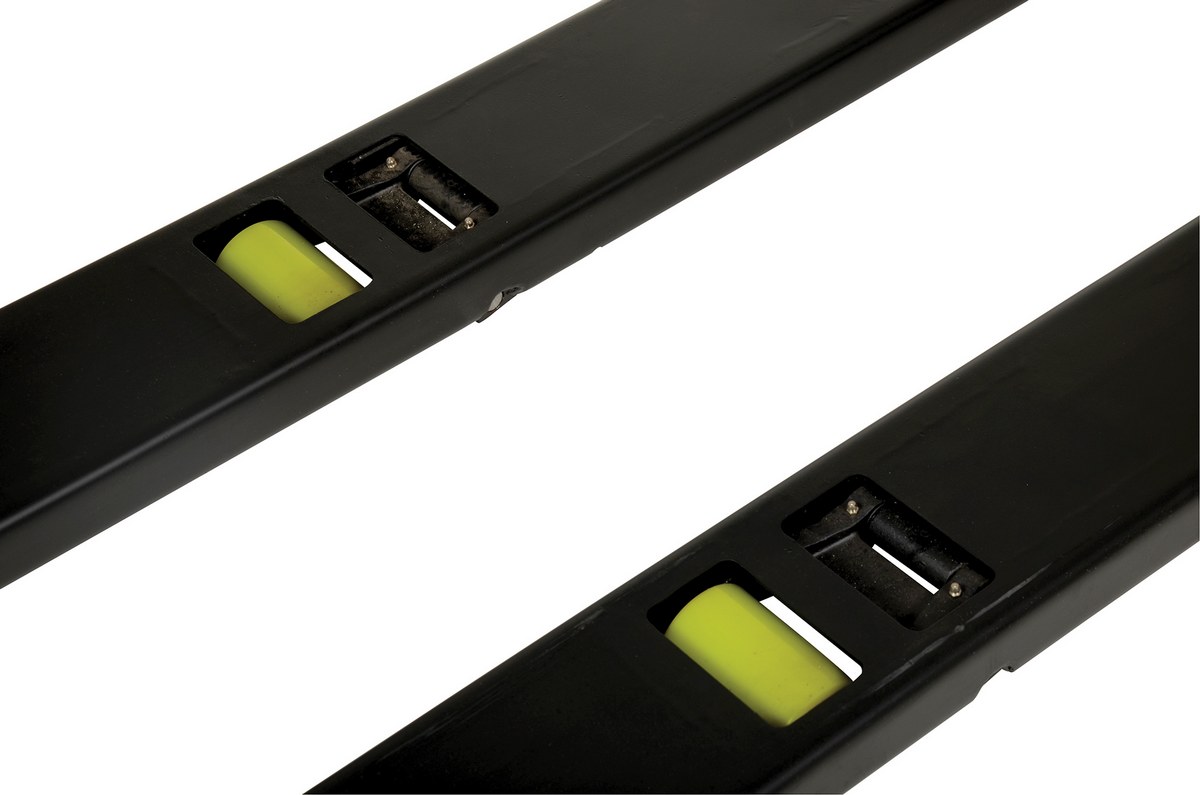

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

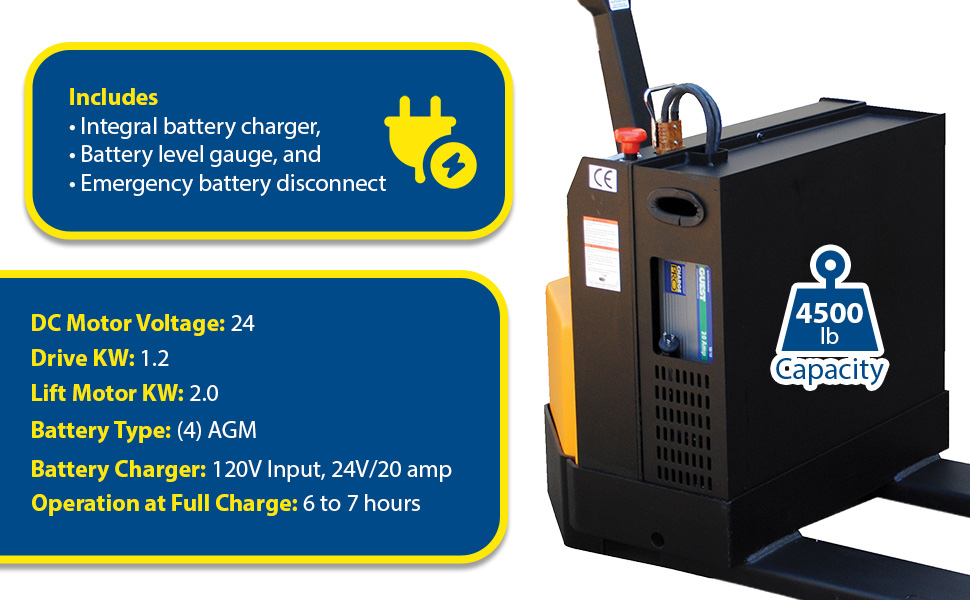

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

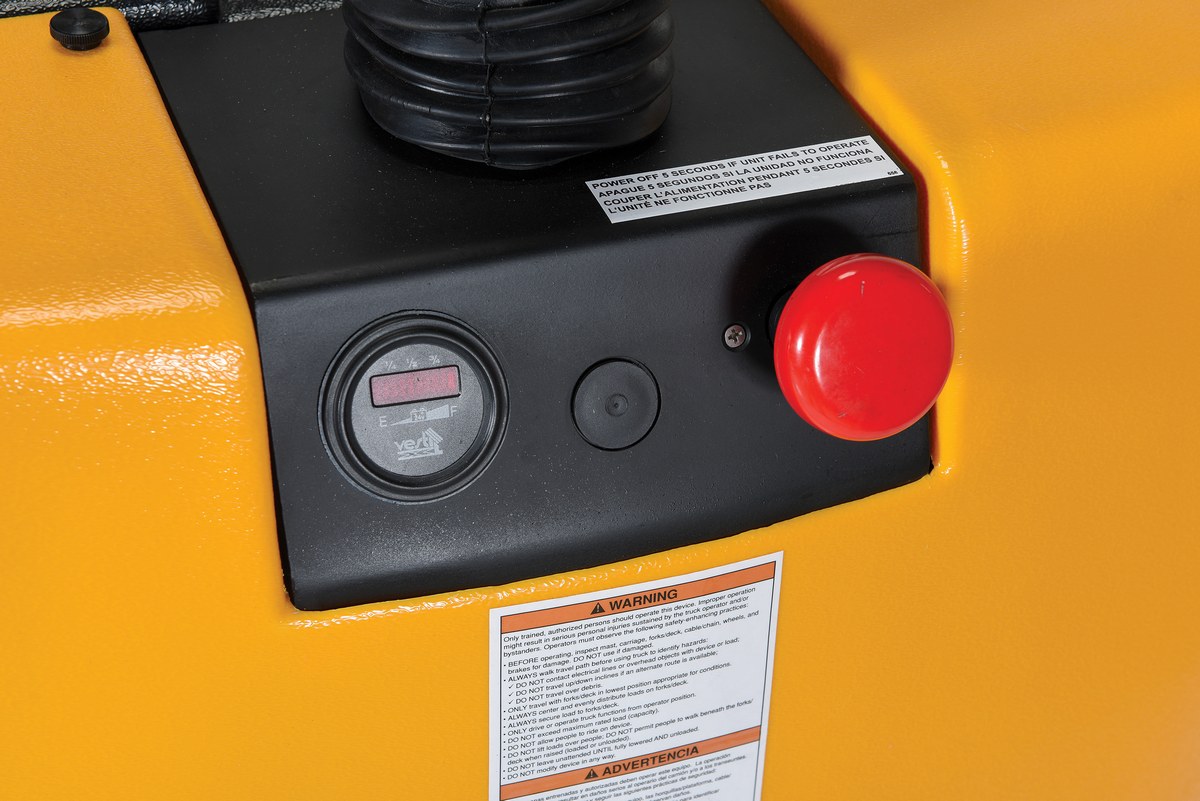

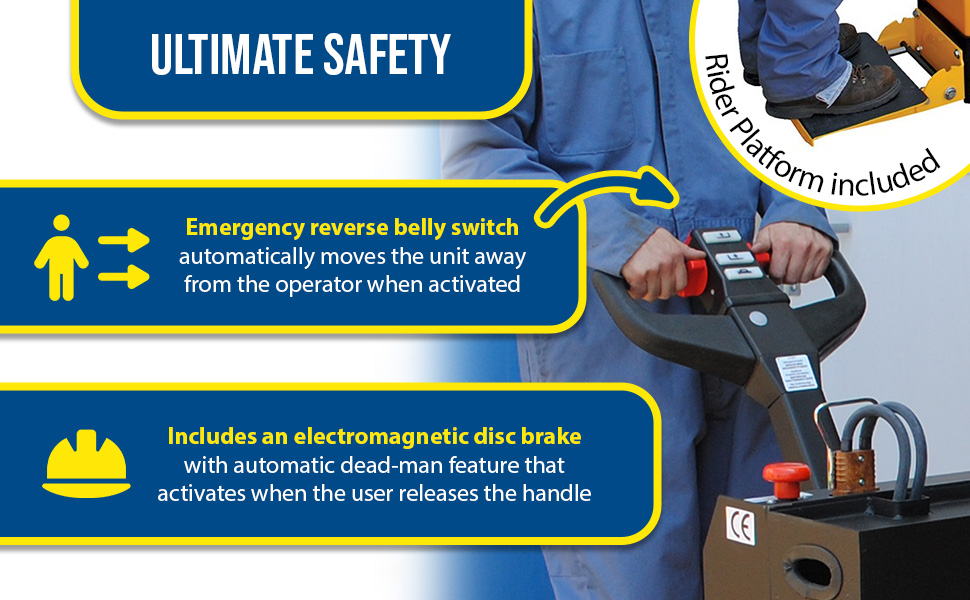

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
24V DC Standard
Fully Powered Electric Pallet Truck for easy and quick operation. Raise and lower loads with a push of a button. Maneuvers loads in warehouses and trailers. Reinforced welded forks with adjustable tie-rods give long service. High-torque 24V DC drive & lift motors handle heavy-duty jobs. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.
3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.
When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
Model # | Description | Attributes | Net Wt. (lbs) |
||||
---|---|---|---|---|---|---|---|

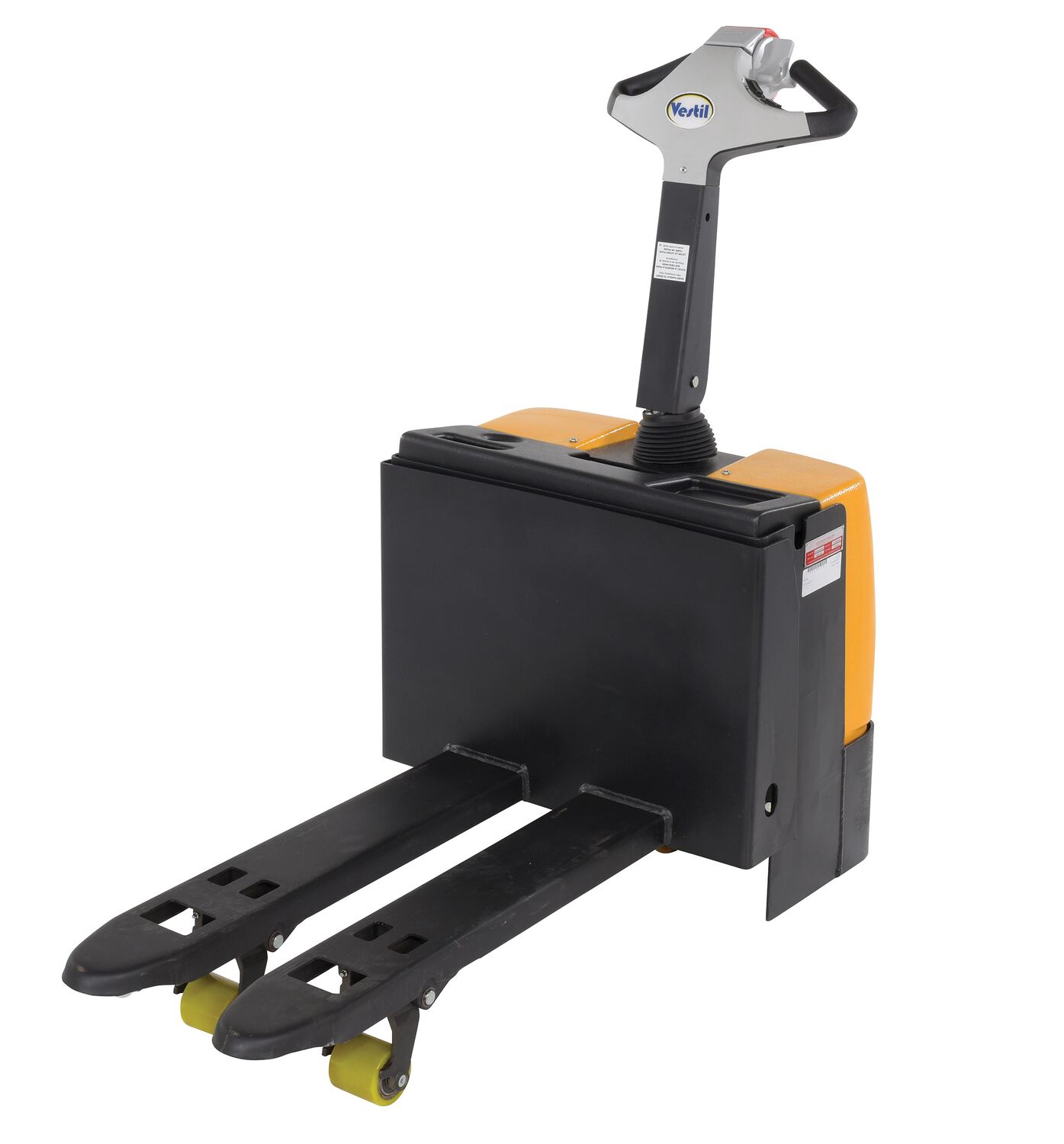

EPT-1540-26 | NEW | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck 20 In. x 47 In. 2,600 Lb. Capacity Black | Overall Fork Width (in.): 15 Overall Fork Length (in.): 40 | 401 | ||

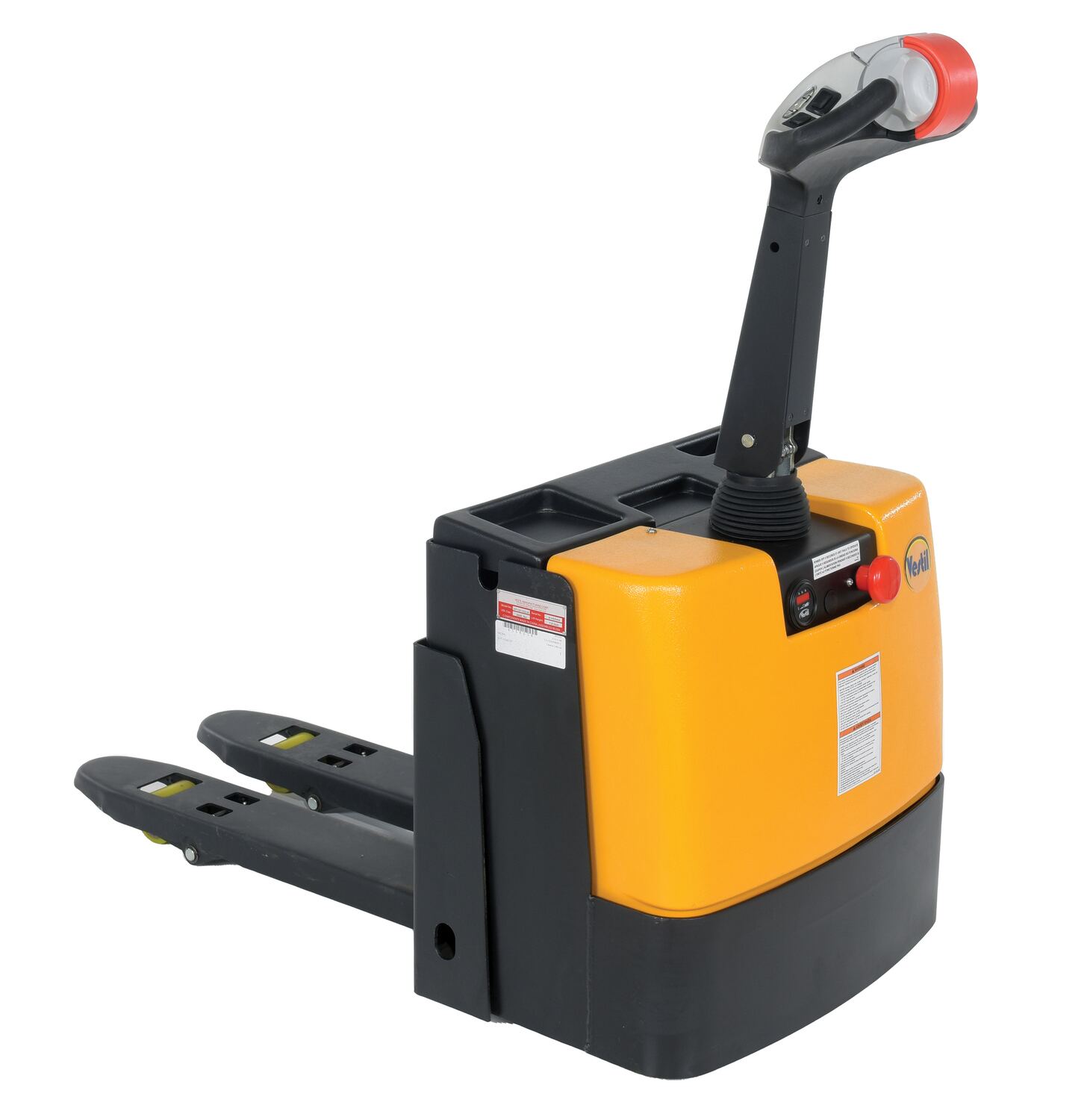

EPT-1932-26 | NEW | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck 19 In. x 32 In. 2,600 Lb. Capacity Black | Overall Fork Width (in.): 6 Overall Fork Length (in.): 32 | 421 | ||
EPT-1940-26 | NEW | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck 19 In. x 40 In. 2,600 Lb. Capacity Black | Overall Fork Width (in.): 6 Overall Fork Length (in.): 40 | 441 | ||
EPT-2047-30 | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck 20 In. x 47 In. 3,300 Lb. Capacity Black | Overall Fork Width (in.): 20 Overall Fork Length (in.): 47 | 613 | |||

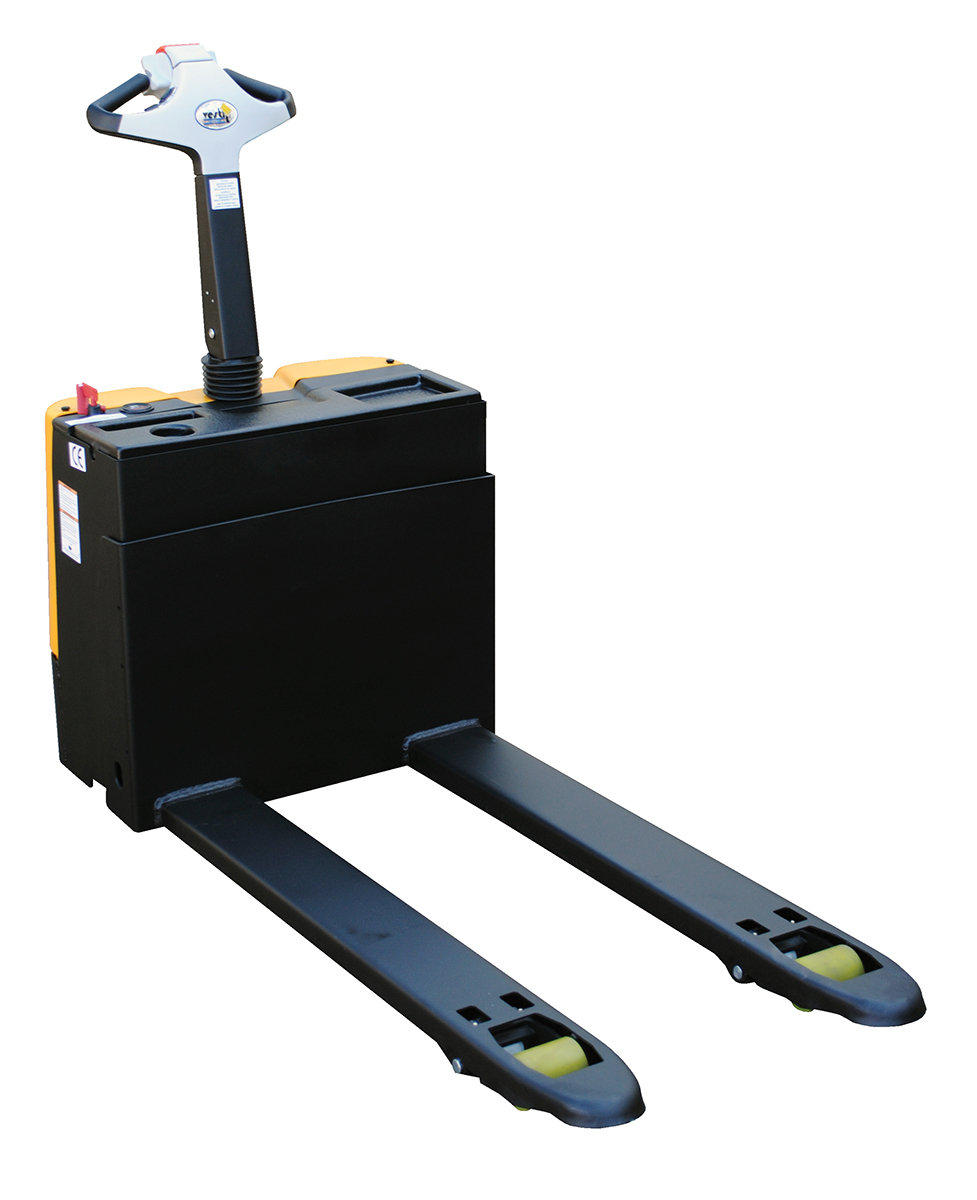

EPT-2047-30-AGM | 1 Year Limited Warranty | Steel Electric Pallet Truck 20 In. x 47 In. 3300 Lb. Capacity | Overall Fork Width (in.): 20 Overall Fork Length (in.): 47 | 744 | |||

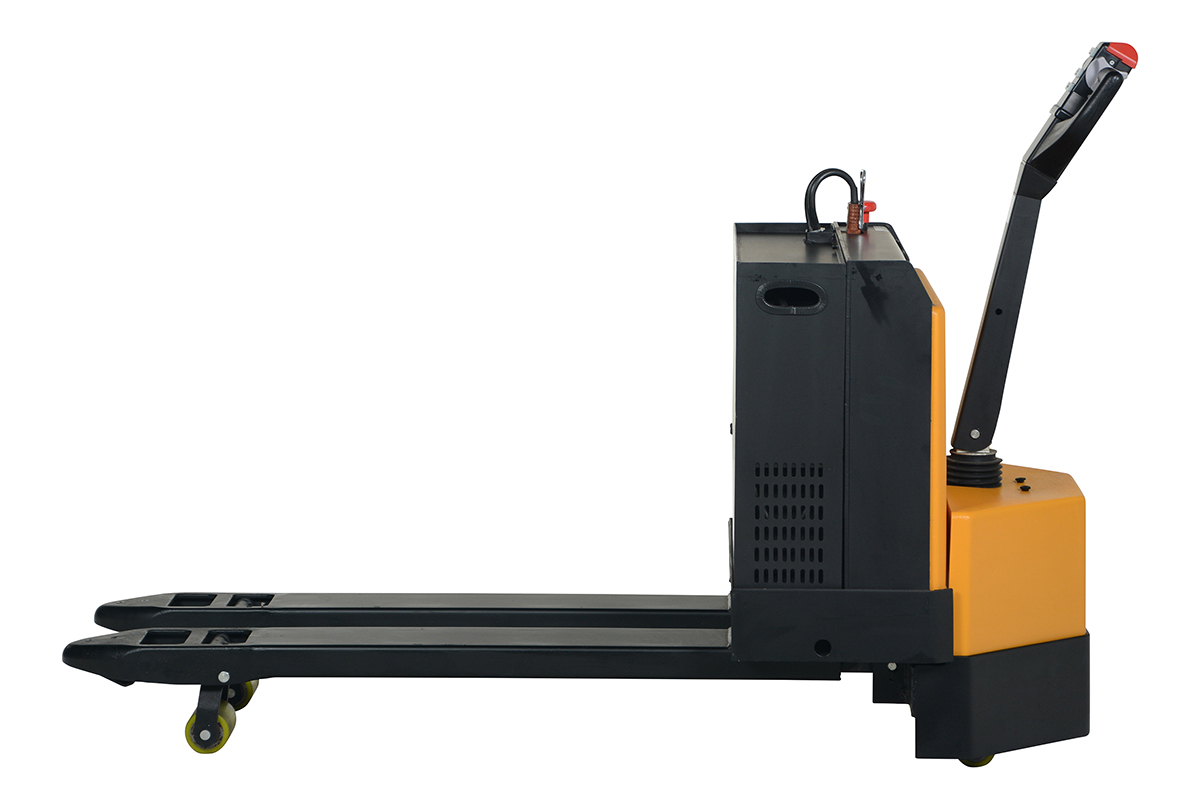

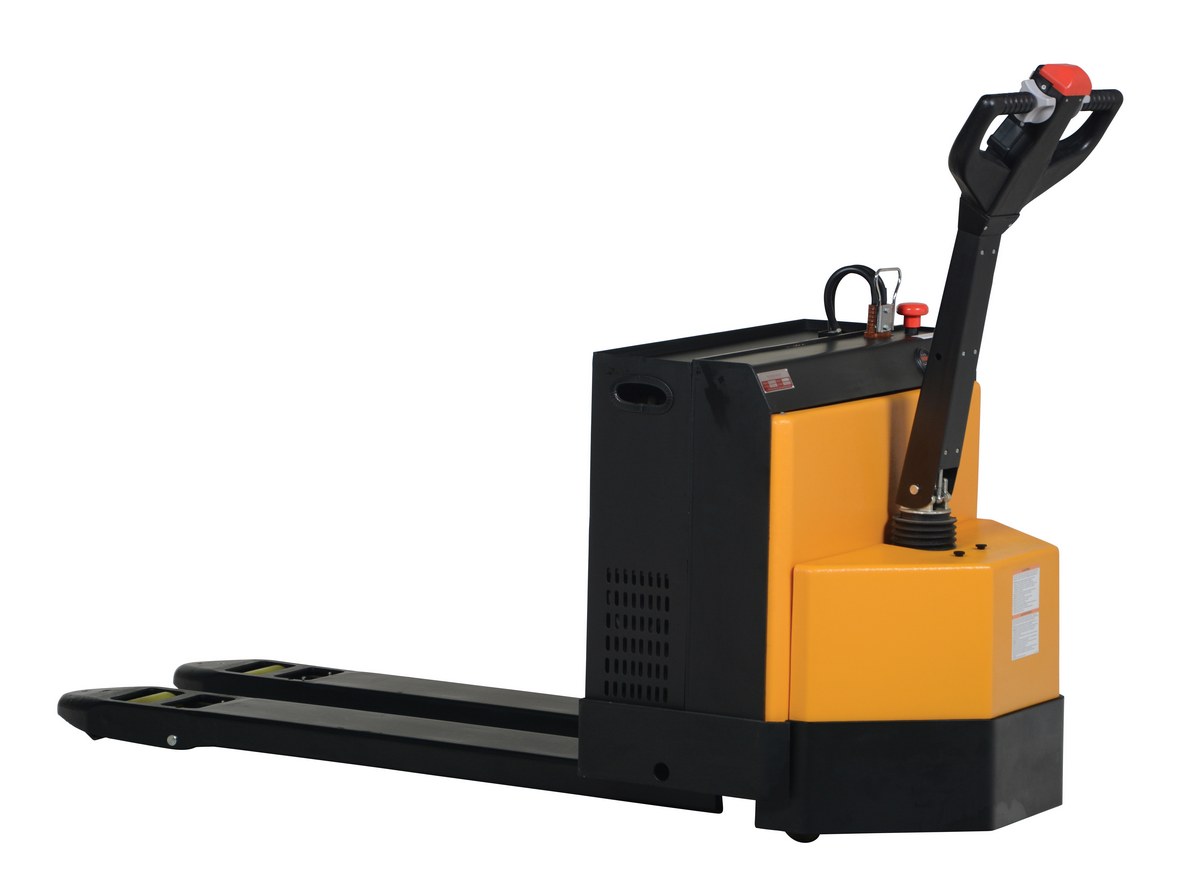

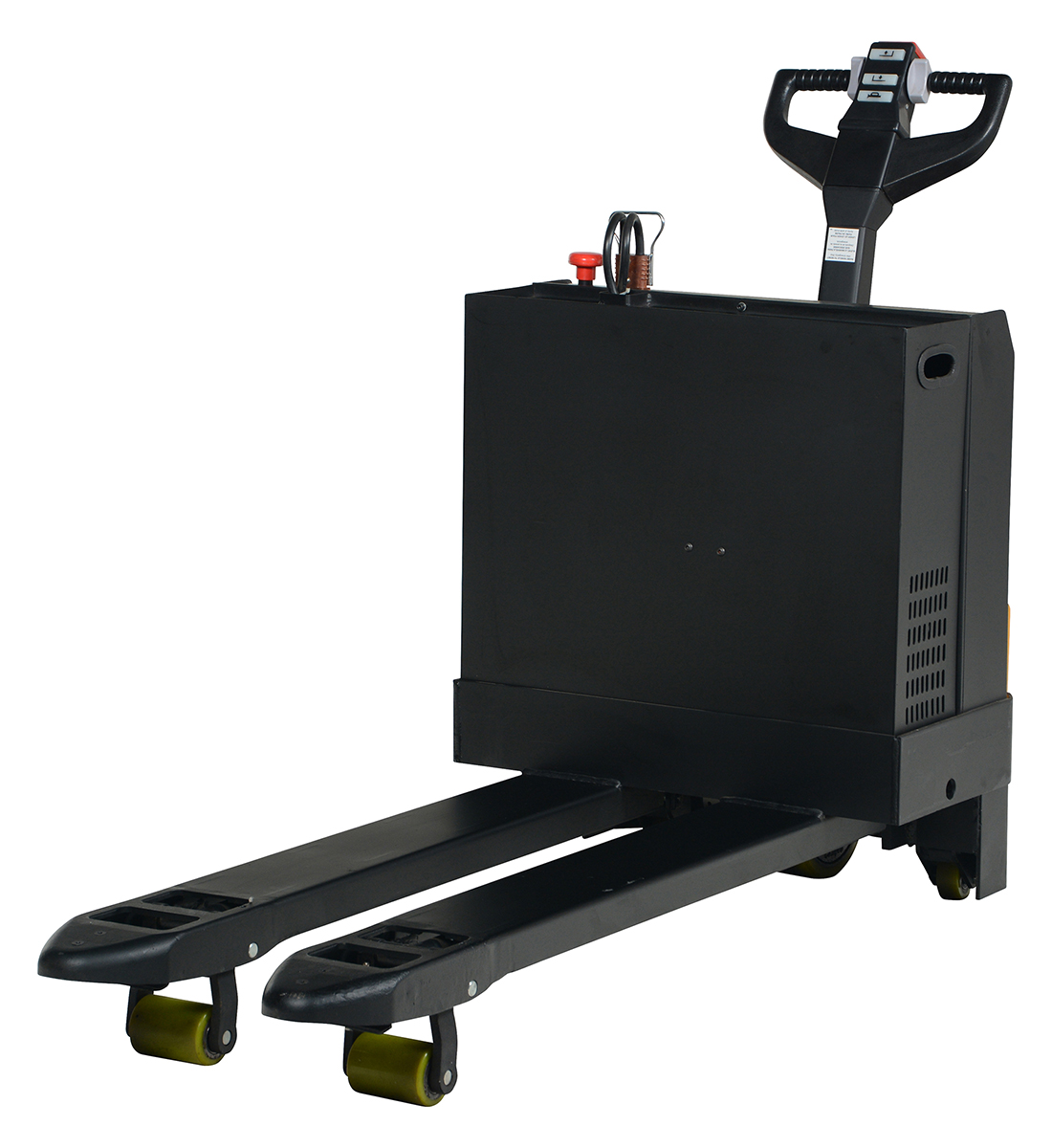

EPT-2048-45 | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck 20 In. x 48 In. 4,500 Lb. Capacity Black | Overall Fork Width (in.): 20.5 Overall Fork Length (in.): 48 | 1076 | |||
EPT-2048-45-AGM | 1 Year Limited Warranty | Steel Electric Pallet Truck 20 In. x 48 In. 4500 Lb. Capacity | Overall Fork Width (in.): 20 Overall Fork Length (in.): 48 | 1028 | |||

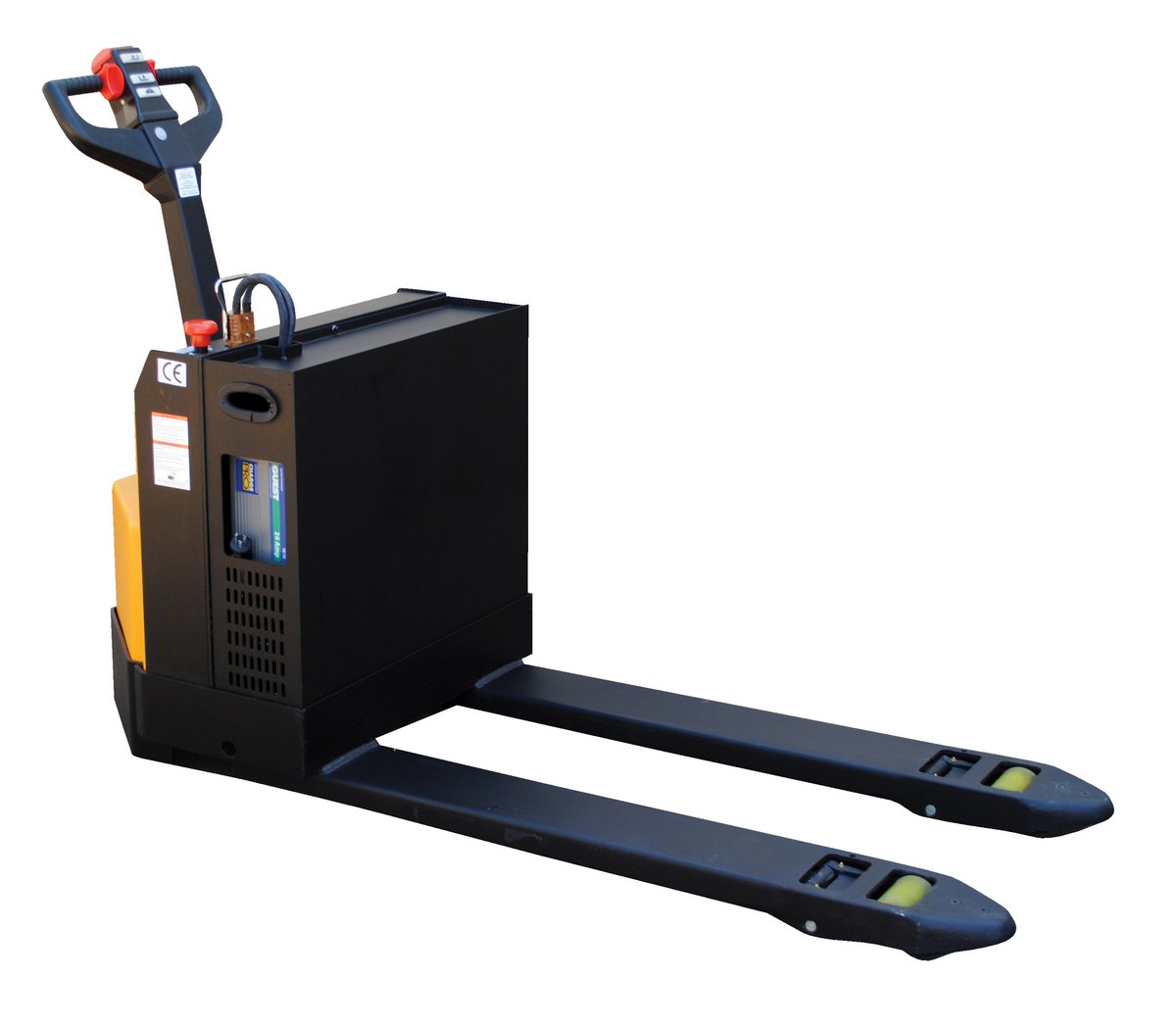

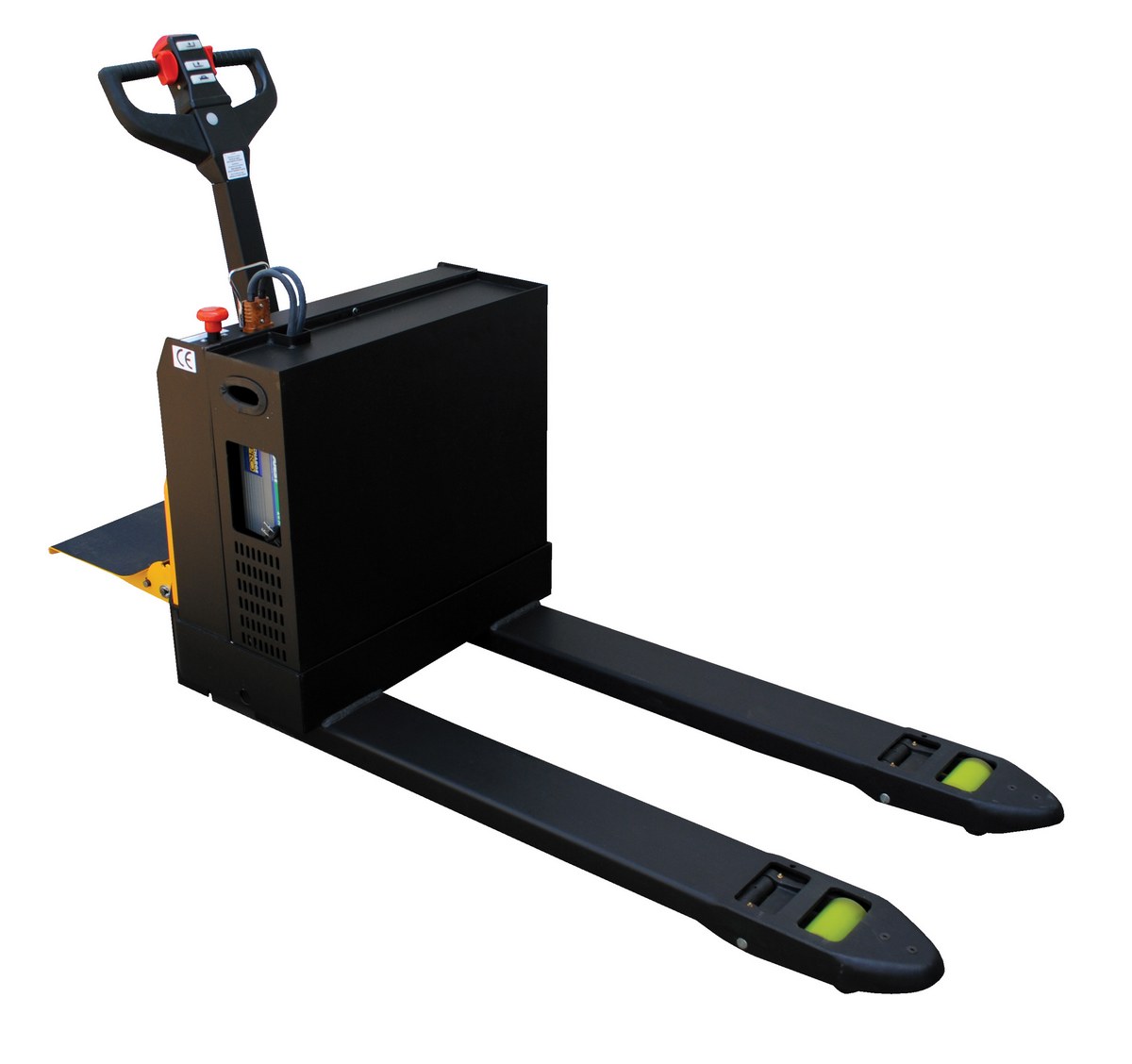

EPT-2048-45-RP | 1 Year Limited Warranty | Steel Pallet Truck with Rider Platform 20 In. x 48 In. 4500 Lb. Capacity Black | Overall Fork Width (in.): 20 Overall Fork Length (in.): 48 | 888 | |||

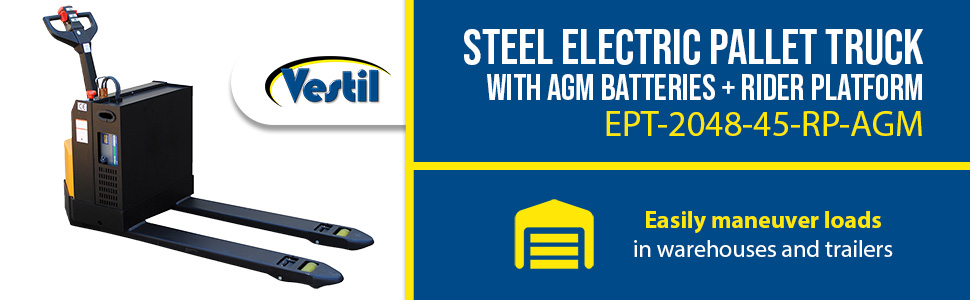

EPT-2048-45-RP-AGM | 1 Year Limited Warranty | Steel Electric Pallet Truck with Rider Platform 20 In. x 48 In. 4,500 Lb. Capacity | Overall Fork Width (in.): 20 Overall Fork Length (in.): 48 | 1016 | |||

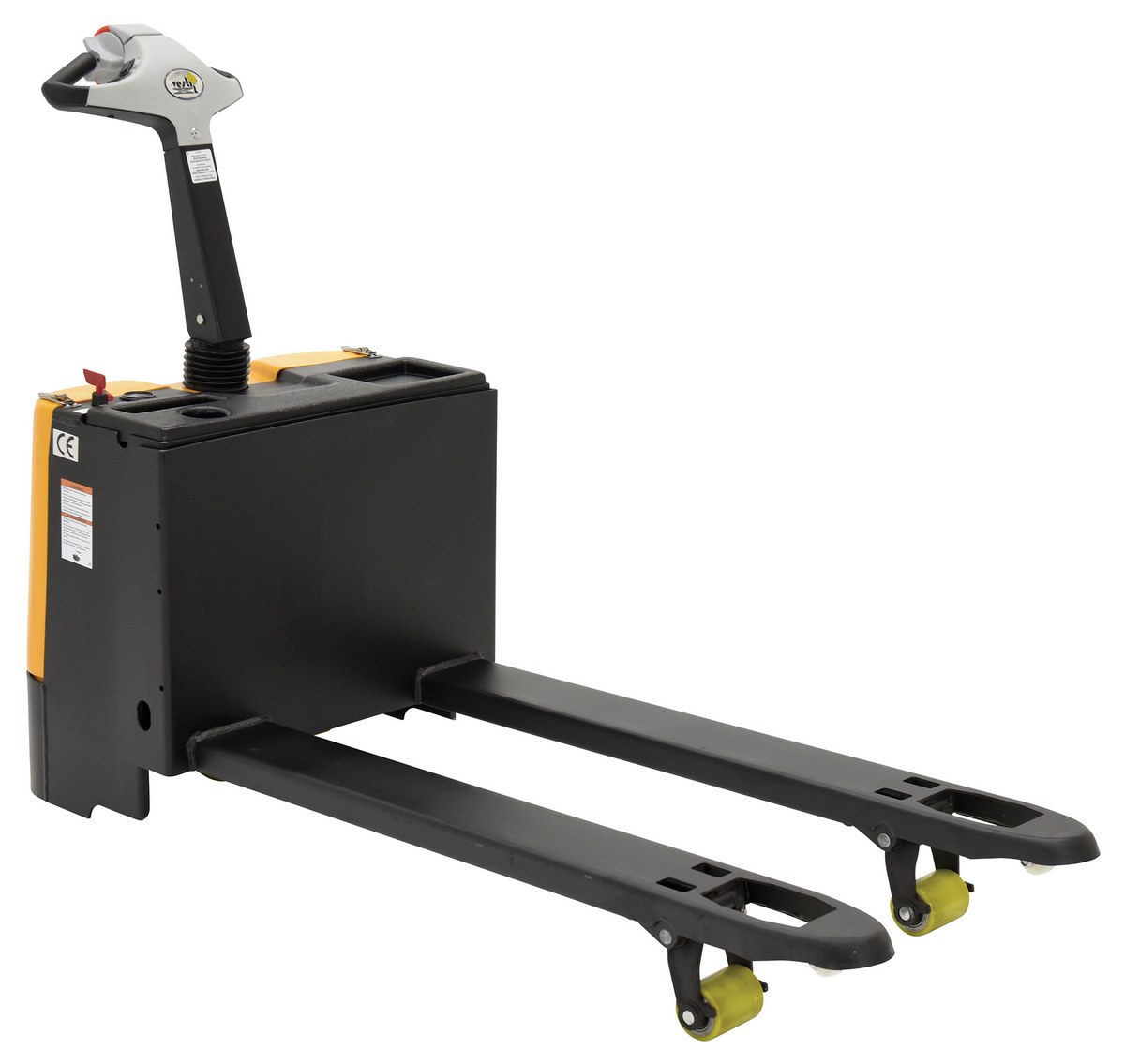

EPT-2547-30 | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck 25 In. x 48 In. 3,300 Lb. Capacity Black | Overall Fork Width (in.): 25 Overall Fork Length (in.): 48 | 700 | |||
EPT-2547-30-AGM | 1 Year Limited Warranty | Steel Electric Pallet Truck 25 In. x 47 In. 3,300 Lb. Capacity | Overall Fork Width (in.): 25 Overall Fork Length (in.): 48 | 636 | |||

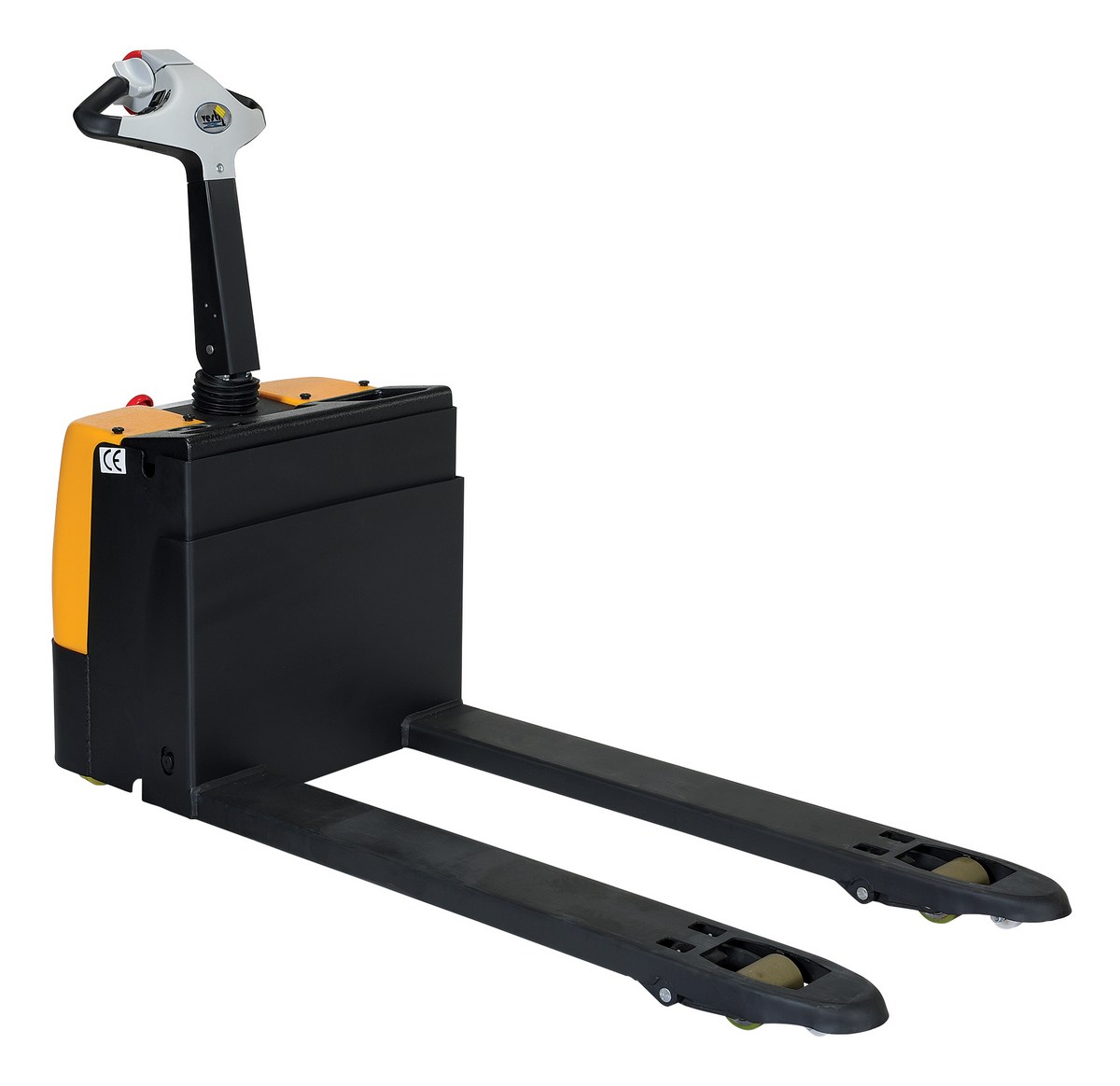

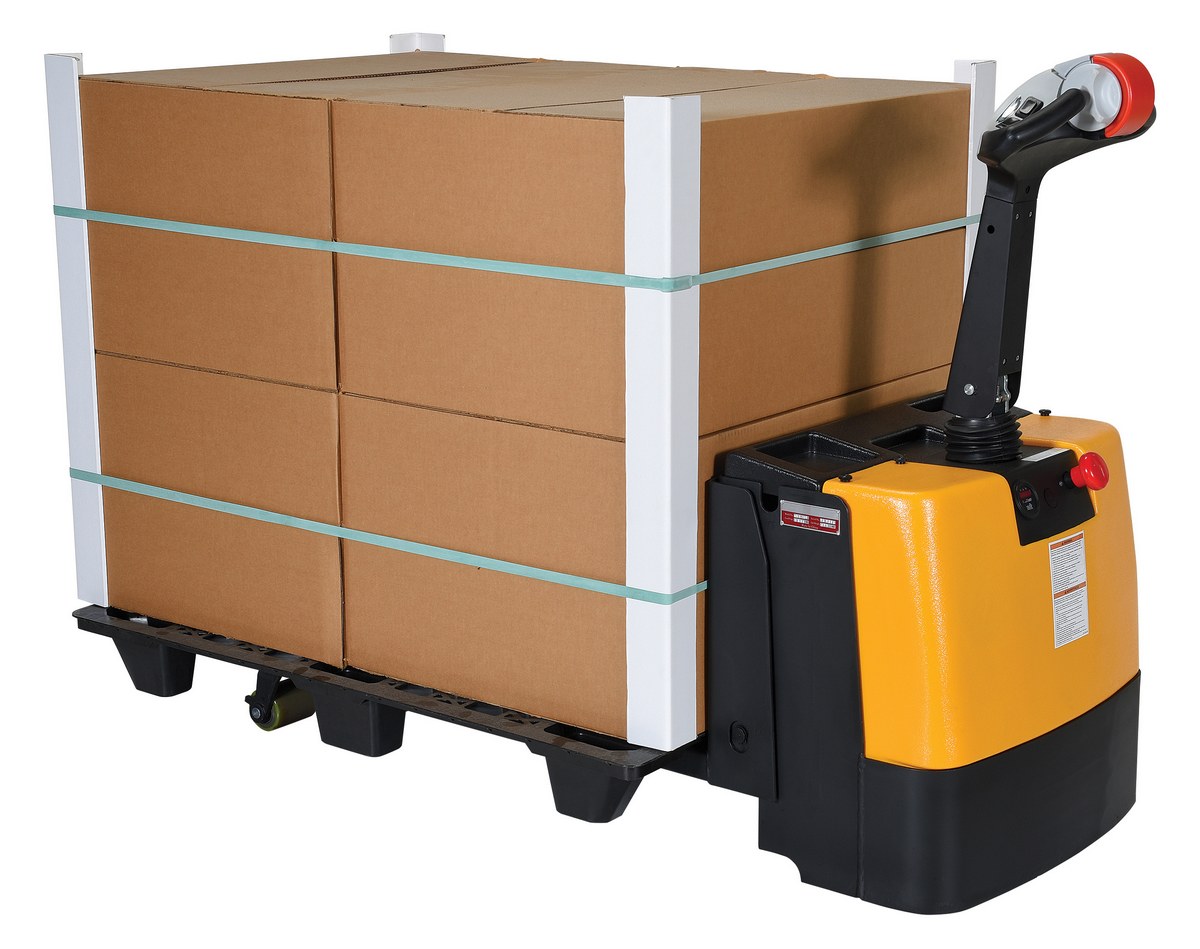

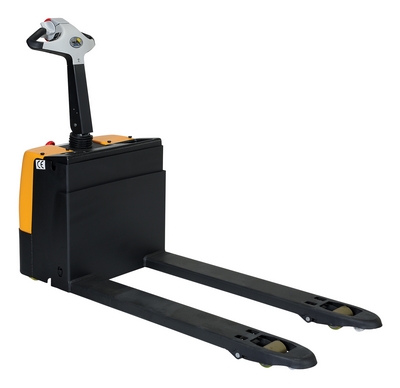

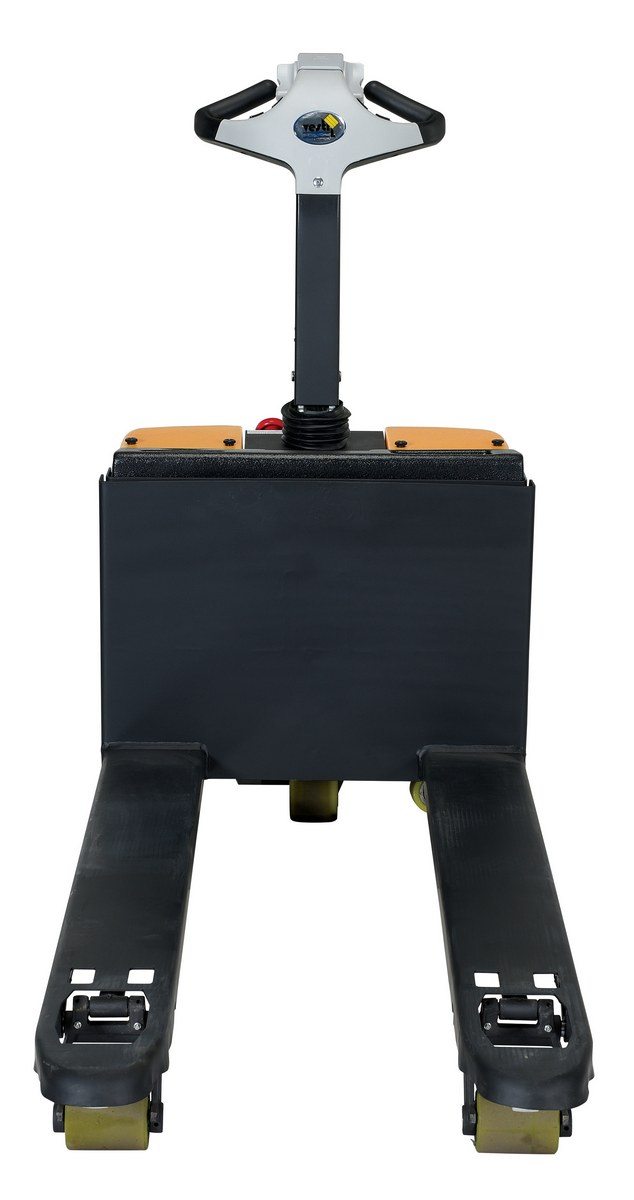

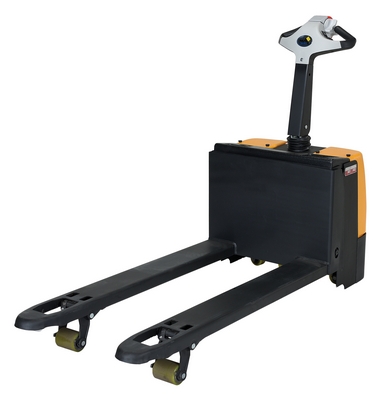

EPT-2547-30-E | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck with Lead Acid Batteries 25 In. x 47 In. 3000 Lb. Capacity Black | Overall Fork Width (in.): 25 Overall Fork Length (in.): 47 | 556 | |||
EPT-2748-45 | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck with Lead Acid Batteries 27 In. x 48 In. 4500 Lb. Capacity Black | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 1088 | |||
EPT-2748-45-AGM | 1 Year Limited Warranty | Steel Electric Pallet Truck with AGM Batteries 27 In. x 48 In. 4500 Lb. Capacity | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 992 | |||
EPT-2748-45-RP | 1 Year Limited Warranty | Steel Pallet Truck with Rider Platform 27 In. x 48 In. 4500 Lb. Capacity Black | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 874 | |||
EPT-2748-45-RP-AGM | 1 Year Limited Warranty | Steel Electric Pallet Truck with AGM Batteries and Rider Platform 27 In. x 48 In. 4500 Lb. Capacity | Overall Fork Width (in.): 27 Overall Fork Length (in.): 48 | 1076 | |||

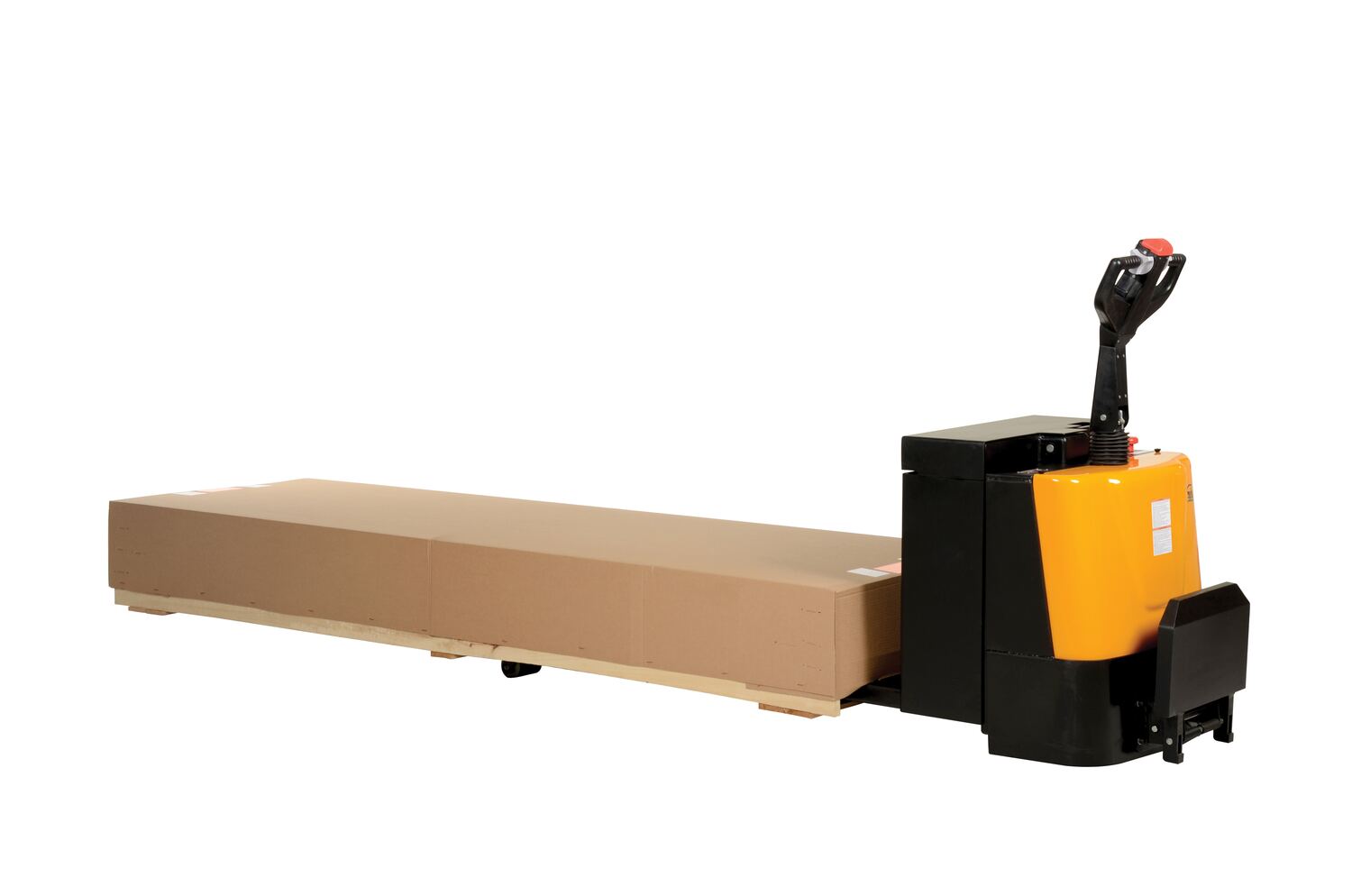

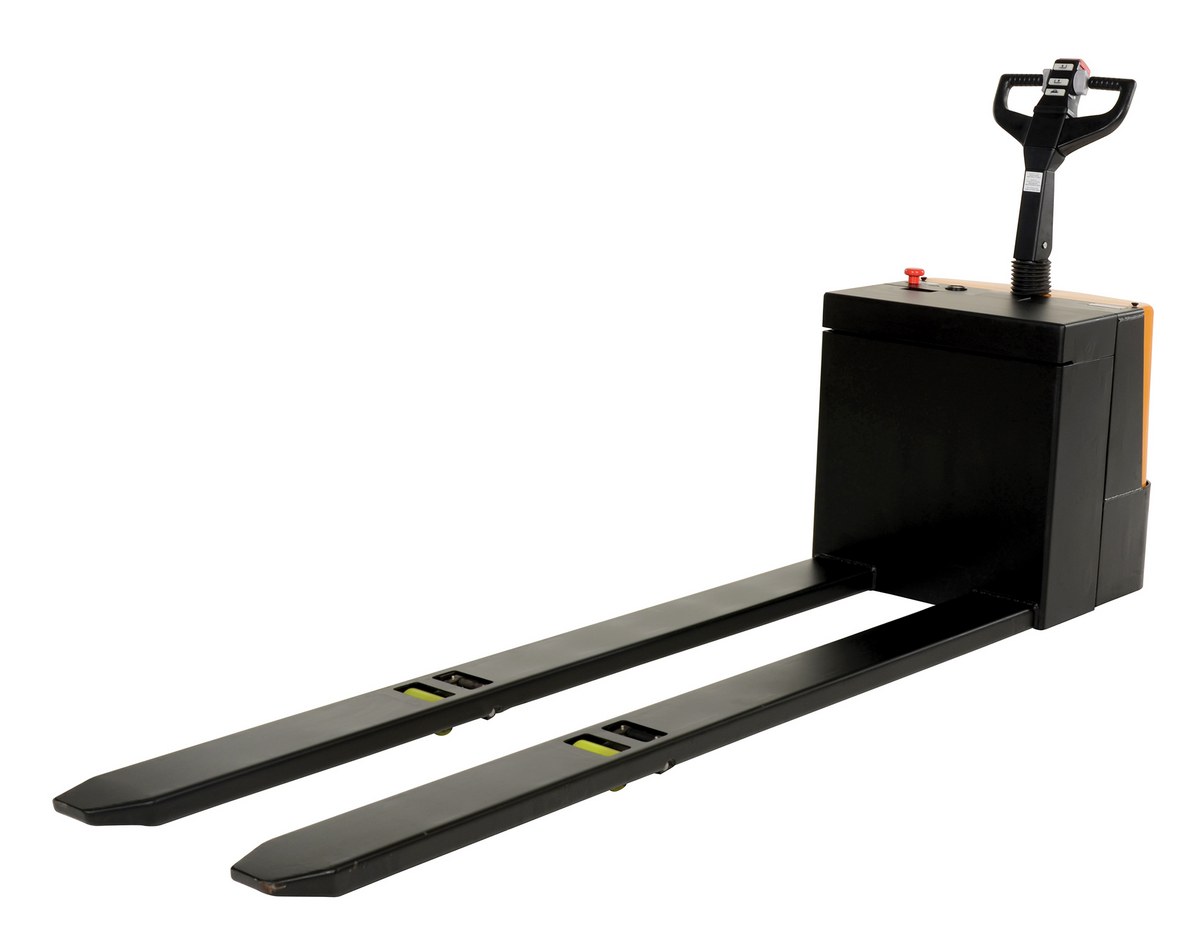

EPT-2796-45 | 1 Year Limited Warranty | Steel Fully Powered Electric Pallet Truck with Rider Platform 27 In. x 96 In. 4500 Lb. Capacity Black | Overall Fork Width (in.): 27 Overall Fork Length (in.): 96 | 872 | |||

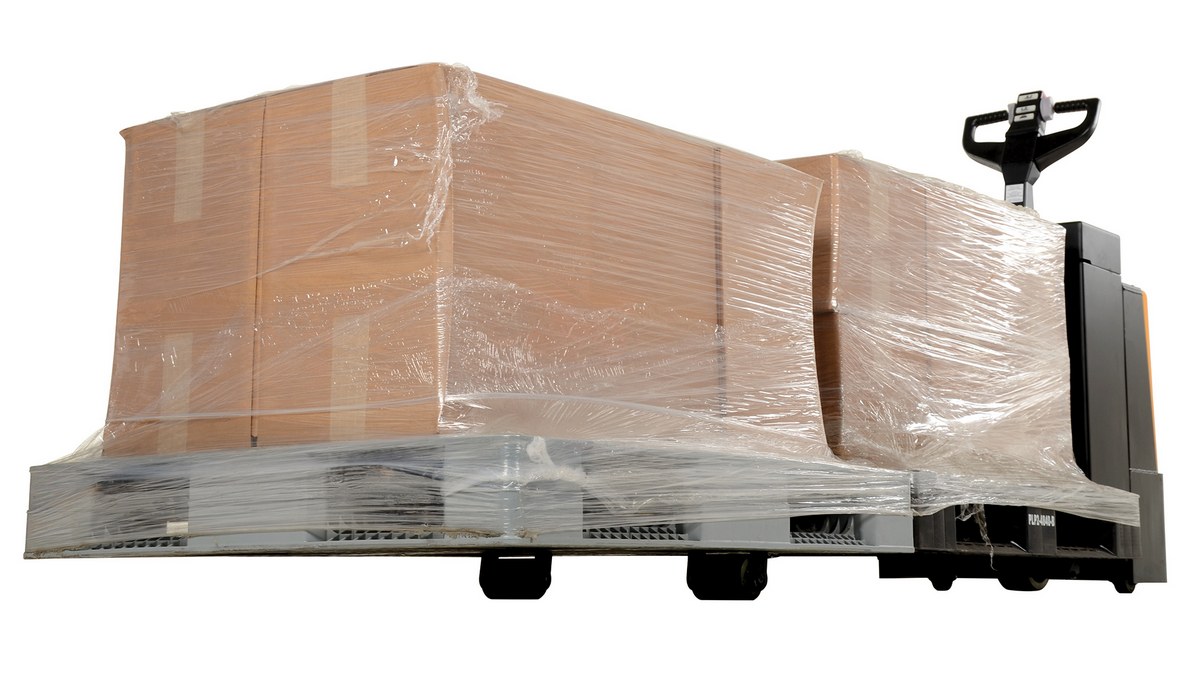

EPT-2796-45-AGM | 1 Year Limited Warranty | Steel Electric Pallet Truck with AGM Batteries 27 In. x 96 In. 4500 Lb. Capacity | Overall Fork Width (in.): 27 Overall Fork Length (in.): 96 | 1340 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

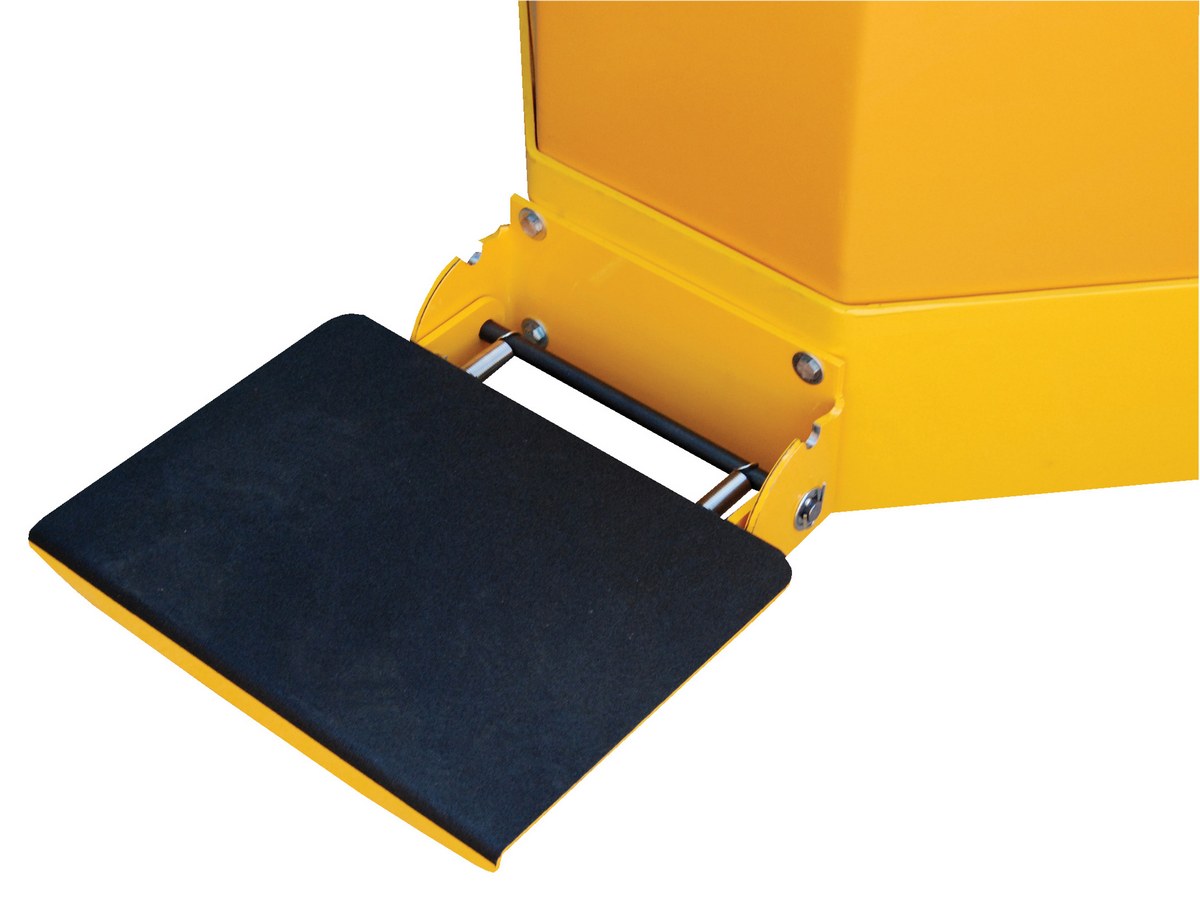

EPT-45-RP-KIT | 1 Year Limited Warranty | Steel Rider Platform Kit Field Installed For Electric Powered Trucks Black | Usable Length (in.): 11-7/8 Usable Width (in.): 16 | 20 |
.
A: The EPT-2047-30 is capable of lifting up to 2,500 lbs. at a 10 degree incline.
A: AMP rating is 220 AH
A: AMP rating is 75 AH
A: Dimension between the forks is 4.25".
A: Overall Fork Width (in.): 20
